CPU
|
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
|
|
Chipset
|
AMD B850
|
|
Memory
|
2x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Max: 128GB
|
|
BIOS
|
256Mb AMI UEFI Legal BIOS with GUI support
|
|
Graphics
|
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3, 1x USB 3.2 Gen2 Type-C (DP-alt mode supports DP1.4a)
|
|
Audio
|
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
|
|
LAN
|
Killer E3100G - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
|
|
Wireless LAN
|
802.11axe 2x2 Wi-Fi 6E Module, Bluetooth 5.2
|
|
Slots
|
1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
|
|
Storage
|
1x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, 1x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, 2x SATA3 6.0 Gb/s Connectors
|
|
USB
|
1x USB 3.2 Gen2 Type-C (Rear), 2x USB 3.2 Gen2 Type-A (Rear), 1x USB 3.2 Gen1 Type-C (Front), 3x USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6x USB 2.0 (4 Rear, 2 Front)
|
|
Rear Panel I/O
|
2x Antenna Ports, 1x HDMI Port, 1x Optical SPDIF Out Port, 2x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (DP-alt mode supports DP1.4a.), 1x USB 3.2 Gen1 Port, 4x USB 2.0 Ports, 1x RJ-45 LAN Port, 1x BIOS Flashback Button, 1x Line Out Jack (Gold Audio Jack), 1x Microphone Input Jack (Gold Audio Jack)
|
|
Accessories
|
2x SATA Data Cables, 2x ASRock WiFi 2.4/5/6 GHz Antennas, 2x Screws for M.2 Sockets, 1x Thermistor Cable
|
|
Form Factor
|
Mini-ITX Form Factor: 17.0 cm x 17.0 cm
|
|
Certifications
|
FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
|
Denmark's wildest electronics webshop is now available in Sweden

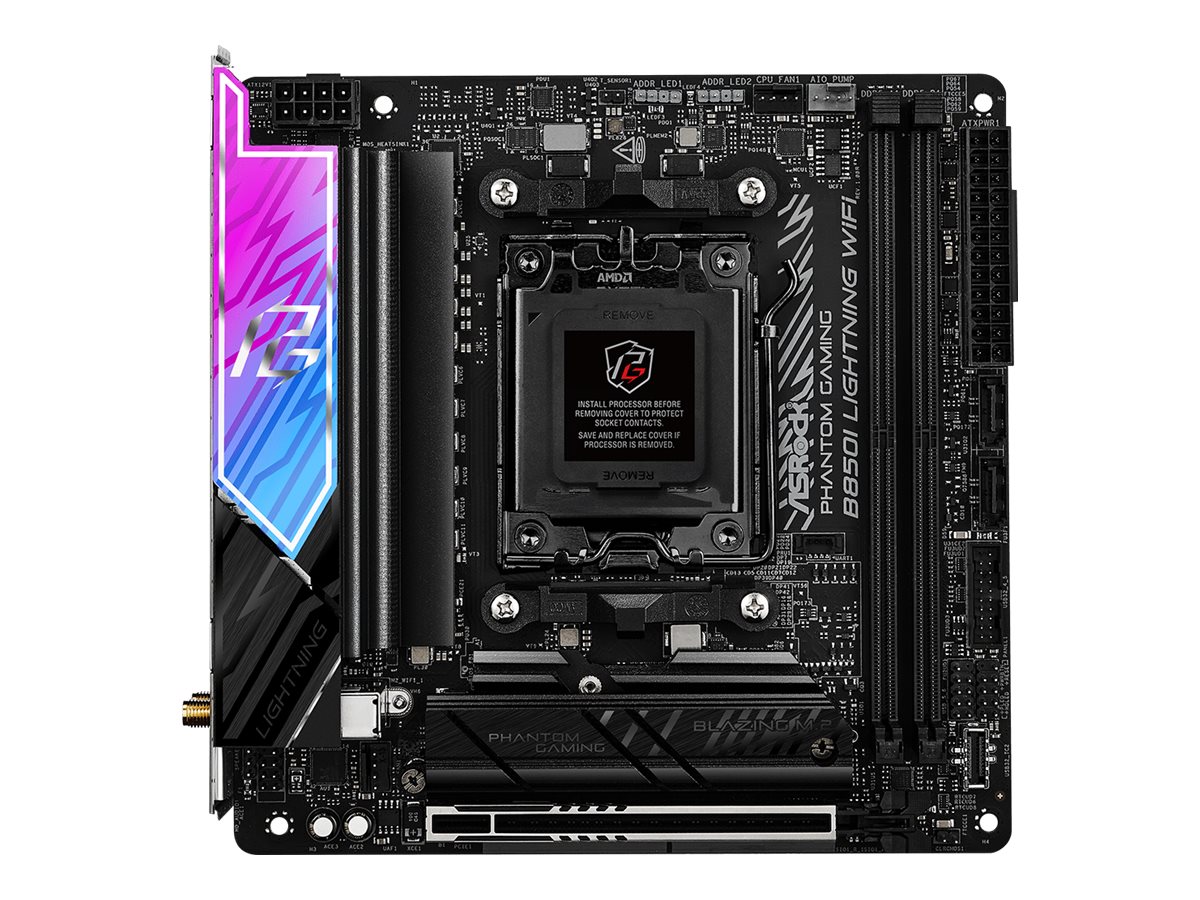

ASRock B850I Lightning WiFi mITX AM5
ASRock B850I Lightning WiFi - mITX - Socket AM5 - WiFi 6E - Dual channel DDR5 - HDMI 2.1 - USB-C (DP-alt mode 1.4a) - Killer E3100G
Product no:
1002936287
Model:
90-MXBQR-A0UAYZ
EAN:
4711581490130
Brand:
Weight:
1.11 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
