Product no 995165698
Model AK-B1-700BE
Brand Akyga
EAN 5901720135797
Weight 1.26 kg

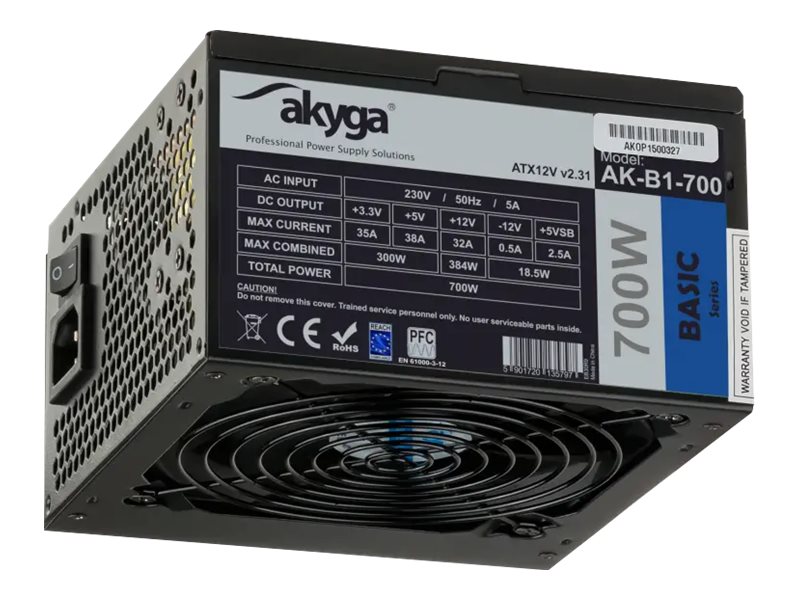

Produktbeskrivelse | Akyga Basic Series AK-B1-700BE - strømforsyning - 700 Watt |
Enhedstype | Strømforsyning - Power Factor Correction (PFC) - intern |
Specifikationsoverensstemmelse | ATX12V 2.31 |
Vægt | 1.26 kg |
Indgangspænding | AC 230 V |
Udgangspænding | +3.3, +5, ±12 V |
Strømkapacitet | 700 Watt |
Output Current | +3.3V - 35 A<br>+5V - 38 A<br>+12V - 32 A<br>-12V - 0.5 A<br>+5VSB - 2.5 A |
Output-stikforbindelser | 1 x strøm 24 pin ATX<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>5 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x 6 pin PCI Express-strøm<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion |
Kølesystem | 120 mm ventilator |
Farve | Sort |
Dimensioner (B x D x H) | 15 cm x 16 cm x 8.5 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Color | Black |
Device Type | Power supply - Power Factor Correction (PFC) - internal |
PSU Form Factor | ATX |
Specification Compliance | ATX12V 2.31 |
Power Device | |
Frequency Required | 50 Hz |
Input Voltage | AC 230 V |
Output Current | +3.3V - 35 A | +5V - 38 A | +12V - 32 A | -12V - 0.5 A | +5VSB - 2.5 A |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 700 Watt |
Power Output Connectors Details | 1 x power 24 pin ATX | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 5 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 6 pin PCI Express power | 1 x 8 pin PCI Express power with detachable 2 |
Miscellaneous | |
Compliant Standards | RoHS, REACH |
Cooling System | 120 mm fan |
Features | EcoBox package, overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection |
MTBF | 100,000 hours |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | 5 °C |
Dimensions & Weight | |
Depth | 16 cm |
Height | 8.5 cm |
Weight | 1.26 kg |
Width | 15 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 26 cm |
Shipping Height | 9.5 cm |
Shipping Weight | 1.33 kg |
Shipping Width | 18 cm |
