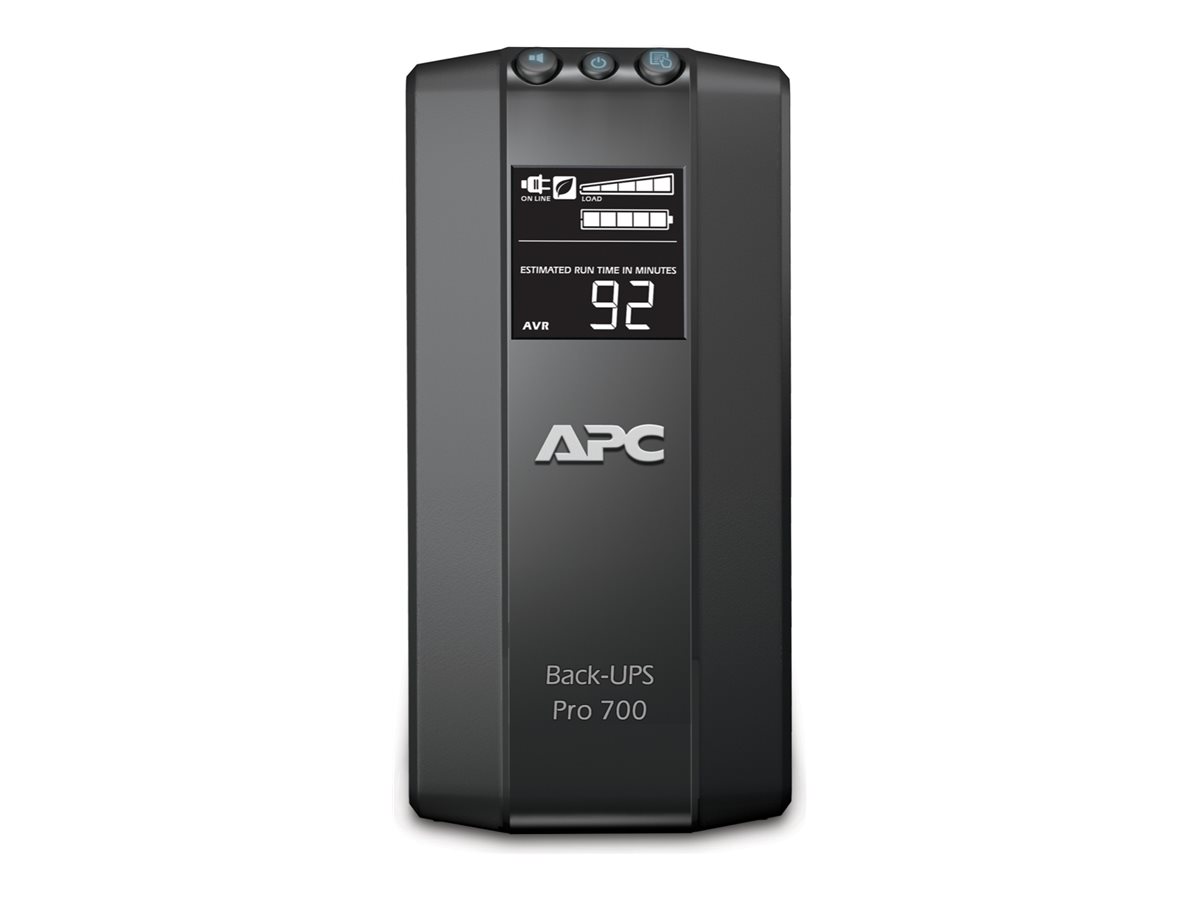

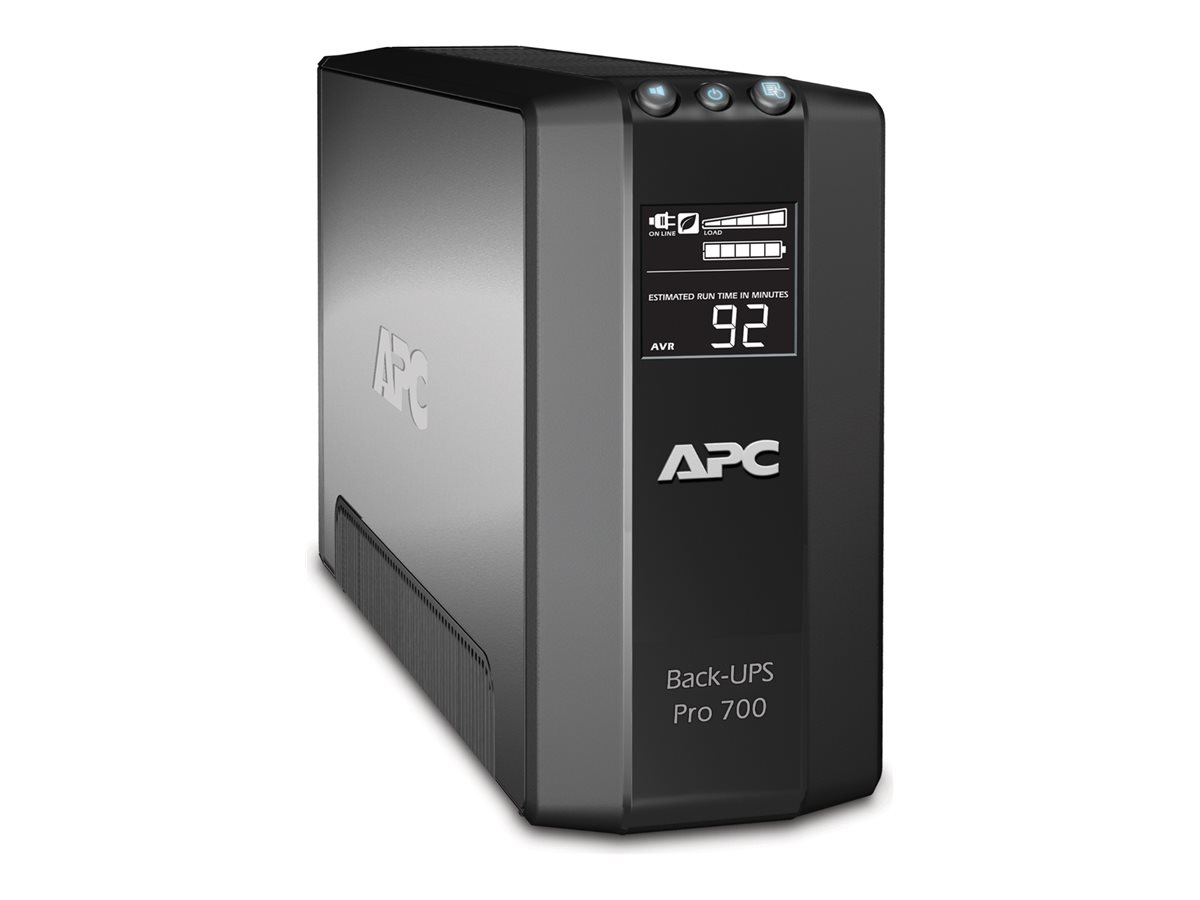

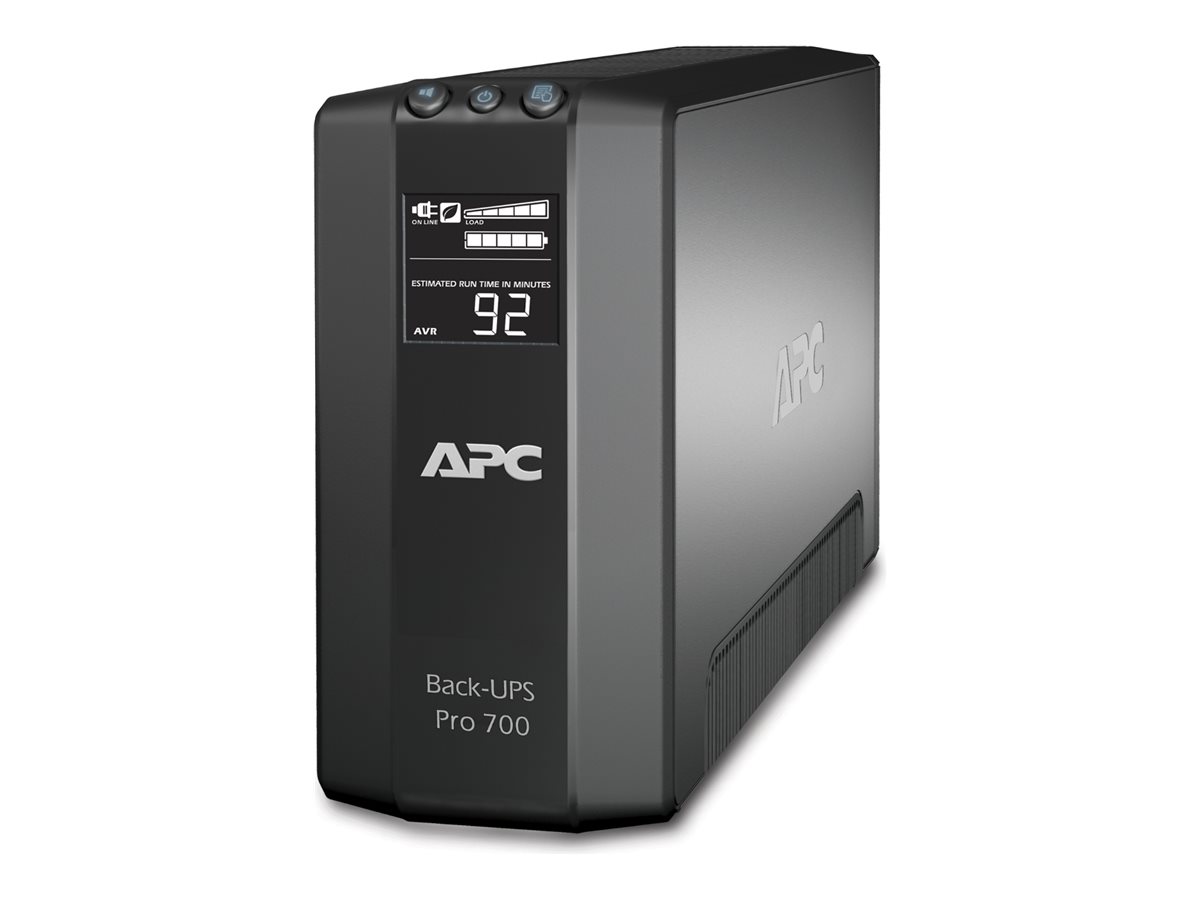

APC Back-UPS RS LCD 700 Master Control UPS 420Watt 700VA
APC Back-UPS RS LCD 700 Master Control - UPS - AC 120 V - 420 Watt - 700 VA - USB - output-stikforbindelser: 6 - sort - for P/N: AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112SH4, AR112SH6, SCL500RM1UNC
2 673,00SEK2 138,40SEK excl. VAT
-
Product no 989537572
Model BR700G
Brand APC
EAN 0731304266792
Weight 7.97 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Back-UPS RS LCD 700 Master Control - UPS - 420 Watt - 700 VA |
| Enhedstype | UPS - ekstern |
| Vægt | 7.15 kg |
| Indgangspænding | AC 120 V |
| Udgangspænding | AC 120 V |
| Strømkapacitet | 420 Watt / 700 VA |
| Input-stik | 1 |
| Output-stikforbindelser | 3 x effekt NEMA 5-15 (overspænding)<br>3 x effekt NEMA 5-15 (UPS og overspænding) |
| Batteri | Blysyre |
| Batteri formfaktor | Intern |
| Antal batterier | 1 |
| Driftstid (op til) | 3.4 min ved fuld belastning |
| Netværk | USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 9.1 cm x 31 cm x 19 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 3 års garanti |
| Designet for | P/N: ACF600, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC |
| General | |
|---|---|
| Battery Enclosure Type | Internal |
| Color | Black |
| Device Type | UPS - external |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network/phone line - RJ-45 | Cable TV/satellite/antenna - F connector |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 143 V |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Stepped approximation to a sinewave |
| Power Capacity | 420 Watt / 700 VA |

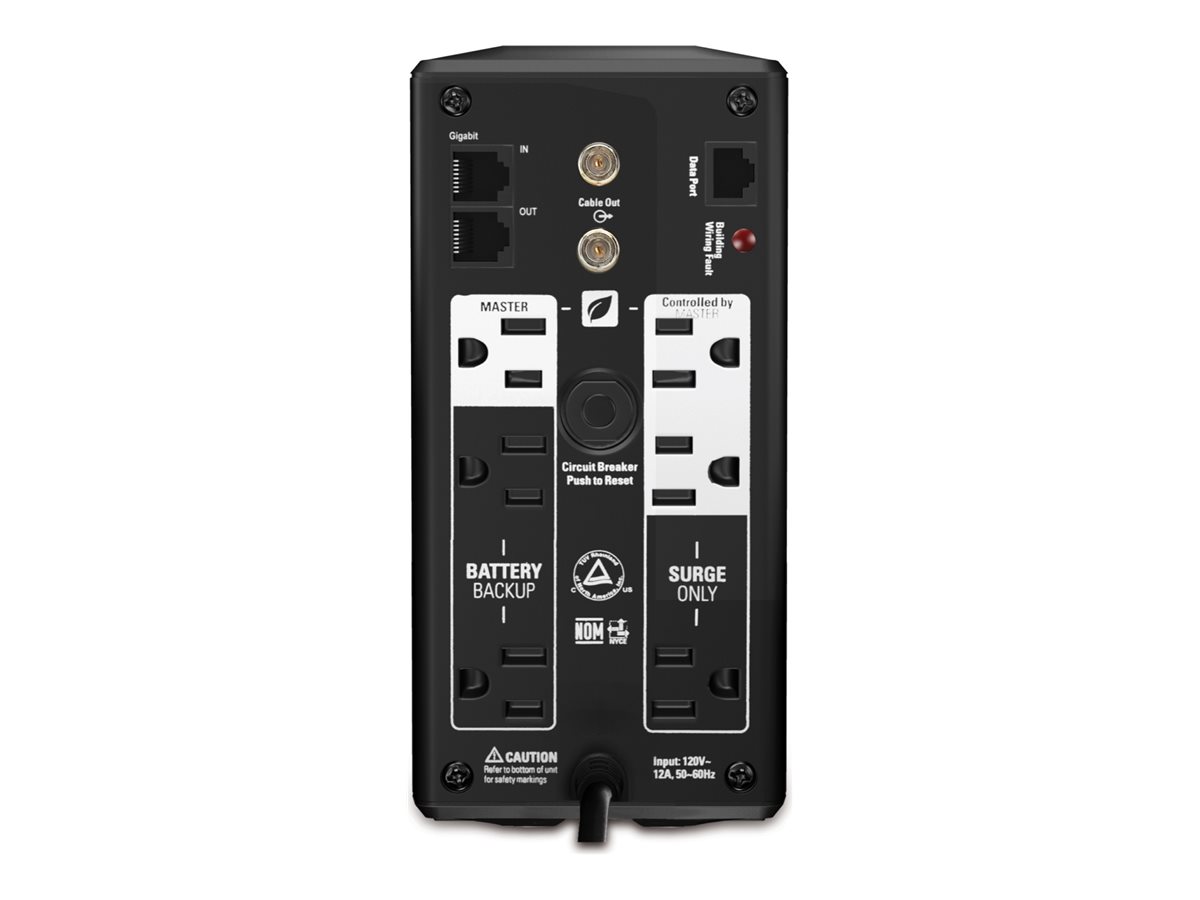

| Power Output Connectors Details | 3 x power NEMA 5-15 (surge) | 3 x power NEMA 5-15 (UPS and surge) |
| Surge Energy Rating | 354 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Quantity | 1 |
| Recharge Time | 12 hours |
| Run Time (Up To) | 3.4 min at full load |
| Technology | Lead acid |
| Transfer Time | 8 ms |
| Networking | |
| Remote Management Interface | USB |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 1.83 m | USB cable - external |
| Compliant Standards | TUV, NOM, UL 1778, FCC Part 15 B, RoHS, REACH |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR) |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Dimensions & Weight | |
| Depth | 31 cm |
| Height | 19 cm |
| Weight | 7.15 kg |
| Width | 9.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 44.2 cm |
| Shipping Height | 25.2 cm |
| Shipping Weight | 8 kg |
| Shipping Width | 13.8 cm |
| Compatibility Information | |
| Designed For | P/N: ACF600, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR8213, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC |
