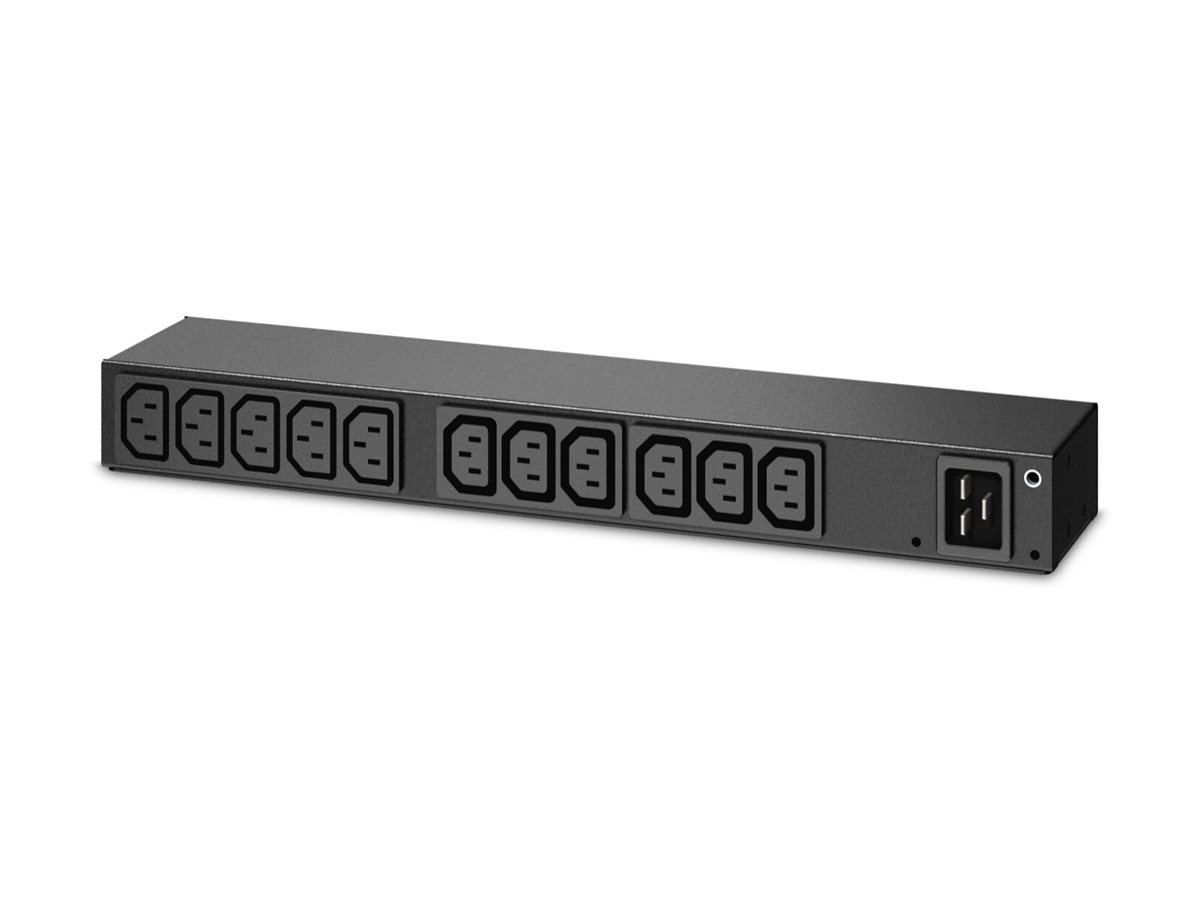

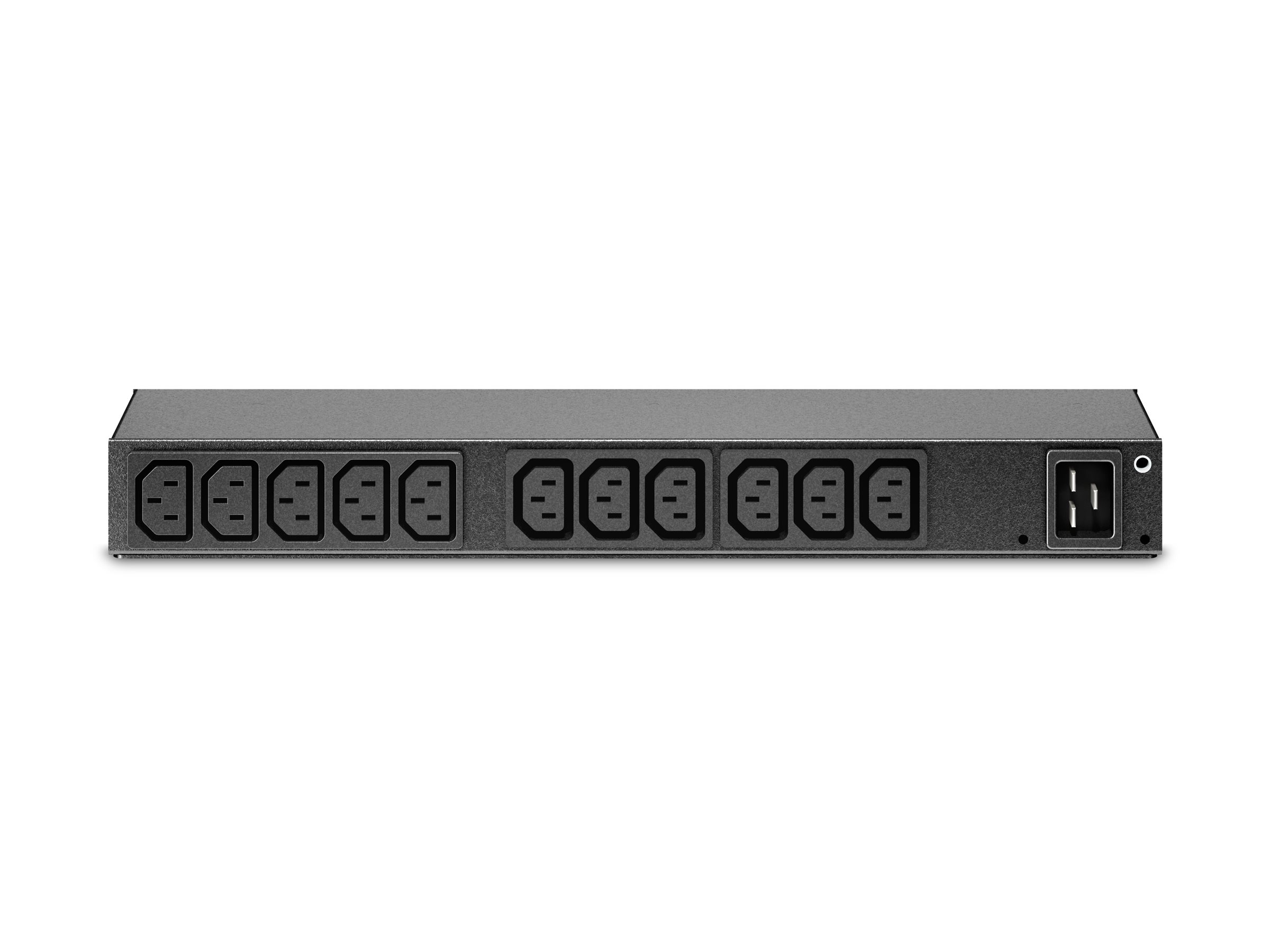

APC Basic Rack PDU AP6020A Strømfordelingsenhed 13-stik 20A
APC Basic Rack PDU AP6020A - Strømfordelingsenhed (rackversion) - AC 100-240 V - input: IEC 60320 C20 - output-stikforbindelser: 13 (power IEC 60320 C13) - for P/N: SMTL1000RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC
1 238,00SEK990,40SEK excl. VAT
-
Product no 992503913
Model AP6020A
Brand APC
EAN 0731304327806
Weight 1.82 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Basic Rack PDU AP6020A - strømfordelingsenhed |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Vægt | 1.5 kg |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | AC 100-240 V + 6% / - 10% |
| Input-stik | 1 x strøm IEC 60320 C20 |
| Output-stikforbindelser | 13 x power IEC 60320 C13 |
| Dimensioner (B x D x H) | 4.36 cm x 9.29 cm x 38.81 cm |
| Designet for | P/N: AR3103SP, AR3106SP, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMT3000I-AR, SMT3000R2I-AR, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT5KRMXLW-TW |
| General | |
|---|---|
| Device Type | Power distribution unit - rack-mountable |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 100-240 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 100-240 V + 6% / - 10% |
| Power Output Connectors Details | 13 x power IEC 60320 C13 |
| Miscellaneous | |
| Compliant Standards | UL, VDE, RoHS 2011/65/EU |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Dimensions & Weight | |
| Depth | 9.29 cm |
| Height | 38.81 cm |
| Weight | 1.5 kg |
| Width | 4.36 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 7.59 cm |
| Shipping Height | 43.61 cm |
| Shipping Weight | 2 kg |
| Shipping Width | 21.03 cm |
| Compatibility Information | |
| Designed For | P/N: AP7950B, AR3103SP, AR3105W, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX43 |
