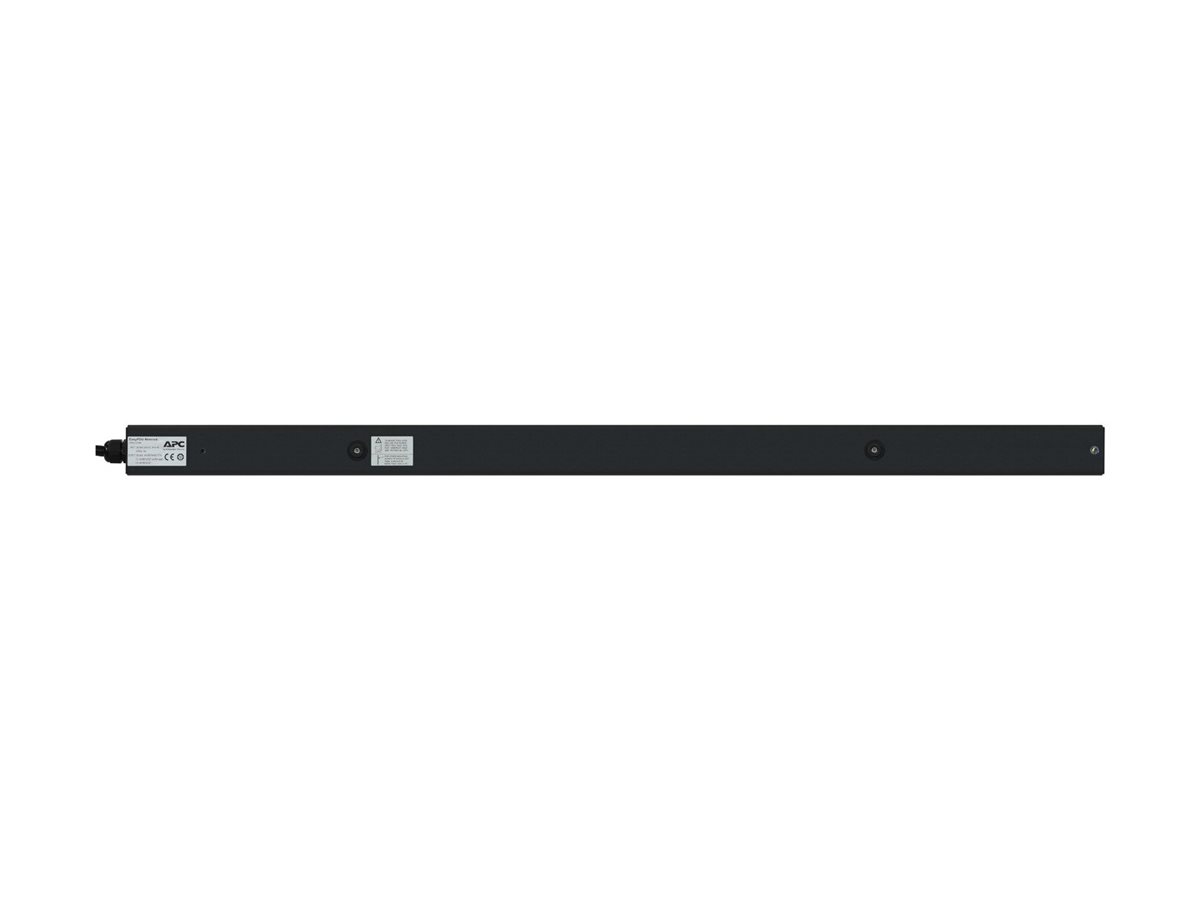

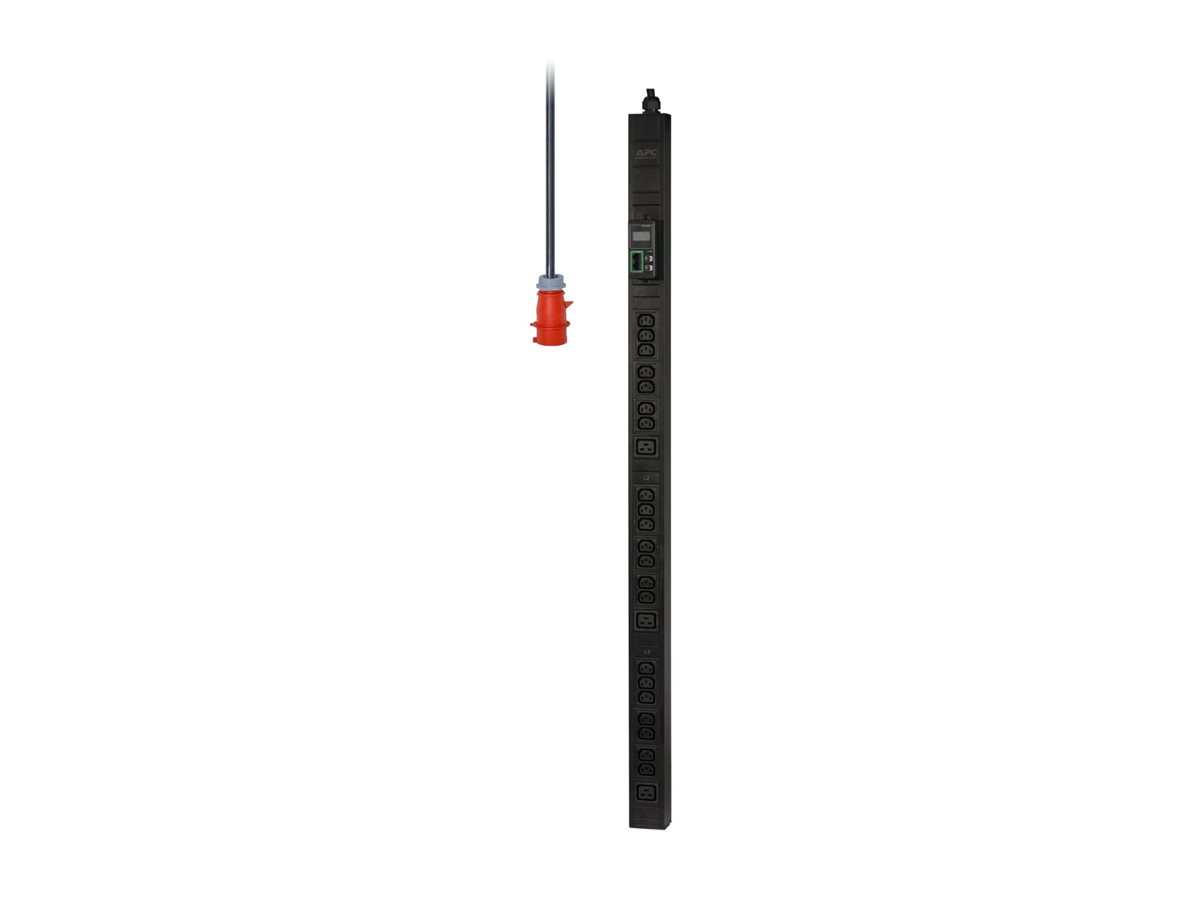

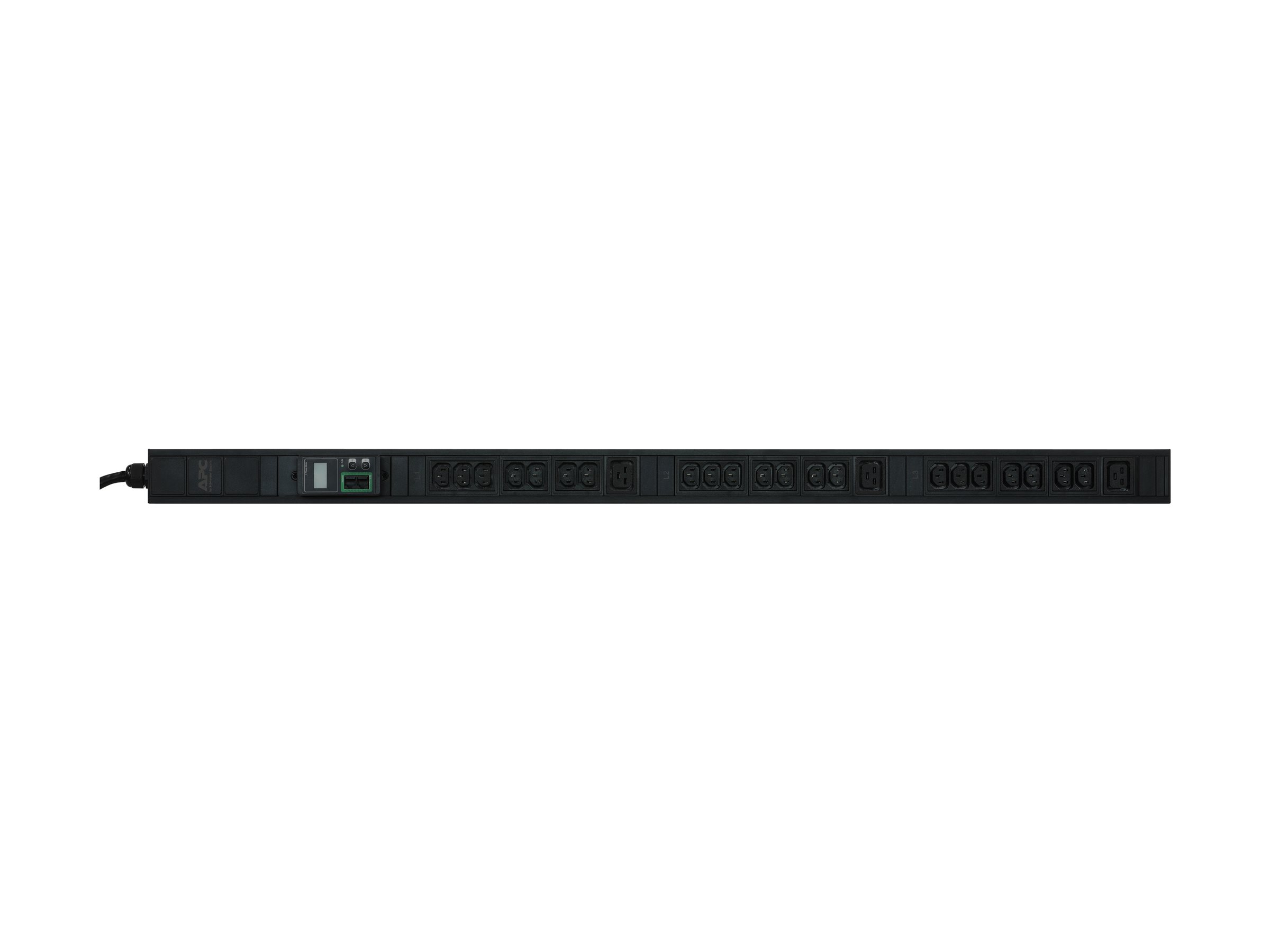

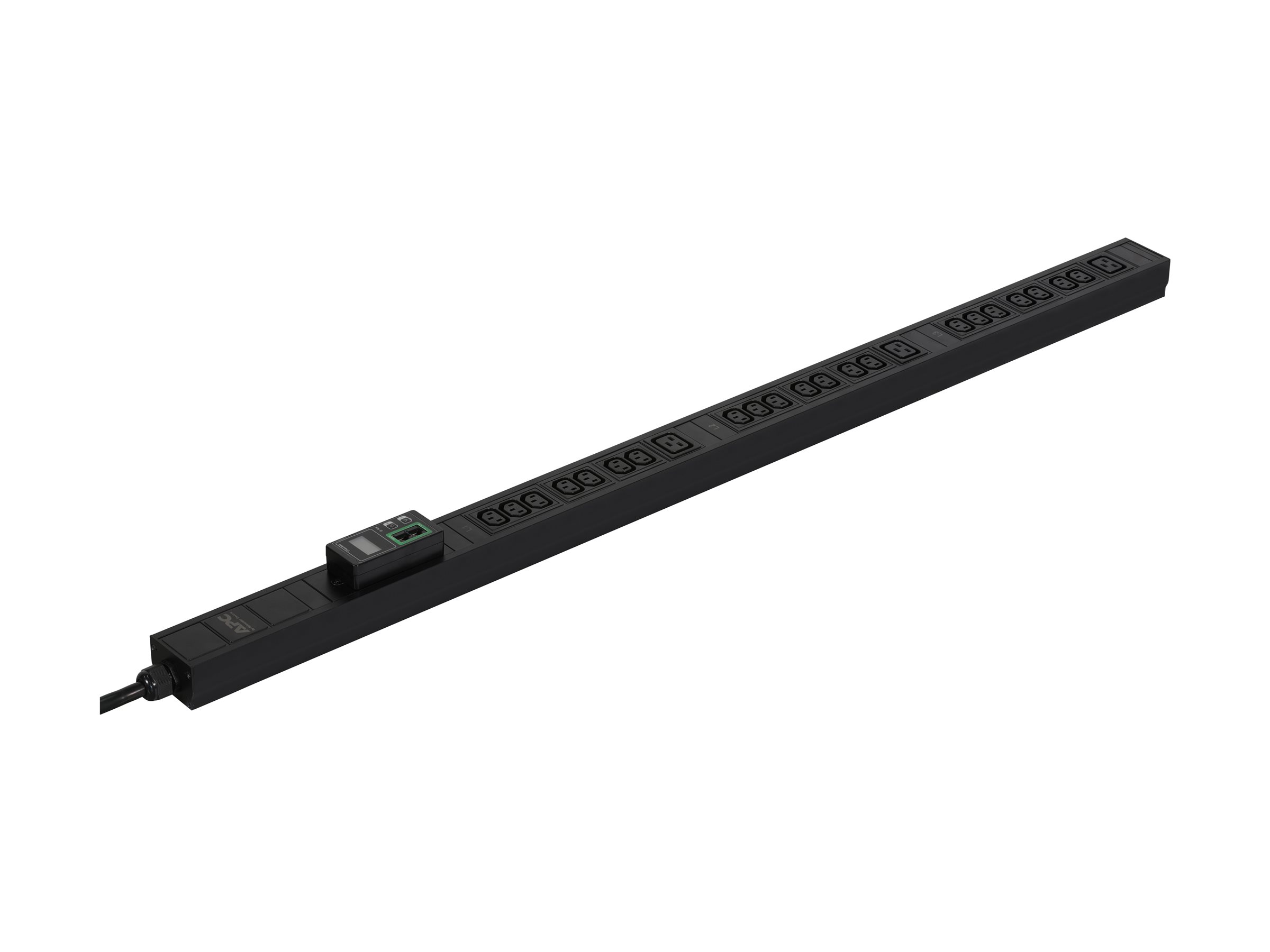

APC Easy Metered Rack PDU EPDU1216M Strømfordelingsenhed 24-stik 16A Sort 1.98m
APC Easy Metered Rack PDU EPDU1216M - Strømfordelingsenhed (rackversion) - AC 400 V - 11000 VA - tre faser - Ethernet - input: IEC 60309 3P+N+PE - output-stikforbindelser: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) - 0U - 1.98 m ledning - sort - for P/N: SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS
10 994,00 SEK
8 795,20 SEK excl. VAT
-
Product no 996063159
Model EPDU1216M
Brand APC
EAN 0731304405108
Weight 3.62 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Easy Metered Rack PDU EPDU1216M - strømfordelingsenhed - 11000 VA |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Ledningslængde | 1.98 m |
| Rackstørrelse | 0U |
| Vægt | 2.74 kg |
| Indgangskabler | Tre faser |
| Indgangspænding | AC 400 V |
| Udgangspænding | AC 230 V |
| Strømkapacitet | 11000 VA |
| Input-stik | 1 x strøm IEC 60309 3P+N+PE |
| Output-stikforbindelser | 21 x power IEC 60320 C13<br>3 x strøm IEC 60320 C19 |
| Netværk | Ethernet |
| Protokol til fjernadministration | SNMP, Telnet, HTTP |
| Udstyr inkluderet | Monteringsbeslag |
| Farve | Sort |
| Dimensioner (B x D x H) | 6.2 cm x 4.4 cm x 117.5 cm |
| Producentgaranti | 1 års garanti |
| Designet for | P/N: SMT2200RM2UC, SMT3000RM2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT1500RMXLA-NC, SRT5KRMXLTUS, SYAF8KRMTX424 |
| General | |
|---|---|
| Color | Black |
| Cord Length | 1.98 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+N+PE |
| Input Voltage | AC 400 V |
| Input Wiring | 3-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 230 V |
| Power Capacity | 11000 VA |
| Power Output Connectors Details | 21 x power IEC 60320 C13 | 3 x power IEC 60320 C19 |
| Networking | |
| Remote Management Interface | Ethernet |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x sensor |
| Miscellaneous | |
| Cables Included | Power cable 1.98 m |
| Compliant Standards | TUV, RoHS, REACH, EAC, RCM |
| Features | LCD display, current meter, firmware upgradable |
| Included Accessories | Mounting bracket |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 4.4 cm |
| Height | 117.5 cm |
| Weight | 2.74 kg |
| Width | 6.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 11 cm |
| Shipping Height | 132 cm |
| Shipping Weight | 3.26 kg |
| Shipping Width | 16 cm |
