Product no 994819630
Model SMV750CAI
Brand APC
EAN 0731304346562
Weight 15.4 kg

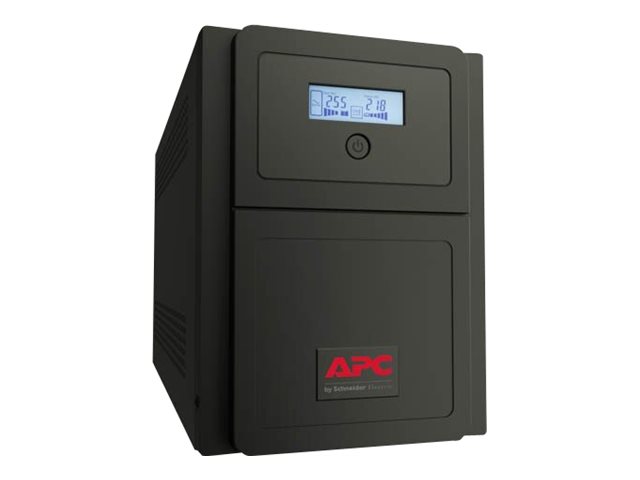

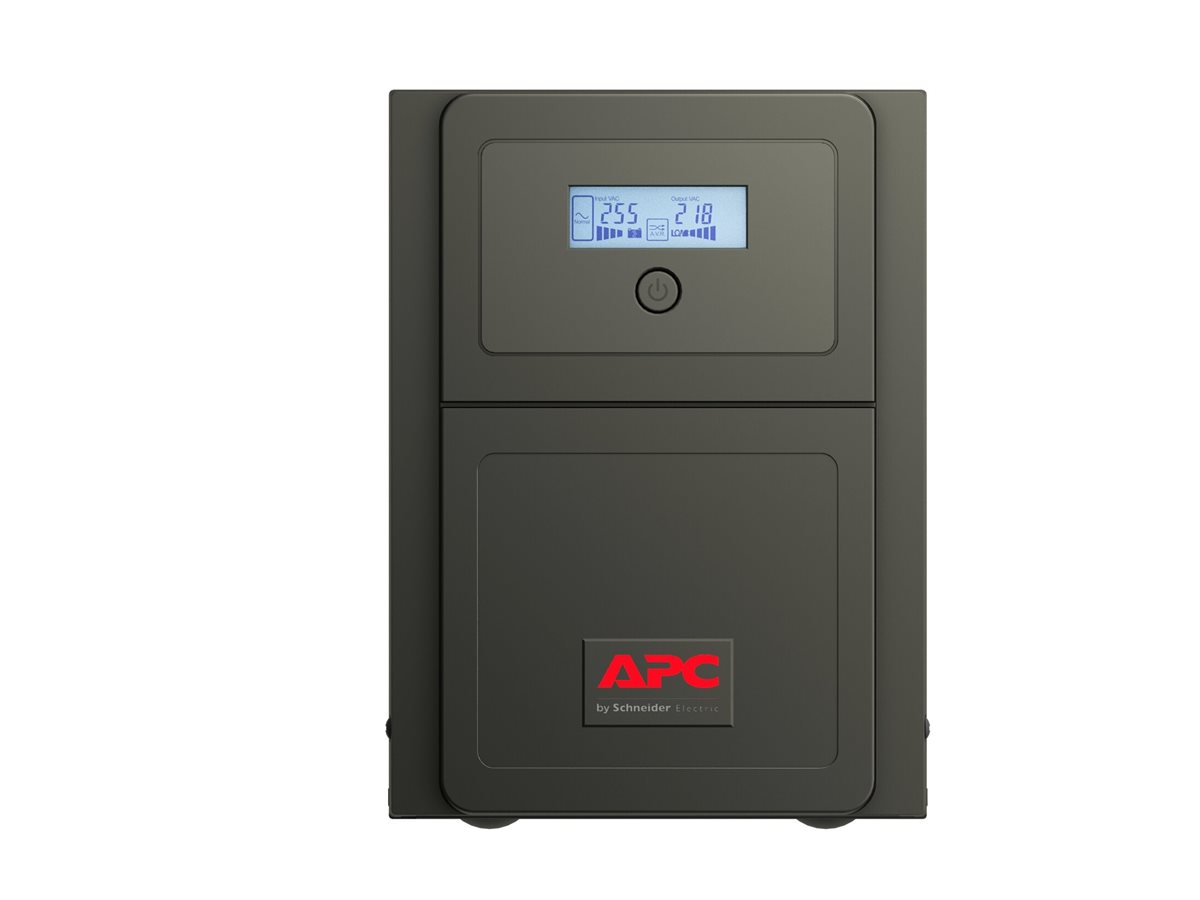

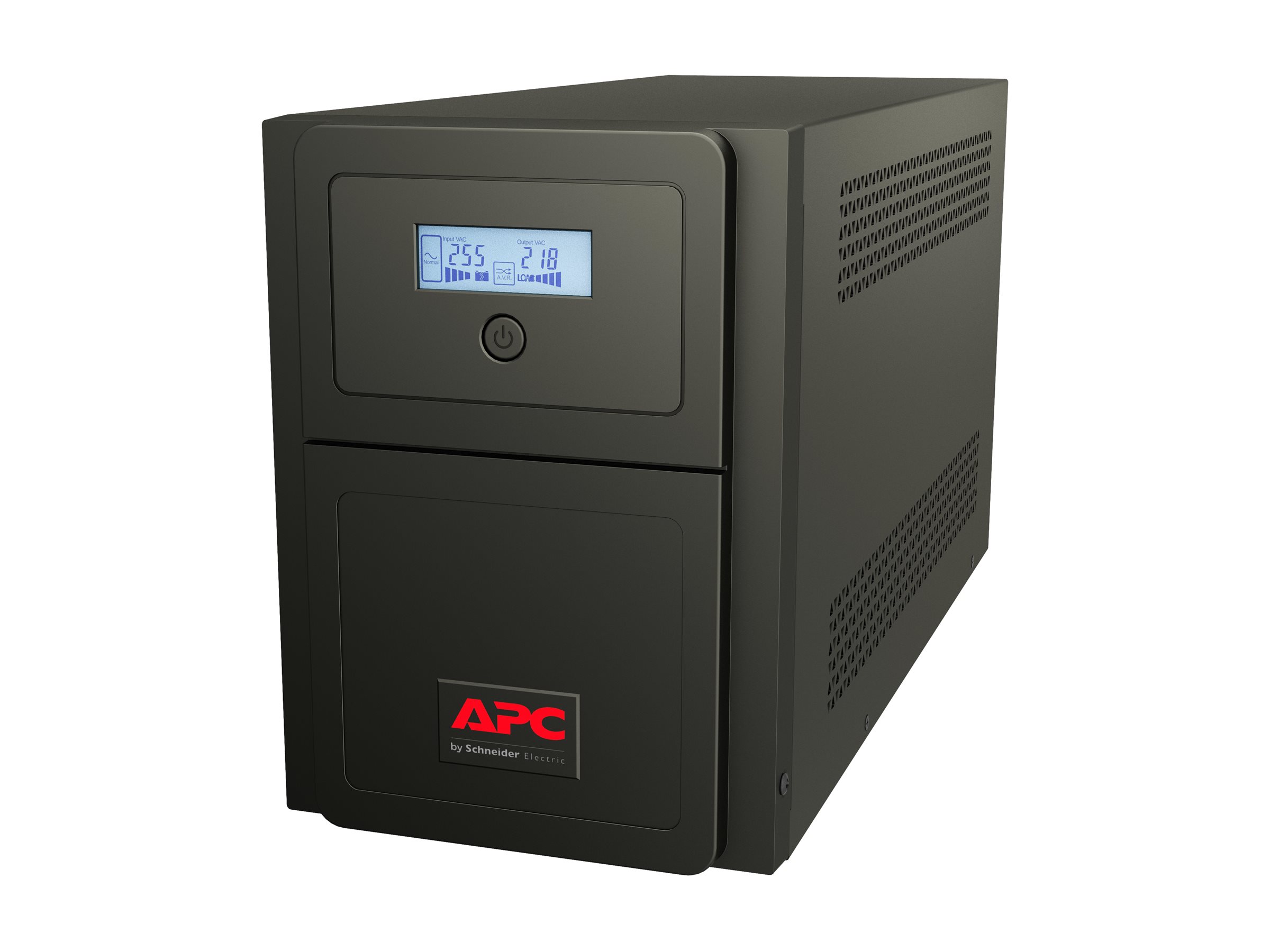

Produktbeskrivelse | APC Easy UPS SMV SMV750CAI - UPS - 525 Watt - 750 VA |
Enhedstype | UPS - ekstern |
Vægt | 13.6 kg |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 230 V |
Strømkapacitet | 525 Watt / 750 VA |

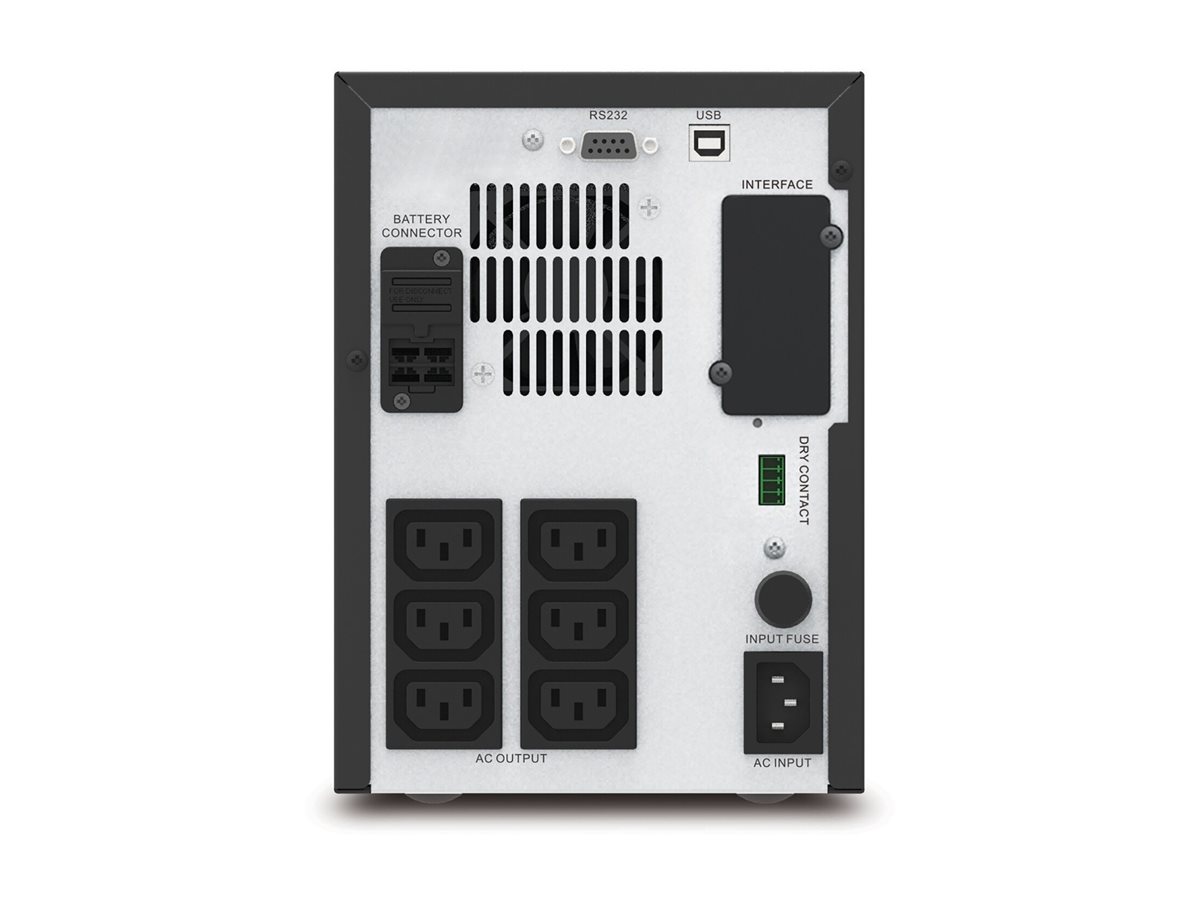

Input-stik | 1 x strøm IEC 60320 C14 |
Output-stikforbindelser | 6 x power IEC 60320 C13 |
Batteri | Blysyre - 7 At |
Antal batterier | 2 |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 16 cm x 41 cm x 22 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Circuit Protection | Fuse |
Frequency Provided | 50/60 Hz ± 1Hz |
Frequency Required | 45 - 65 Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 - 295 V |
Output Voltage | AC 230 V 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 525 Watt / 750 VA |
Power Output Connectors Details | 6 x power IEC 60320 C13 |
UPS Technology | Line interactive |
Battery | |
Capacity | 7 Ah |
Features | Maintenance free, sealed, leak-proof |
Quantity | 2 |
Recharge Time | 4 hours |
Technology | Lead acid |
Transfer Time | 2 ms |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Interfaces | 1 x management (USB) - 4 pin USB Type B | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
Miscellaneous | |
Cables Included | 2 x power cable - external | USB cable - external |
Compliant Standards | IP20 |
Features | LCD display |
Software / System Requirements | |
Software Included | APC Easy Ups Online SNMP Shutdown Wizard |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dBA |
Dimensions & Weight | |
Depth | 41 cm |
Height | 22 cm |
Weight | 13.6 kg |
Width | 16 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 50.8 cm |
Shipping Height | 33.9 cm |
Shipping Weight | 16.6 kg |
Shipping Width | 27.2 cm |
