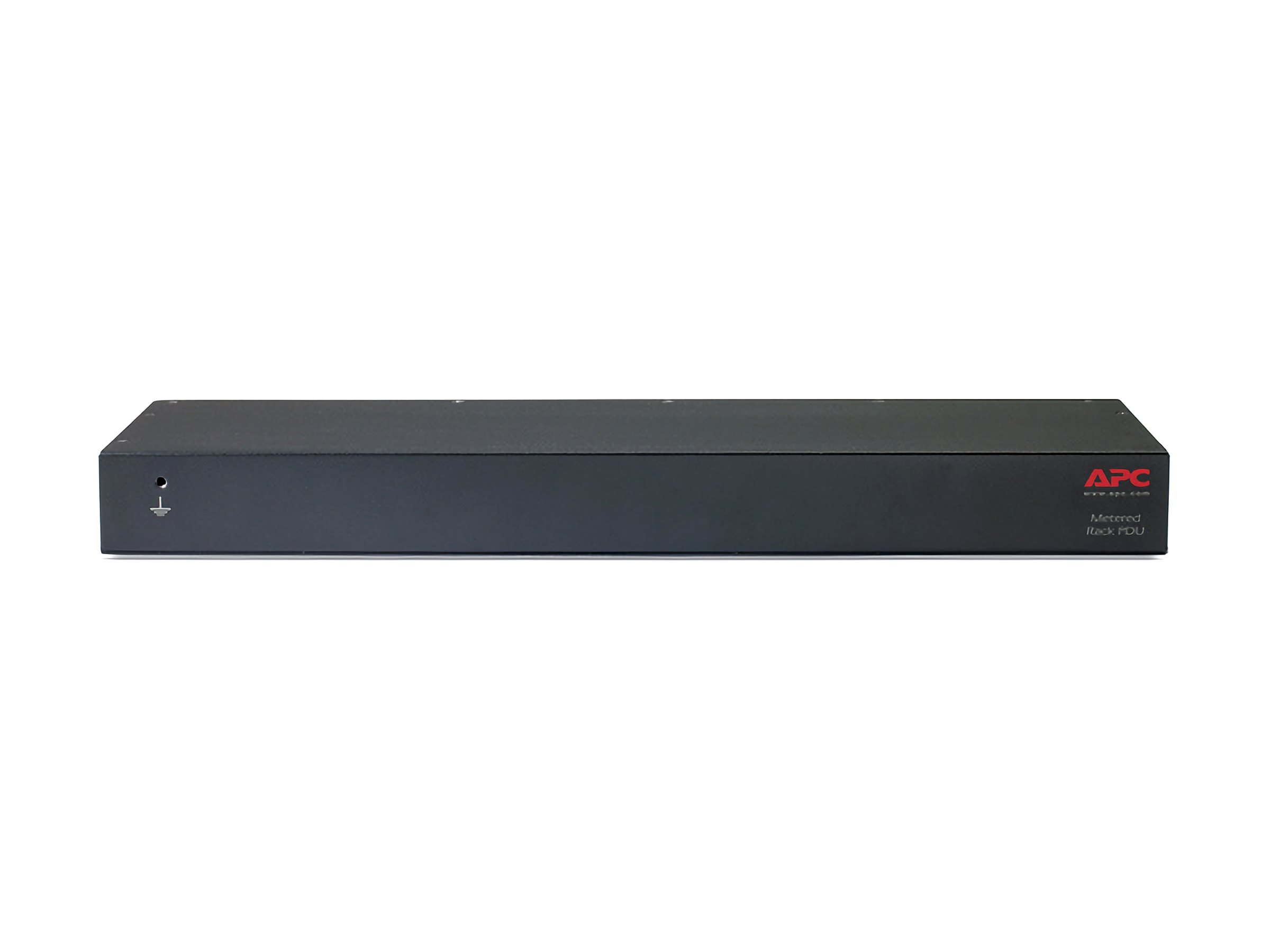

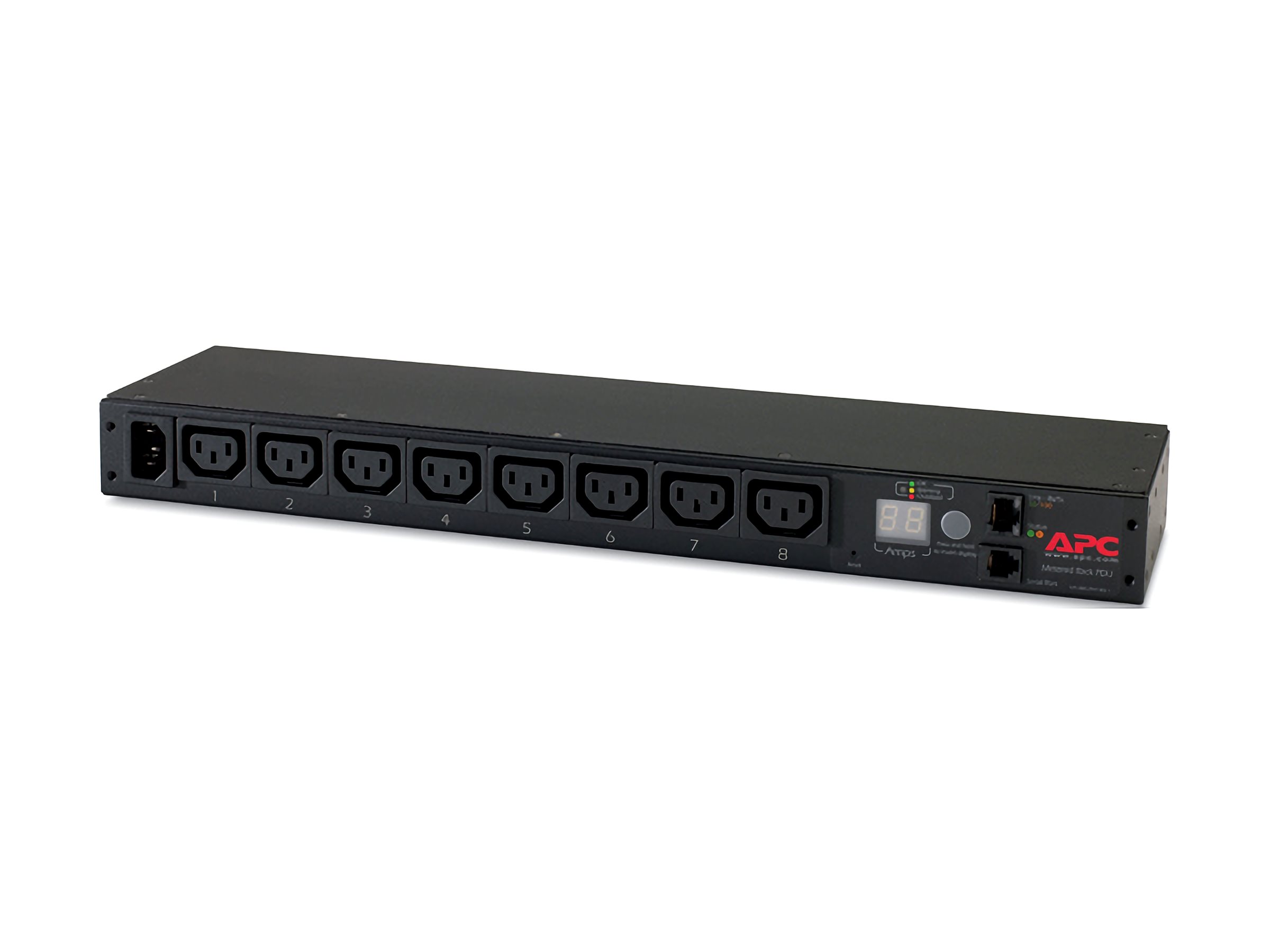

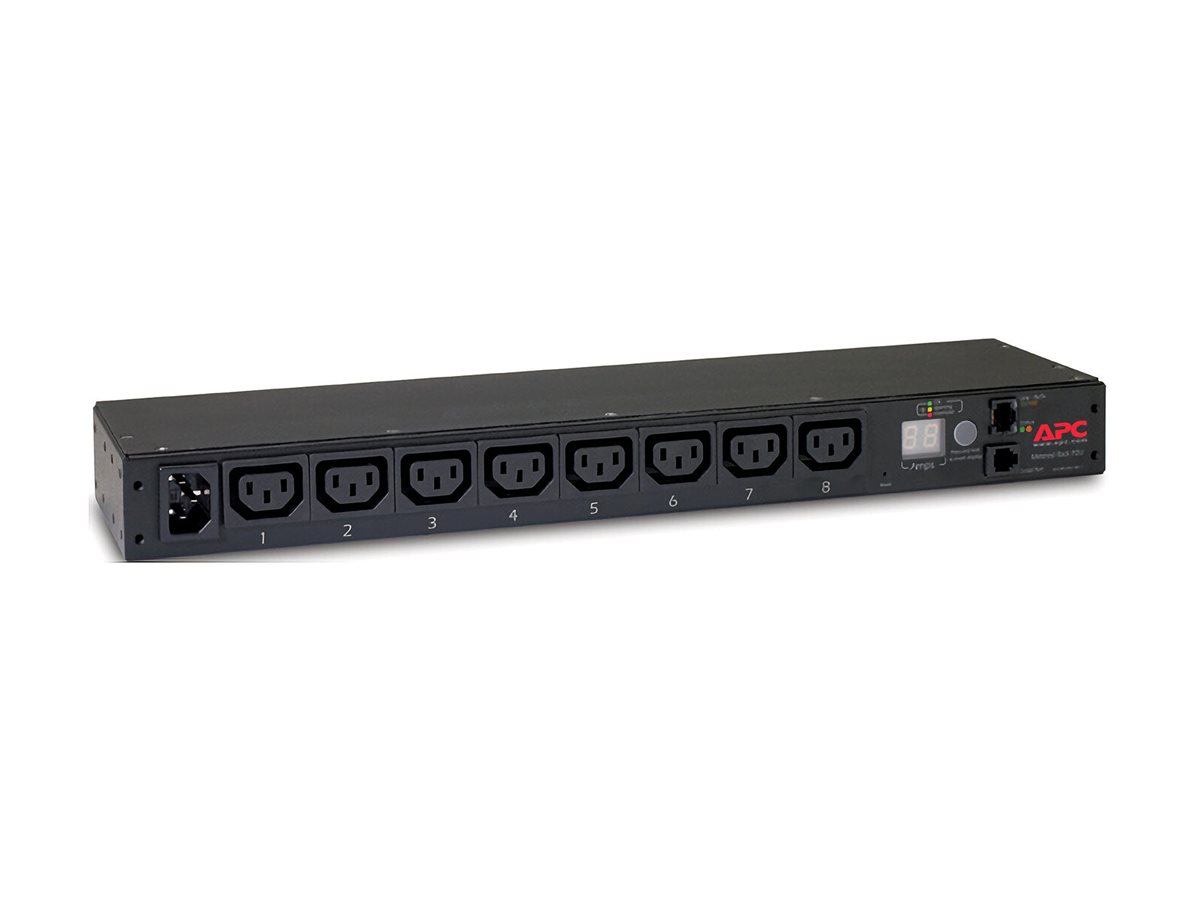

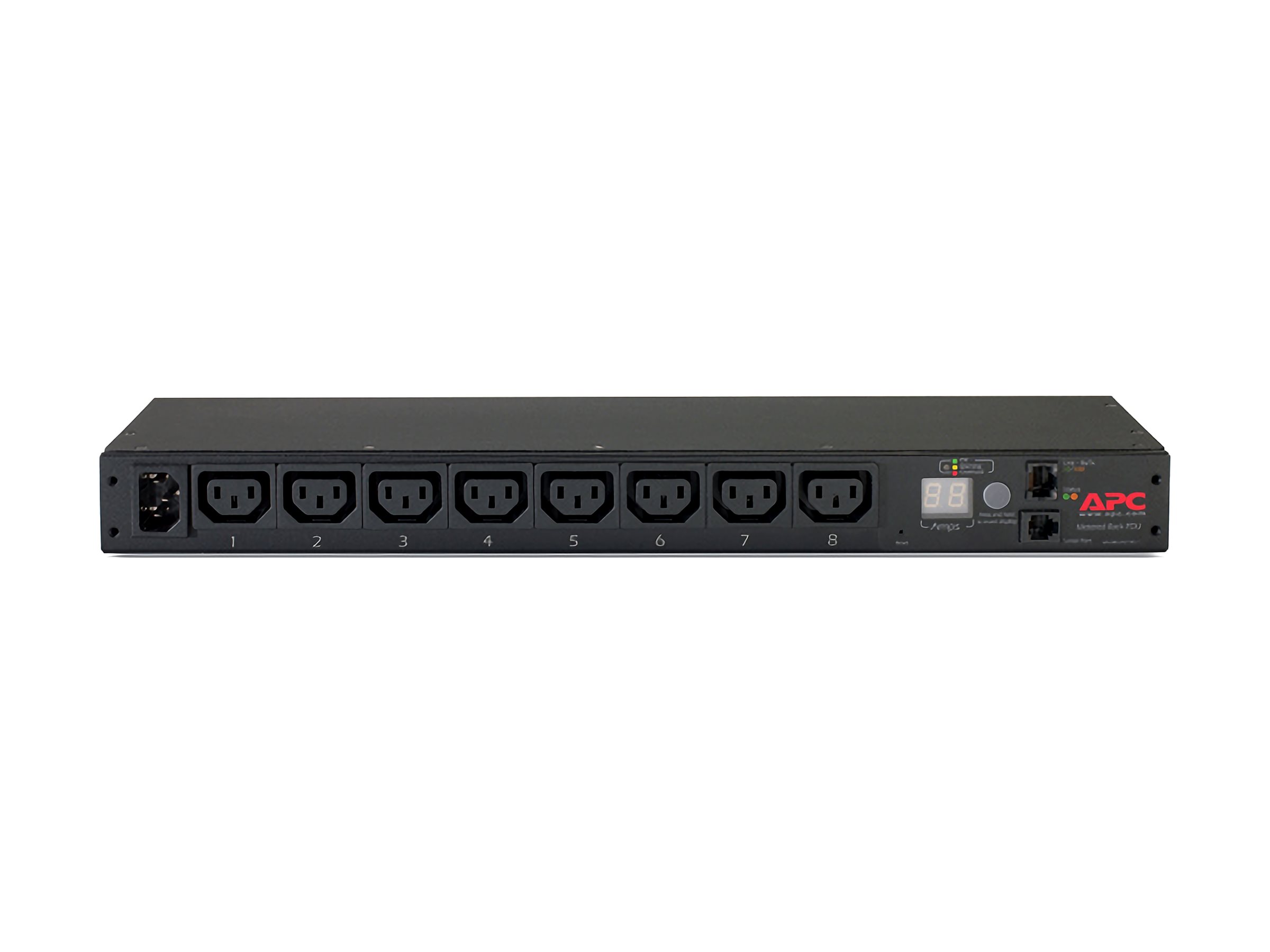

APC Metered Rack PDU AP7820B Strømfordelingsenhed 8-stik 12A Sort 1.98m
APC Metered Rack PDU AP7820B - Strømfordelingsenhed (rackversion) - AC 200/208/230 V - 2300 VA - Ethernet 10/100 - input: IEC 60320 C14 - output-stikforbindelser: 8 (power IEC 60320 C13) - 1U - 1.98 m ledning - for P/N: SRTL2K2RM1UWC, SRTL2K2RM1UWNC, SRTL3KRM1UIC, SRTL3KRM1UWC, SRTL3KRM1UWNC
7 492,00 SEK
5 993,60 SEK excl. VAT
-
Product no 992471596
Model AP7820B
Brand APC
EAN 0731304331506
Weight 3.04 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Metered Rack PDU AP7820B - strømfordelingsenhed - 2300 VA |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Ledningslængde | 1.98 m |
| Rackstørrelse | 1U |
| Vægt | 1.73 kg |
| Indgangspænding | AC 200/208/230 V |
| Udgangspænding | AC 208/230 V |
| Strømkapacitet | 2300 VA |
| Input-stik | 1 x strøm IEC 60320 C14 |
| Output-stikforbindelser | 8 x power IEC 60320 C13 |
| Netværk | Ethernet 10/100 |
| Protokol til fjernadministration | SNMP, Telnet, HTTP |
| Dimensioner (B x D x H) | 44.4 cm x 10.2 cm x 4.4 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: SCL500RM1U, SCL500RMI1U, SMT1500RM2UCUS, SMTL1000RMI2UC, SMTL1500RM3UCNC, SMTL750RM2UCNC, SMTL750RMI2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS, SRTL2K2RM1UWC, SRTL2K2RM1UWNC, SRTL3KRM1UIC, SRTL3KRM1UINC, SRTL3KRM1UWC, SRTL3KRM1UWNC |
| General | |
|---|---|
| Cord Length | 1.98 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Input Voltage | AC 200/208/230 V |
| Max Electric Current | 12 A |
| Output Voltage | AC 208/230 V |
| Power Capacity | 2300 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x serial - RJ-11 |
| Miscellaneous | |
| Cables Included | 1 power cable 1.98 m |
| Compliant Standards | FCC Class A certified, CSA, UL, VCCI, C-Tick, GOST, cUL, VDE, UL 60950, RoHS, REACH |
| Features | LED display, current meter |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 10.2 cm |
| Height | 4.4 cm |
| Weight | 1.73 kg |
| Width | 44.4 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 33.7 cm |
| Shipping Height | 6.4 cm |
| Shipping Weight | 2.91 kg |
| Shipping Width | 47 cm |
| Compatibility Information | |
| Designed For | P/N: AP7950B, AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4024IX431, AR4024SP, |
