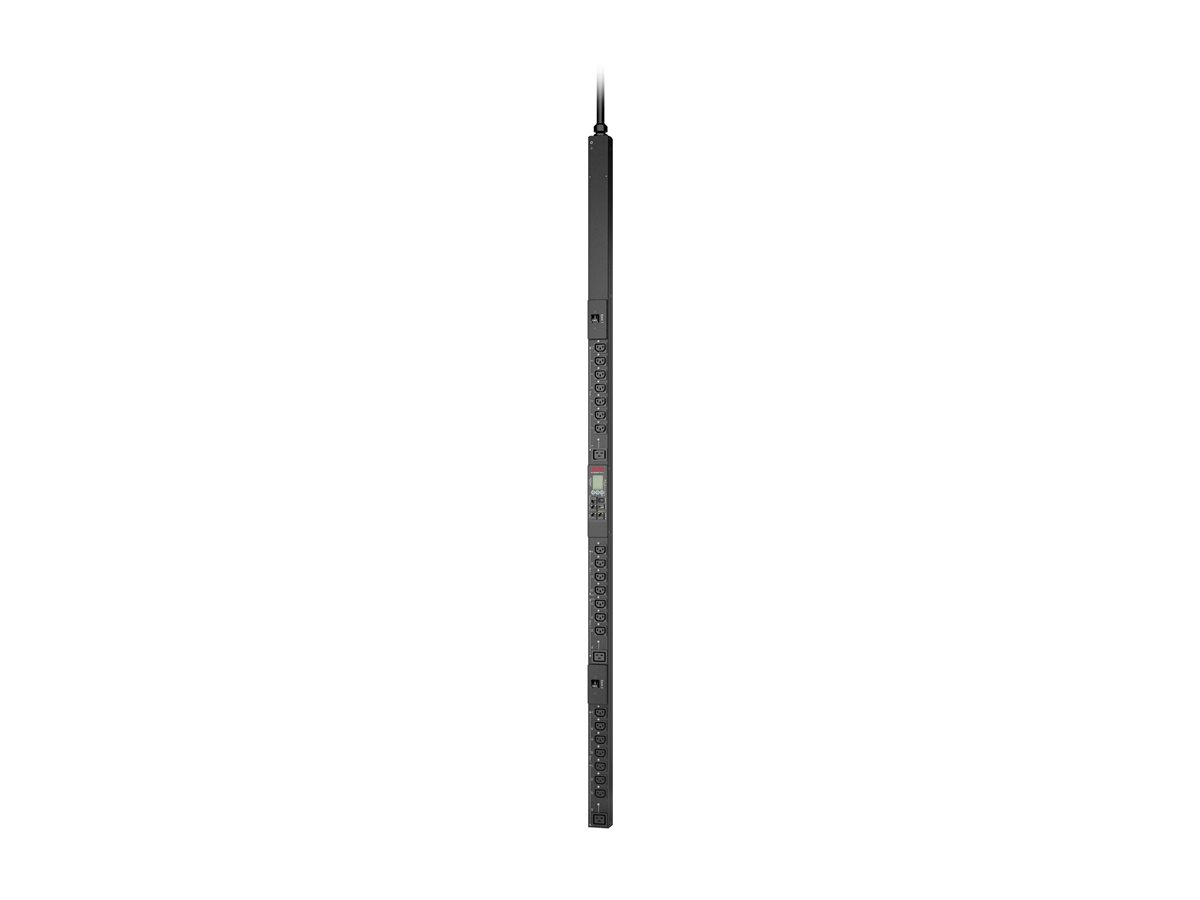

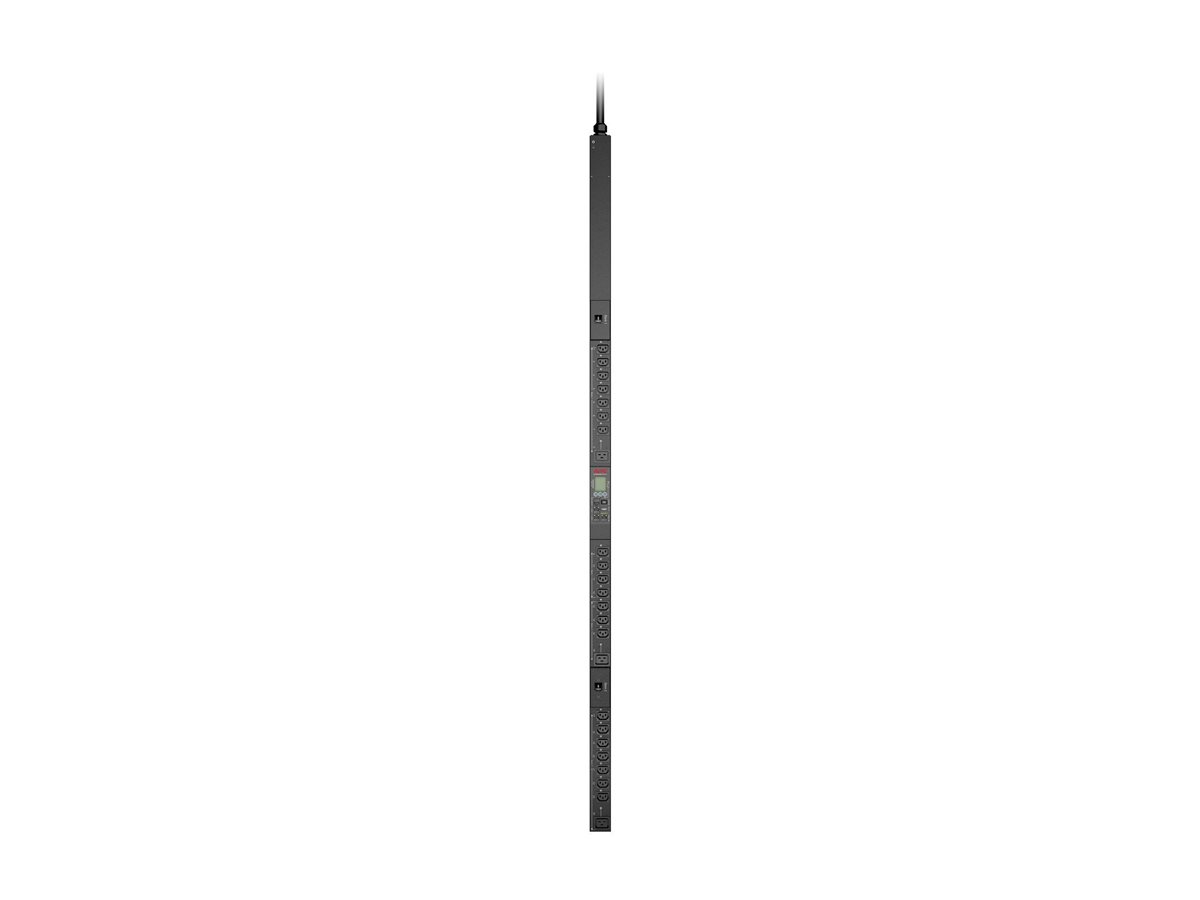

APC Rack PDU 9000 Switched APDU9953 Strømfordelingsenhed 24-stik 32A Sort 3.05m
APC Rack PDU 9000 Switched APDU9953 - Strømfordelingsenhed (rackversion) - AC 230 V - 7400 VA - Ethernet 10/100/1000 - input: IEC 60309 32A - output-stikforbindelser: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) - 0U - 3.05 m ledning - sort - for P/N: SMX1500RM2UCNC, SMX2KR2UX145, SMX3KR2UNCX145, SMX750C, SMX750CNC, SMX750CUS

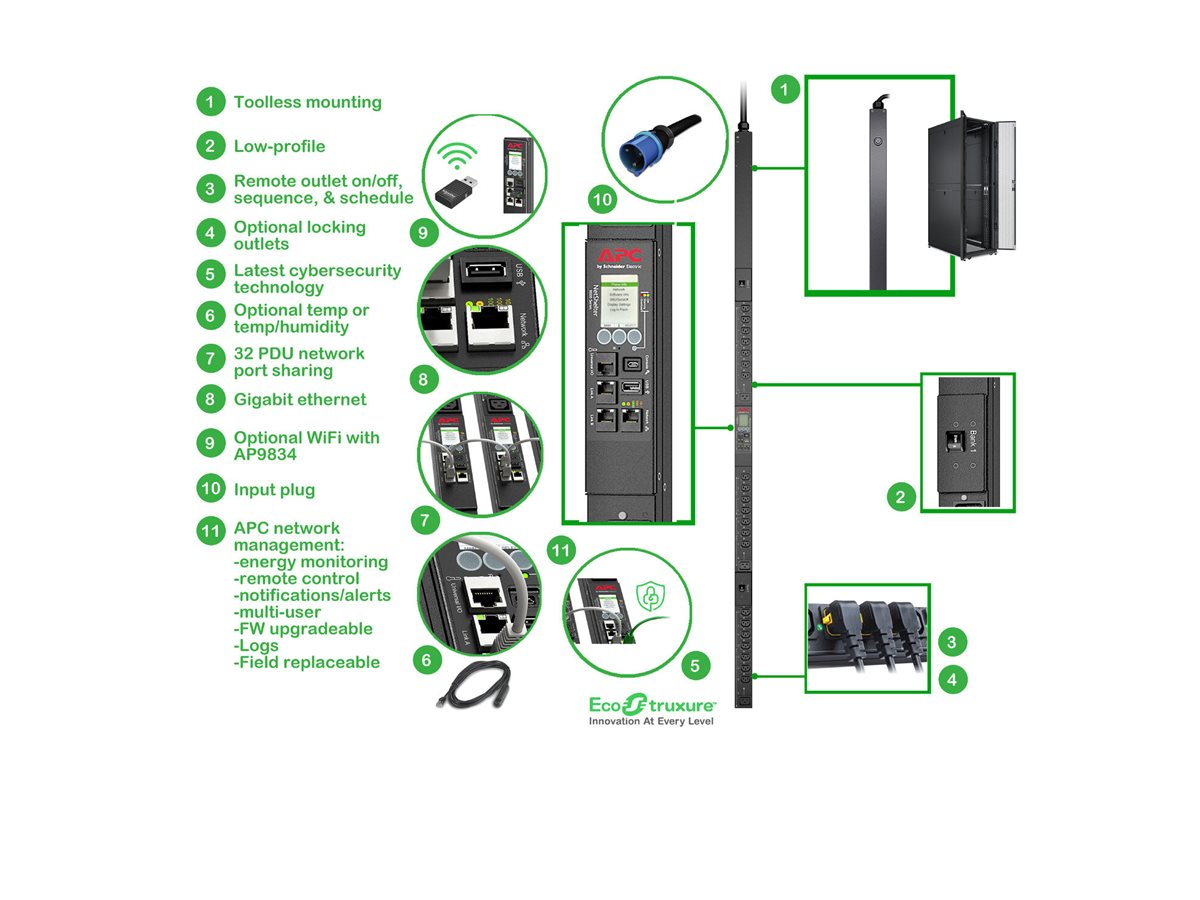

Det er en switched rack PDU med en maksimal strømkapacitet på 32A og en indgangsspænding på 200-240V. Den har 21 IEC 60320 C13-udtag og 3 IEC 60320 C19-udtag, der er forbundet via en IEC 60309 32A 2P +E-indgangsforbindelse. PDU'en har en ZeroU-formfaktor og en ledningslængde på 3,05 meter (10 fod). Den understøtter fjernovervågning og brugerdefinerede alarmer med mulighed for til- og frakobling på udgangsniveau. Enheden er UL-listet og CSA-certificeret, hvilket sikrer høje standarder for sikkerhed og ydeevne.
-
Product no 997986616
Model APDU9953
Brand APC
EAN 0731304356271
Weight 0.62 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Rack PDU 9000 Switched APDU9953 - strømfordelingsenhed - 7400 VA |
| Enhedstype | Strømfordelingsenhed - rackversion |
| Ledningslængde | 3.05 m |
| Rackstørrelse | 0U |
| Vægt | 7.34 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V |
| Strømkapacitet | 7400 VA |

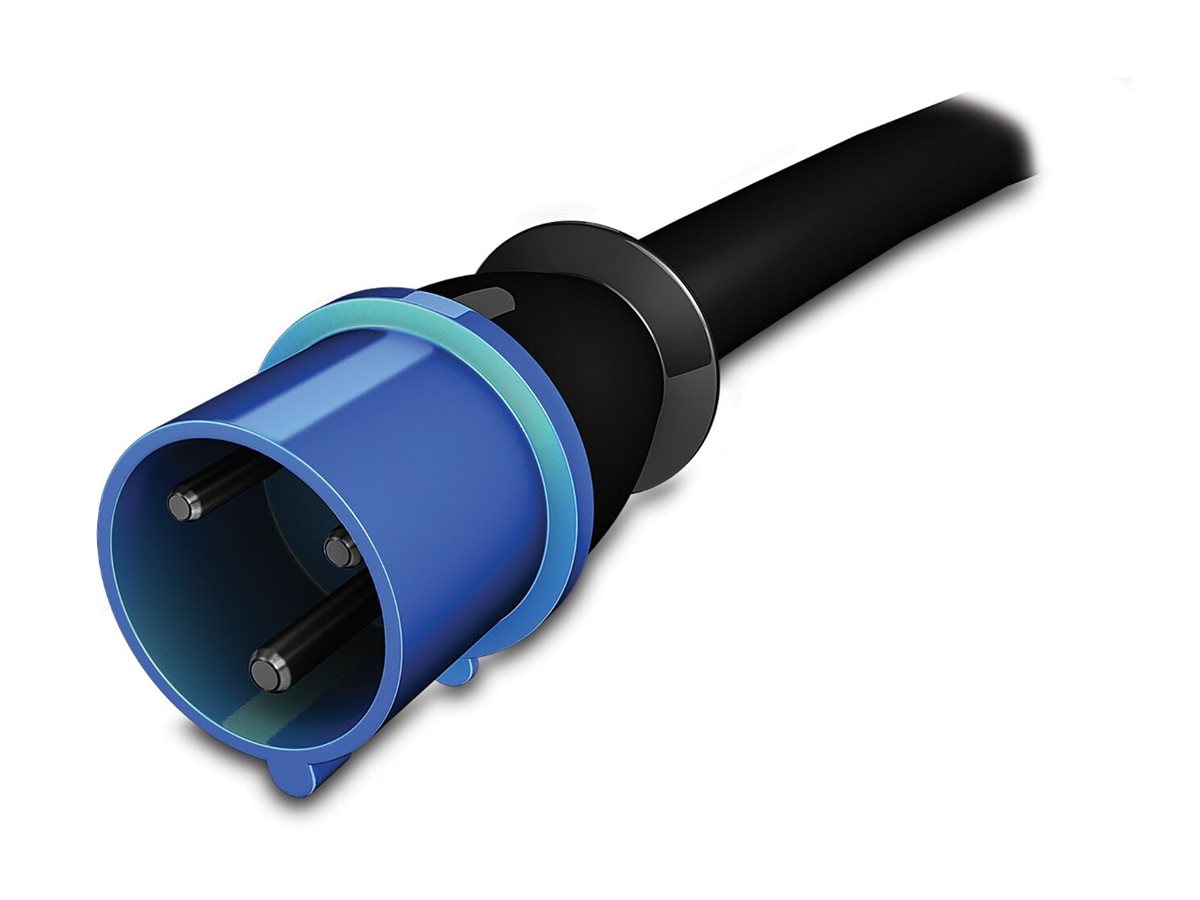

| Input-stik | 1 x strøm IEC 60309 32A |
| Output-stikforbindelser | 21 x power IEC 60320 C13<br>3 x strøm IEC 60320 C19 |
| Netværk | Ethernet 10/100/1000 |
| Farve | Sort |
| Dimensioner (B x D x H) | 5.6 cm x 4.6 cm x 182.9 cm |
| Producentgaranti | 2 års garanti |
| Designet for | P/N: SMT2200RM2UC, SMT3000RM2UC, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UX145, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KR2UNCX145, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750CUS, SRT1500RMXLA-NC, SRT5KRMXLTUS, SYAF8KRMTX424 |
| General | |
|---|---|
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 32A |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 220 - 240 V |
| Max Electric Current | 32 A |
| Output Voltage | AC 230 V 50/60 Hz |
| Power Capacity | 7400 VA |
| Power Output Connectors Details | 21 x power IEC 60320 C13 | 3 x power IEC 60320 C19 |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | EN 61000-3-2, VDE, EN 61000-3-3, EAC, RCM, EN 55022 Class A |
| Features | Vertical orientation, switched |
| Rack Mounting Kit | Included |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | -5 °C |
| Dimensions & Weight | |
| Depth | 4.6 cm |
| Height | 182.9 cm |
| Weight | 7.34 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.4 cm |
| Shipping Height | 204 cm |
| Shipping Weight | 9.95 kg |
| Shipping Width | 16.5 cm |
