Product no 995733267
Model SMTL1500RMI3UC
Brand APC
EAN 0731304402619
Weight 25 kg

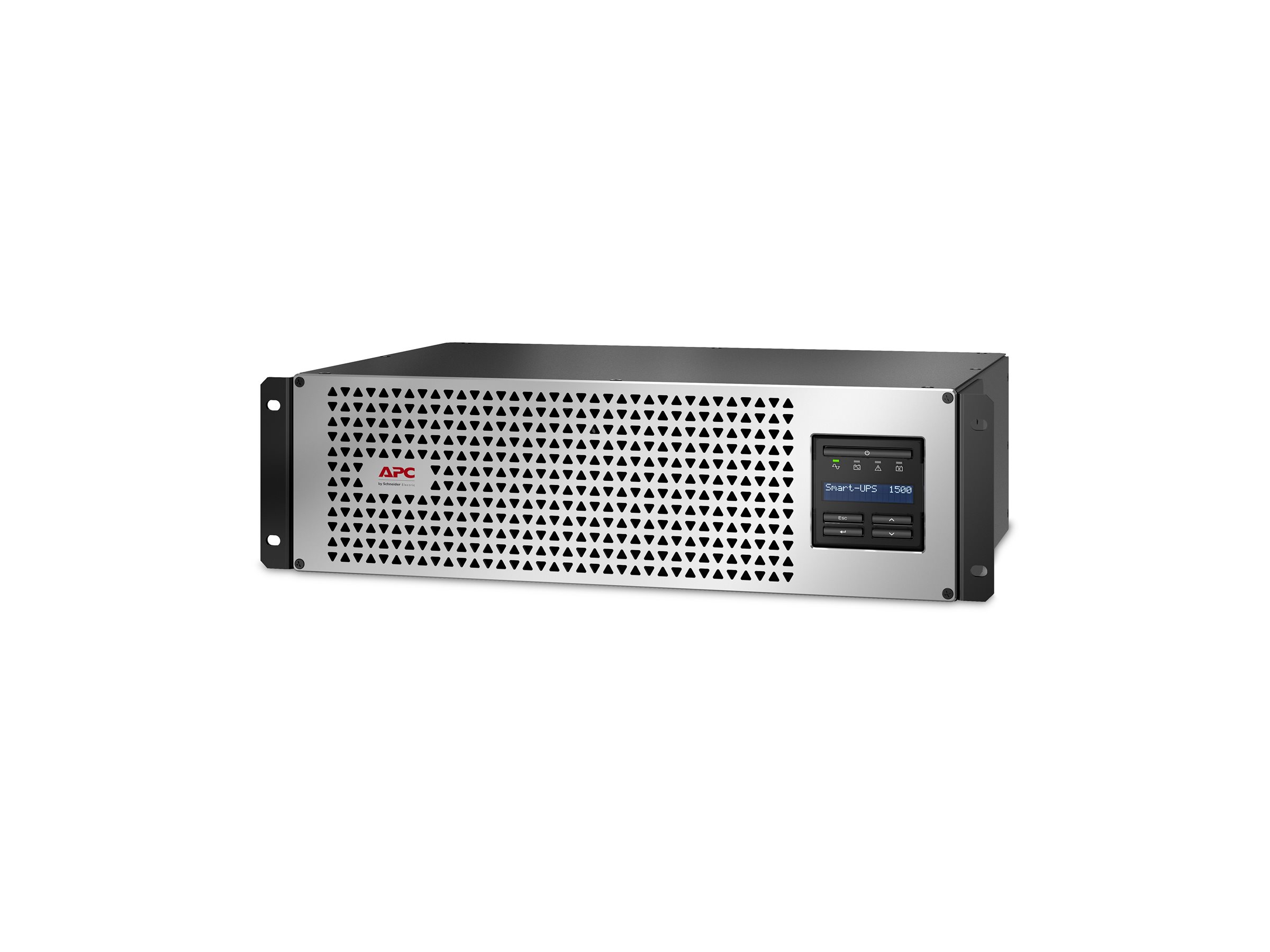

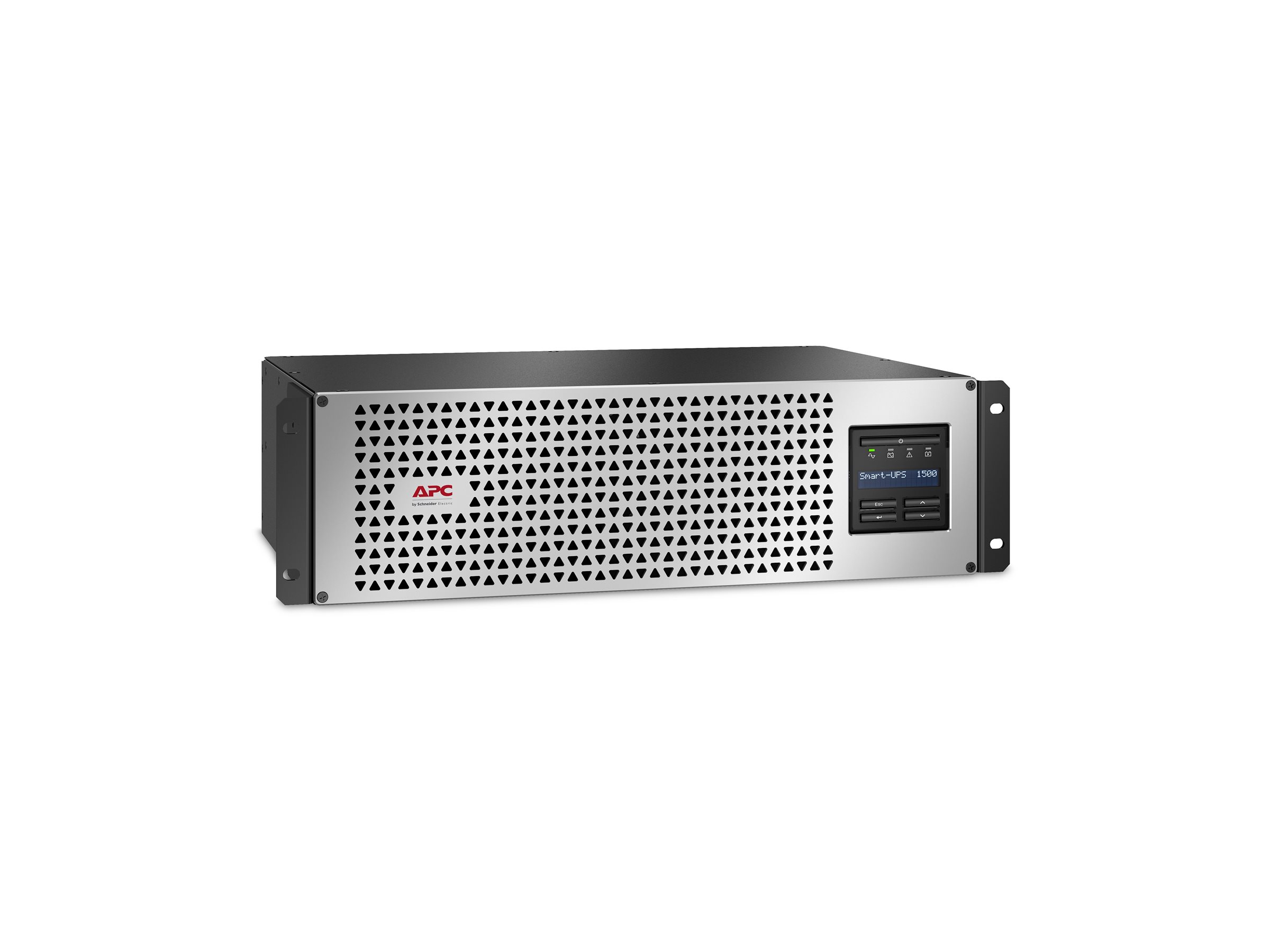

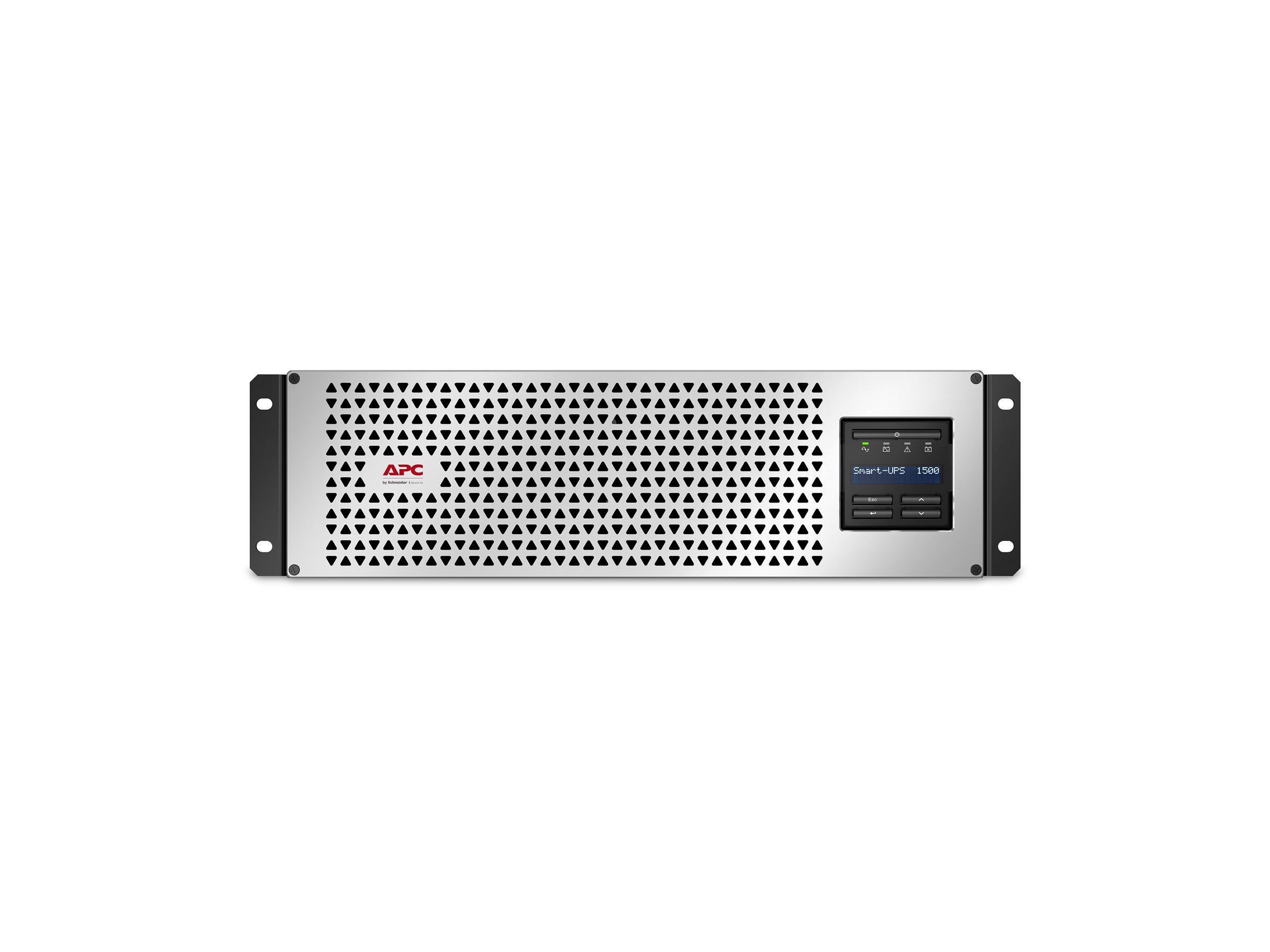

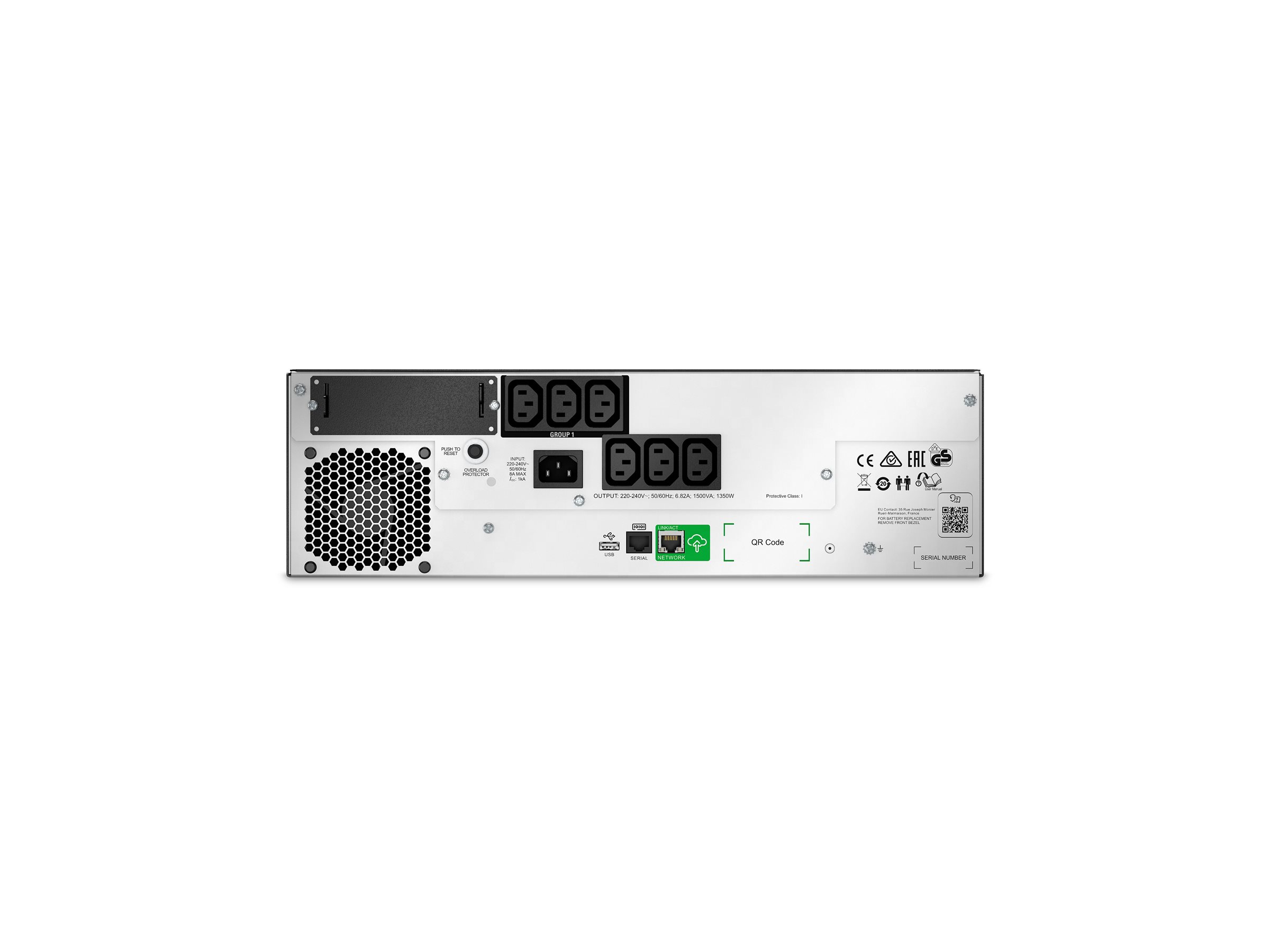

Produktbeskrivelse | APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS - 1.35 kW - 1500 VA |
Enhedstype | UPS - stativ-monterbar / ekstern |
Rackstørrelse | 3U |
Vægt | 19.5 kg |
Indgangspænding | AC 230 V |
Udgangspænding | AC 230 V ± 5% |
Strømkapacitet | 1.35 kW / 1500 VA |
Input-stik | 1 x strøm IEC 60320 C14 |
Output-stikforbindelser | 6 x power IEC 60320 C13 |
Batteri | Litium-ion |
Netværk | RS-232, USB |
Dimensioner (B x D x H) | 43.8 cm x 30.2 cm x 13.1 cm |
Producentgaranti | 5 års garanti |
Designet for | P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
General | |
---|---|
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 3U |
Power Device | |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 230 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Output Voltage | AC 230 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 1.35 kW / 1500 VA |
Power Output Connectors Details | 6 x power IEC 60320 C13 |
Surge Energy Rating | 680 Joules |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Recharge Time | 3 hours |
Technology | Lithium ion |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Interfaces | 1 x management (RS-232) - RJ-45 | 1 x management (USB) |
Miscellaneous | |
Cables Included | Serial cable - external | USB cable - external |
Compliant Standards | CSA, GS, IEC 62040-1-1, IEC 62040-2, RoHS, REACH, IP20, EAC, IEC 62040-1-2, RCM, UL 1973 |
Equipment Protection Value | 150000 US Dollars |
Features | Audible alarm, LCD display |
Software / System Requirements | |
Software Included | APC PowerChute Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dB |
Dimensions & Weight | |
Depth | 30.2 cm |
Height | 13.1 cm |
Weight | 19.5 kg |
Width | 43.8 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 44.8 cm |
Shipping Height | 27.9 cm |
Shipping Weight | 22.68 kg |
Shipping Width | 58.4 cm |
Compatibility Information | |
Designed For | P/N: AR106SH4, AR106SH6, AR106V, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP |
