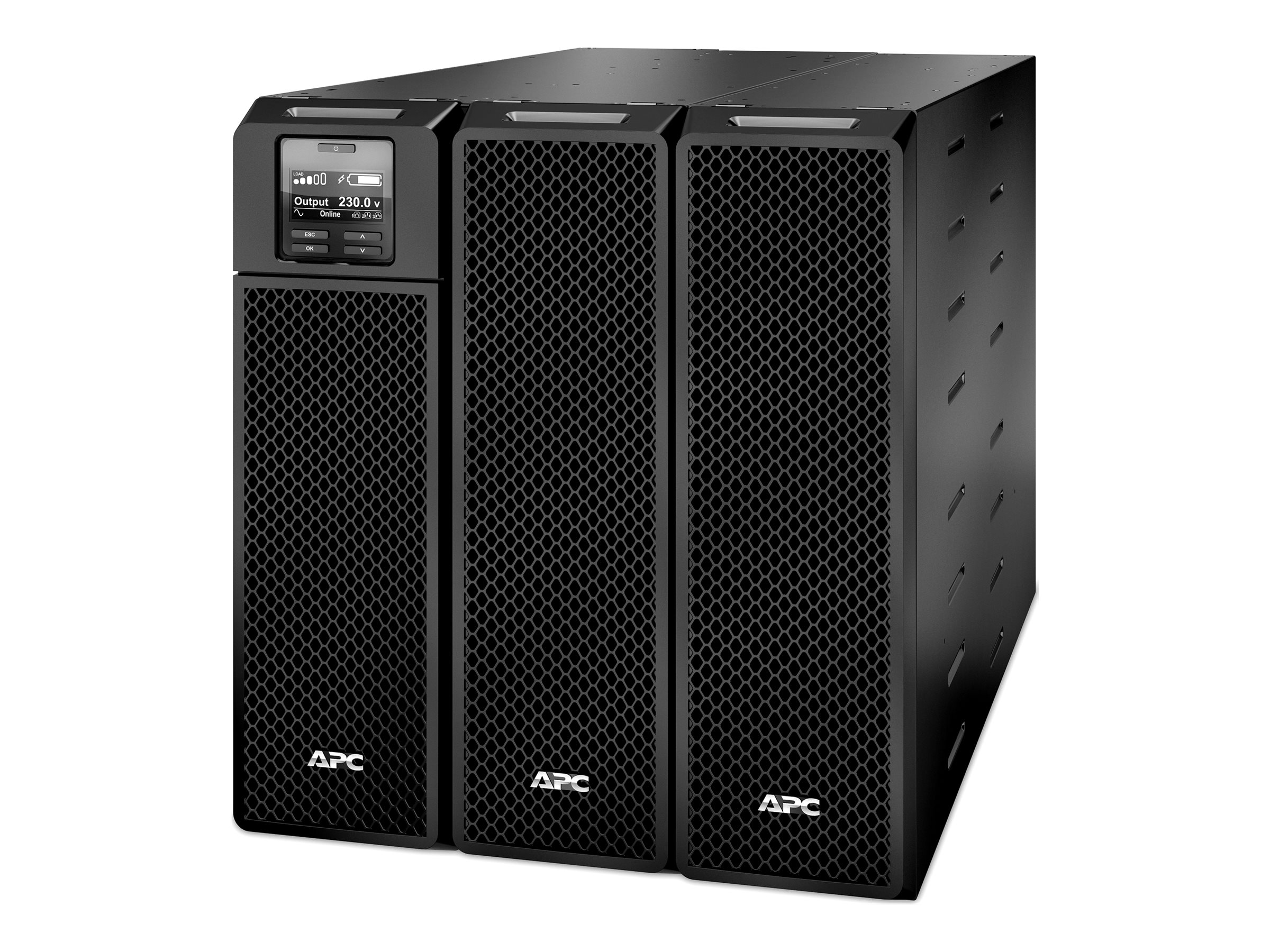

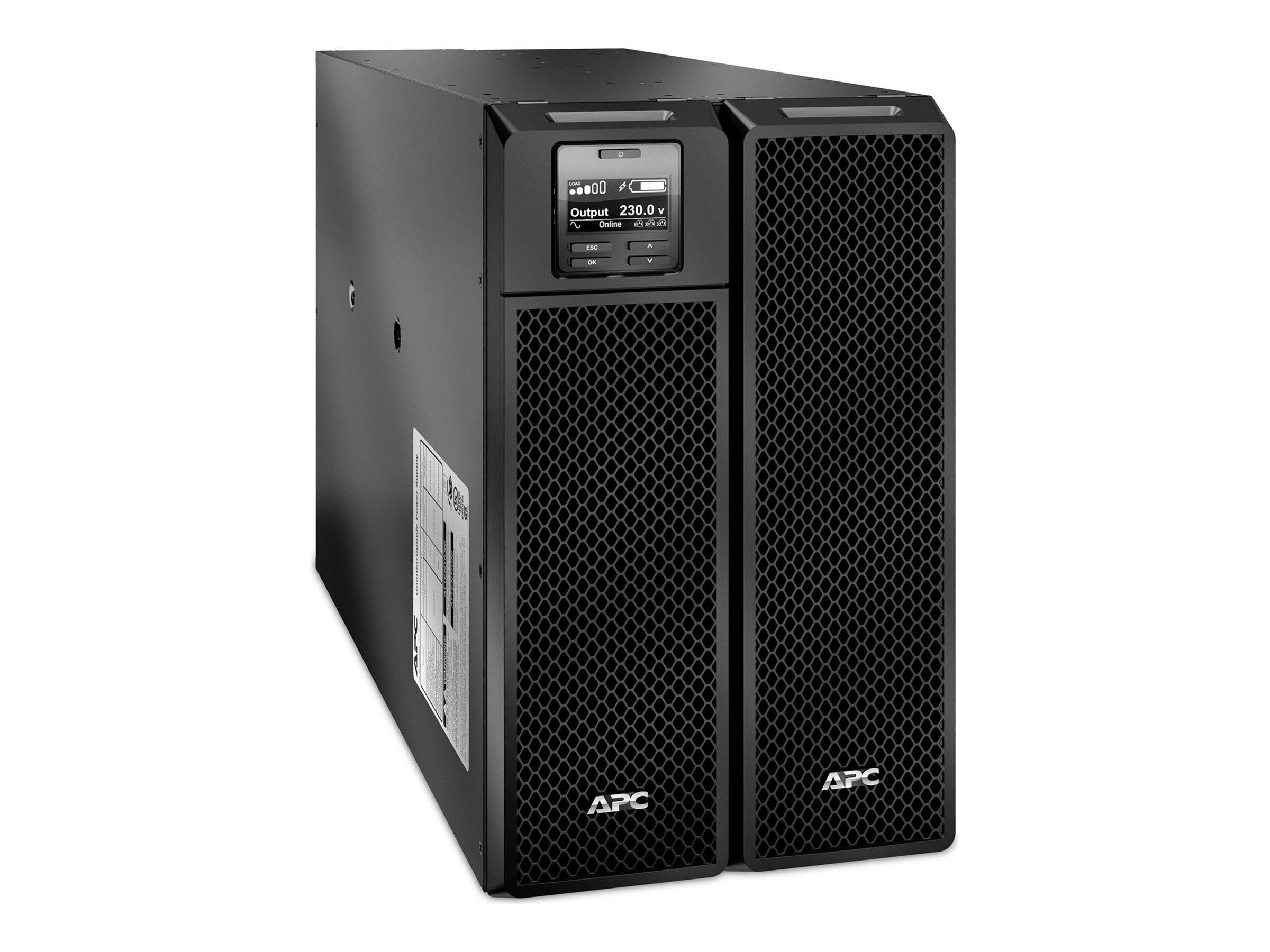

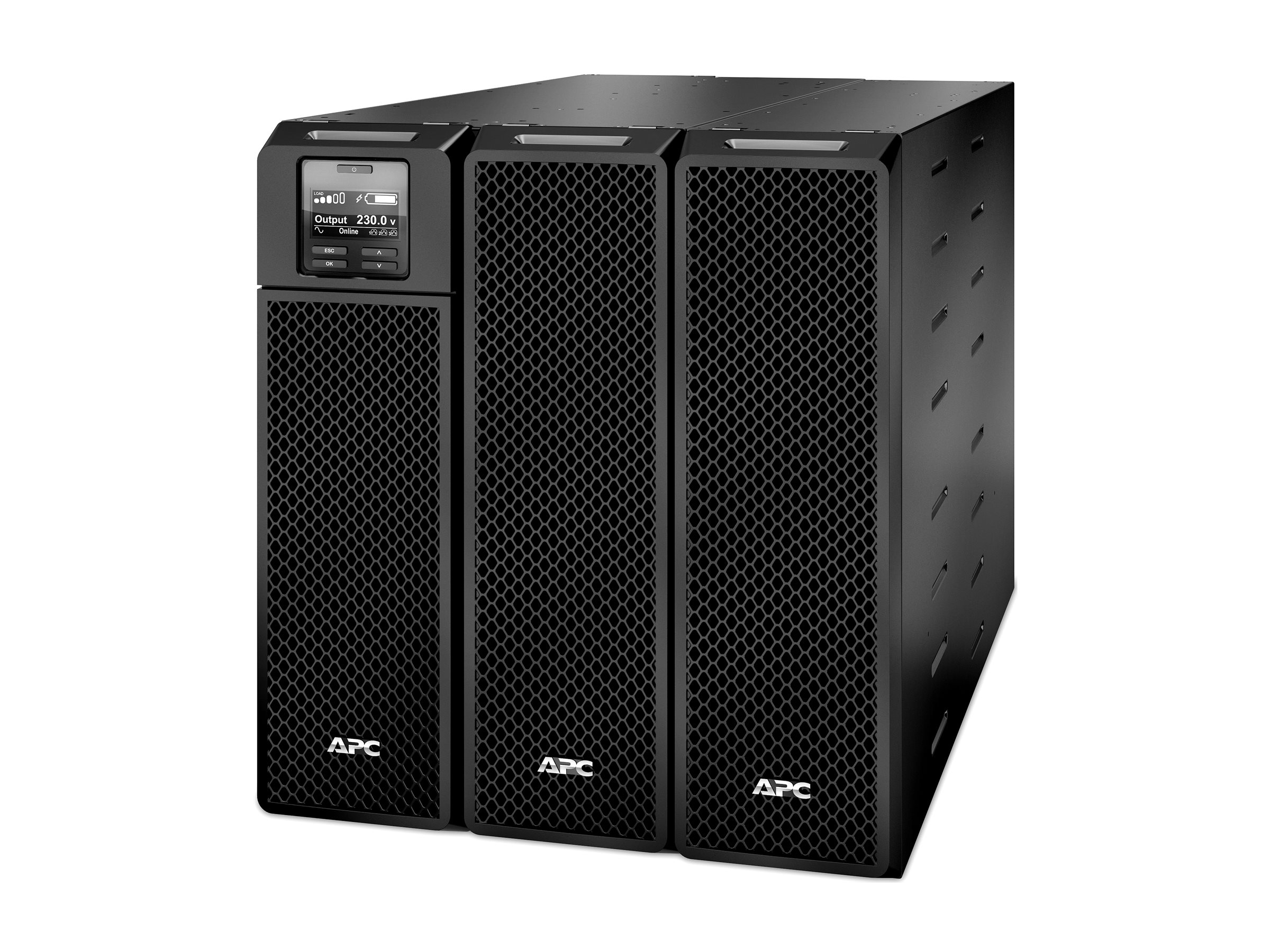

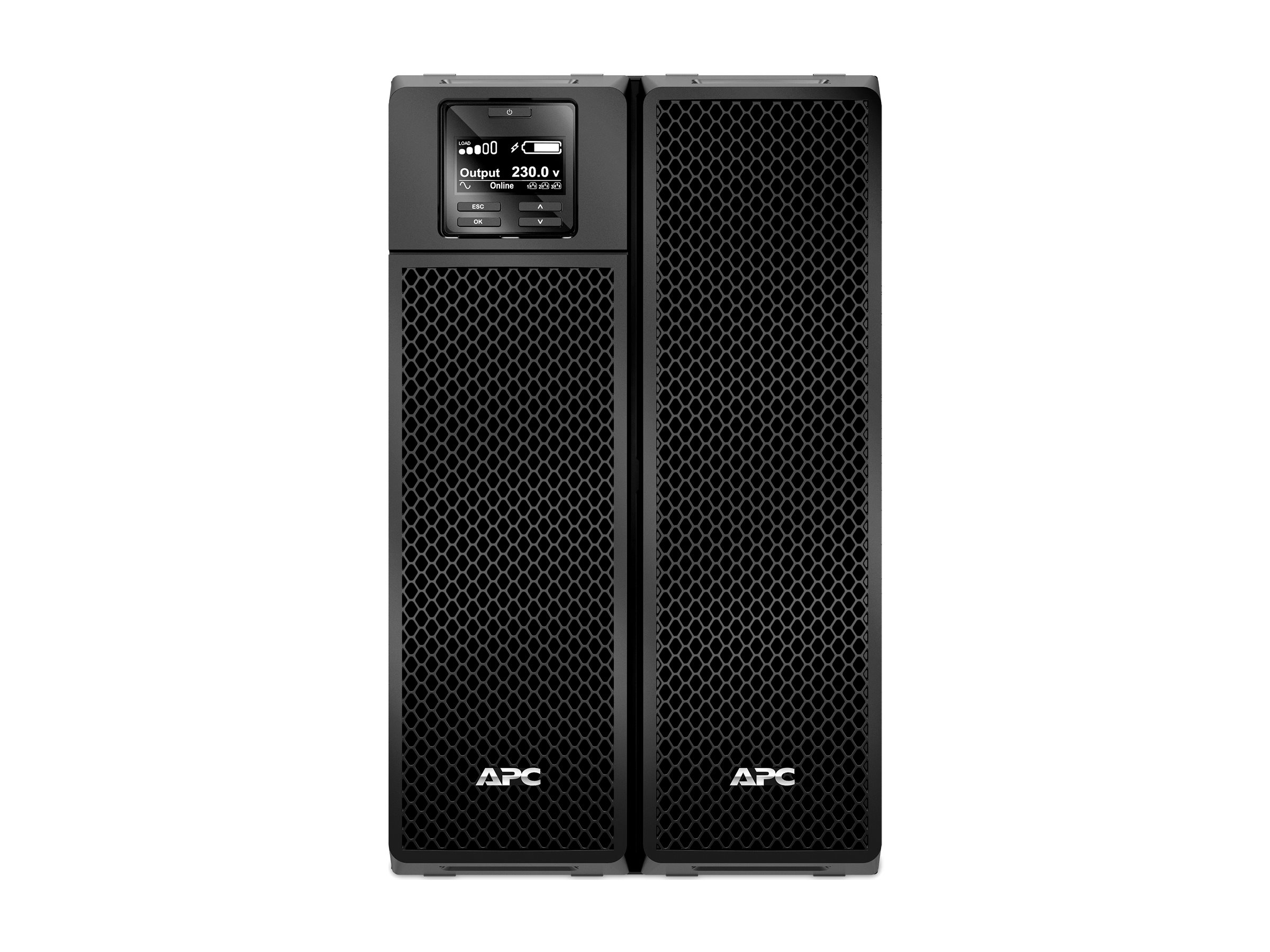

APC Smart-UPS SRT 10000VA UPS
APC Smart-UPS SRT 10000VA - UPS (stativ-monterbar / ekstern) - AC 230 V - 10 kW - 10000 VA - Ethernet 10/100, USB - output-stikforbindelser: 14 - 6U - sort - for P/N: SRT192BPUS, SRT192RMBP2US, SRT192RMBPUS, SRT6KXLTUS, SRT72RMBPUS, SRT96RMBPUS
114 559,00SEK91 647,20SEK excl. VAT
-
Product no 988700168
Model SRT10KXLI
Brand APC
EAN 0731304304272
Weight 131.75 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS SRT 10000VA - UPS - 10 kW - 10000 VA |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 6U |
| Vægt | 111.82 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V ± 3% |
| Strømkapacitet | 10 kW / 10000 VA |
| Input-stik | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Output-stikforbindelser | 6 x power IEC 60320 C13<br>4 x strøm IEC 60320 C19 |
| Batteri | Blysyre |
| Driftstid (op til) | 3.8 min ved fuld belastning |
| Netværk | Ethernet 10/100, USB |
| Farve | Sort |
| Dimensioner (B x D x H) | 26.3 cm x 71.5 cm x 43.2 cm |
| Producentgaranti | 3 års garanti |
| Designet for | P/N: SRT1000XLA, SRT10KXLTUS, SRT1500XLA, SRT192BPUS, SRT192RMBP2US, SRT192RMBPM, SRT192RMBPUS, SRT2200RMXLA, SRT2200RMXLA-NC, SRT2200RMXLAUS, SRT2200XLA, SRT3000RMXLA, SRT3000RMXLA-NC, SRT3000RMXLT-NC, SRT3000XLA, SRT3000XLAUS, SRT5KXLTUS, SRT6KXLTUS, SRT72RMBP, SRT72RMBPUS, SRT8KXLTUS, SRT96RMBPUS |
| General | |
|---|---|
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 6U |
| Power Device | |
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10 kW / 10000 VA |

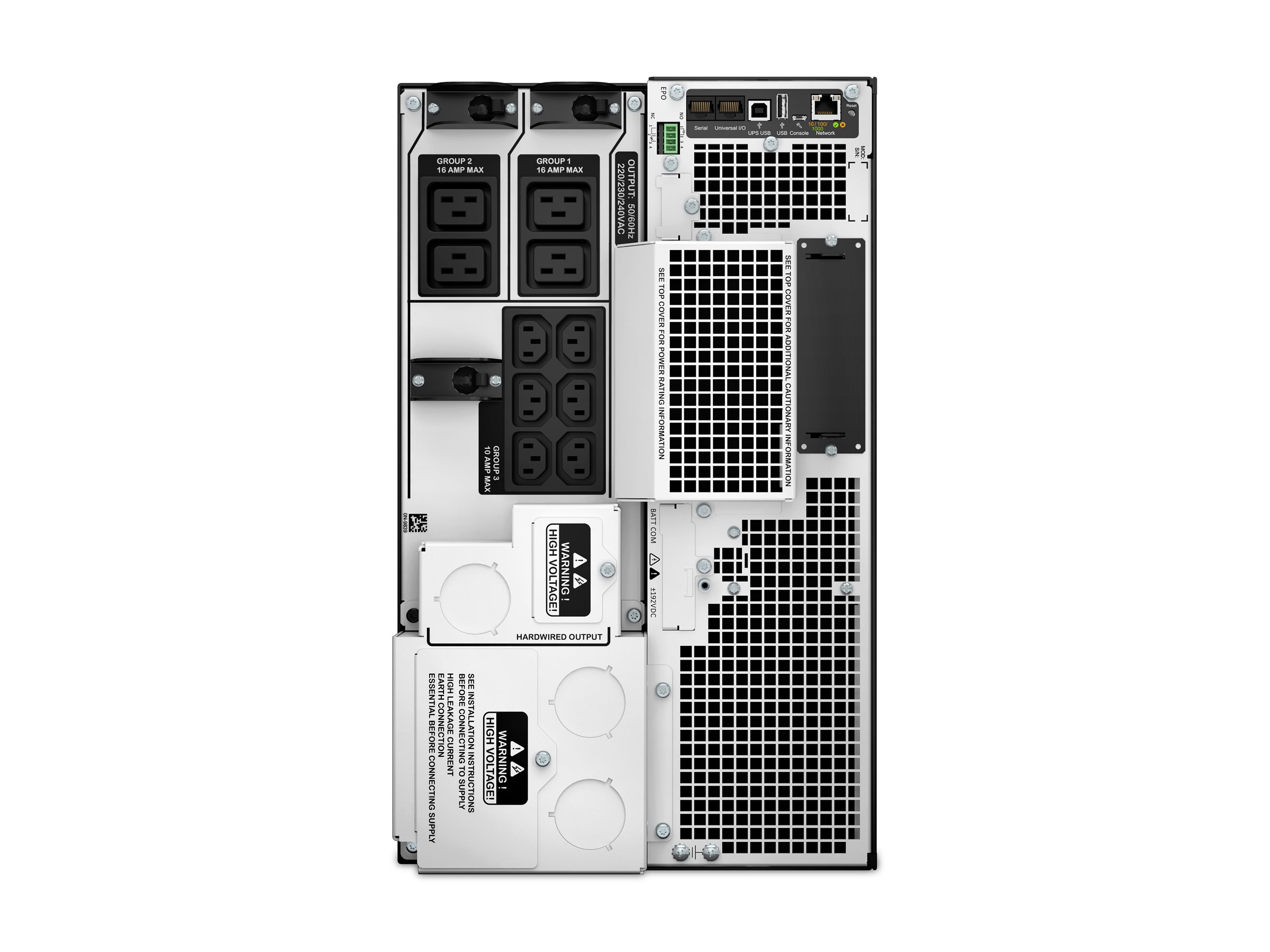

| Power Output Connectors Details | 6 x power IEC 60320 C13 | 4 x power IEC 60320 C19 |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 3.8 min at full load | 11.5 min at half load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 | 1 x management (USB) - 4 pin USB Type B | 1 x EPO (emergency power off) | 1 x serial - RJ-45 |
| Miscellaneous | |
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Features | Audible alarm, LCD display |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 71.5 cm |
| Height | 43.2 cm |
| Weight | 111.82 kg |
| Width | 26.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 1 m |
| Shipping Height | 46.1 cm |
| Shipping Width | 60 cm |
| Compatibility Information | |
| Designed For | P/N: SRT1000XLA, SRT10KRMXLT, SRT10KRMXLT-10KTF, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KRMXLT-IEC, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLT-IEC, SRT10KXLTUS, SRT1500XLA, SRT192BP, SRT192BPUS, SRT192RMBP, SRT192RMBP2, SRT192RMBP2US, SRT192RMBPM, SRT19 |
