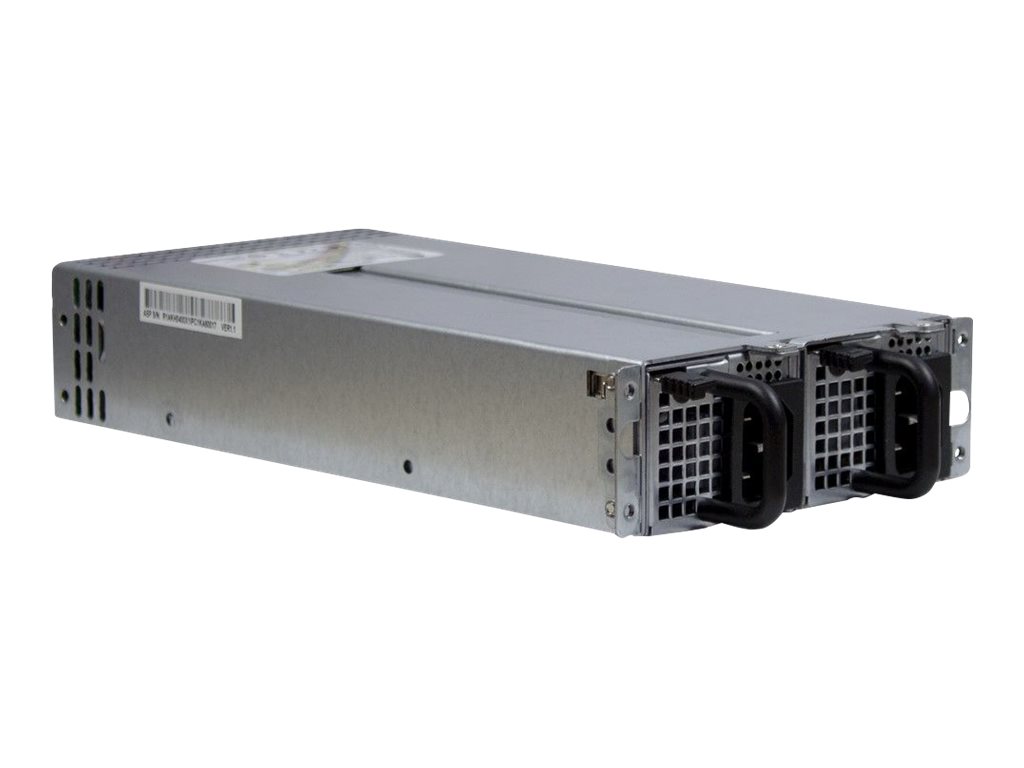

ASPOWER R1A-KH0400 400Watt 80 PLUS Silver

ASPOWER R1A-KH0400 - Strømforsyning - redundant (indstiksmodul) - 80 PLUS Silver - AC 100-240 V - 400 watt - 1U

SEK 3 425,00
SEK 2 740,00 excl. VAT

Varenummer: 993780636
Model: 99997245
EAN: 4260455643504
Brand:
Inter-Tech Elektroni
Vægt: 2.13 kg

Specifications

Produktbeskrivelse
ASPOWER R1A-KH0400 - strømforsyning - redundant - 400 watt
Enhedstype
Strømforsyning - redundant - indstiksmodul
Rackstørrelse
1U
80 PLUS certificering
80 PLUS Silver
Vægt
1.9 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
400 watt
Overskudsspænding
Ja
Output Current
+3.3V - 18 A<br>+5V - 18 A<br>+12V - 33 A<br>-12V - 0.5 A<br>+5VSB - 3 A
Output-stikforbindelser
2 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
Kølesystem
2 x 40 mm ventilatorer
Dimensioner (B x D x H)
12.2 cm x 24.5 cm x 4.1 cm
Producentgaranti
3 års garanti
Specifications

Full specifications

General
Device Type
Power supply - redundant - plug-in module
Height (Rack Units)
1U
Power Device
80 PLUS Certification
80 PLUS Silver
Efficiency
93% at 50% Load (230 VAC), 87% at 20% Load (115 VAC), 91% at 50% Load (115 VAC), 88% at 100% Load (115 VAC), 88% at 20% Load (230 VAC), 89% at 100% Load (230 VAC)
Frequency Required
50/60 Hz
Input Voltage
AC 100-240 V
Output Current
+3.3V - 18 A | +5V - 18 A | +12V - 33 A | -12V - 0.5 A | +5VSB - 3 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
400 Watt
Power Output Connectors Details
2 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Miscellaneous
Cooling System
2 x 40 mm fans
Features
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, short-circuit protection
MTBF
100,000 hours
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Depth
24.5 cm
Height
4.1 cm
Weight
1.9 kg
Width
12.2 cm
Dimensions & Weight (Shipping)
Shipping Weight
2.18 kg
