Produktbeskrivelse
|

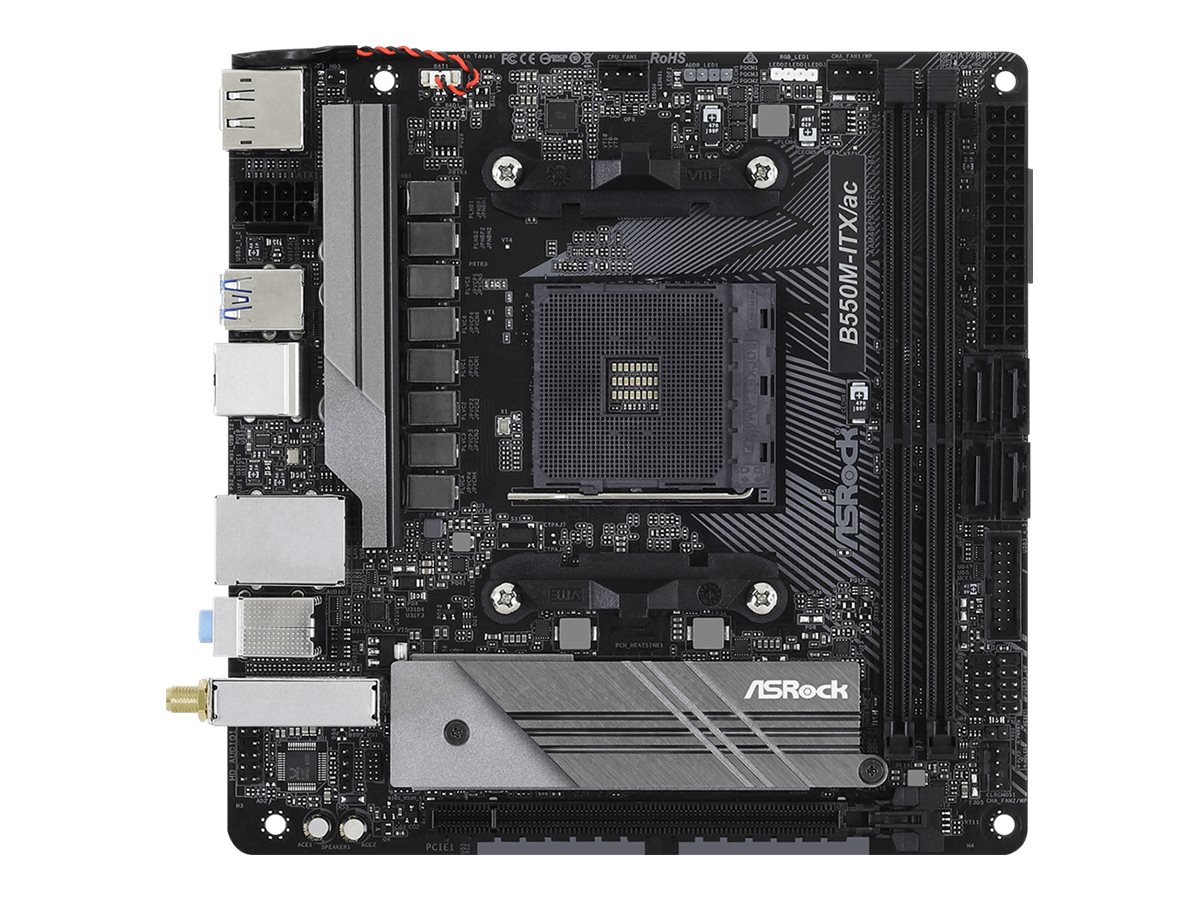

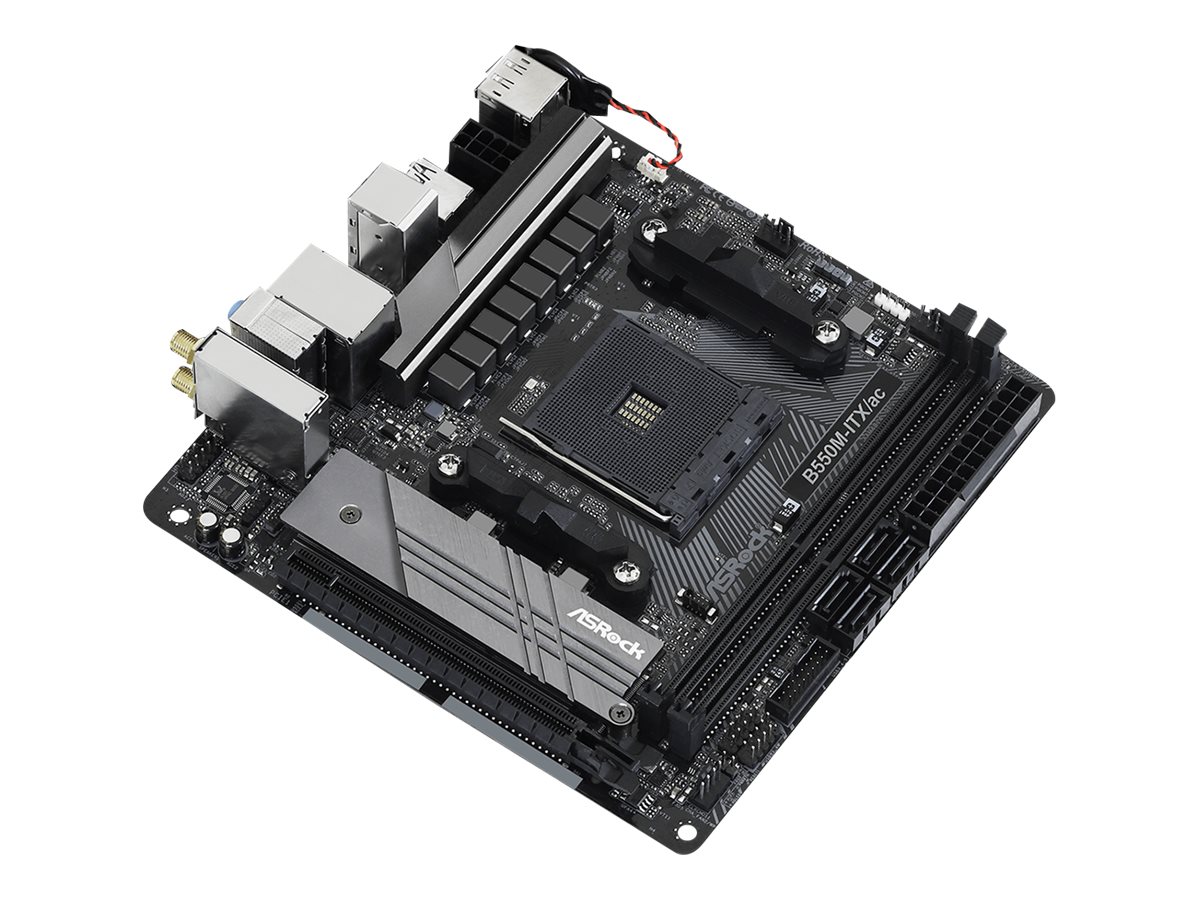

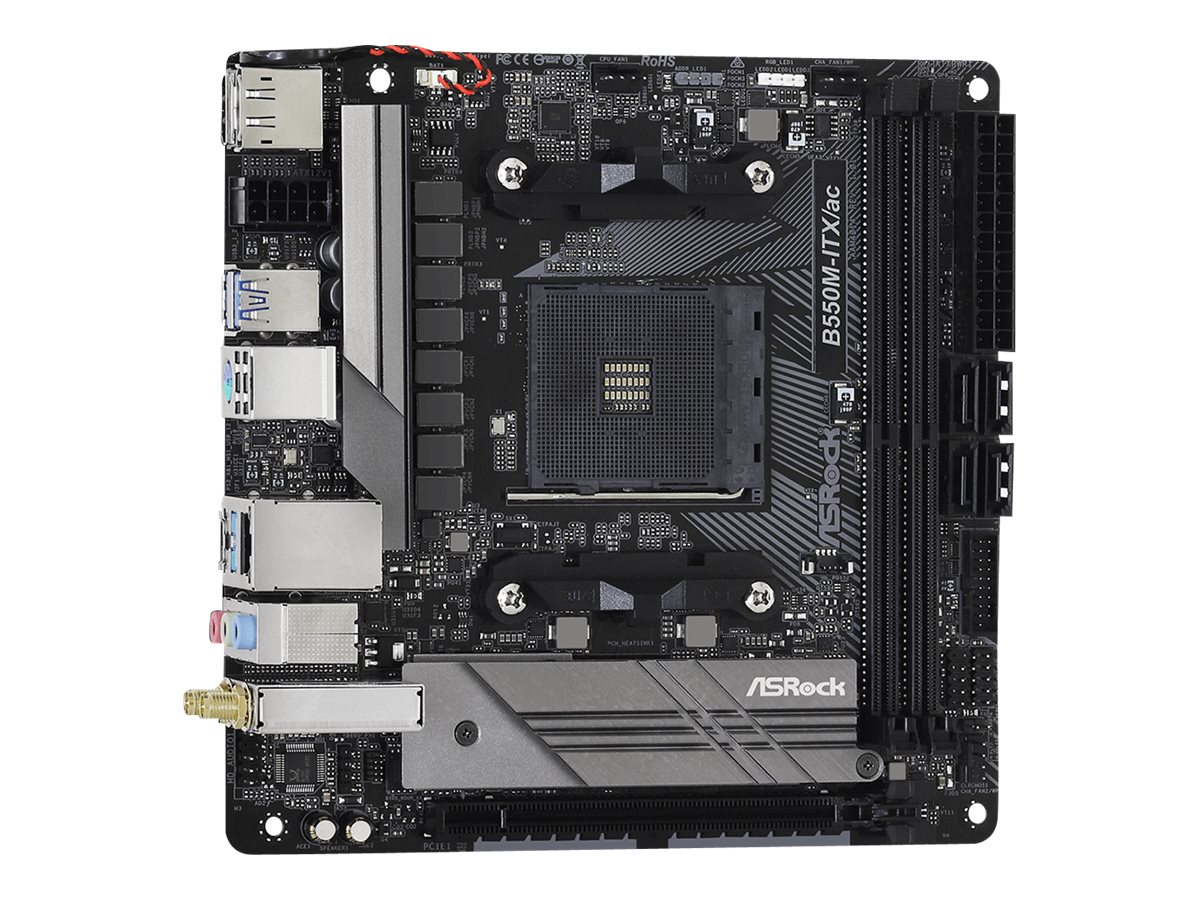

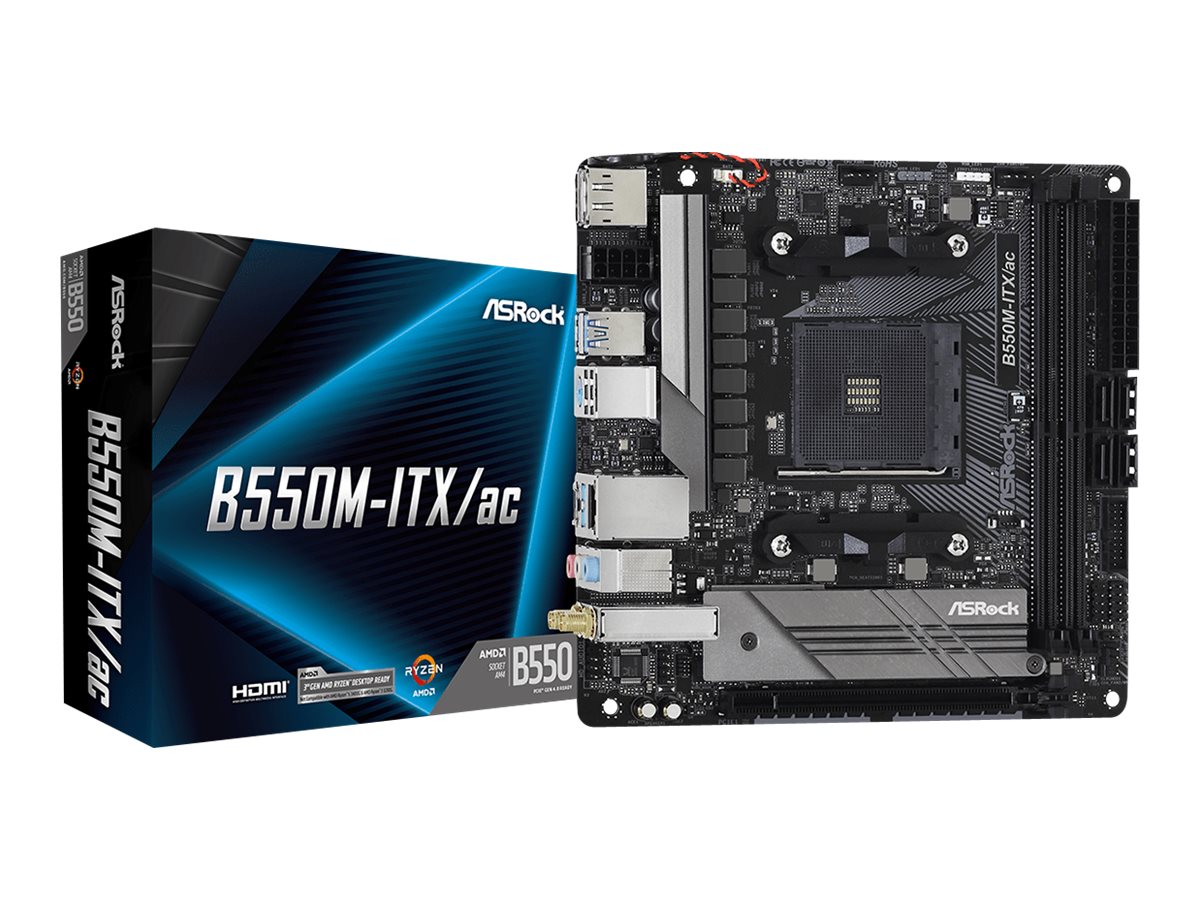

ASRock B550M-ITX/ac - bundkort - mini ITX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - mini ITX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
|
|
Max RAM-størrelse
|
64 GB
|
|
RAM understøttet
|
2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 1 x M.2
|
|
USB / FireWire porte
|
1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
|
|
Maks. allokeret RAM-størrelse
|
2 GB
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
|
Denmark's wildest electronics webshop is now available in Sweden
ASRock B550M-ITX/ac Mini ITX AM4 AMD B550
ASRock B550M-ITX/ac - Bundkort - mini ITX - Socket AM4 - AMD B550 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Bluetooth, Gigabit LAN, Wi-Fi - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
Varenummer:
996021533
Model:
90-MXBDH0-A0UAYZ
EAN:
4710483931727
Brand:
Vægt:
0.86 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B550
|
|
Compatible Processors
|
Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM4
|
|
Product Type
|
Motherboard - mini ITX
|
|
Supported RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 M
|
|
Features
|
Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode
|
|
Max Size
|
64 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC, ECC (operate in non-ECC mode)
|
|
Technology
|
DDR4
|
|
Graphics
|
|
|
Max Allocated RAM Size
|
2 GB
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALC887
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Controller
|
Realtek RTL8111H
|
|
Network Interfaces
|
Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) | 1 x M.2 socket (Key E)
|
|
Interfaces
|

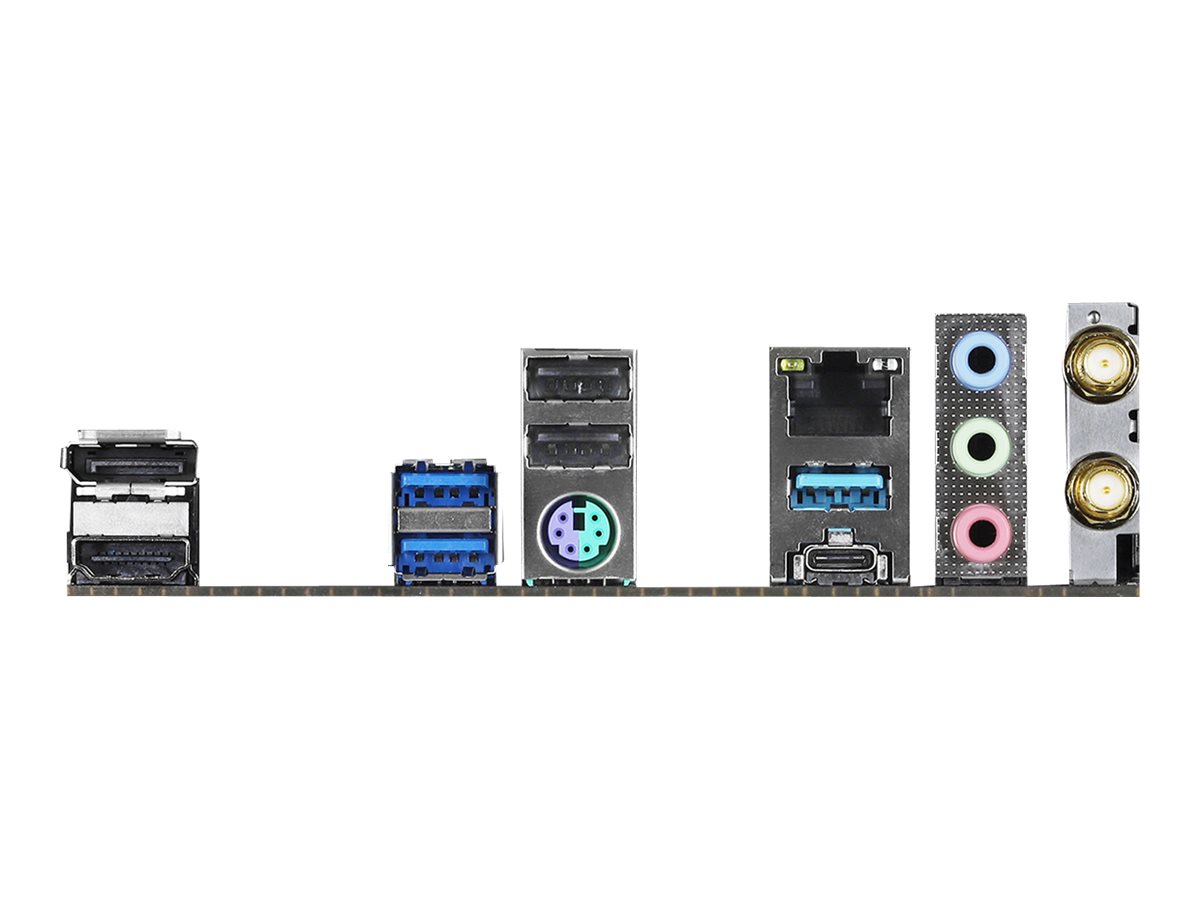

1 x PS/2 keyboard / mouse | 1 x LAN (Gigabit Ethernet) | 1 x DisplayPort | 1 x HDMI | 2 x USB 2.0 | 3 x USB 3.2 Gen 1 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x USB-C Gen1
|
|
Internal Interfaces
|
2 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
8 Phase Power Design, ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Digi Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy
|
|
Hardware Monitoring
|
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
|
|
Sleep / Wake Up
|
Wake on LAN (WOL)
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Compliant Standards
|
Plug and Play, FCC, EuP Ready, ErP Ready, HDCP 2.3
|
|
Depth
|
17 cm
|
|
Included Accessories
|
I/O back plate, 2 x ASRock WiFi 2.4/5GHz Antennas
|
|
Software Included
|
Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC
|
|
Width
|
17 cm
|
Media
