ASUS NUC 13 Rugged Tall BNUC13BRFA400B00I SFF Atom x7 x7425E 0GB 64GB Intel UHD Graphics No-OS

ASUS NUC 13 Rugged Tall BNUC13BRFA400B00I - Barebone - SFF 1 x Atom x7 x7425E / op til 3.4 GHz - RAM 0 GB - SSD - eMMC 64 GB - UHD Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 - sort

4 258,00 SEK 3 406,40 SEK excl. VAT

  • Product no 1001874476

    Model 90AS0021-M000S0

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4711387471555

    Weight 1.04 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASUS NUC 13 Rugged Tall BNUC13BRFA400B00I - SFF Atom x7 x7425E - 0 GB - SSD 64 GB
Type PC barebone - SFF
Processor 1 x Intel Atom x7 x7425E (op til 3.4 GHz, (Quad-Core)
Processor, hovedegenskaber Intel Smart Cache
Cachehukommelse 6 MB
Cache pr. processor 6 MB
RAM 0 GB (installeret) / 16 GB (maks.) - DDR5 SDRAM
Harddisk SSD 64 GB - eMMC
Optisk lagring Intet optisk drev
Grafik controller Intel UHD Graphics
Netværk 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Wi-Fi 6E, Bluetooth 5.3
Med OS Intet operativt system
Farve Sort
Dimensioner (B x D x H) 10.8 cm x 17.4 cm x 3.58 cm
Vægt 1.04 kg

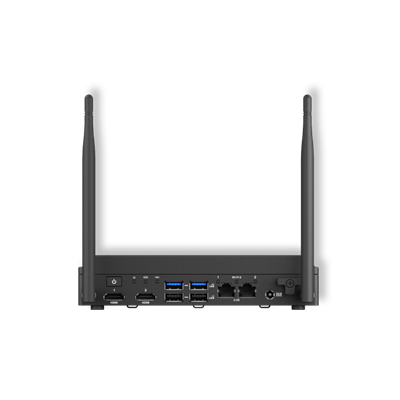

Reliable performance in unreliable conditions

Reliable performance in unreliable conditions

  • Kits and boards offer the perfect combination of performance, connectivity, and reliability in a fanless, dust-resistant ruggedized chassis.
  • Can withstand 0° to 50 °C external ambient operating temperatures on select kits.
  • Built to survive environments most PCs can't.
  • Versatile mounting options to put compute where it's needed.
  • Qualified for 24/7 sustained operation1.
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_short_2D_back
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_short_2D_front
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_short_top_back_rightview
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_short_top_front_rightview
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_back_wifi
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview_wifi-1
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview_wifi-2
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_front_rightview
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_back_wifi_w Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview_wifi-1_w Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview_wifi-2_w Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_top_back_rightview_No Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_front
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_front_No Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_front_w Antenna
slide {0} of {1}, zoom in, ASUS NUC_13 Rugged_tall_2D_back_No Antenna

Make amazing experiences possible

Unlock unparalleled performance, connectivity, and reliability with ASUS NUC 13 Rugged kits and boards. Expertly crafted in a fanless, dust-resistant ruggedized chassis, these devices showcase the perfect synergy of power and durability. Featuring the Intel® Processor N50 and Intel® Atom® processors, ASUS NUC 13 Rugged devices are tailor-made for applications that demand resilience against dust exposure, shocks, and vibration. Select kits are engineered to endure extended external ambient temperatures (0-50°C on tall chassis), ensuring unwavering performance even in the most demanding conditions. Elevate your computing experience with the ideal blend of strength and sophistication.

Powerful performance in a small, durable footprint

Like all ASUS NUCs, the ASUS NUC 13 Rugged is a versatile platform for edge solutions with a small form factor, platform longevity, and I/O expandability. To unlock new possibilities for ASUS partners and their customers, the ASUS NUC 13 Rugged incorporates a rugged, fanless, heat-and dust-resistant design with flexible mounting options.This latest evolution of the NUC can be deployed in more places and service more challenging use cases with standout performance, self-healing*, and display capabilities.

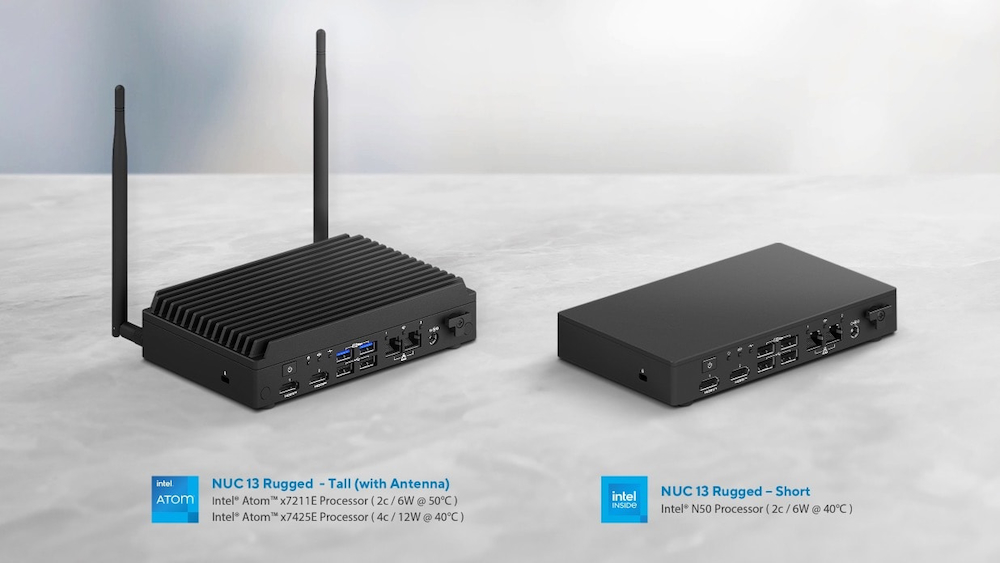

Two images of the ASUS NUC 13 Rugged product: one featuring the slim model without antennas, and the other showcasing the outlook with a heatsink and two antennas.
Five-year
availability commitment
24/7 operation
for five years1
Quality and
reliability

More than a PC

This innovative ASUS NUC 13 Rugged solution transcends the traditional notion of a PC. It stands as a resilient, potent, and robust edge computing platform capable of fueling a myriad of today’s critical and demanding use cases. Whether for work, home office, business, or industrial applications, the ASUS NUC 13 Rugged’s versatility opens up new opportunities and possibilities for partners throughout their value chain.
ASUS NUC 13 Rugged features the Intel® Atom® x7425E / Intel® Atom® x7211E / Intel® Processor N50, delivering robust performance. It is equipped with Intel® UHD Graphics integrated with an IPU for enhanced graphics capabilities. The Intel® Wi-Fi 6E AX210 comes pre-installed in the M.2 slot for most kit SKUs, complemented by external antennas on the chassis, ensuring reliable and high-speed wireless connectivity. Storage-wise, it boasts a 64 GB eMMC soldered-down and includes an M.2 2280 key M slot, providing support for PCIe® x2 NVMe™ SSD for expanded storage options.
Security personnel utilize the ASUS NUC 13 Rugged to verify whether a person’s image aligns with identification standards displayed on the screen.

The Edge and IoT opportunity

Edge and IoT are growing rapidly across nearly every industry. And ASUS partners of all types are striving to develop and deploy next-generation edge solutions. To do so, they need the right edge hardware to meet customer requirements and satisfy long- term expectations.
With a purpose-built design, the ASUS NUC 13 Rugged can help you satisfy these requirements and enable key edge use cases for our partners in virtually every industry — from retail to manufacturing.
A girl taps on the screen for AI video recognition.

Connectivity

Connectivity

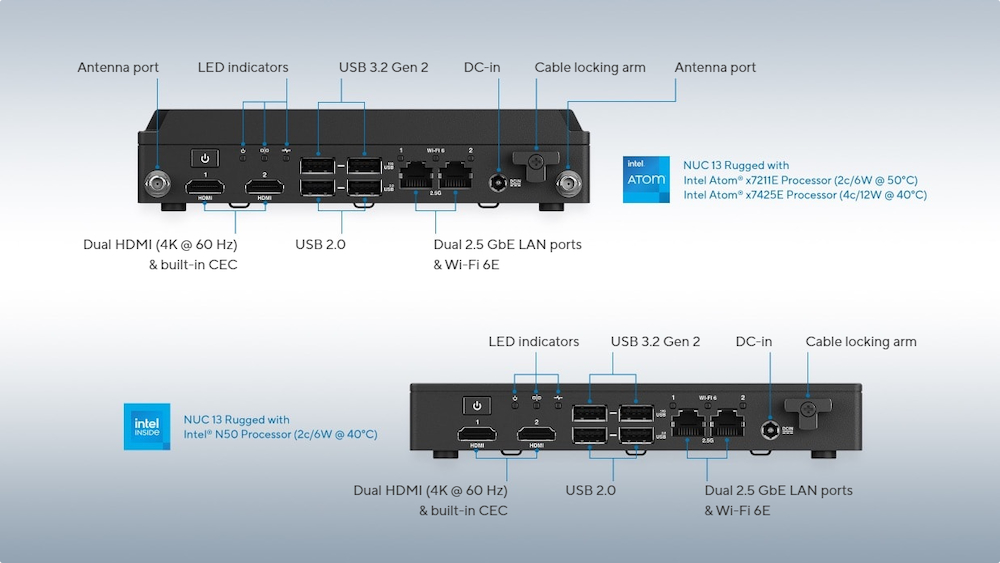

Antenna port, LED indicators, USB 3.2 Gen 2, DC-in, Cable locking arm, Dual 2.5 GbE LAN ports & Wi-Fi 6E, USB 2.0, Dual HDMI (4K @ 60 Hz) & built-in CEC, Antenna port, LED indicators, USB 3.2 Gen 2, DC-in, Cable locking arm, Dual HDMI (4K @ 60 Hz) & built-in CEC, USB 2.0, Dual 2.5 GbE LAN ports & Wi-Fi 6E

Demand for smart edge is growing

For over a decade, NUCs have functioned as edge computing devices, finding primary application in retail, banking, and hospitality industries. They have been utilized for tasks such as digital signage, multi-display video walls, intelligent vending, digital kiosks, and other interactive displays. In the early days of digital signage, solutions were simplistic, displaying digital information with limited graphics in public spaces. As technology has advanced, digital signage has transformed into a powerful marketing tool capable of delivering personalized, targeted content to viewers.
The NUC boasts several standout features that enhance its performance and durability. Operating within an extended temperature range of 0-50°C, it excels in diverse environments, particularly applicable to tall chassis setups. Its IP50-rated fanless and dust-resistant chassis, complete with cover plugs for unused ports, ensures robust protection against environmental elements. With WMI APIs facilitating network management across various Windows operational environments, maintenance time and costs are significantly reduced. Furthermore, the NUC is qualified for 24x7 sustained operation1, underscoring its reliability for long-term and intensive usage.
Digital signage
Kiosk
Remote monitoring

Digital signage

Kiosk

Remote monitoring

* NUC Pro Software Suite targeted for release at end of Q2’24.
1. 24x7 operation with up to 80% activity over five years.
