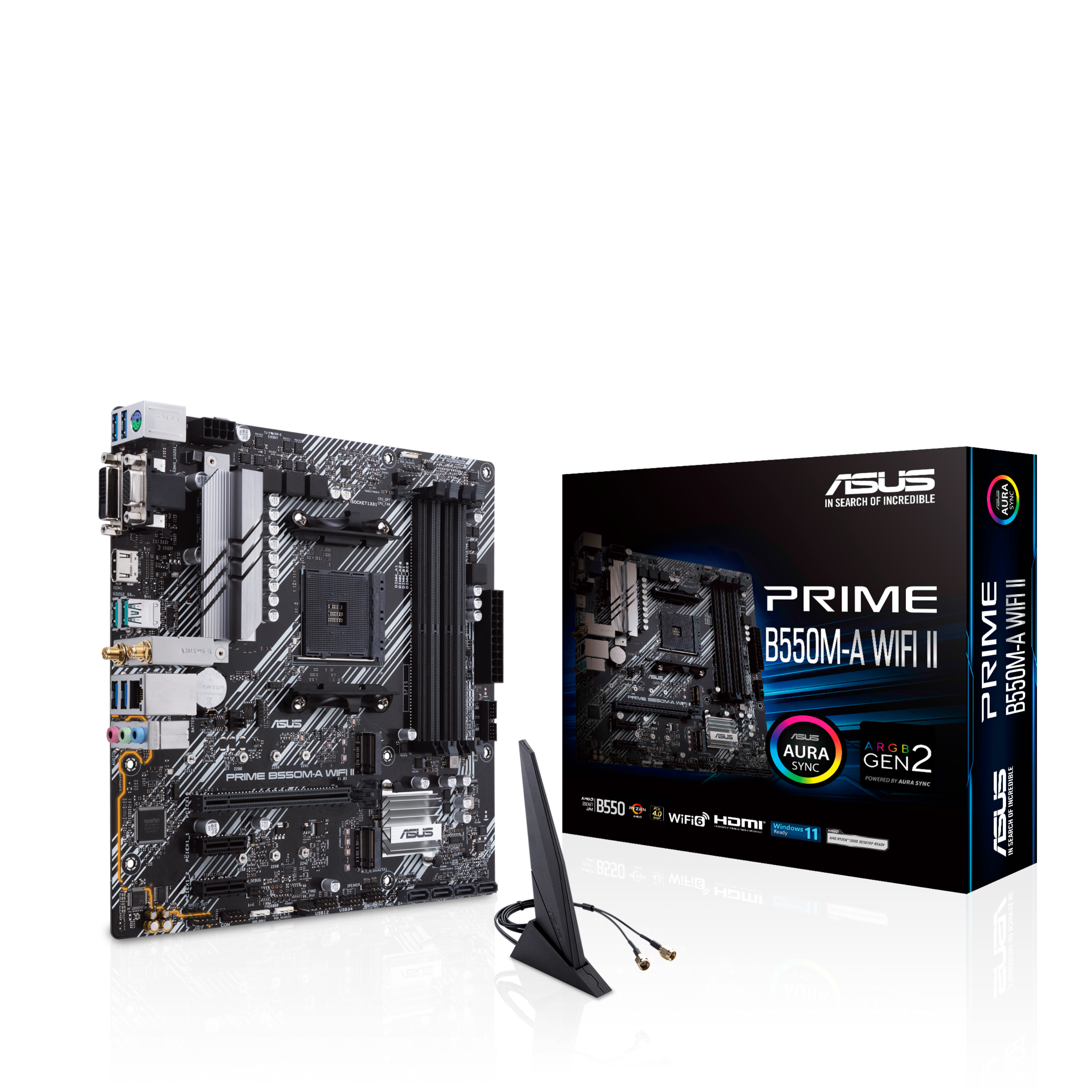

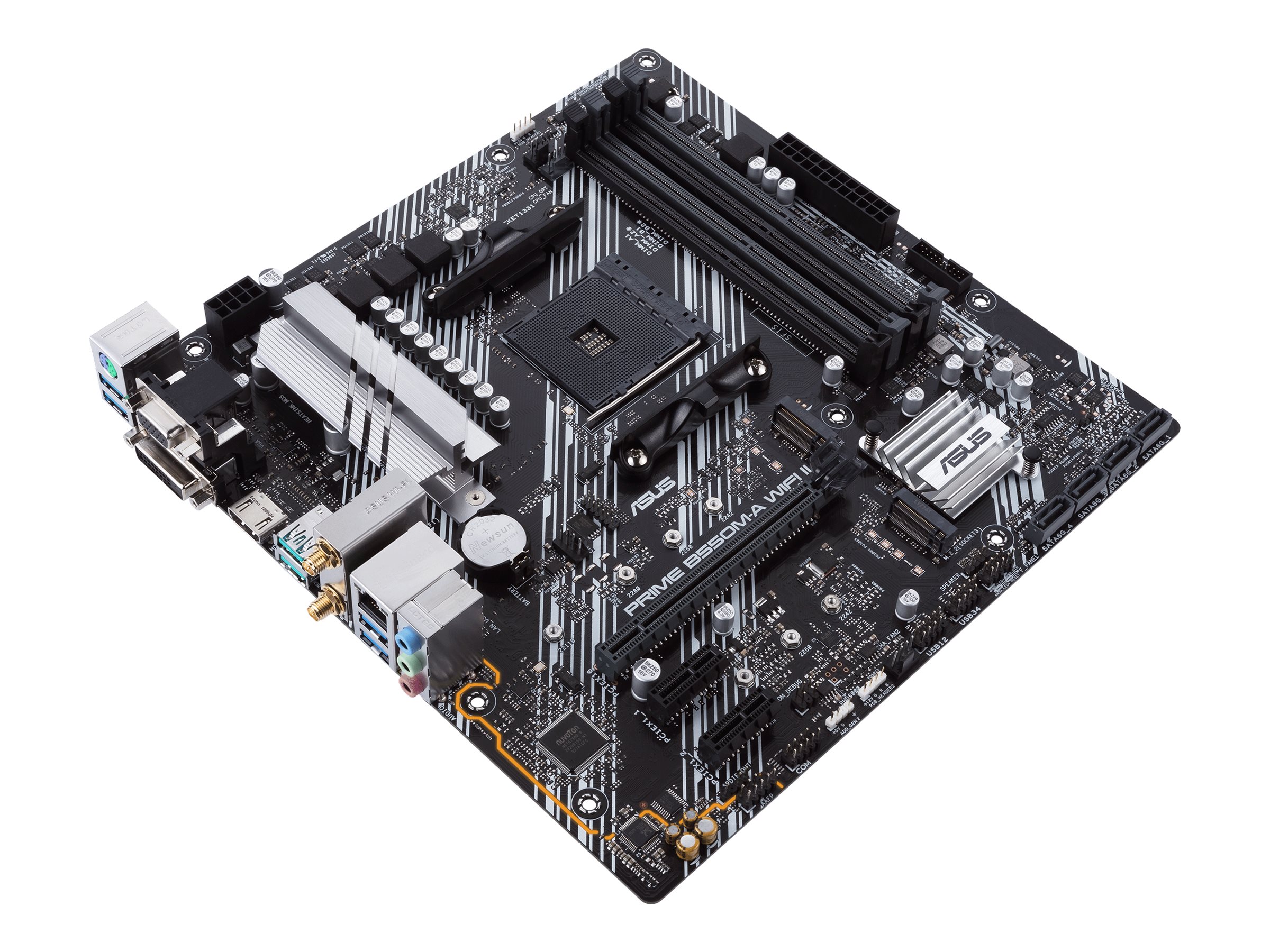

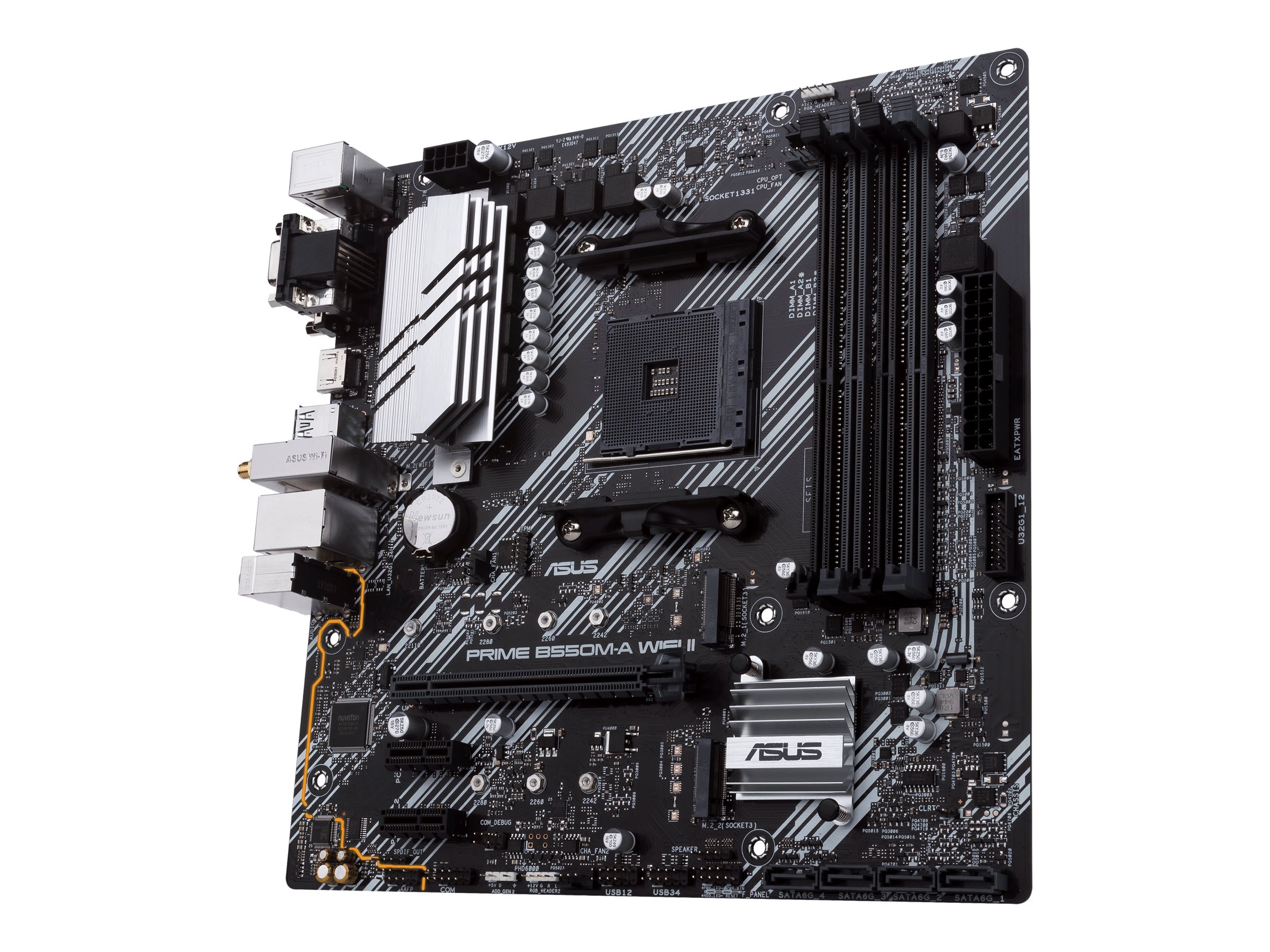

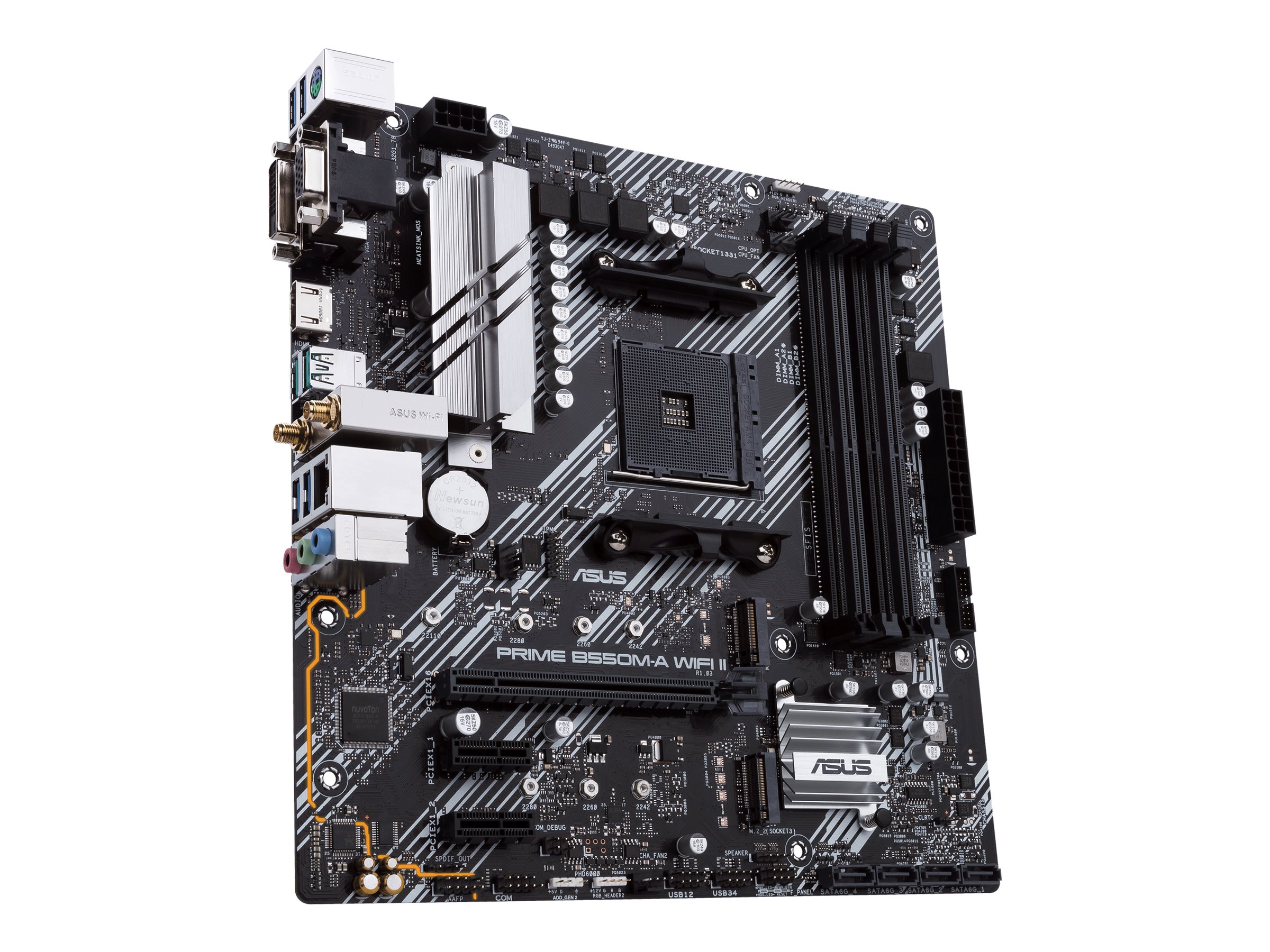

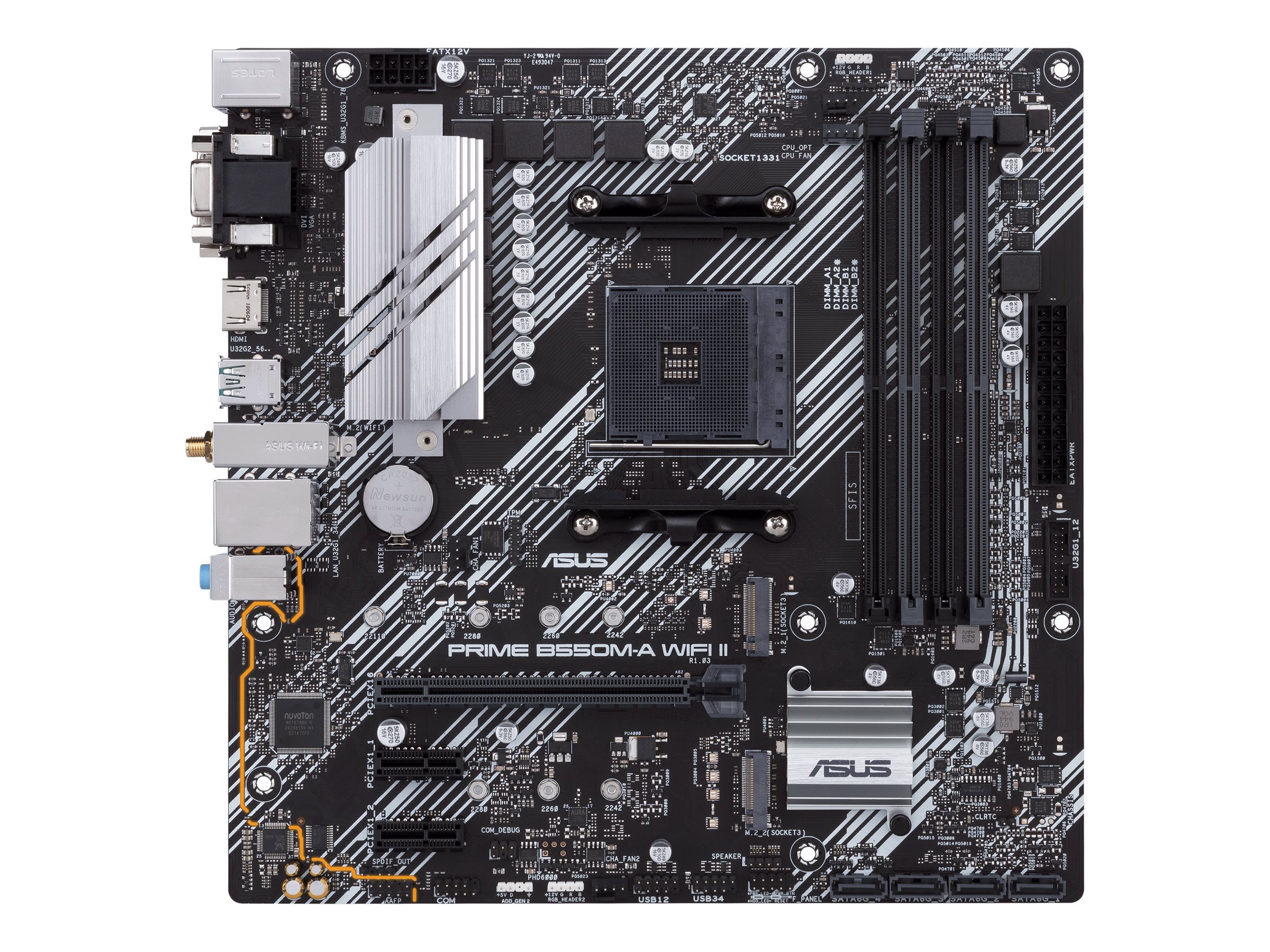

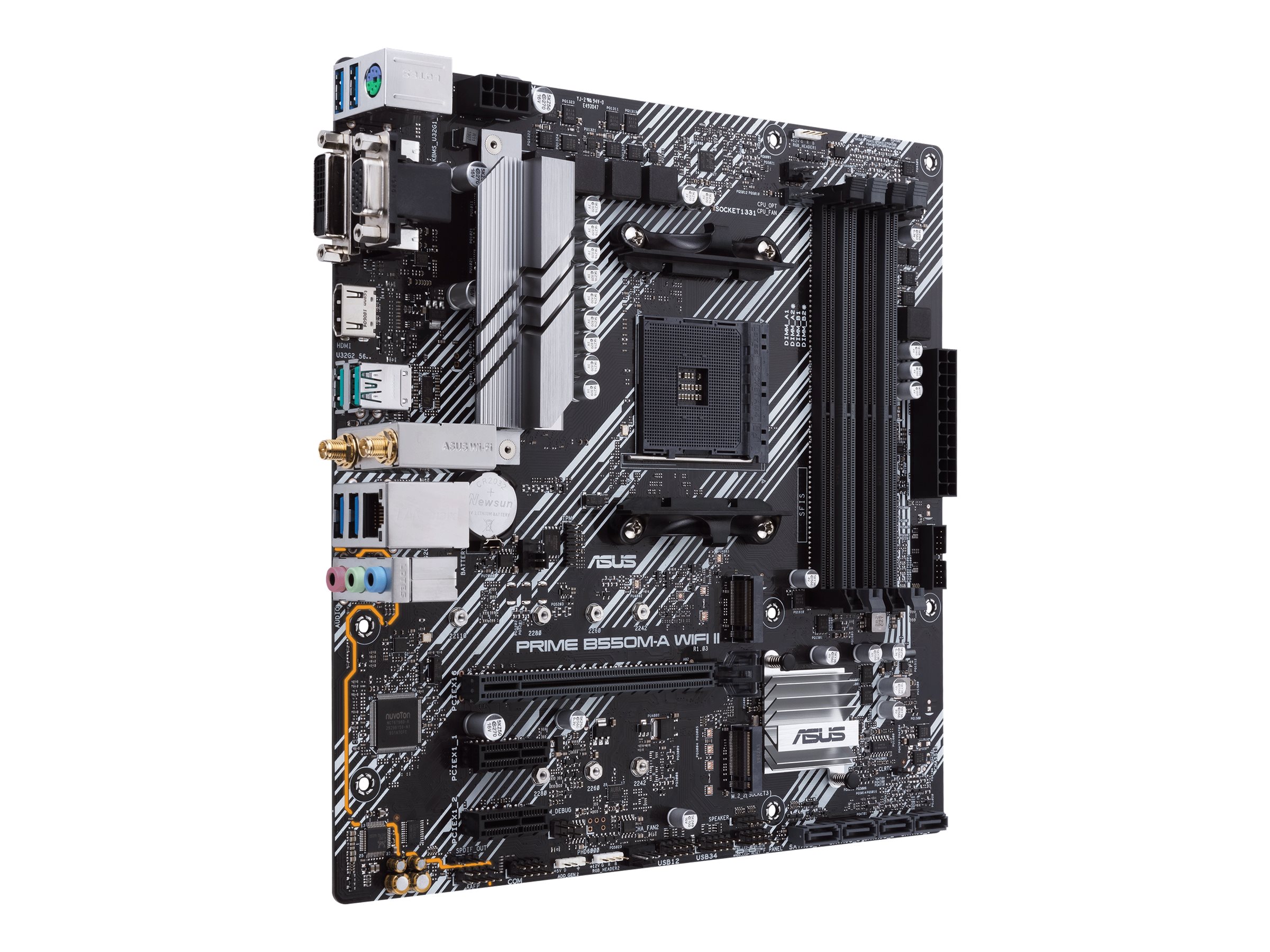

ASUS PRIME B550M-A WIFI II Micro-ATX AM4 AMD B550
ASUS PRIME B550M-A WIFI II - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
1 093,00 SEK
874,40 SEK excl. VAT
-
Product no 999803672
Model 90MB19X0-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081309741
Weight 1.16 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Processorproducent | AMD |
| Processor sokkel | Stik AM4 |
| Kompatibel processor serie | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Understøttede lagerdrev brugerflader | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Understøttelse af parallel behandlingsteknologi | Ikke understøttet |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 0 |
| Antal SATA III-stik | 4 |
| Antal USB 2.0-porte | 0 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal VGA-porte (D-sub) | 1 |
| Antal HDMI-porte | 1 |
| Antal DVI-D-porte | 1 |
| Wi-Fi | Ja |
| Komponent til | PC |
| Motherboard form faktor | micro ATX |
| Bundkort chipset familie | AMD |
| Bundkort chipsæt | AMD B550 |
| Lyd-output kanaler | 7.1 kanaler |
| BIOS-type | UEFI AMI |
| General | |
|---|---|
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 433 |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) | 2 x PCIe 3.0 x1 |

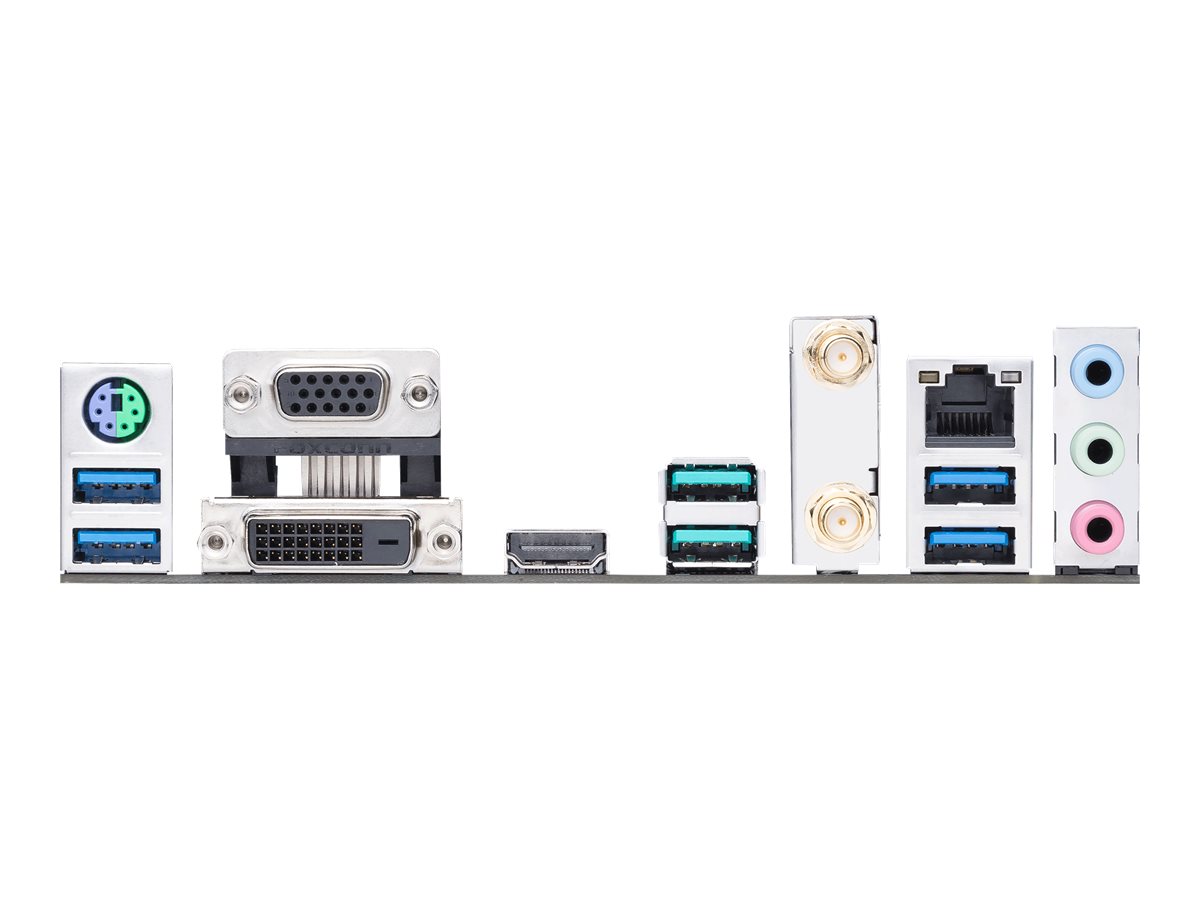

| Interfaces | 1 x VGA | 1 x DVI-D | 1 x LAN (Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 2 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x HDMI |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS F |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |

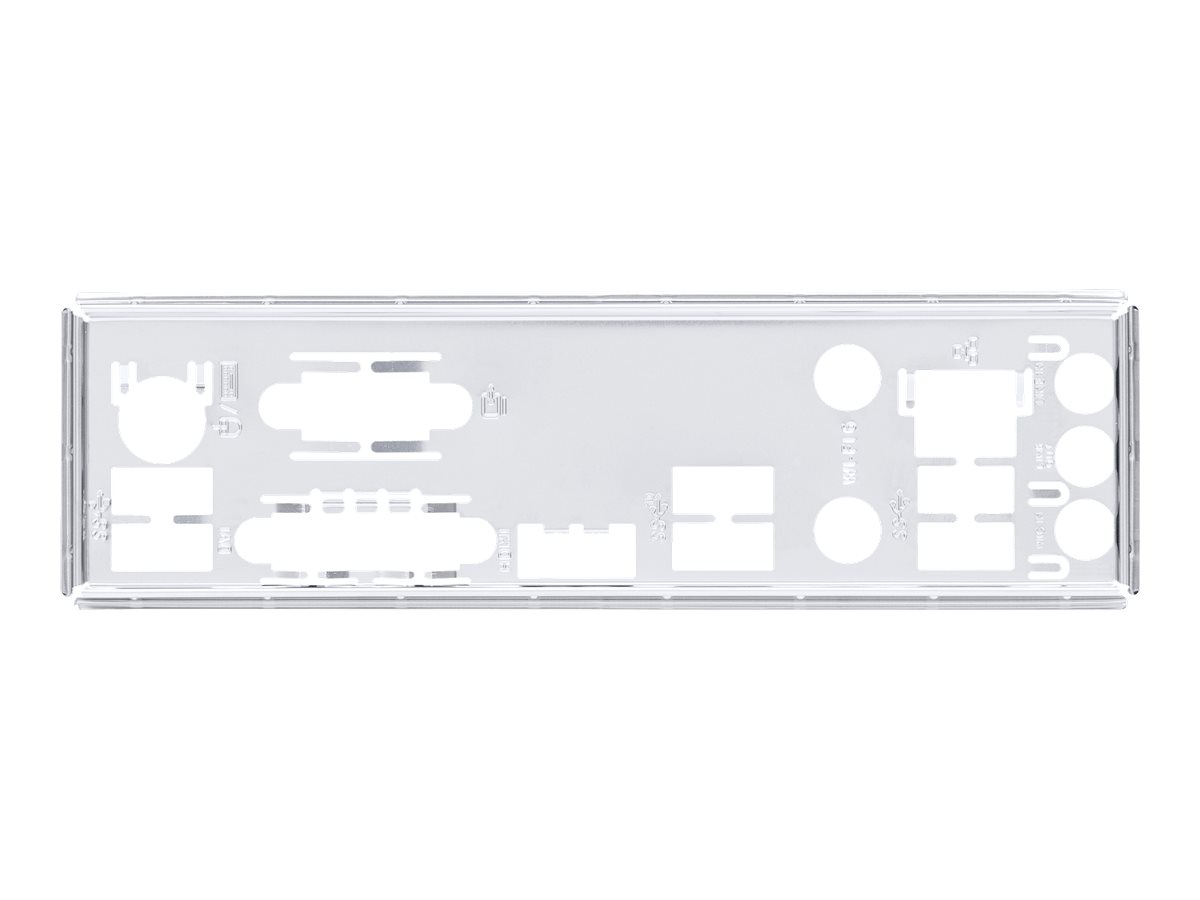

| Included Accessories | 1 x M.2 screw, I/O back cover, ASUS Wi-Fi moving antenna |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator |
| Width | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
