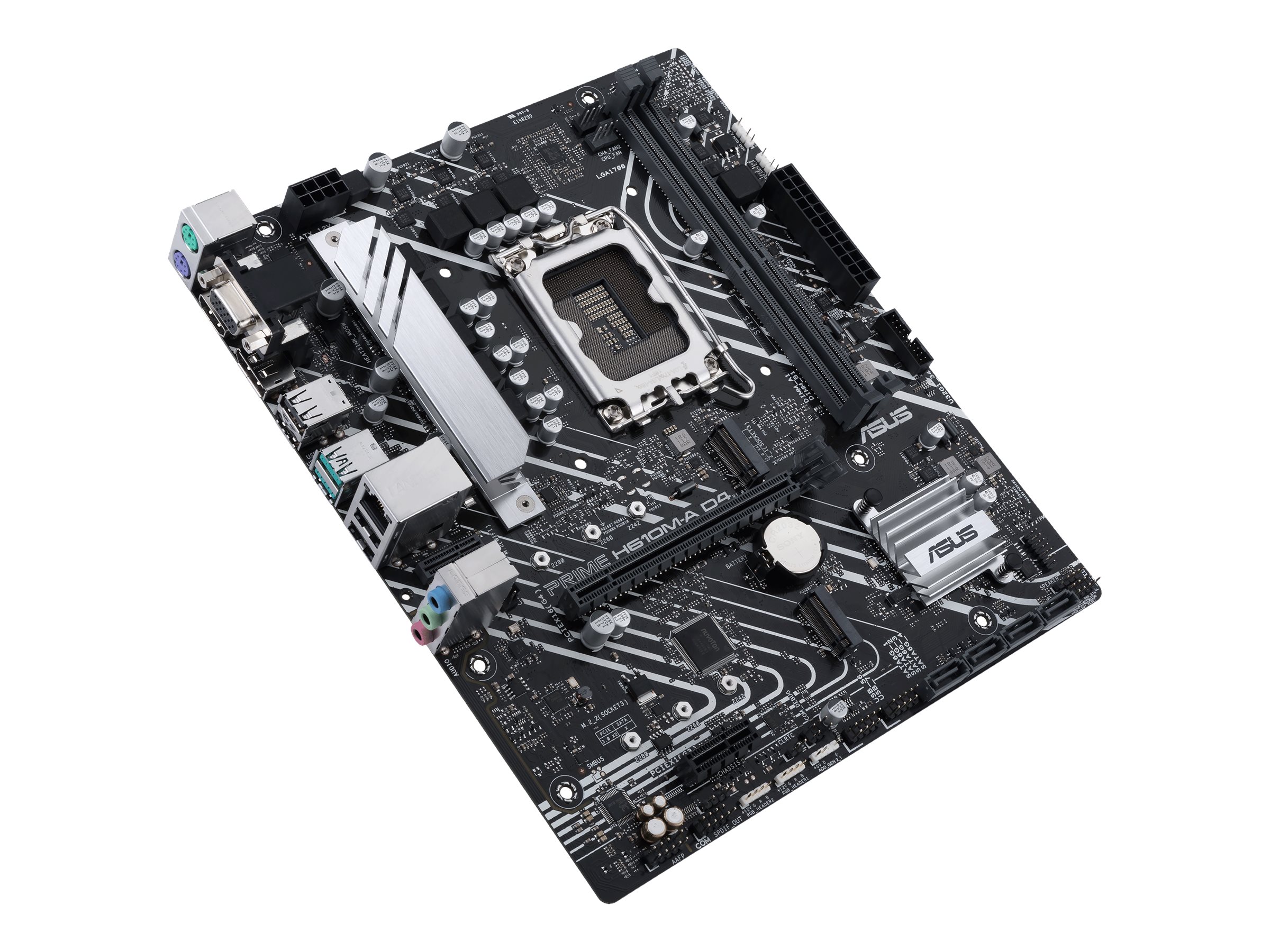

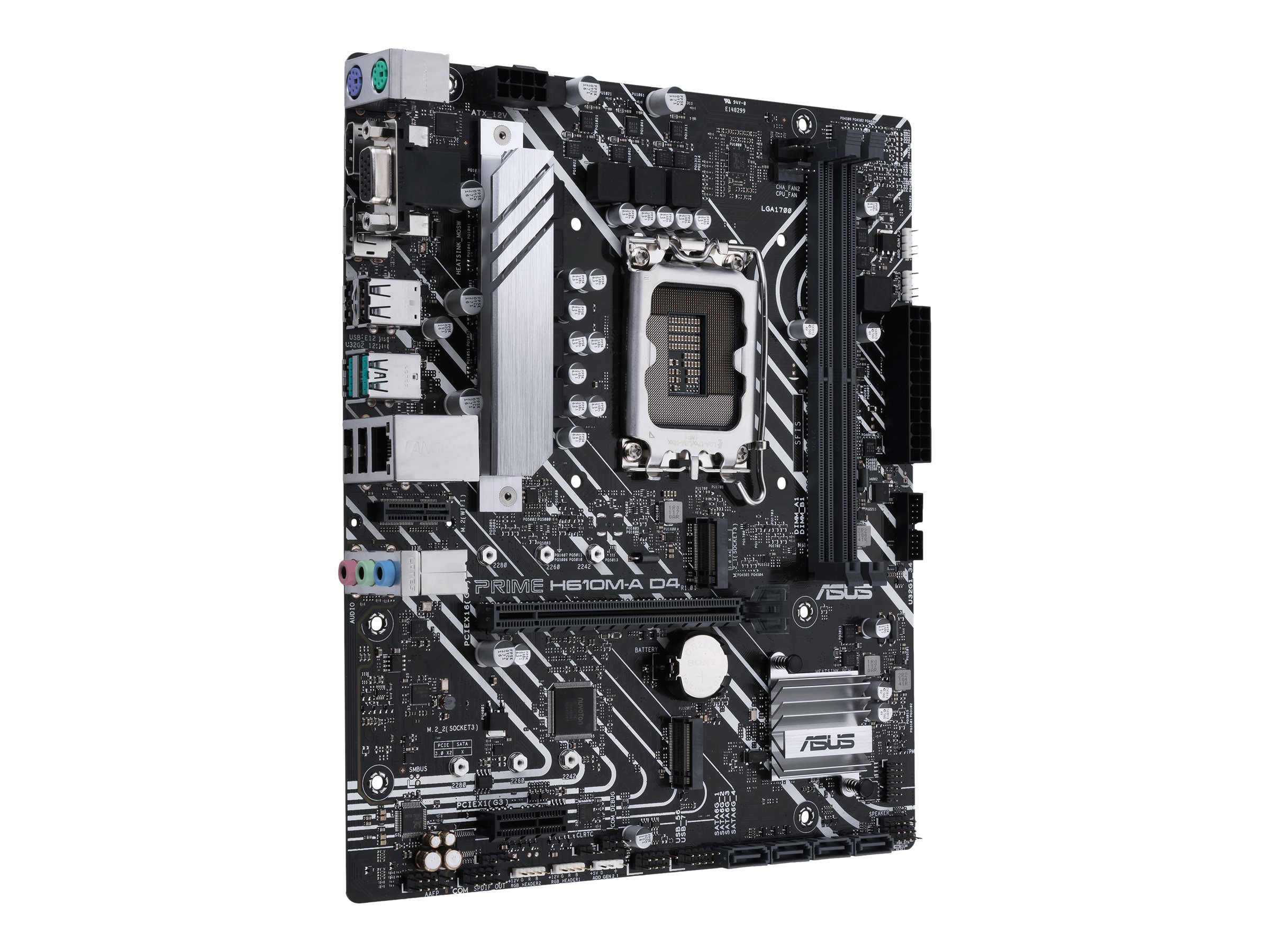

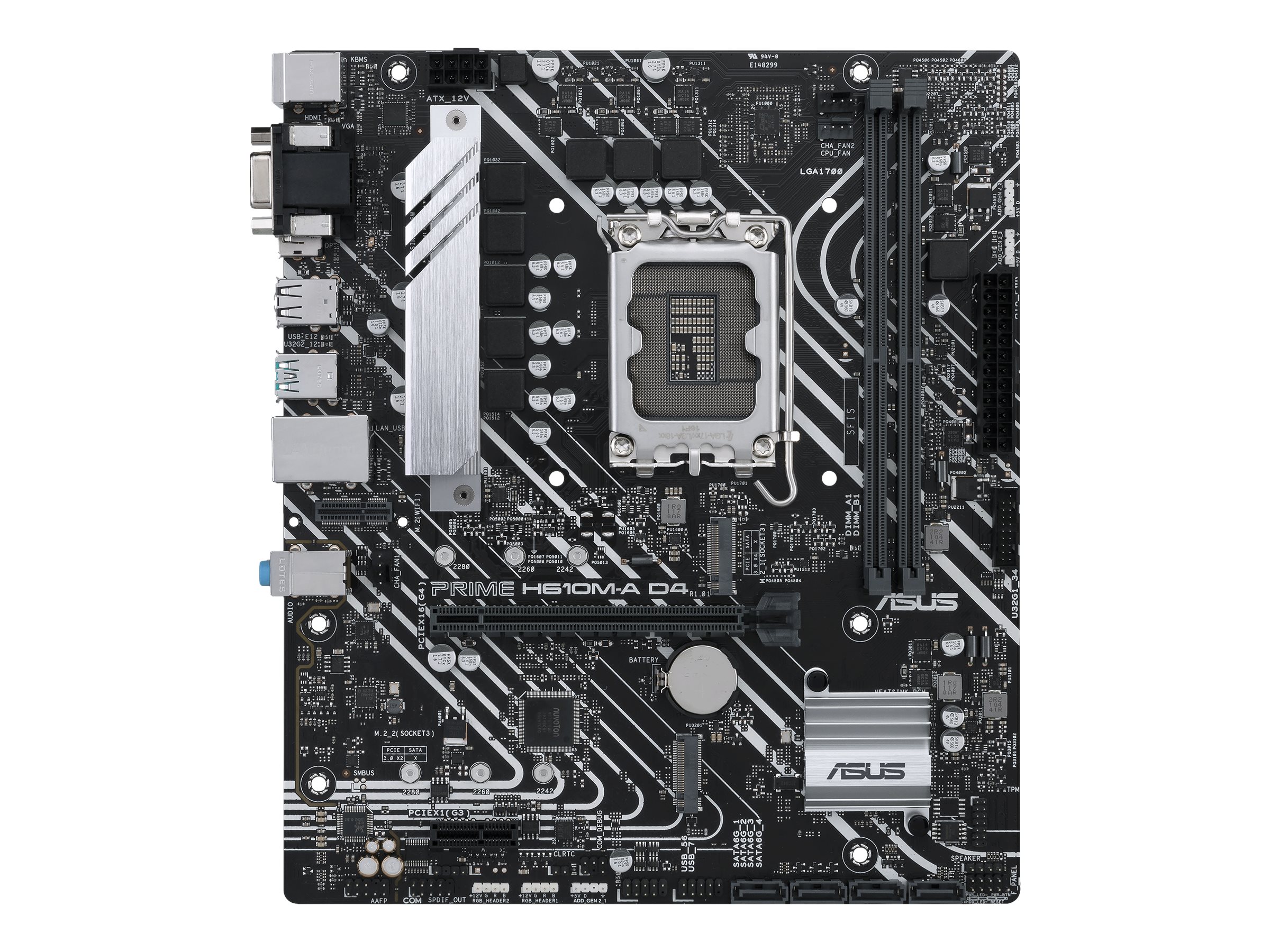

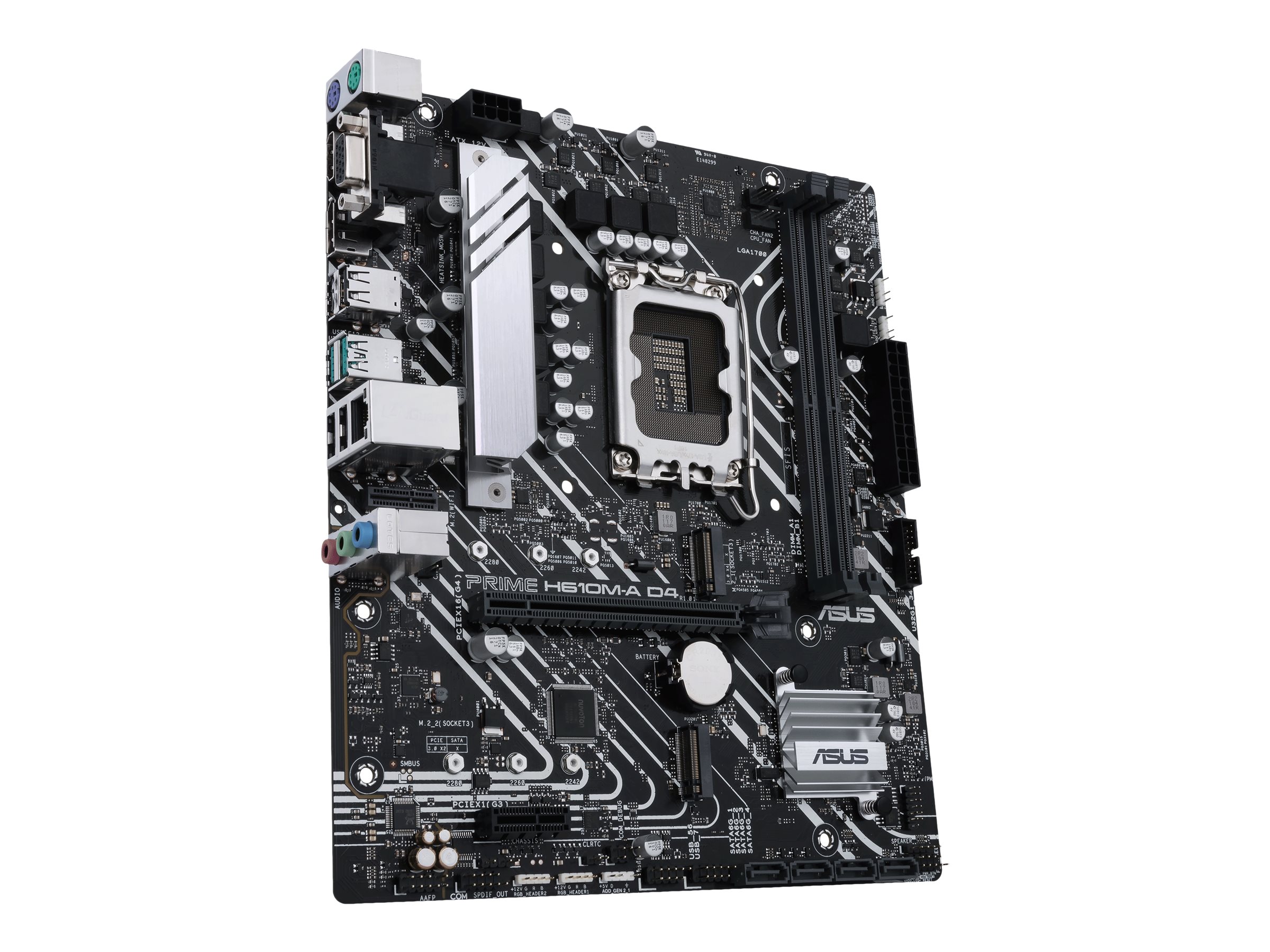

ASUS PRIME H610M-A D4-CSM Micro-ATX LGA1700 Intel H610

ASUS PRIME H610M-A D4-CSM - Bundkort - micro ATX - LGA1700 sokkel - H610 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

SEK 905,00
SEK 724,00 excl. VAT

Shipping from SEK 39,00 (PostNord Spårbart varubrev)
Product no: 1000265996
Model: 90MB19P0-M0EAYC
EAN: 4711081514442
Brand:
ASUSTeK COMPUTER
Weight: 0.95 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ASUS PRIME H610M-A D4-CSM - bundkort - micro ATX - LGA1700 sokkel - H610
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H610
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600, 2 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
Intel H610
Compatible Processors
(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty
1
Processor Socket
LGA1700 Socket
Product Type
Motherboard - micro ATX
Supported RAM
Bus Clock
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size
64 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC
Technology
DDR4
Audio
Compliant Standards
High Definition Audio
Type
HD Audio (8-channel)
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 2 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 | 1 x M.2 socket (Key E)
Interfaces

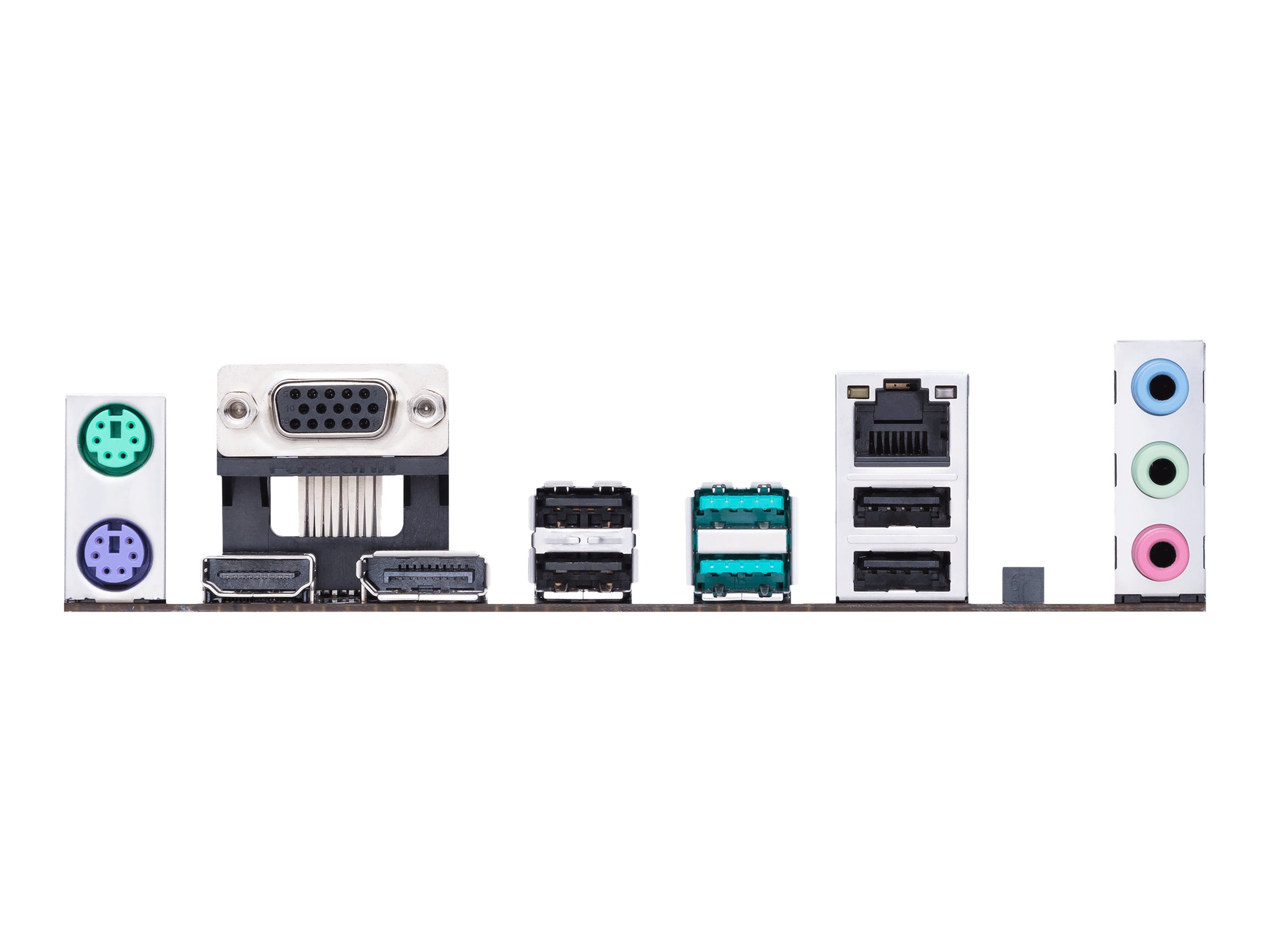

1 x HDMI | 1 x DisplayPort | 1 x VGA | 2 x USB 3.2 Gen 2 | 1 x PS/2 mouse | 4 x USB 2.0 | 1 x PS/2 keyboard | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 mouse
Internal Interfaces
3 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x SPDIF out - header | 1 x audio - header | 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA | PCIe 3.0 -connectors: 2 x M.2
Features
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Hardware Features
Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASU
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included
2 x Serial ATA cable
Compliant Standards
DisplayPort 1.4
Depth
21.1 cm
Included Accessories

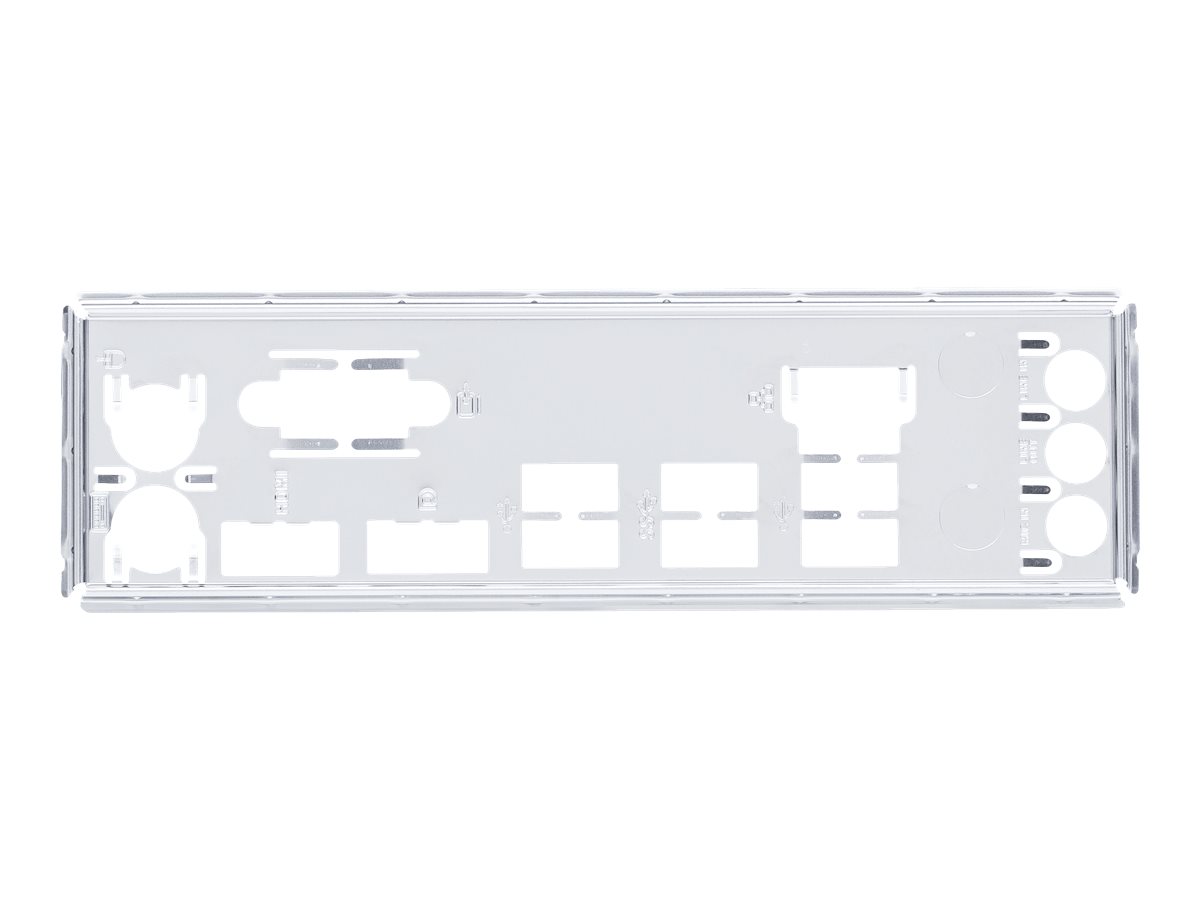

I/O back plate, 1 x M.2 screw
Software Included
Drivers & utilities, ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial)
Width
24.4 cm
