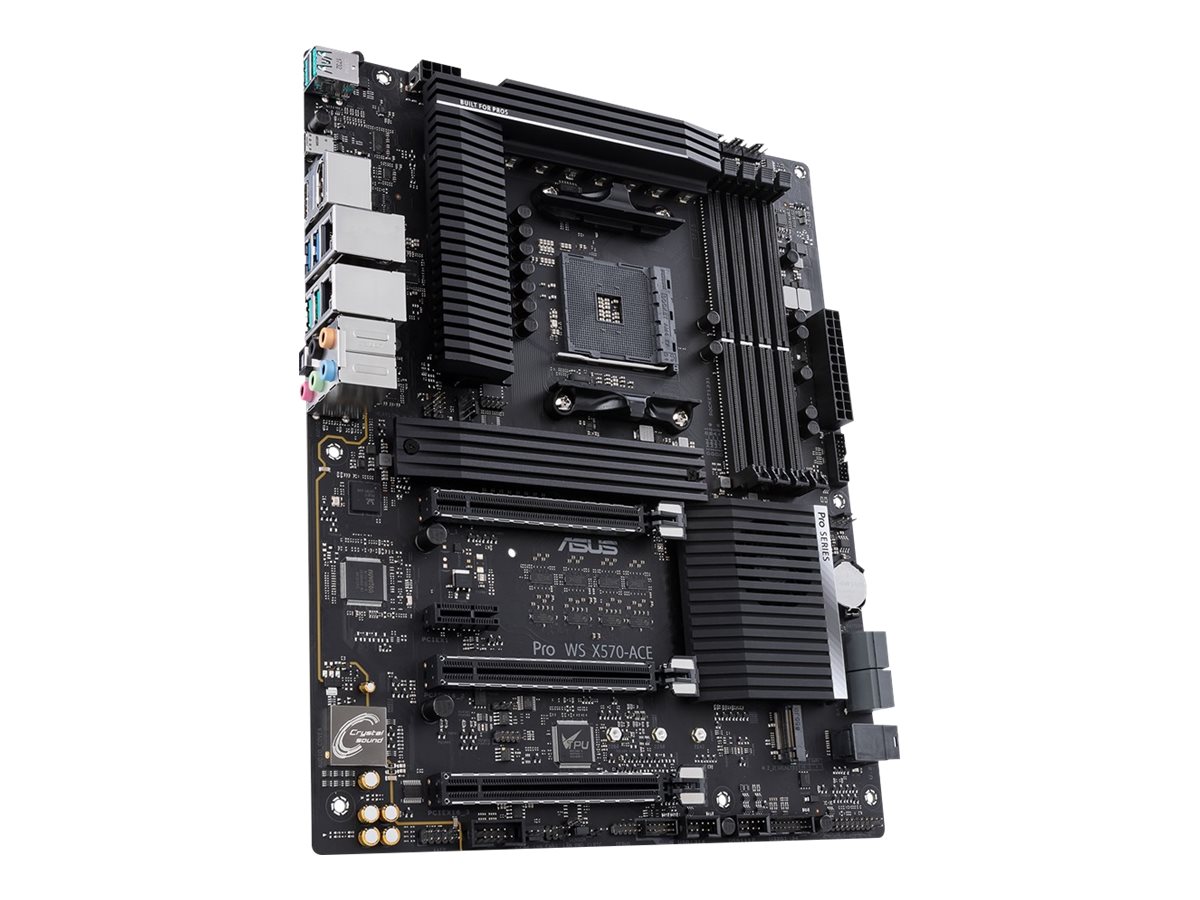

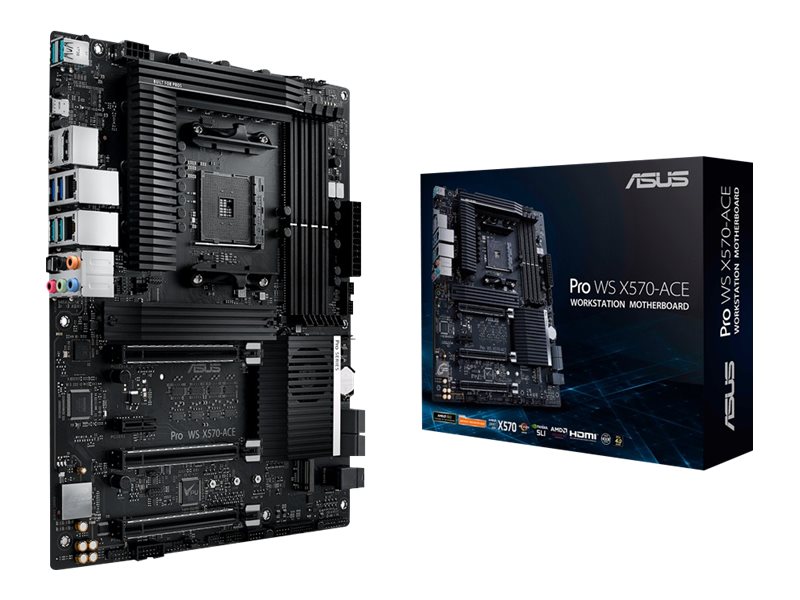

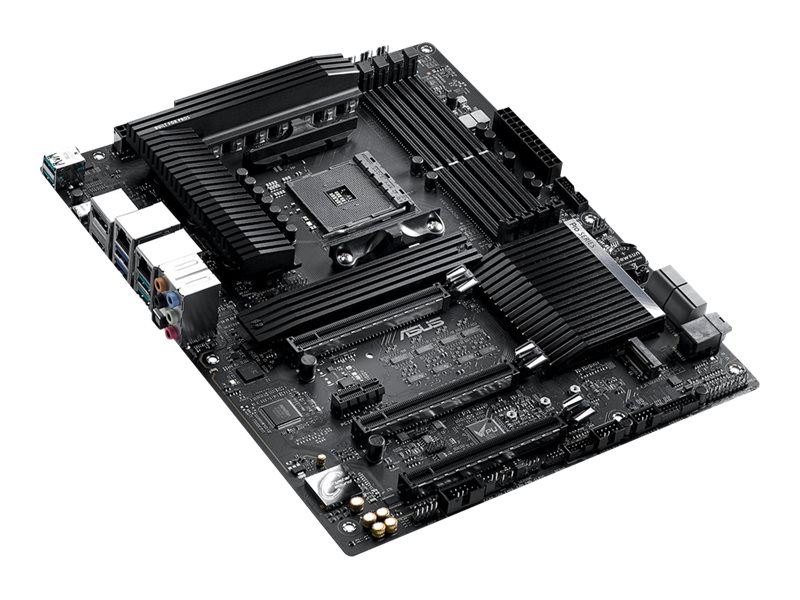

ASUS Pro WS X570-ACE ATX AM4 AMD X570

ASUS Pro WS X570-ACE - Bundkort - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2 x Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

4 625,00 SEK 3 700,00 SEK excl. VAT

  • Product no 994893219

    Model 90MB11M0-M0EAY0

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4718017322713

    Weight 2.1 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASUS Pro WS X570-ACE - bundkort - ATX - Socket AM4 - AMD X570
Produkttype Bundkort - ATX
Chipsættype AMD X570
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter 2. og 3. Generation Ryzen/1. og 2. Generation Ryzen med Radeon Vega Graphics)
Max RAM-størrelse 128 GB
RAM understøttet 4 DIMM åbninger - DDR4, ECC, ikke bufferet
Lagringsporte 4 x SATA-600 (RAID), 2 x M.2, 1 x U.2 port
USB / FireWire porte 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio HD Audio (8-kanaler)
LAN 2 x Gigabit Ethernet
Producentgaranti 3 års garanti
General
Chipset Type AMD X570
Compatible Processors Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz
Features Dual channel memory architecture
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check ECC
Technology DDR4
Audio
Audio Codec Realtek ALCS1200A
Compliant Standards High Definition Audio
Type HD Audio (8-channel)
LAN
Network Controller Intel I211-AT / Realtek RTL8117
Network Interfaces 2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 2 x PCIe 4.0 x16 (PCIe 4.0 x16/x0, x8/x8 modes (with 3rd Generation Ryzen CPU); PCIe 3.0 x16/x0, x8/x8 modes (with 2nd Generation Ryzen CPU); PCIe 3.0 x8/x0 mode (with Ryzen CPU with Radeon Vega Graphics / 2nd Generation

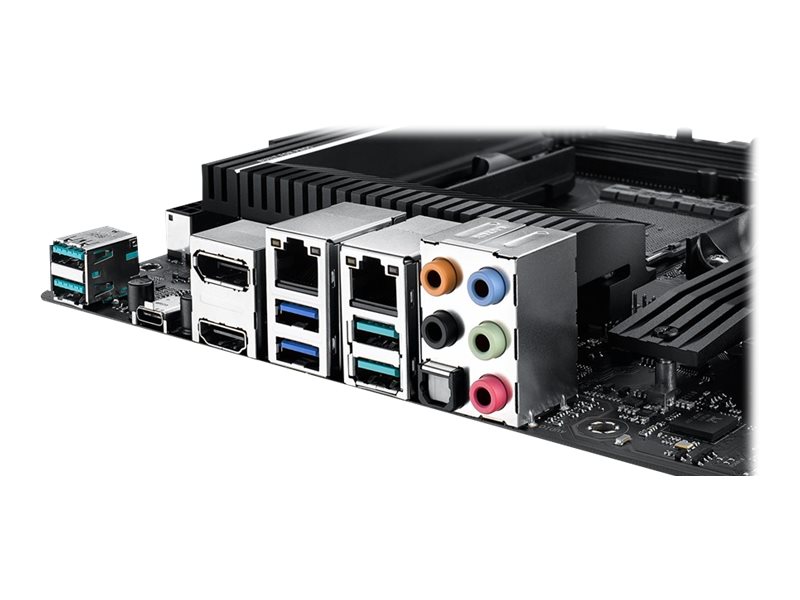

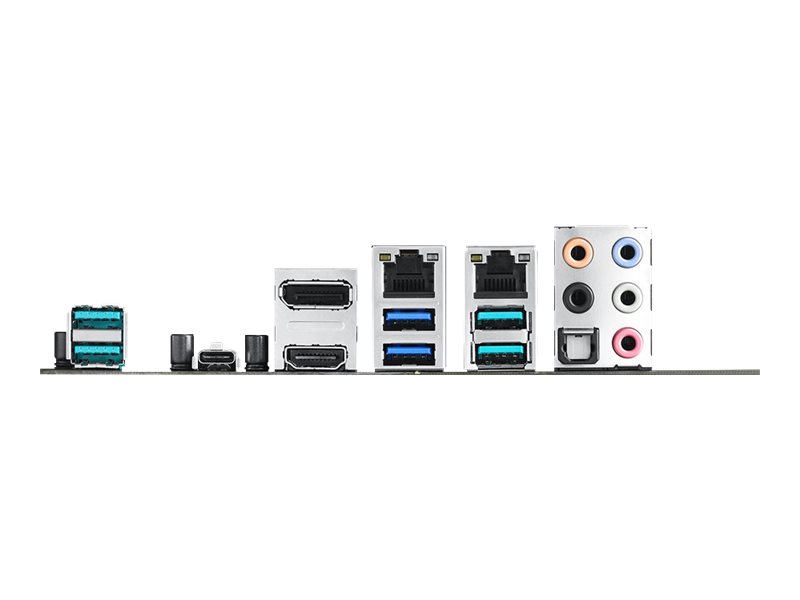

Interfaces 2 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 2 x USB 3.2 Gen 1 | 4 x USB 3.2 Gen 2 | 1 x audio line-out (center/subwoofer) - mini-jack | 1 x audio line-out (r
Internal Interfaces 4 x USB 2.0 - header | 1 x SPDIF out - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 2 x M.2 | PCIe 3.0 -connectors: 1 x U.2
Features
BIOS Features Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 6.0 support, SMBIOS 3.2 support
BIOS Type AMI
Hardware Features Jack retasking, ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, NVIDIA 2-way SLI Technology Support, ASUS TPU (TurboV Processing Unit), A
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included 4 x Serial ATA cable
Compliant Standards Plug and Play
Depth 24.4 cm

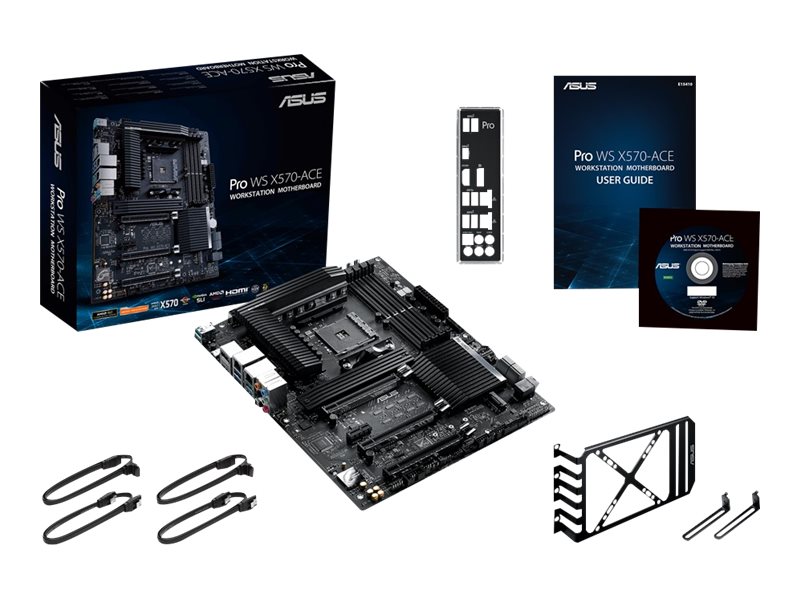

Included Accessories 1 x M.2 screw, I/O back cover, ASUS VGA Holder
Software Included Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, ASUS Control Center
Width 30.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
