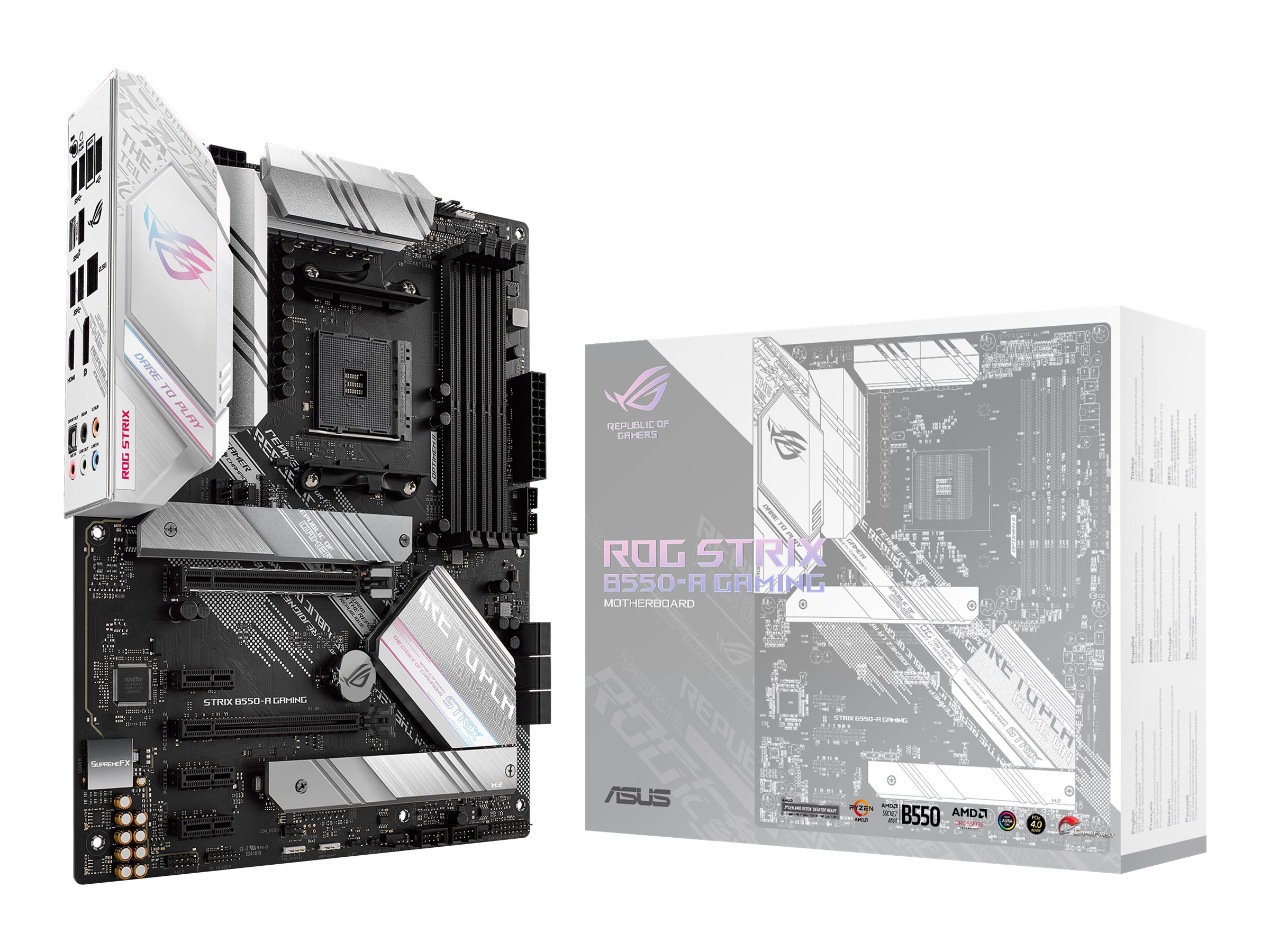

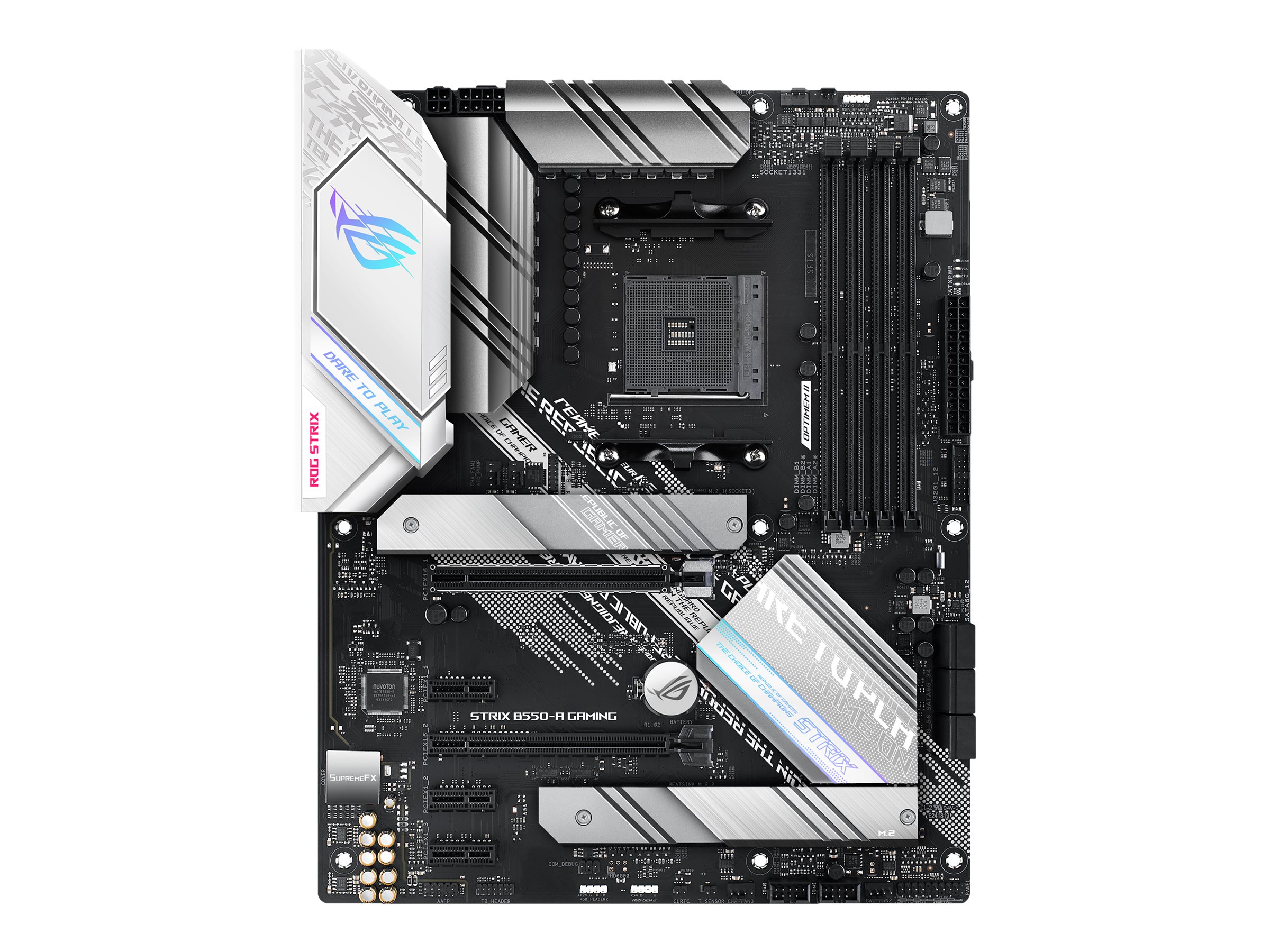

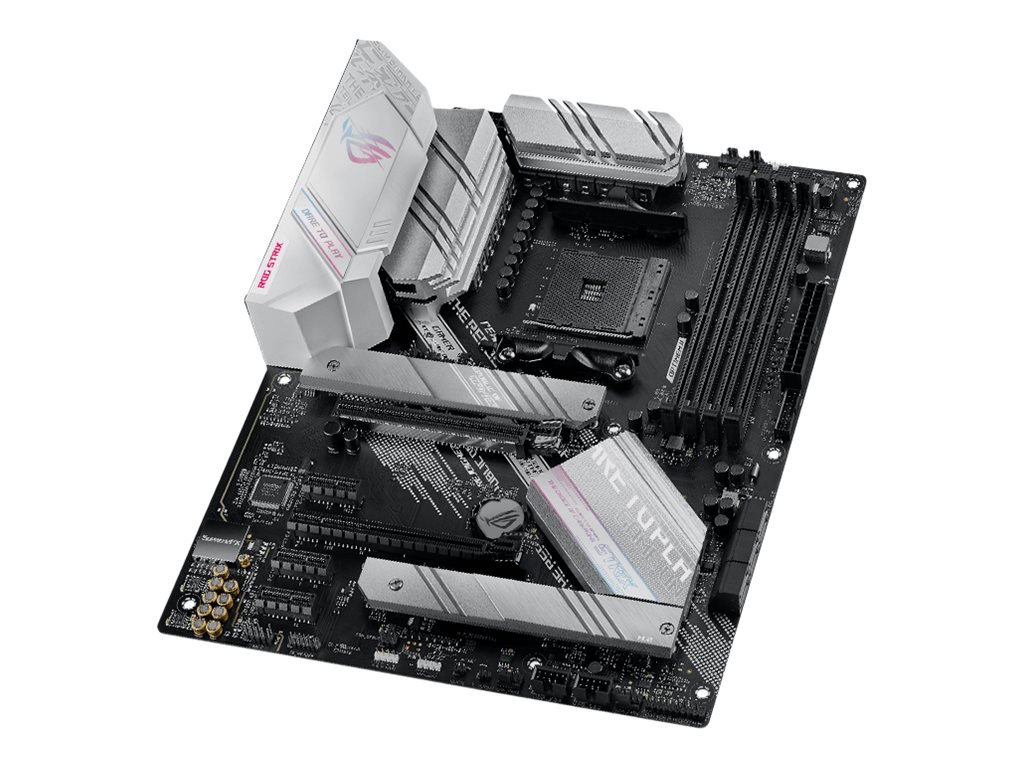

ASUS ROG STRIX B550-A GAMING ATX AM4 AMD B550

Asus ROG STRIX B550-A GAMING - ATX AM4

1 694,00SEK1 355,20SEK excl. VAT
  • Product no 996512759

    Model 90MB15J0-M0EAY0

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 4718017826600

    Weight 1.7 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports 3rd Generation Ryzen)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz
Features Dual channel memory architecture
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC
Technology DDR4
Audio
Audio Codec SupremeFX (S1220A)
Compliant Standards High Definition Audio, DTS Sound Unbound
Type HD Audio (8-channel)
LAN
Network Controller Intel I255-V
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) | 1 x PCIe 3.0 x16 (x4 mode) | 3 x PCIe 3.0 x1
Interfaces 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x USB-C Gen2 | 1 x USB 3.2 Gen 2 | 1 x TOSLINK | 1 x audio line-out (center/subwoofer) - mini-jack | 1
Internal Interfaces 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x Thunderbolt - header | 1 x audio - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features BIOS FlashBack, UEFI BIOS
BIOS Type AMI
Hardware Features Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, AMD CrossFireX technology s
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Miscellaneous
Cables Included 4 x Serial ATA cable
Compliant Standards DisplayPort 1.2
Depth 24.4 cm
Included Accessories Cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, rubber pad
Software Included Drivers & utilities, ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, ROG GameFirst VI
Width 30.5 cm
