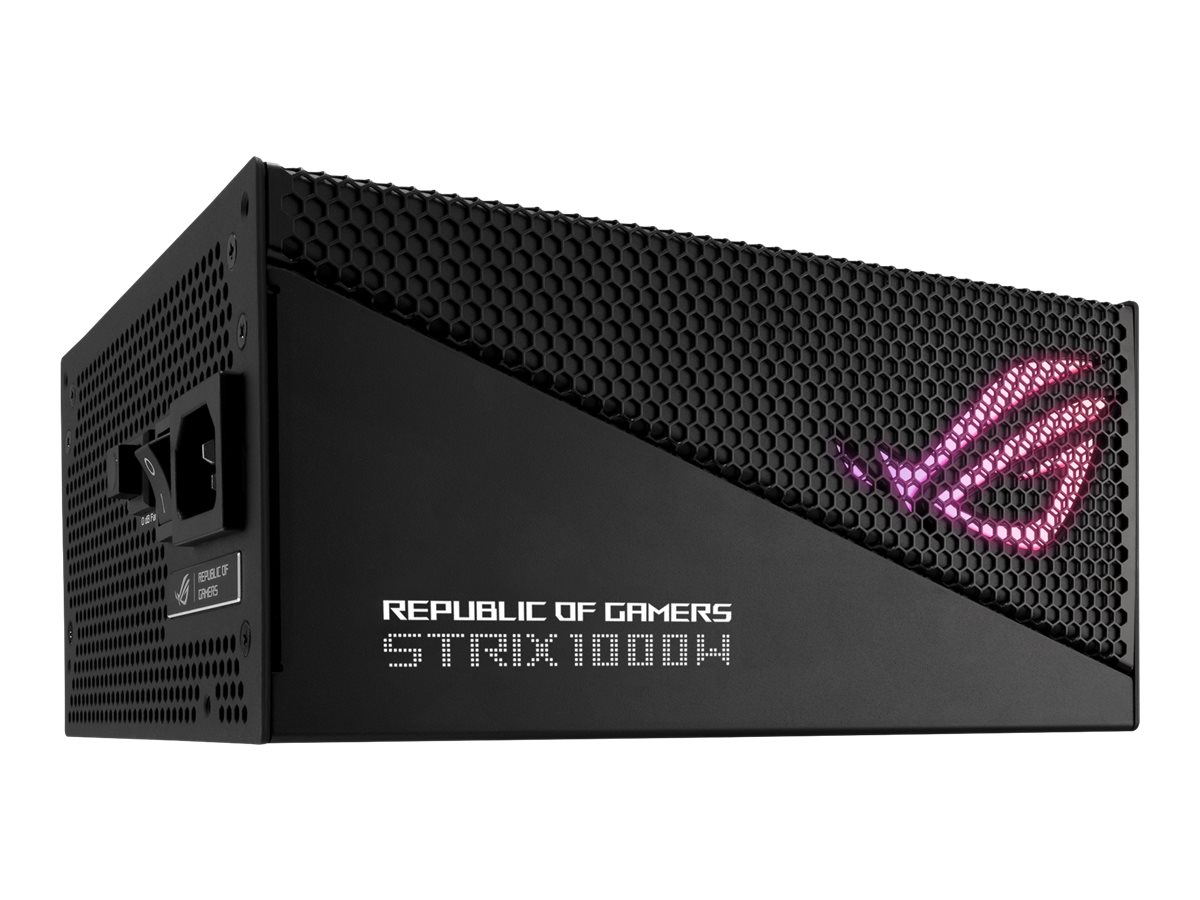

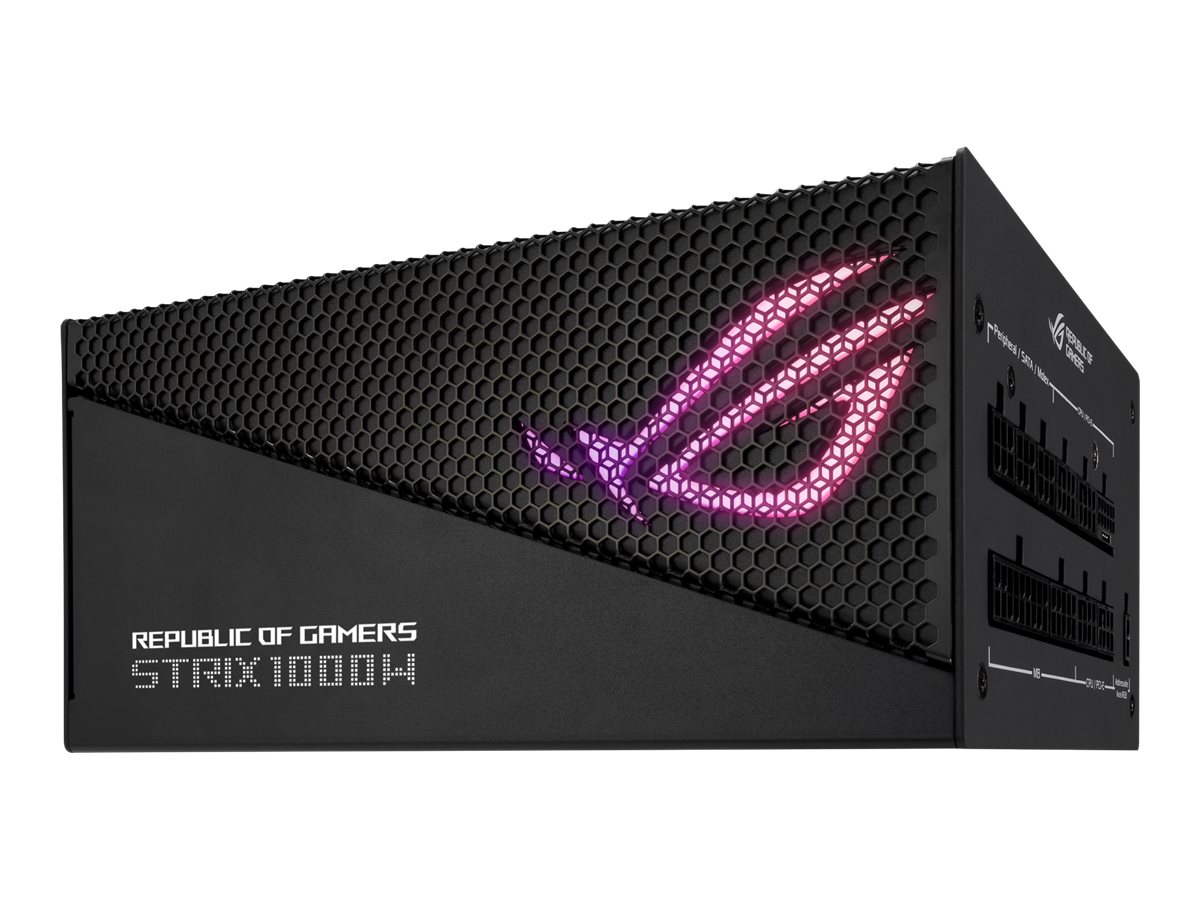

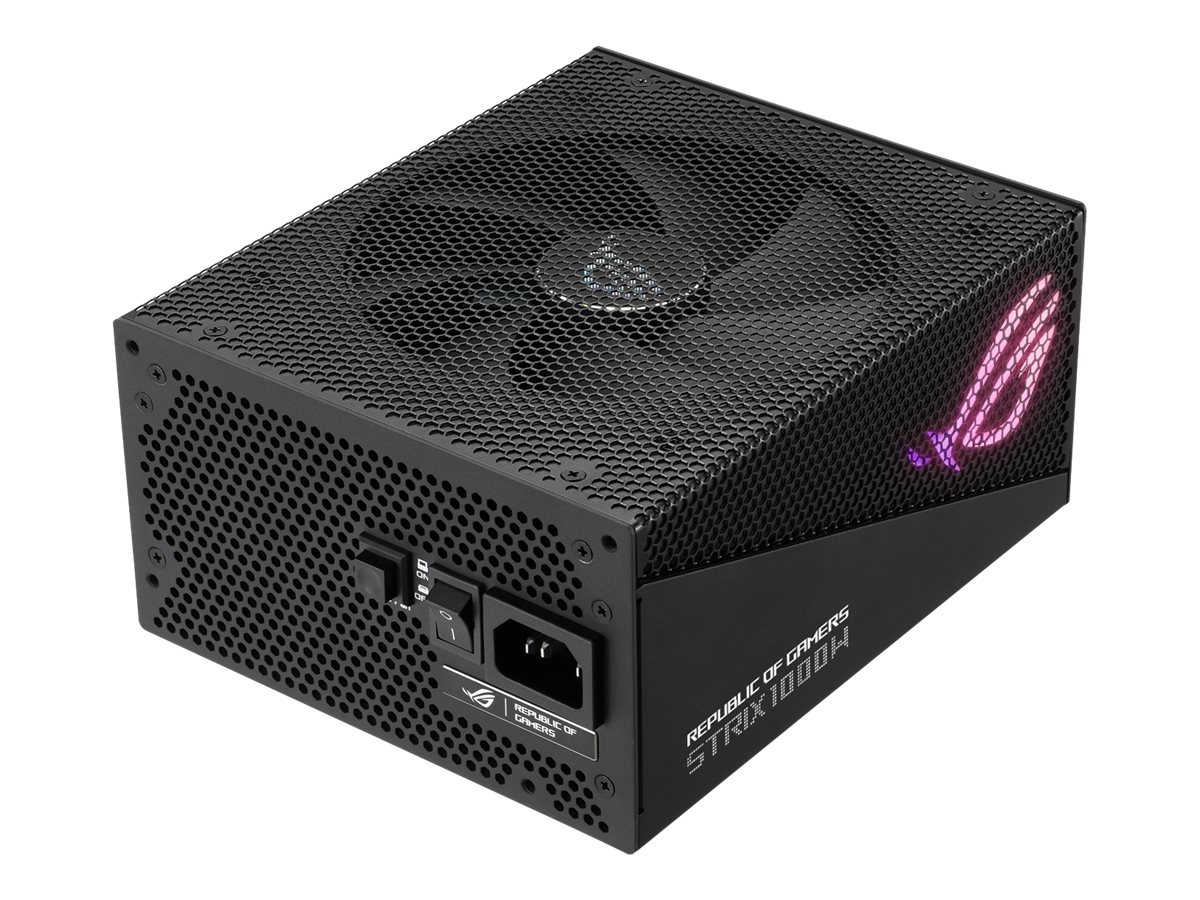

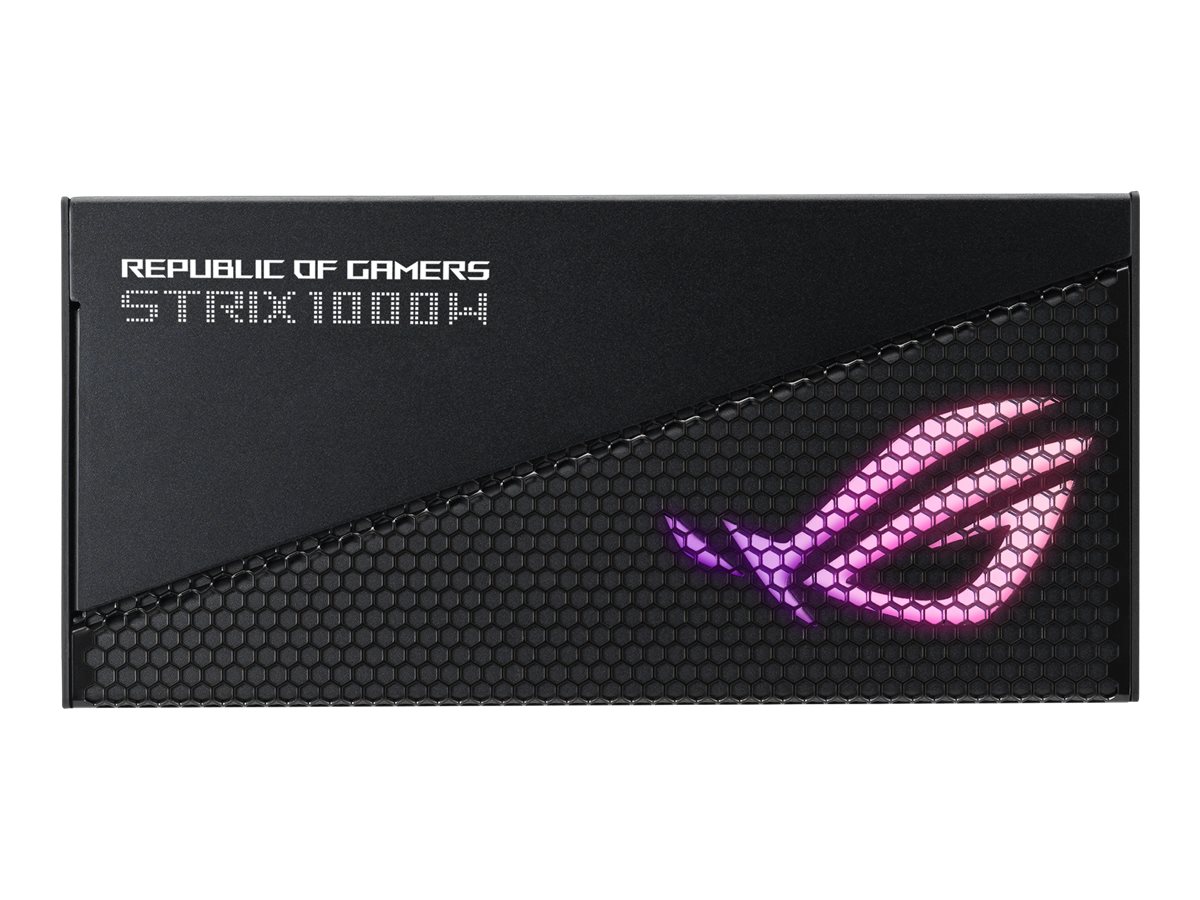

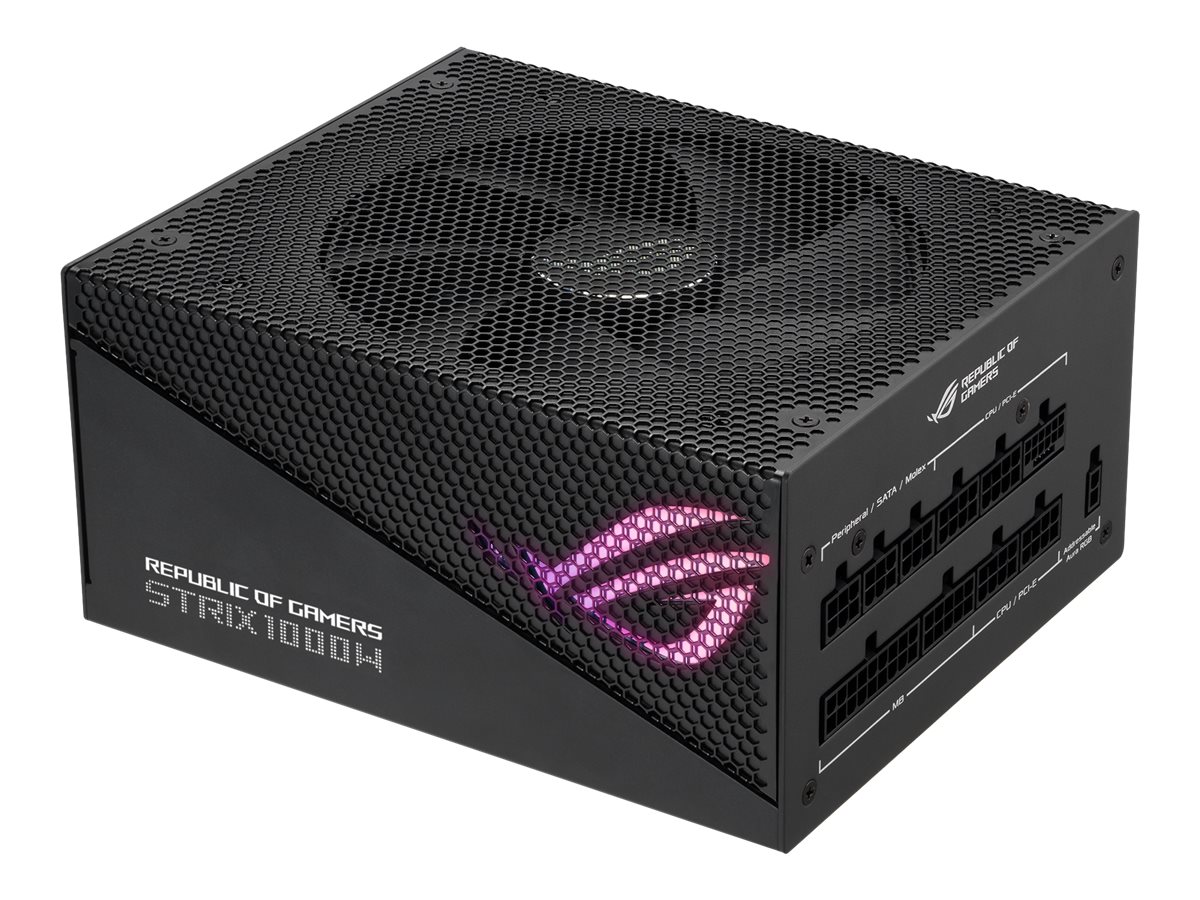

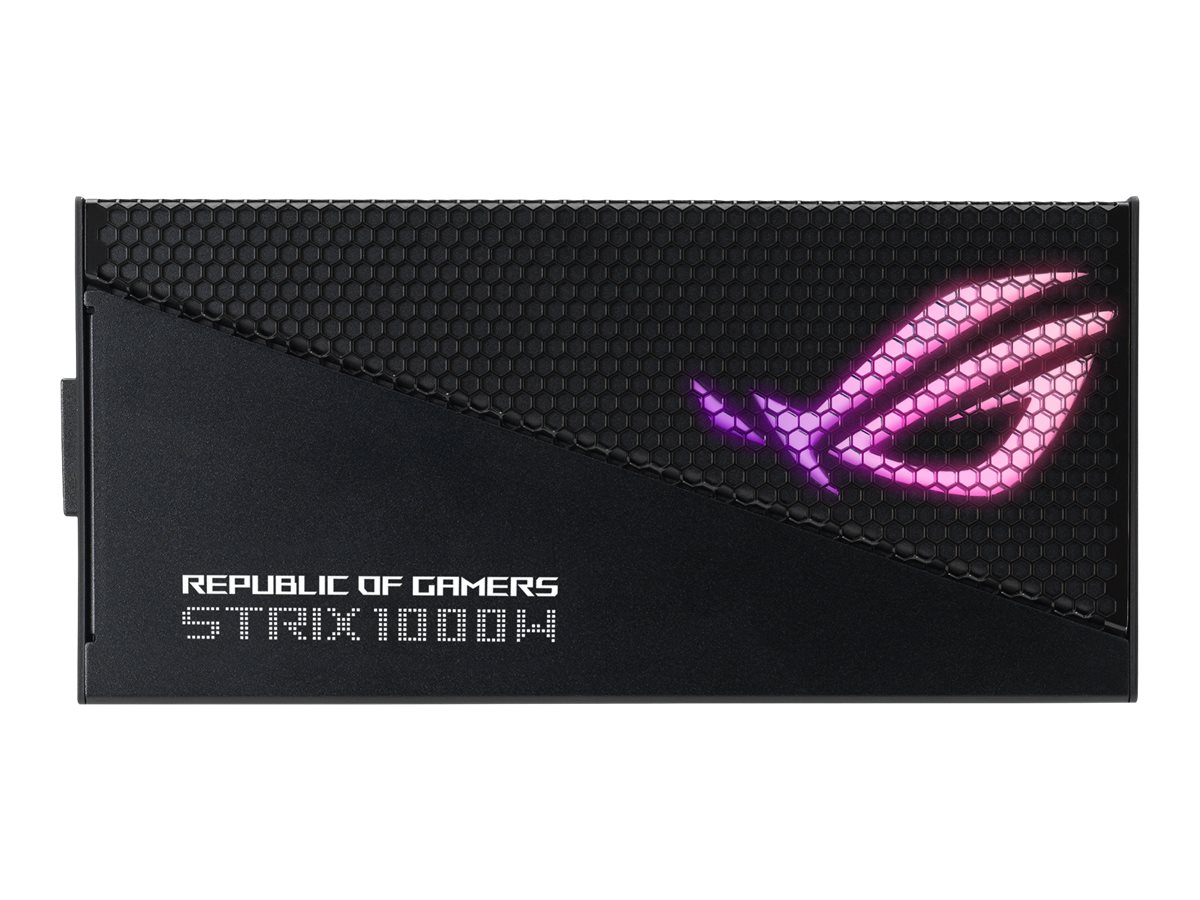

ASUS ROG Strix Strømforsyning 1000Watt

ASUS ROG Strix - Aura Edition - strømforsyning (intern) - ATX12V 3.0/ EPS12V - 80 PLUS Gold - AC 100-240 V - 1000 watt

SEK 1 992,00
SEK 1 593,60 excl. VAT

Free shipping (PostNord Paketbutik)
Product no: 1000962656
Model: 90YE00P1-B0NA00
EAN: 4711081721703
Brand:
ASUSTeK COMPUTER
Weight: 3.73 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
ASUS ROG Strix - Aura Edition - strømforsyning - 1000 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.0/ EPS12V
80 PLUS certificering
80 PLUS Gold
Vægt
3.03 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1000 watt
Output Current
+3.3V - 22 A<br>+5V - 22 A<br>+12V - 83.3 A<br>-12V - 0.3 A<br>+5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>1 x 16-pin PCI Express-strøm<br>4 x 8 pin PCI Express-strøm<br>5 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Dimensioner (B x D x H)
15 cm x 18 cm x 8.6 cm
Producentgaranti
10-års garanti
Specifications

Full specifications

General
Device Type
Power supply - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 3.0/ EPS12V
Power Device
80 PLUS Certification
80 PLUS Gold

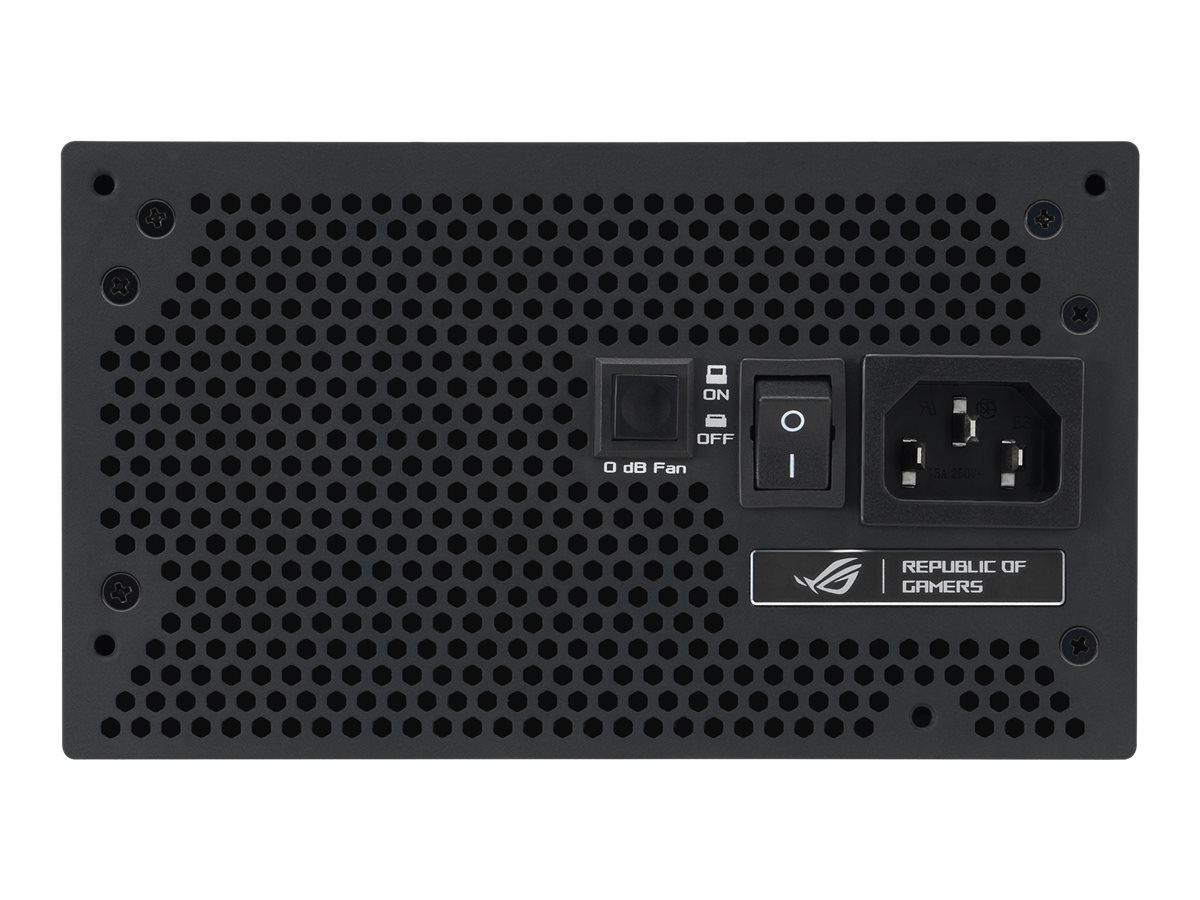

Input Voltage
AC 100-240 V
Modular Cable Management
Yes
Output Current
+3.3V - 22 A | +5V - 22 A | +12V - 83.3 A | -12V - 0.3 A | +5VSB - 3 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
1000 Watt

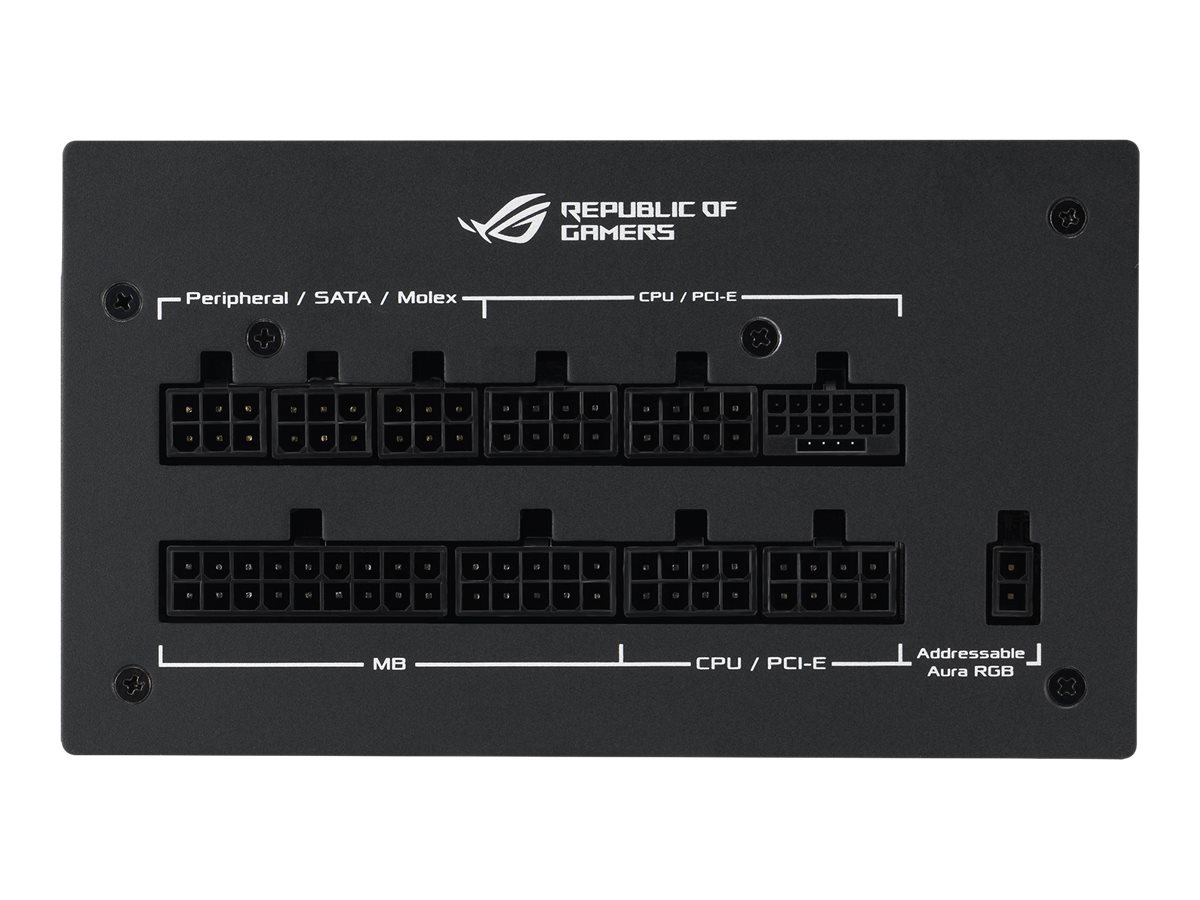

Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 1 x 16 pin PCI Express power | 4 x 8 pin PCI Express power | 5 x 15 pin Serial ATA power | 4 x 4 pin internal power
Miscellaneous
Cables Included
AC input cable - external | Power 24 pin ATX with detachable 4 pin section modular cable 60 cm | 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm | 16-pin 12VHPWR power cable 70 cm | 2x 8 pin PCI Express power with detachable 2
Compliant Standards
RoHS, PCIe

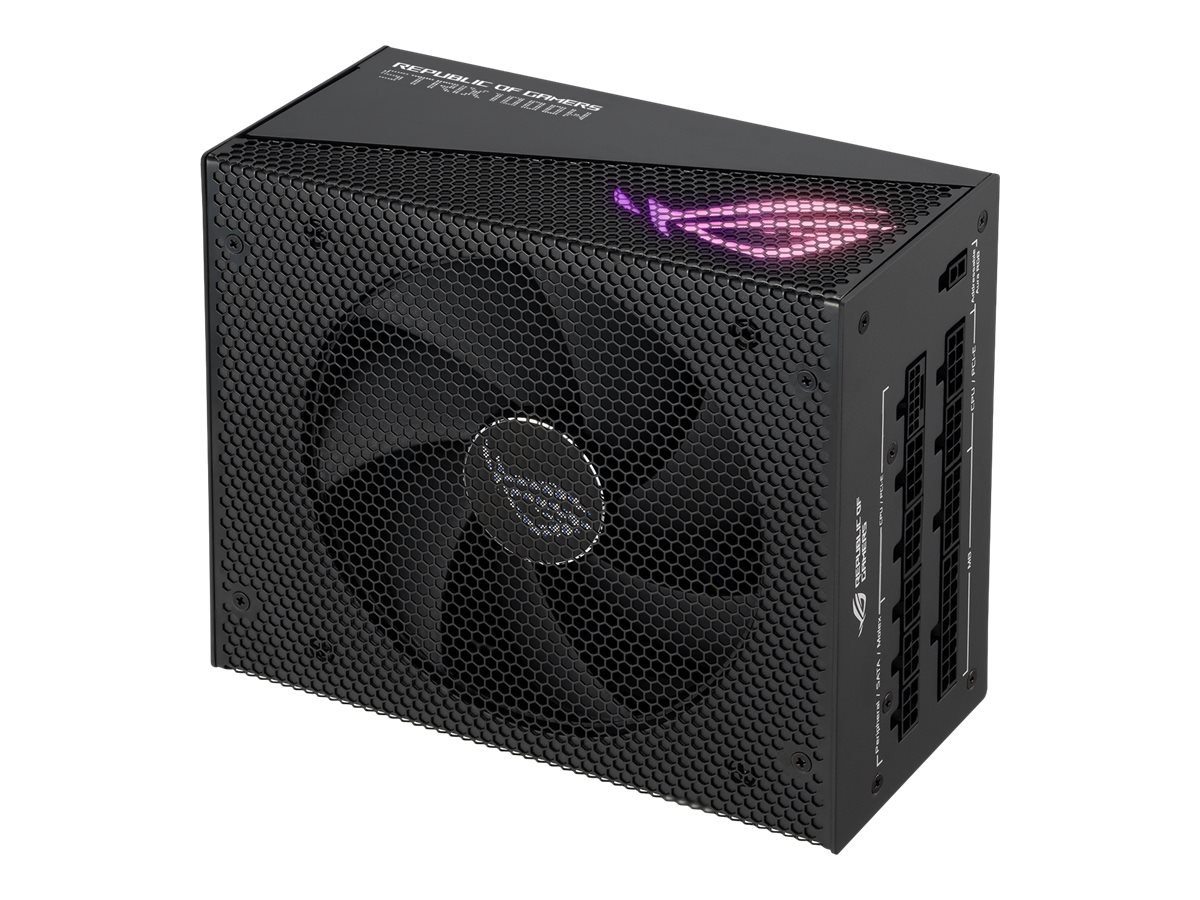

Cooling System
135 mm fan
Features
Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, aluminum
Manufacturer Warranty
Service & Support
Limited warranty - 10 years
Dimensions & Weight
Depth
18 cm
Height
8.6 cm
Weight
3.03 kg
Width
15 cm
