Produktbeskrivelse
|

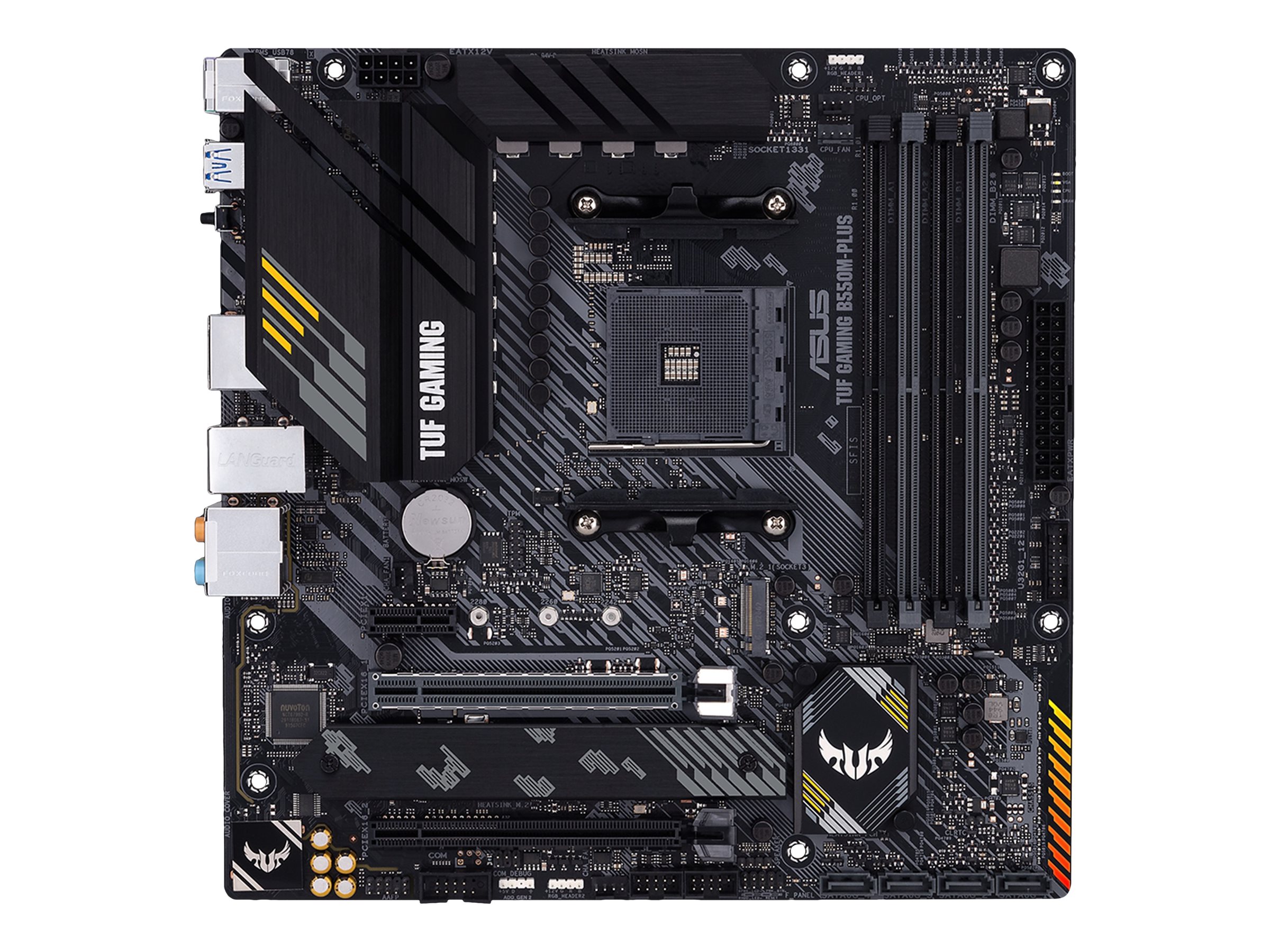

ASUS TUF GAMING B550M-PLUS - bundkort - micro ATX - Socket AM4 - AMD B550
|
|
Produkttype
|
Bundkort - micro ATX
|
|
Chipsættype
|
AMD B550
|
|
Processor-socket
|
1 x Socket AM4
|
|
Kompatible processorer
|
Ryzen (understøtter 3. Generation Ryzen)
|
|
Max RAM-størrelse
|
128 GB
|
|
RAM understøttet
|
4 DIMM åbninger - DDR4, ECC, ikke bufferet
|
|
Lagringsporte
|
4 x SATA-600 (RAID), 2 x M.2
|
|
USB / FireWire porte
|
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
|
|
Audio
|
HD Audio (8-kanaler)
|
|
LAN
|
2.5 Gigabit Ethernet
|
Denmark's wildest electronics webshop is now available in Sweden
ASUS TUF GAMING B550M-PLUS Micro-ATX AM4 AMD B550
ASUS TUF GAMING B550M-PLUS - Bundkort - micro ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
SEK 1 321,00
SEK 1 056,80 excl. VAT
SEK 1 321,00
SEK 1 056,80 excl. VAT
Varenummer:
996052336
Model:
90MB14A0-M0EAY0
EAN:
4718017623544
Brand:
Vægt:
1.31 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B550
|
|
Compatible Processors
|
Ryzen (supports 3rd Generation Ryzen)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM4
|
|
Product Type
|
Motherboard - micro ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
ECC
|
|
Technology
|
DDR4
|
|
Audio
|
|
|
Audio Codec
|
Realtek ALCS1200A
|
|
Compliant Standards
|
High Definition Audio, DTS Custom
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Controller
|
Realtek RTL8125B
|
|
Network Interfaces
|
2.5 Gigabit Ethernet
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode)
|
|
Interfaces
|

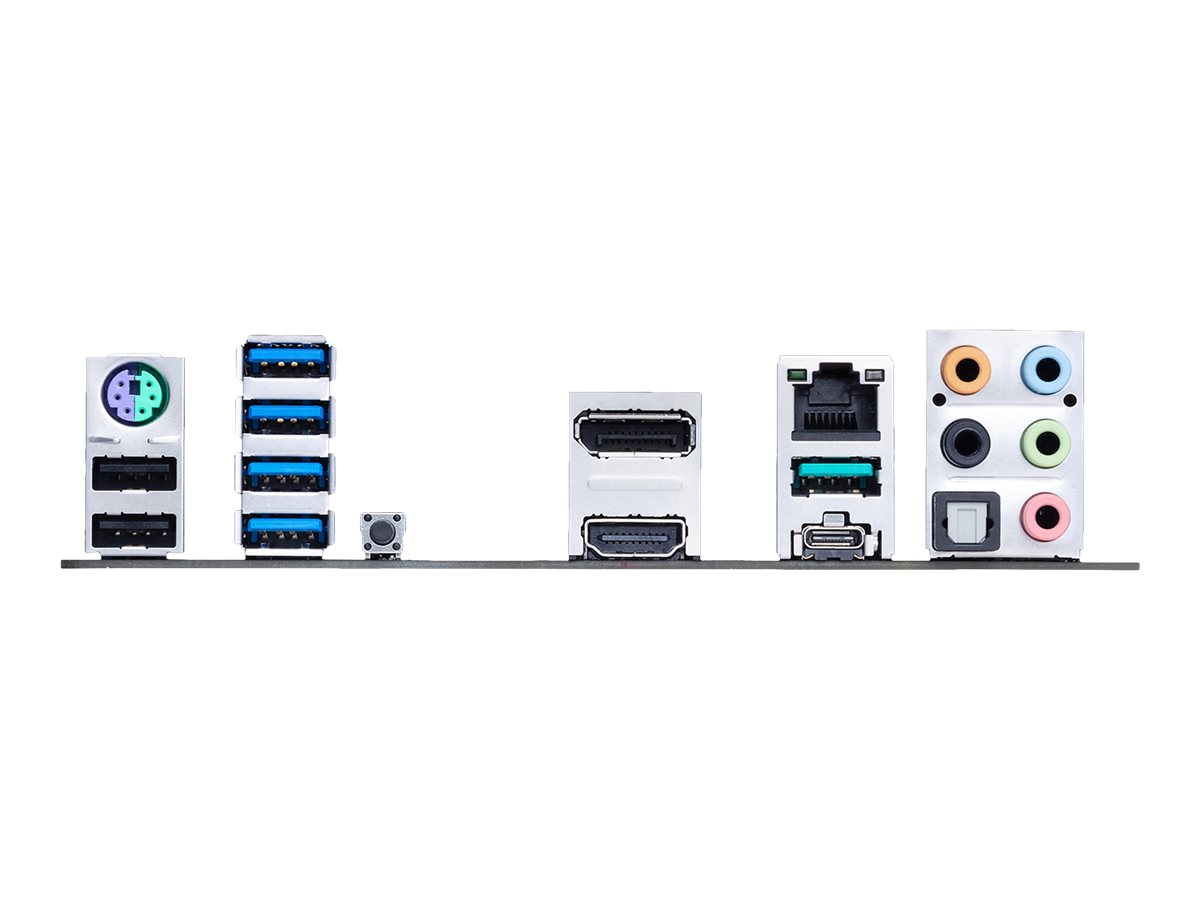

1 x DisplayPort | 1 x TOSLINK | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x HDMI | 1 x USB-C Gen
|
|
Internal Interfaces
|
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header
|
|
Power Connectors
|
24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
|
|
Features
|
|
|
BIOS Features
|
UEFI BIOS, ASUS EZ Flash 3
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent P
|
|
Sleep / Wake Up
|
Wake on LAN (WOL)
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Depth
|
24.4 cm
|
|

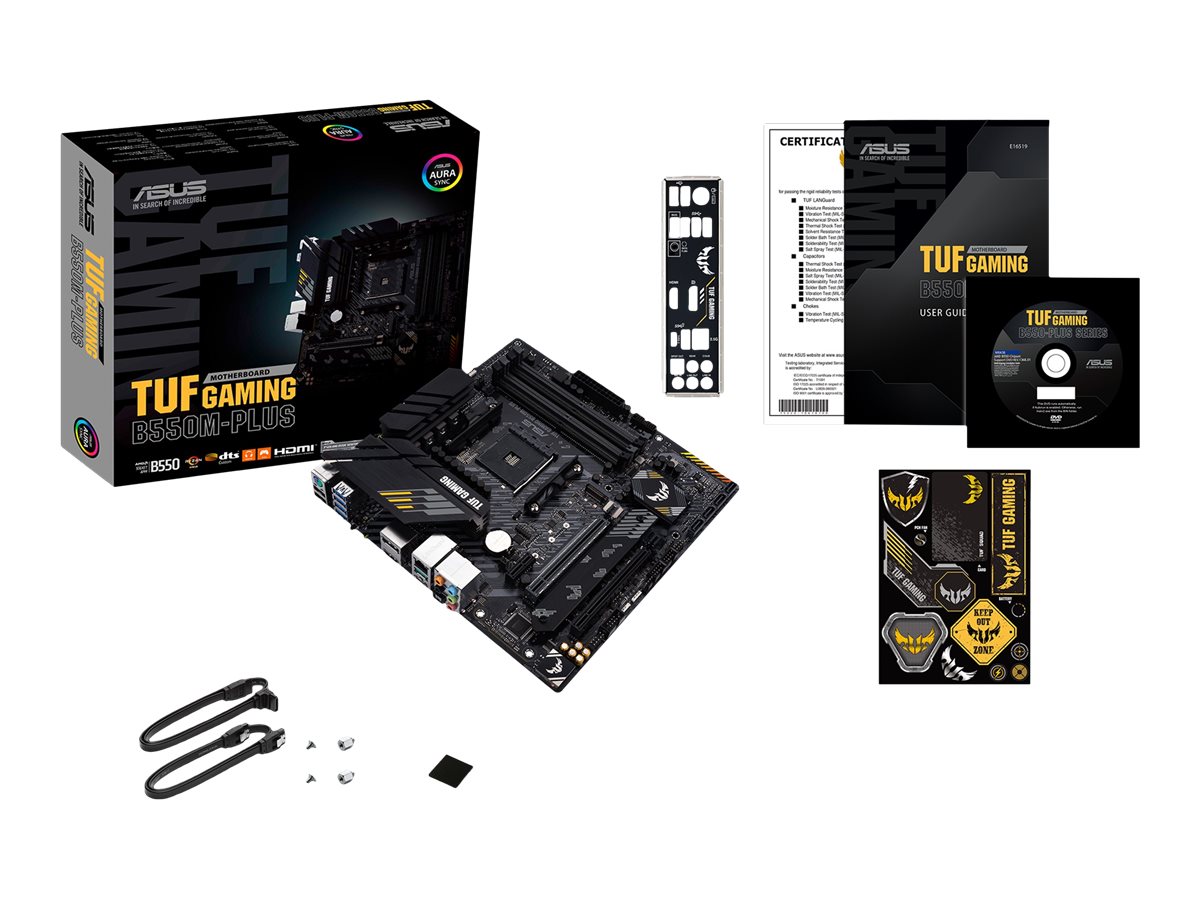

Included Accessories
|
1 x M.2 screw, I/O back cover, TUF stickers
|
|
Software Included
|
Drivers & utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
|
|
Width
|
24.4 cm
|
