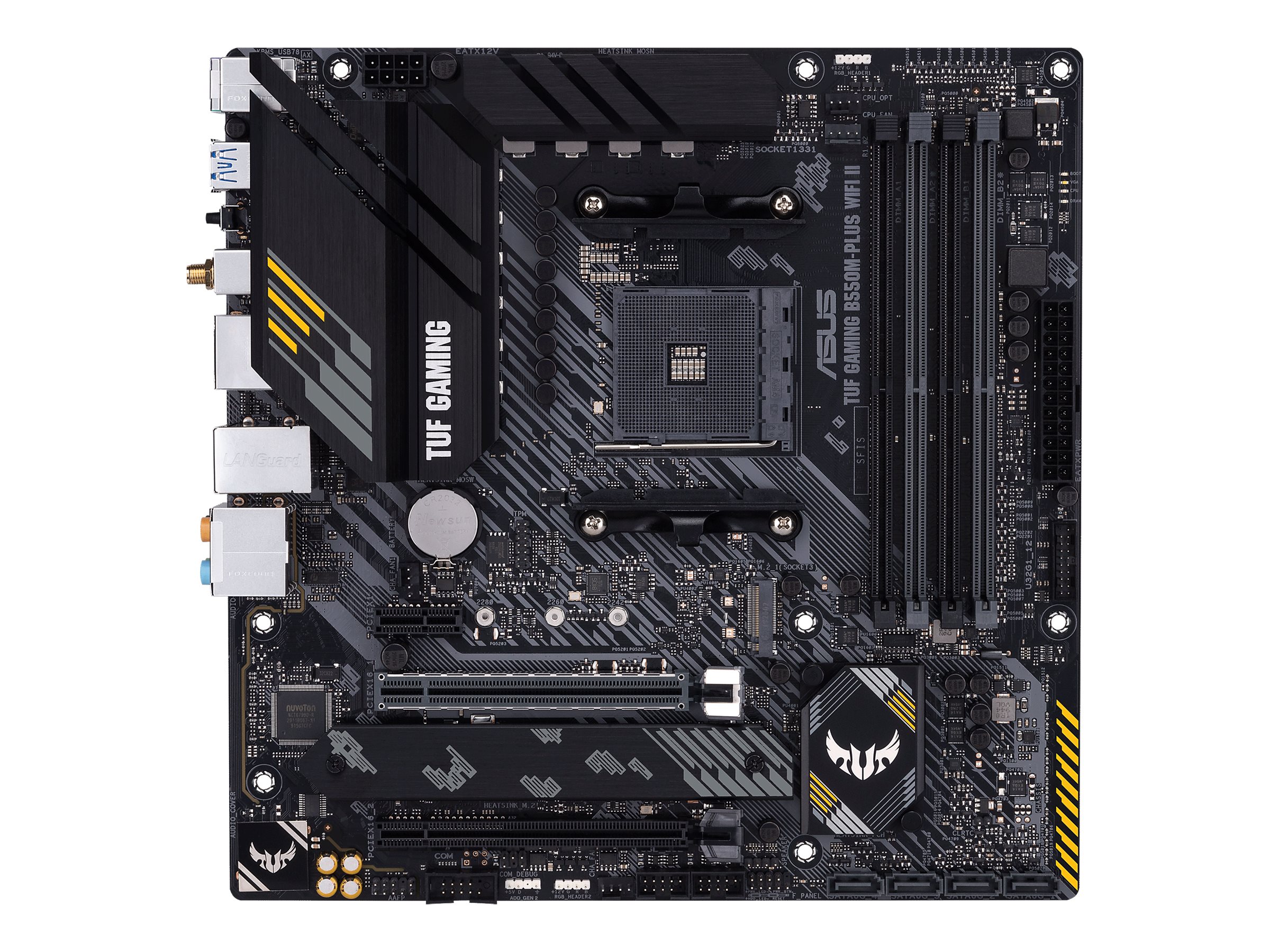

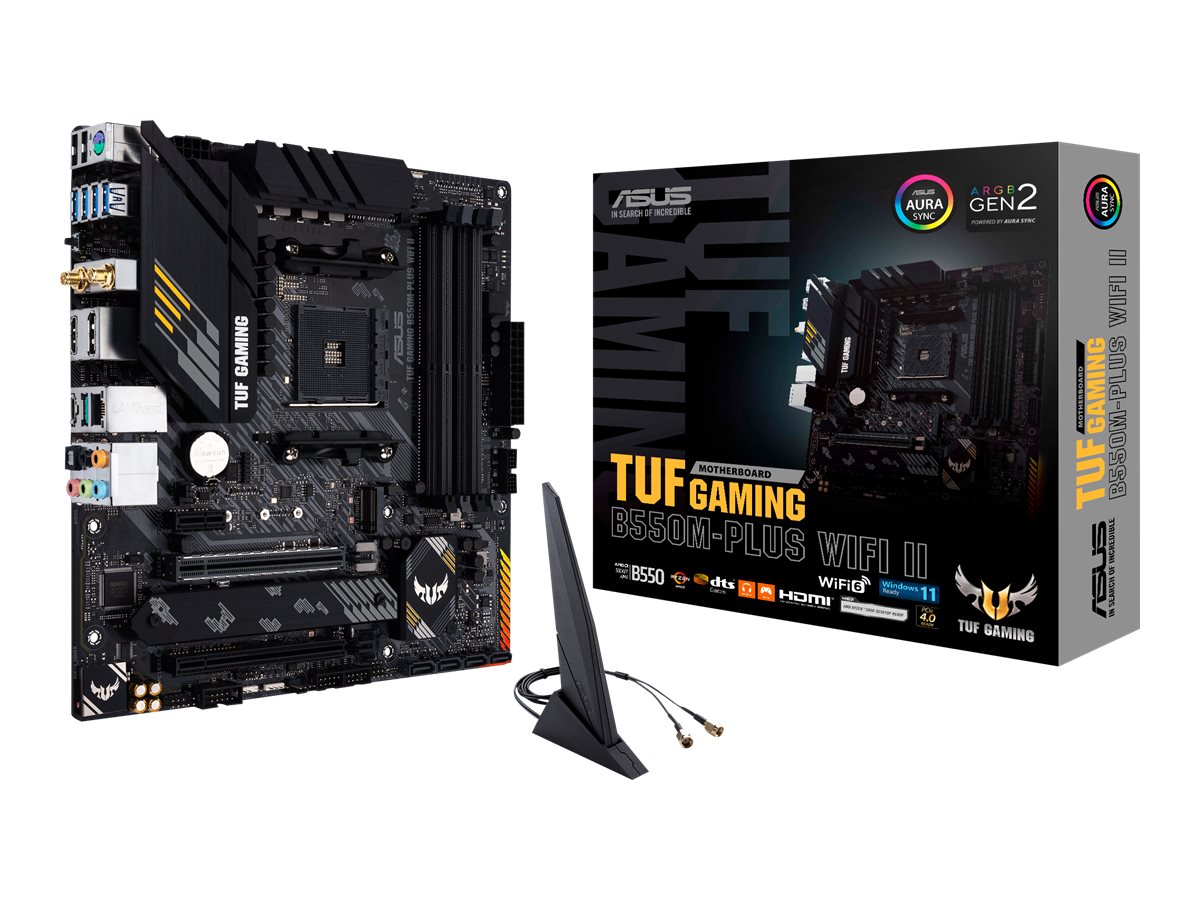

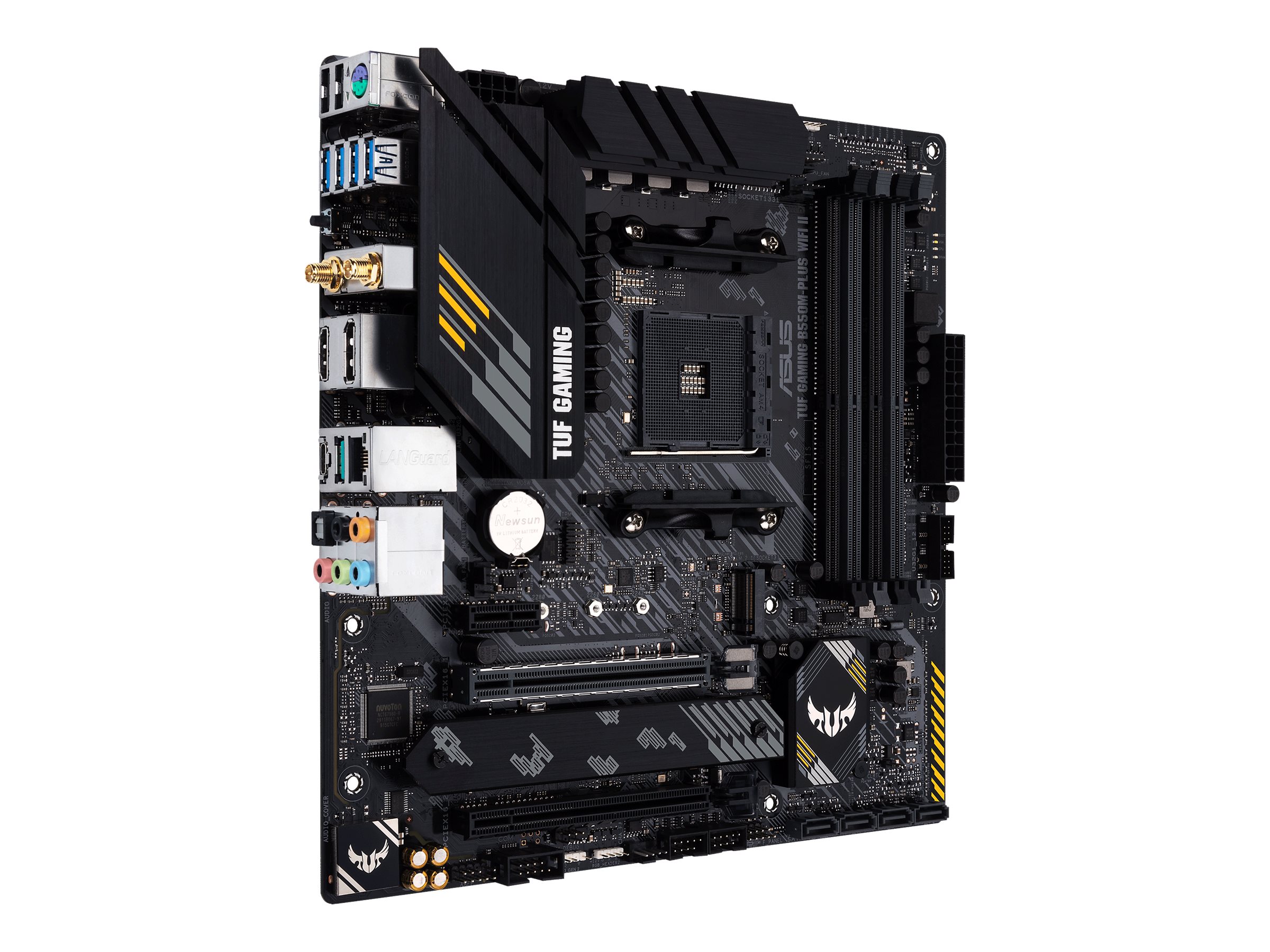

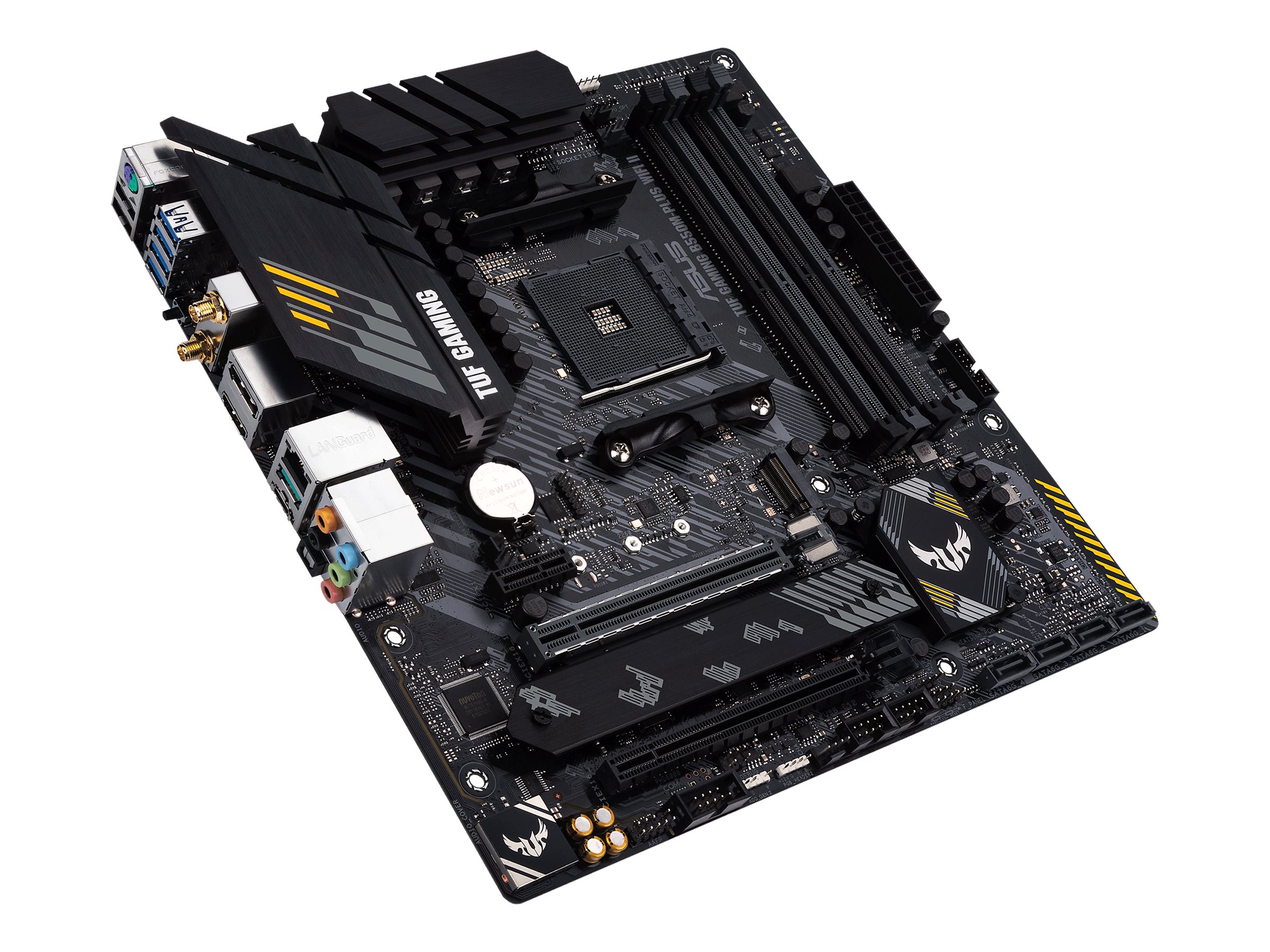

ASUS TUF GAMING B550M-PLUS WIFI II Micro-ATX AM4 AMD B550
ASUS TUF GAMING B550M-PLUS WIFI II - Bundkort - micro-ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
1 589,00SEK1 271,20SEK excl. VAT
-
Product no 999803671
Model 90MB19Y0-M0EAY0
Brand ASUSTeK COMPUTER
Go to brand's websiteEAN 4711081305705
Weight 1.43 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | ASUS TUF GAMING B550M-PLUS WIFI II - bundkort - micro-ATX - Socket AM4 - AMD B550 |
| Produkttype | Bundkort - micro-ATX |
| Chipsættype | AMD B550 |
| Processor-socket | 1 x Socket AM4 |
| Kompatible processorer | Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max RAM-størrelse | 128 GB |
| RAM understøttet | 4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire porte | 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| General | |
|---|---|
| Chipset Type | AMD B550 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 433 |
| Features | Dual channel memory architecture |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Technology | DDR4 |
| Audio | |
| Compliant Standards | High Definition Audio, DTS Custom |
| Type | HD Audio (8-channel) |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode) |

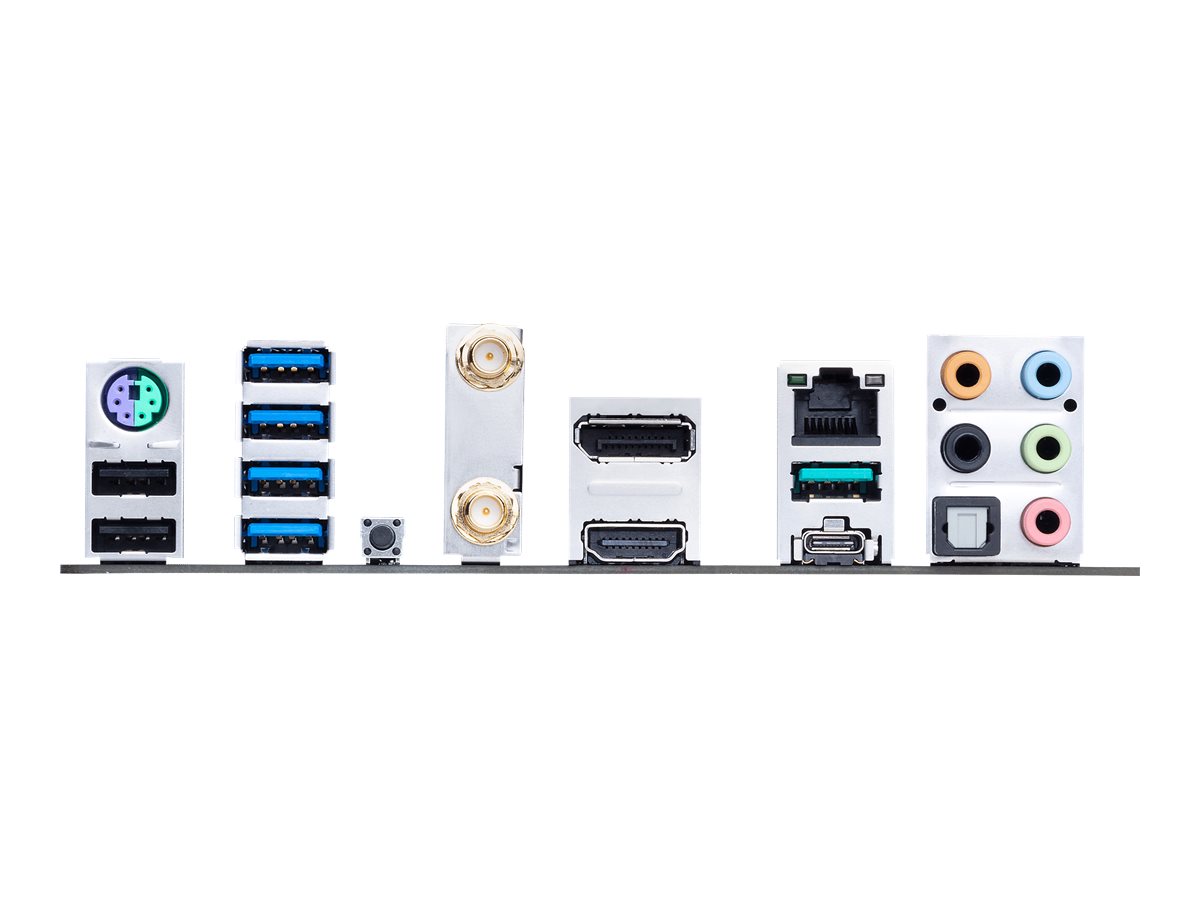

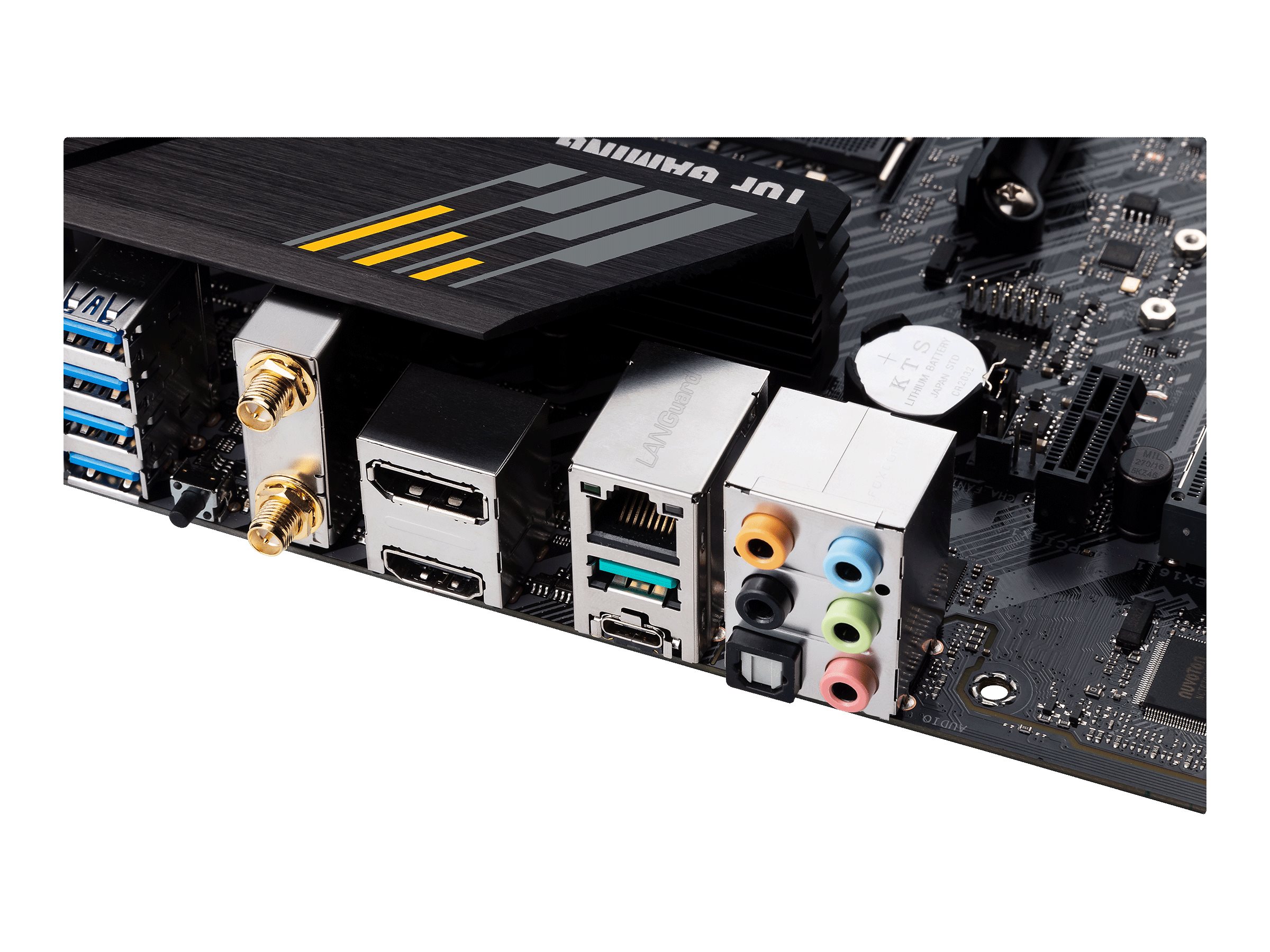

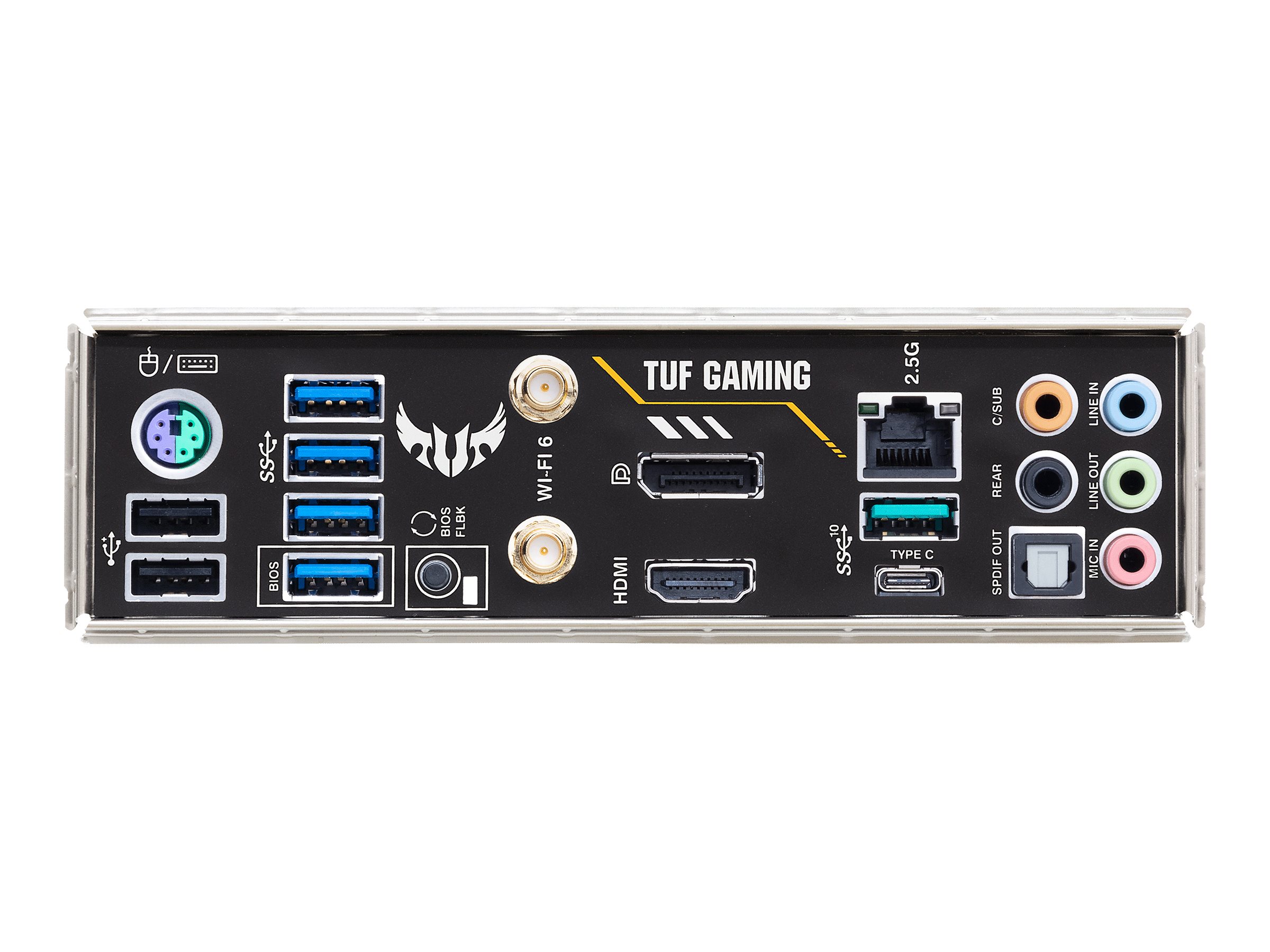

| Interfaces | 1 x DisplayPort | 1 x TOSLINK | 1 x LAN (2.5Gigabit Ethernet) | 4 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x PS/2 keyboard / mouse | 1 x HDMI | 1 x USB-C Gen |
| Internal Interfaces | 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x serial - header | 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent P |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.4 cm |

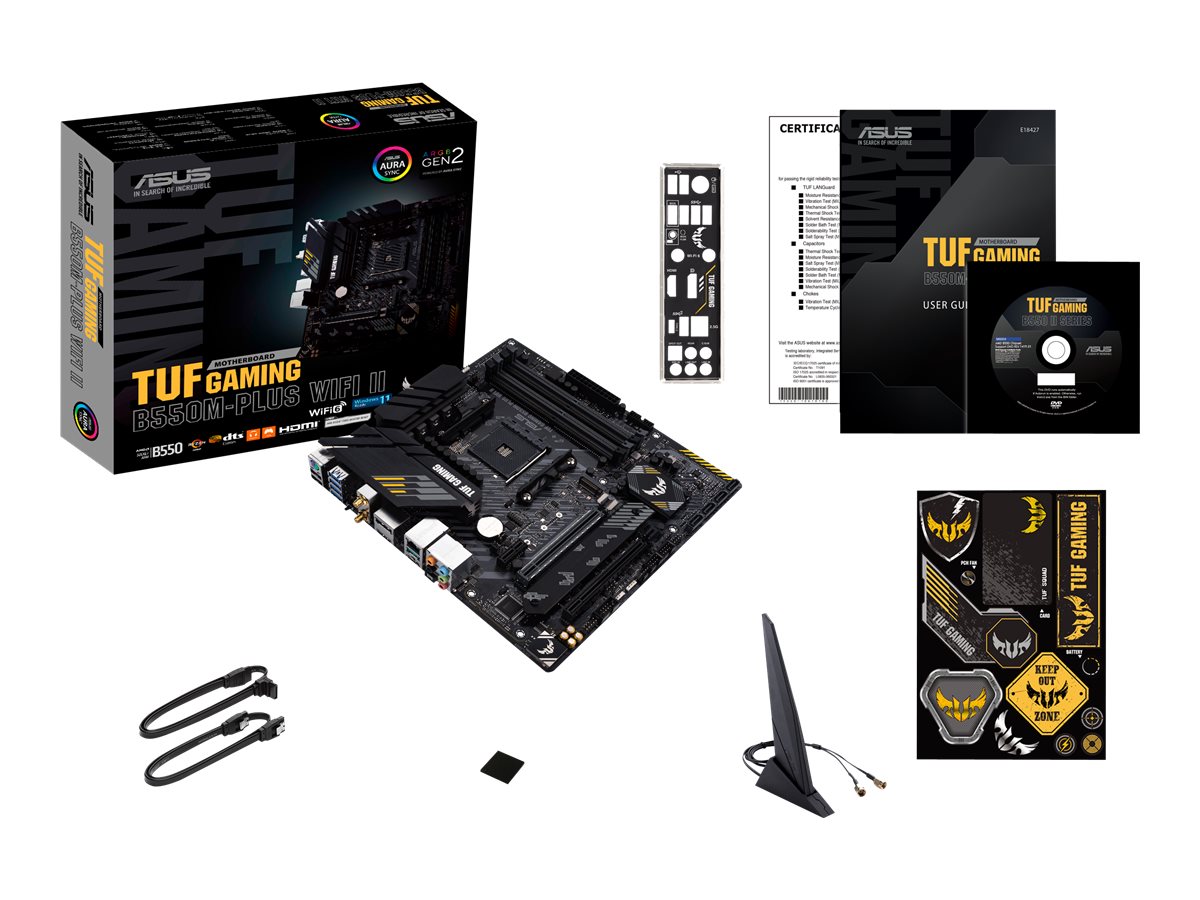

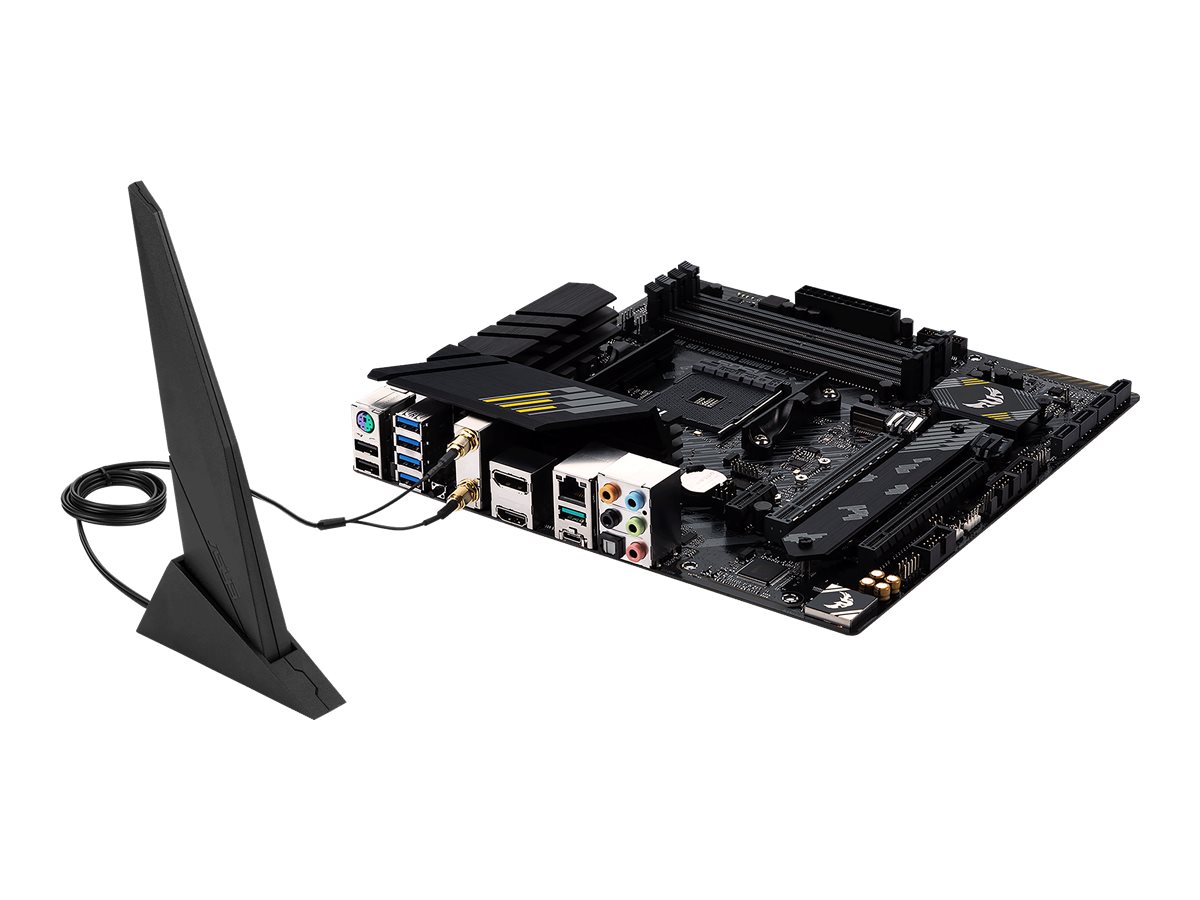

| Included Accessories | 1 x M.2 screw, I/O back cover, TUF stickers, ASUS Wi-Fi moving antenna |
| Software Included | Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial) |
| Width | 24.4 cm |
