Chipsæt
|
AMD B650
|
|
Socket
|
AM5
|
|
Formfaktor
|
ATX
|
|
Understøttede RAM
|
128GB, DDR5, Ikke bufferet
|
|
RAM Hastigheder
|
5200MHz (O.C.), 5400MHz (O.C.), 5600MHz (O.C.), 5800MHz (O.C.), 6000MHz (O.C.), 4800MHz, 6200MHz (O.C.), 6400MHz (O.C.), 5000MHz
|
|
Bluetooth Teknologi
|
5.2
|
|
Wifi Teknologi
|
Wifi 6
|
|
I/O Porte
|
1x HDMI, 1x DisplayPort, 1x USB-C 3.2 Gen2x2, 2x USB 3.2 Gen 2, 1x USB-C 3.2 Gen 2, 4x USB 2.0, 2x antenne, 1x audio linje-ind mini-jack, 1x audio linje-ud mini-jack, 1x mikrofon mini-jack, 1x audio linje-ud (centrum/subwoofer) mini-jack, 1x audio linje-ud (bagtil) mini-jack, 1x LAN (2.5Gigabit Ethernet)
|
|
Garanti
|
1 år
|
Denmark's wildest electronics webshop is now available in Sweden

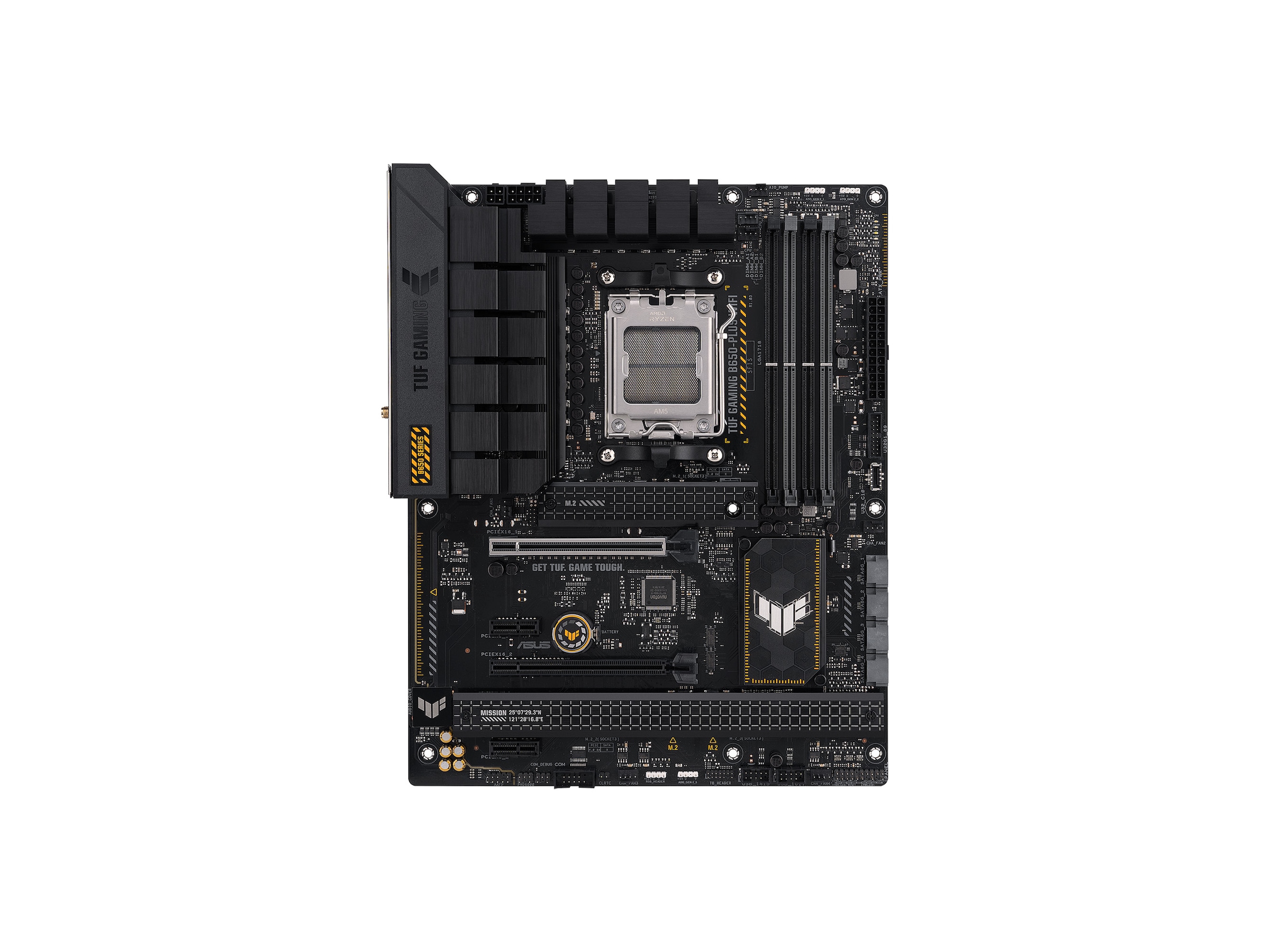

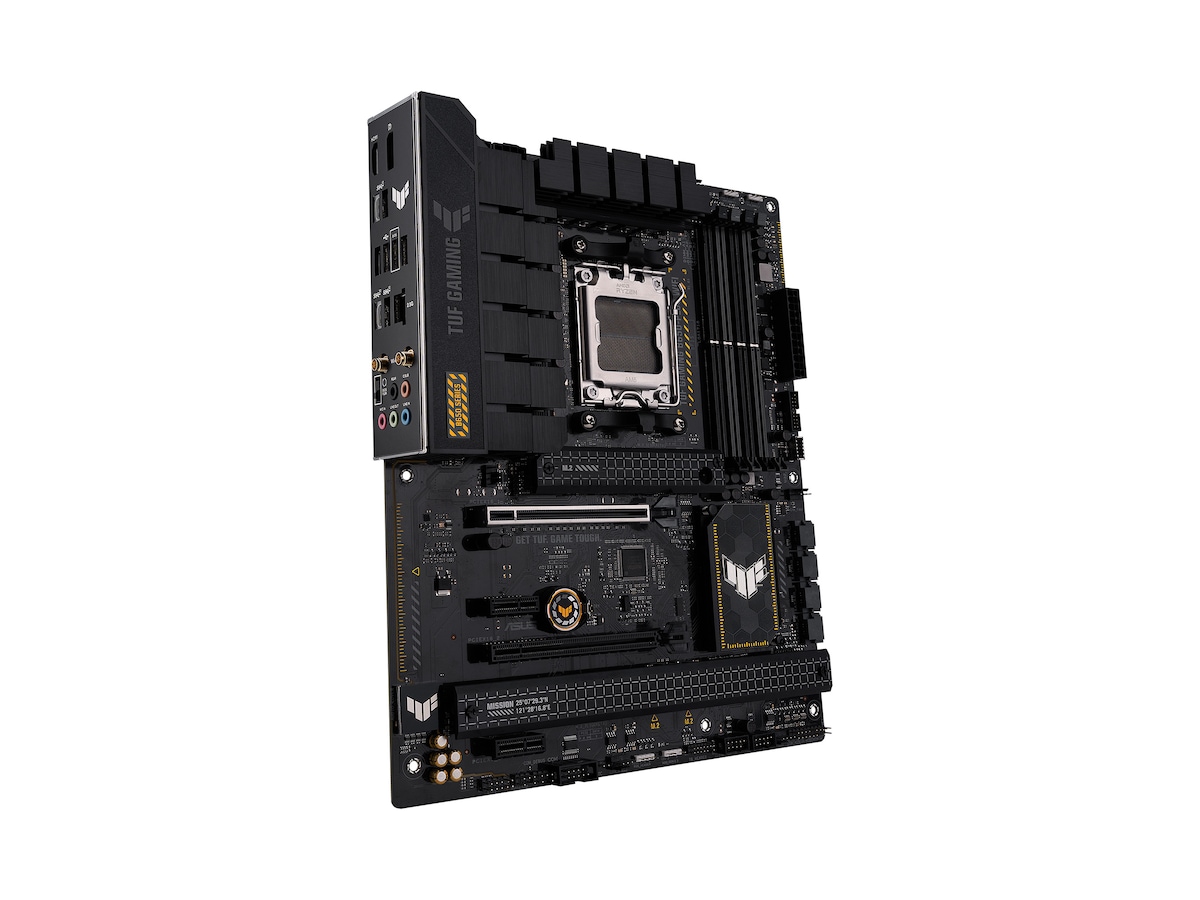

Asus TUF Gaming B650-Plus Wifi ATX - DDR5
Asus TUF Gaming B650-Plus Wifi - ATX - DDR5 - AM5 - Sort - 128GB
SEK 1 864,00
SEK 1 491,20 excl. VAT
SEK 1 864,00
SEK 1 491,20 excl. VAT
Free shipping (PostNord Paketbutik)
Product no:
1000805473
Model:
90MB1BZ0-M0EAY0
EAN:
4711081912651
Brand:
Weight:
1.8 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Specifications
Full specifications
|
General
|
|
|---|---|
|
Chipset Type
|
AMD B650
|
|
Compatible Processors
|
Ryzen (supports Ryzen 7000 Series)
|
|
Max Processors Qty
|
1
|
|
Processor Socket
|
Socket AM5
|
|
Product Type
|
Motherboard - ATX
|
|
Supported RAM
|
|
|
Bus Clock
|
5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz
|
|
Features
|
Dual channel memory architecture, AMD EXPO technology
|
|
Max Size
|
128 GB
|
|
Registered or Buffered
|
Unbuffered
|
|
Supported RAM Integrity Check
|
Non-ECC, ECC, on-die ECC
|
|
Technology
|
DDR5
|
|
Audio
|
|
|
Compliant Standards
|
High Definition Audio
|
|
Type
|
HD Audio (8-channel)
|
|
LAN
|
|
|
Network Interfaces
|
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
|
|
Expansion / Connectivity
|
|
|
Expansion Slots
|
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 4.0 x16 (x4 mode (auto turn-off if 3rd M.2 is occupied)) | 2 x PCIe 4.0 x1 | 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) | 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
|
|
Interfaces
|
1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen2x2 | 2 x USB 3.2 Gen 2 | 1 x USB-C 3.2 Gen 2 | 4 x USB 2.0 | 2 x antenna | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (center/subwoof
|
|
Internal Interfaces
|
1 x USB-C 3.2 Gen 1 - header | 2 x USB 3.2 Gen 1 - header | 4 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x serial - header
|
|
Power Connectors
|
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
|
|
Storage Interfaces
|
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
|
|
Features
|
|
|
BIOS Features
|
UEFI BIOS, ASUS EZ Flash 3
|
|
BIOS Type
|
AMI
|
|
Hardware Features
|
Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel B
|
|
Miscellaneous
|
|
|
Cables Included
|
2 x Serial ATA cable
|
|
Compliant Standards
|
VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
|
|
Depth
|
24.4 cm
|
|
Included Accessories
|
ASUS Wi-Fi moving antenna, 2 x M.2 rubber package, M.2 screw package, TUF certification card
|
|
Software Included
|
ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4
|
|
Width
|
30.5 cm
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 1 year
|
