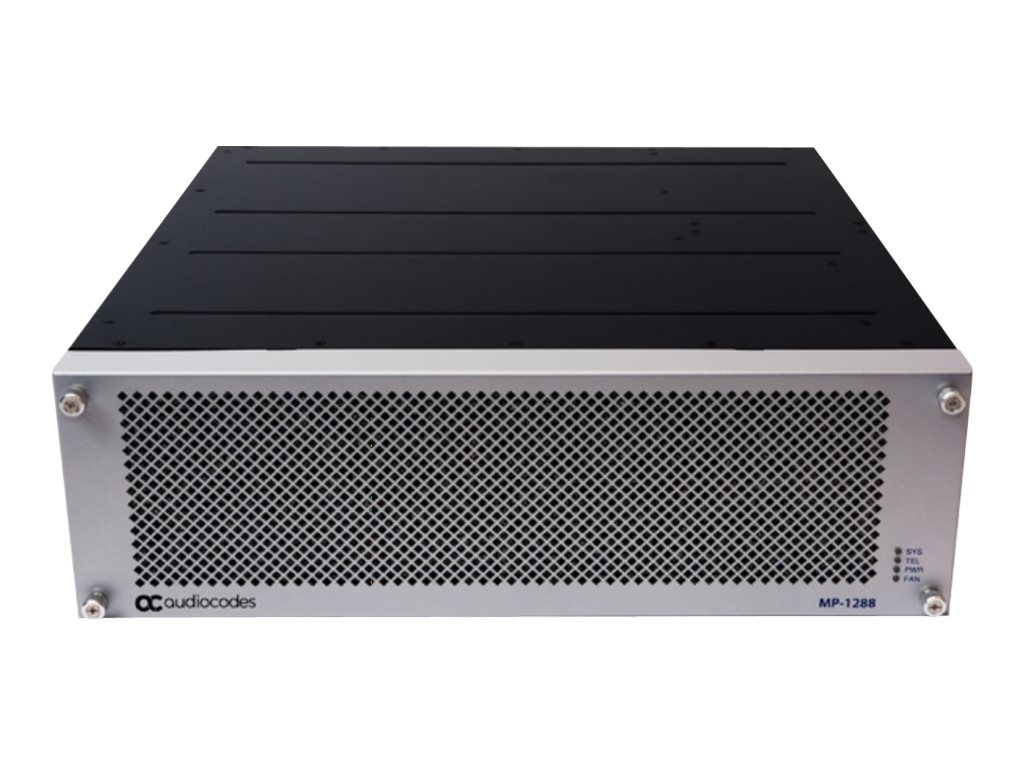

Product no 993551416
Model MP1288-72S-2AC
Brand AudioCodes
Weight kg
Produktbeskrivelse | AudioCodes MediaPack Series MP-1288 - VoIP-gateway |
Enhedstype | VoIP-gateway |
Formfaktor | Front til ryg-luftstrøm ekstern - 3U |
Antal porte | 72 |
Dataforbindelsesprotokol | Fast Ethernet, Gigabit Ethernet |
VoIP-protokoller | SIP over TLS, SIP over TCP, SIP over UDP |
Grænseflader til telefoni | 72 telefoner (FXS) |
Effekt | AC 120/230 V (50/60 Hz) |
Overskudsspænding | Ja |
Dimensioner (B x D x H) | 43.8 cm x 45.1 cm x 13.12 cm |
General | |
---|---|
Depth | 45.1 cm |
Device Type | VoIP gateway |
Height | 13.12 cm |
Height (Rack Units) | 3U |
Width | 43.8 cm |
Networking | |
Airflow Direction | Front to back airflow |
Connectivity Technology | Wired |
Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
Features | IPv6 support, surge protection, IPv4 support |
Form Factor | External |
Network / Transport Protocol | RTP, RTCP |
Ports Qty | 72 |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
IP Telephony | |
IP Telephony Features | Comfort noise generation (CNG), echo cancellation (G.168), caller ID, distinctive ringing, silence suppression, message waiting, dynamic jitter buffer, packet loss concealment (PLC), call routing |
Telephony Interfaces | 72 phone (FXS) |
Voice Codecs | G.711, G.722, G.723.1, G.726, G.727, T.38, G.729A/B, Opus-NB, AMR-NB |
VoIP Protocols | SIP over TLS, SIP over TCP, SIP over UDP |
Expansion / Connectivity | |
Interfaces | 2 x 1000Base-T - RJ-45 | 72 x FXS |
Power | |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Device | Internal power supply |
Power Redundancy | Yes |
Voltage Required | AC 120/230 V (50/60 Hz) |
Environmental Parameters | |
Humidity Range Operating | 5 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
