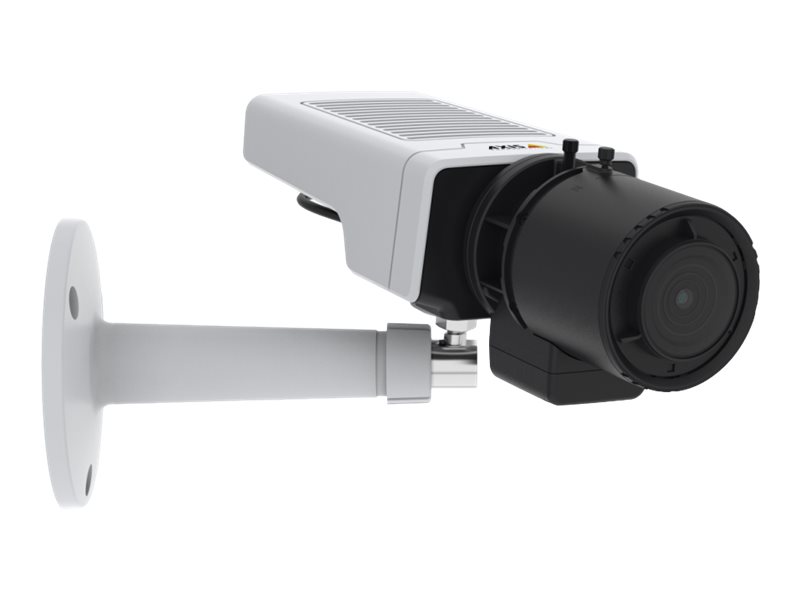

AXIS M1137 MK II Netværksovervågningskamera Automatisk irisblænder Udendørs 2592 x 1944
AXIS M1137 MK II - Netværksovervågningskamera - boks - udendørs - farve (Dag/nat) - 5 MP - 2592 x 1944 - 1080p - CS-montering - automatisk irisblænder - forskellige brændvidder - audio - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 - DC 10 - 28 V / PoE Class 3
7 412,00 SEK
5 929,60 SEK excl. VAT
-
Product no 1000606707
Model 02484-001
Brand Axis Communications
EAN 7331021078215
Weight 0.165 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS M1137 MK II - netværksovervågningskamera - boks |
| Enhedstype | Netværksovervågningskamera - fast - boks - udendørs |
| Audio | Ja: tovejs-audiofunktion |
| Kamera monteringstype | Vægmontering |
| Dimensioner (B x D x H) | 6.4 cm x 7 cm x 17.9 cm |
| Vægt | 165 g |
| Farve | Hvid, NCS S 1002-B |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 4.6 x |
| Maksimum opløsning | 2592 x 1944 |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Video Modes | 1080p |
| Billedsensortype | PS RGB CMOS - 1/2.7" - 5 MP |
| Minimumbelysning | 0.17 lux - farve - F1.4 - 50 IRE<br>0.03 lux - S/H - F1.4 - 50 IRE |
| Brændviddekontrol | Forskellige brændvidder |
| Brændvidde | 2.8 mm - 13 mm |
| Objektivmontering | CS-montering |
| Objektiv Iris | F/1.4 - automatisk irisblænder (DC) |
| Interface | Ethernet 10Base-T/100Base-TX |
| Spænding | DC 10 - 28 V / PoE Class 3 |
| Egenskaber | Skarphedskontrol, hvidbalance, lysstyrkekontrol, kontrastkontrol, spejlbillede, Wide Dynamic Range (WDR), infrarød skære filter, Privacy Mask Function, NAS-Ready, meddelelsesbillede til e-mail, aktiv pillealarm, digital PTZ-funktion, kodeordsbeskyttelse, Variable Bitrate (VBR), Audio Detection, Zipstream-teknologi, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, digest-autentificering, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP-adressefiltrering, eksponeringszone, HTTP-kryptering, menneskedetektion, underskrevet firmware, sikker støvle, ONVIF (Profile T) support, Adaptive Bitrate (ABR), videoformatforhold-konvertering, TLS-krypteringsprotokol, tekstskabelon, brugeradgangslog, råstyrkeforsinkelsesbeskyttelse, Maskinlærings-behandlingsenhed (MLPU), ONVIF (Profile M) support, Axis Edge Vault |
| Producentgaranti | 5 års garanti |
| Miljømæssige parametre (operativ) | -20 °C - 50 °C; 10 - 80 % (ikke-kondenserende) relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 7 cm |
| Device Type | Network surveillance camera |
| Form Factor | Box |
| Height | 17.9 cm |
| Weight | 165 g |
| Width | 6.4 cm |
| Camera | |
| Digital Video Capture Resolution | 160 x 120, 2592 x 1944 |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, HEVC, H.265, MPEG-H Part 2 |
| Exposure Range | 1/5 sec - 1/33500 sec |
| Features | Sharpness control, white balance, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), infrared cut filter, Privacy Mask Function, NAS-Ready, notification picture to E-mail, active tampering alarm, digital PTZ function, passw |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination | 0.17 lux - color - F1.4 - 50 IRE | 0.03 lux - B&W - F1.4 - 50 IRE |
| Motion Detection | Yes |
| RAM | 1024 MB |
| Type | Color - Day&Night - fixed - outdoor |
| Video Modes | 1080p |
| Image Sensor | |
| Type | 5 MP PS RGB CMOS 1/2.7" |
| Lens Construction | |
| Focal Length | 2.8 mm - 13 mm |
| Horizontal Field of View (degree) | 24 - 112 |
| Lens Iris | F/1.4 auto iris (DC) |
| Optical Zoom | 4.6 x |
| Type | CS-mount - vari-focal |
| Vertical Field of View (degree) | 19 - 82 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Color | White, NCS S 1002-B |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EN 50581, NEMA TS-2, NMB-3 Class A, RCM, CAN ICES-3 Class A |
| Included Accessories | Stand |
| Power | |
| Power Device | 7.2 Watt |
| Power Requirements | DC 10 - 28 V / PoE Class 3 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Relative Humidity (operating) | 10 - 80% (non-condensing) |
