Product no 1000464372
Model 02332-001
Brand Axis Communications
EAN 7331021075986
Weight 0.9 kg

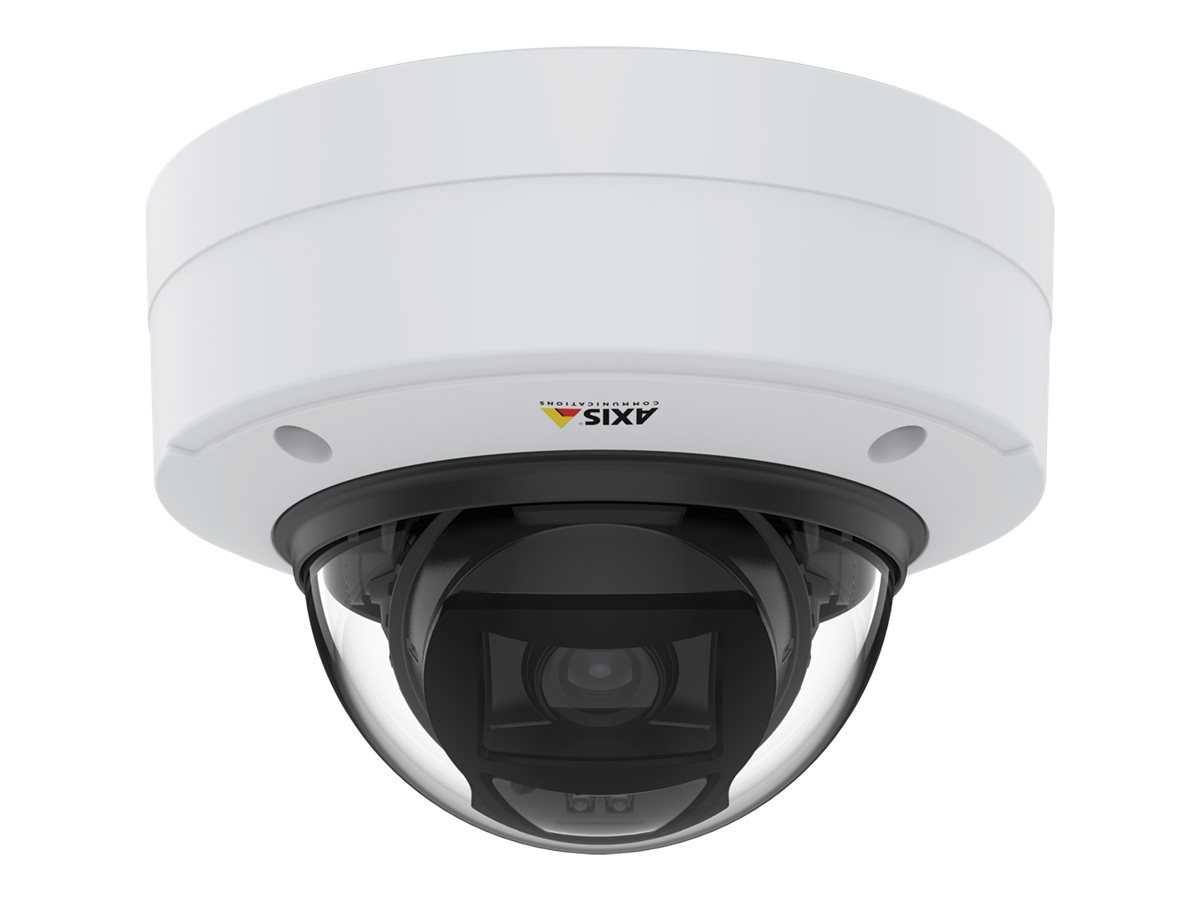

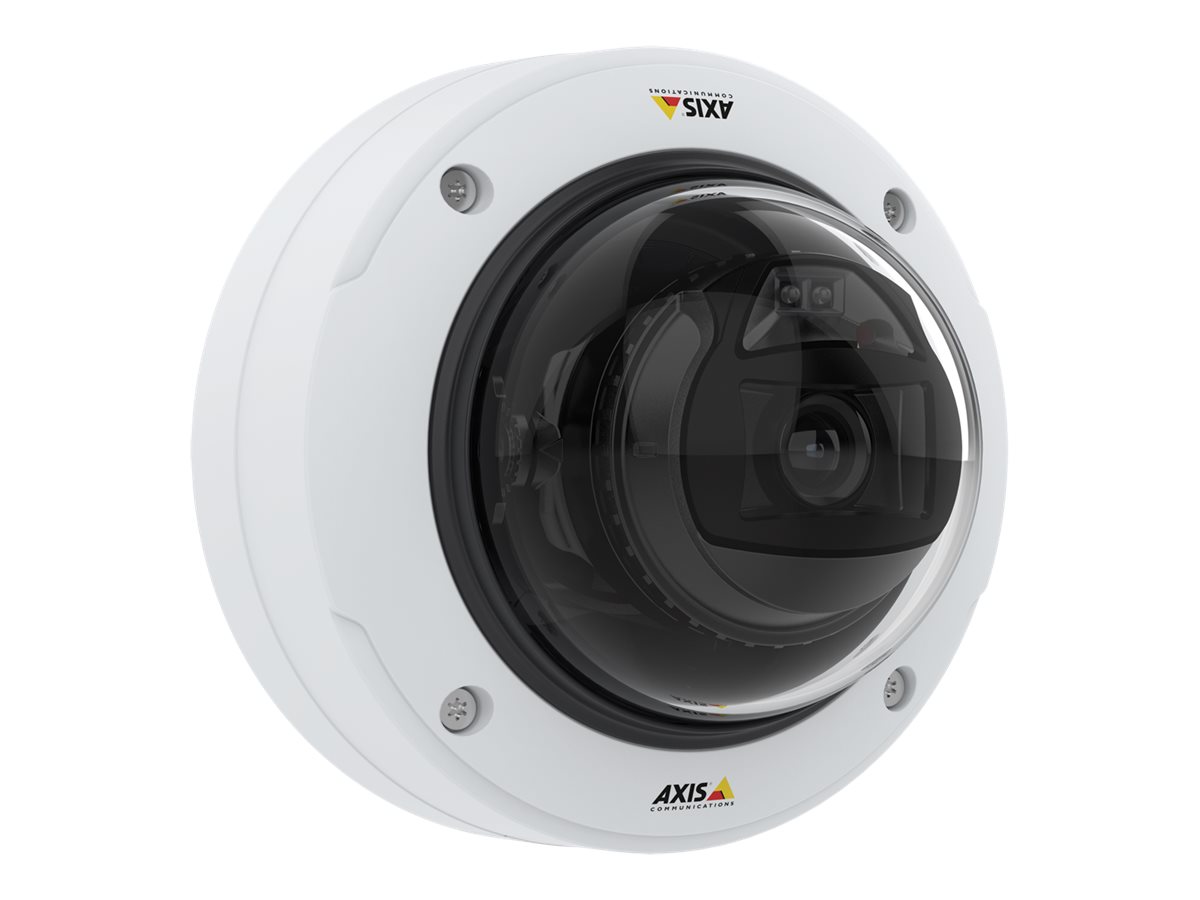

Produktbeskrivelse | AXIS P3268-LVE - netværksovervågningskamera - kuppel |
Enhedstype | Netværksovervågningskamera - fast - kuppel - udendørs - støvsikker / vandtæt / beskyttet mod vandaler |
Audio | Ja: tovejs-audiofunktion |
Kamera monteringstype | Vægmontering, til loftmontering |
Dimensioner (B x D x H) | 14.9 cm x 14.9 cm x 10.7 cm |
Vægt | 900 g |
Farve | Hvid |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 2 x |
Maksimum opløsning | 3840 x 2160 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | RGB CMOS - 1/1.8" - 8 MP |
Minimumbelysning | 0.14 lux - farve - F1.5 - 50 IRE<br>0 lux - IR - F1.5 - 50 IRE |
Brændviddekontrol | Forskellige brændvidder |
Brændvidde | 4.3 mm - 8.6 mm |
Fokusindstilling | (mindsteafstand 50 cm) |
Objektiv Iris | F/1.5 (P-Iris) |
Poanoreringsvinkel (grad) | -190 to +190 |
Krængningsvinkel (grad) | -10 til +80 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | PoE Class 3 |
Egenskaber | Digital PTZ-funktion, kodeordsbeskyttelse, IR-korrigeret objektiv, Variable Bitrate (VBR), Zipstream-teknologi, fjernfokus, infrarødt skåret filter, digest-autentificering, Forensic WDR, IP-adressefiltrering, underskrevet firmware, sikker støvle, Adaptive Bitrate (ABR), Lightfinder 2.0 teknologi, polykarbonat-kabinet, afrimning, brugeradgangslog, centraliseret certifikatsadministration, råstyrkeforsinkelsesbeskyttelse, dagshold, nathold, fjernzoom, Axis Edge Vault, Multi-Bitrate (MBR), Axis-enheds-ID, sikker keystore |
Producentgaranti | 5 års garanti |
Miljømæssige parametre (operativ) | -40 °C - 50 °C; 10 - 100% RH (condensing) relativ luftfugtighed |
General | |
---|---|
Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
Audio Support | Yes: two-way audio capability |
Camera Mount Type | Wall mount, ceiling mount |
Connectivity Technology | Wired |
Depth | 14.9 cm |
Device Type | Network surveillance camera |
Form Factor | Dome |
Height | 10.7 cm |
Localization | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Portuguese, Polish, Russian, Spanish, Japanese, Korean / Argentina, Australia, China, Japan, Korea, Brazil, United Kingdom, United States, Europe |
Weight | 900 g |
Width | 14.9 cm |
Camera | |
Digital Video Capture Resolution | 160 x 90 |
Digital Video Format | H.264, HEVC, H.265, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2 |
Exposure Range | 1/5 sec - 1/8500 sec |
Features | Digital PTZ function, password protection, IR Corrected lens, Variable Bitrate (VBR), Zipstream technology, remote focus, infrared-cut filter, digest authentication, Forensic WDR, IP address filtering, signed firmware, secure boot, Adaptive Bitrate ( |
Flash Memory | 8 GB |
Frame Rate (max) | 30 frames per second |
Infrared Distance | 40 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 3840 x 2160 |
Minimum Illumination | 0.14 lux - color - F1.5 - 50 IRE | 0 lux - IR - F1.5 - 50 IRE |
Motion Detection | Yes |
RAM | 2 GB |
Supported Image Formats | JPEG (Motion photos) |
Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
Image Sensor | |
Type | 8 MP RGB CMOS 1/1.8" |
Lens Construction | |
Focal Length | 4.3 mm - 8.6 mm |
Horizontal Field of View (degree) | 53 - 100 |
Lens Iris | F/1.5 (P-Iris) |
Min Focus Distance | 50 cm |
Optical Zoom | 2 x |
Type | Vari-focal |
Vertical Field of View (degree) | 30 - 54 |
Panning | |
Range (degree) | -190 to +190 |
Tilting | |
Range (degree) | -10 to +80 |
Interfaces | |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, SIP, LLDP, Zeroconf, USGv6, MQTT, CDP, Sy |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Digital input/output - terminal block | Audio line in - 3.5 mm jack |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | White |
Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, NEMA Type 4X, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IS13252, |
Included Accessories | Cable gaskets, drill hole template, Resistorx T20 tool L-key, weathershield, connector guard, terminal block connectors |
Power | |
Power Device | 5.5 Watt |
Power Requirements | PoE Class 3 |
Software / System Requirements | |
Software Included | Windows decoder 1-user license, AXIS Video Motion Detection, AXIS Object Analytics |
Manufacturer Warranty | |
Service & Support | Limited warranty - 5 years |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -40 °C |
Relative Humidity (operating) | 10 - 100% RH (condensing) |
