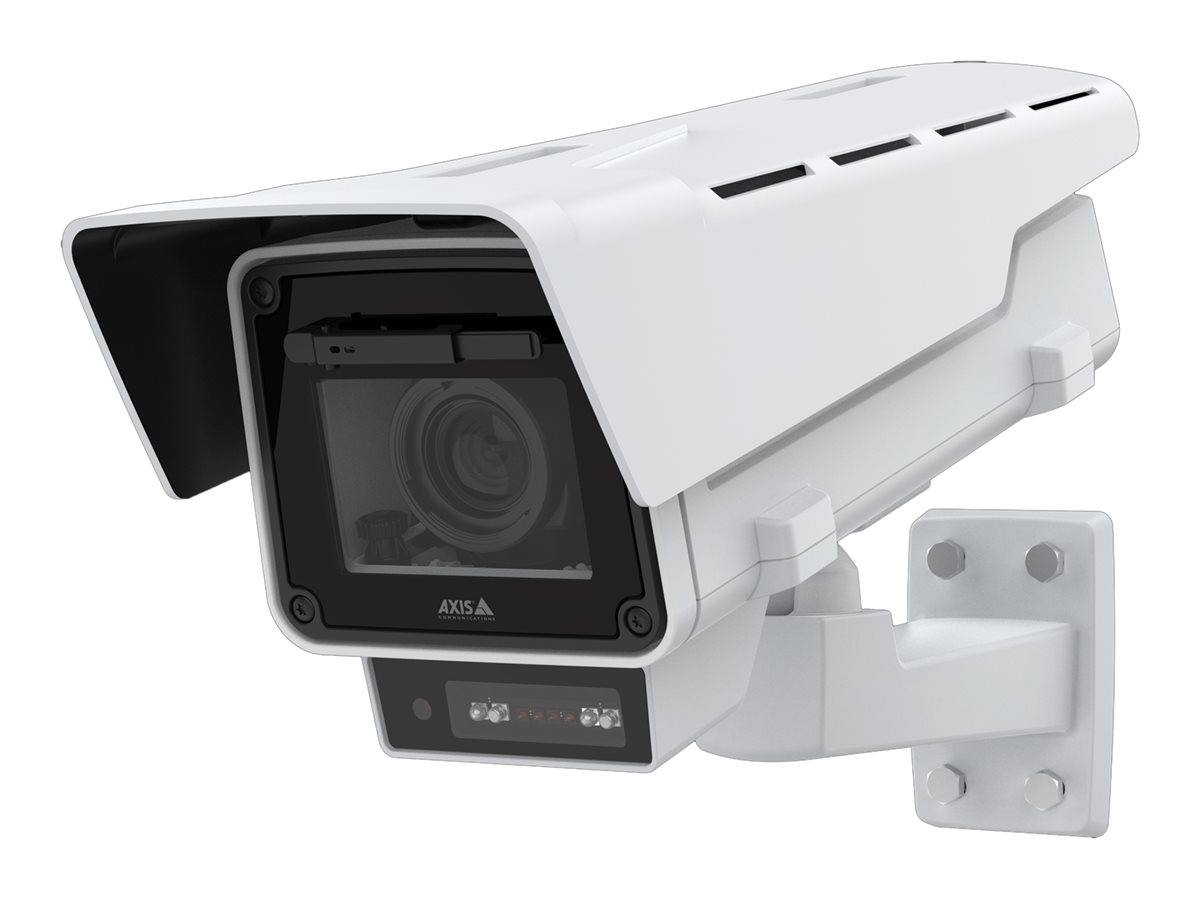

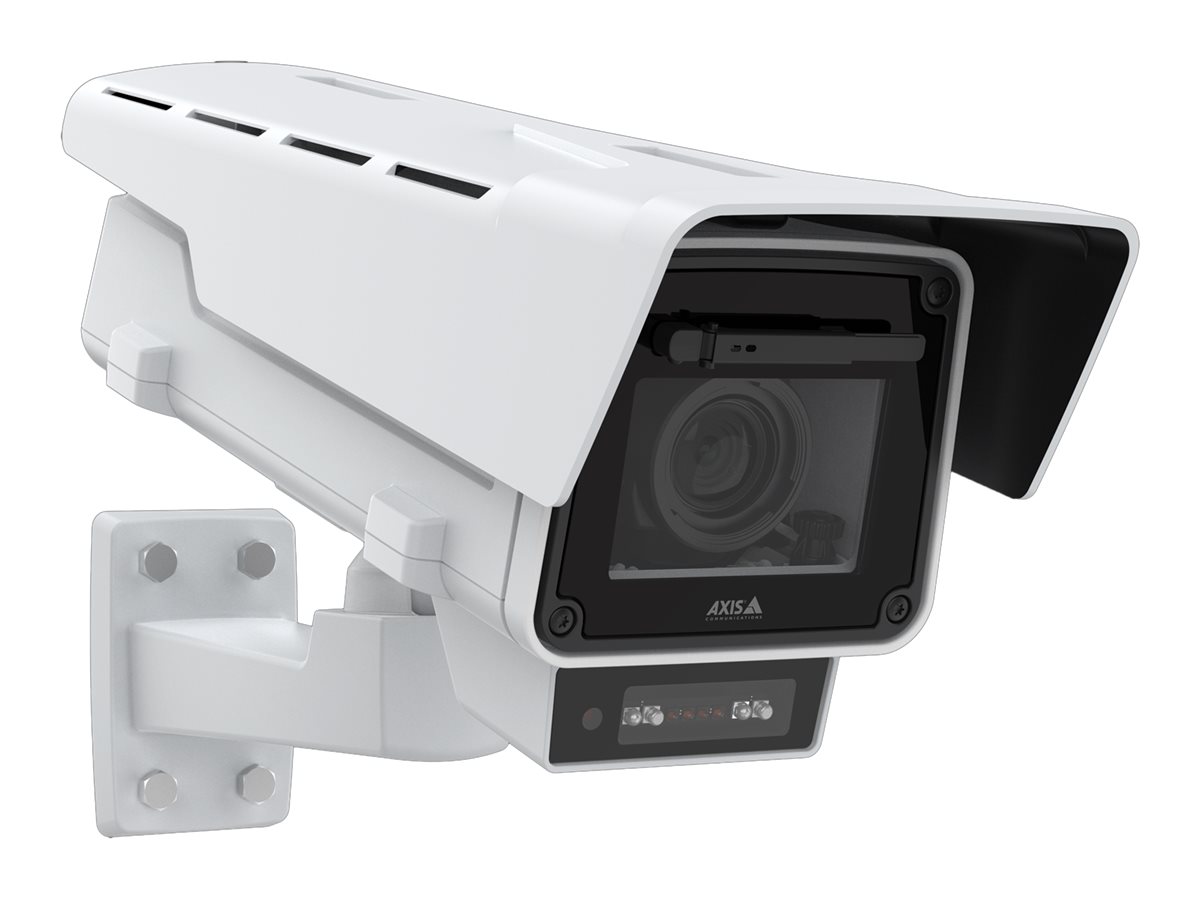

AXIS Q1656-LE Netværksovervågningskamera Udendørs 2688 x 1512
AXIS Q1656-LE - Netværksovervågningskamera - boks - udendørs - vejrbestandig - farve (Dag/nat) - 4 MP - 2688 x 1512 - CS-montering - motoriseret - audio - GbE - MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 - DC 10 - 28 V / PoE Plus Class 4
23 902,00 SEK
19 121,60 SEK excl. VAT
-
Product no 999783575
Model 02168-001
Brand Axis Communications
EAN 7331021073982
Weight 4.4 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS Q1656-LE - netværksovervågningskamera - boks |
| Enhedstype | Netværksovervågningskamera - fast - boks - udendørs - vejrbestandig |
| Audio | Ja: tovejs-audiofunktion |
| Kamera monteringstype | Vægmontering |
| Dimensioner (B x D x H) | 15.9 cm x 40.4 cm x 18.2 cm |
| Vægt | 4.4 kg |
| Farve | Hvid |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 2.5 x |
| Maksimum opløsning | 2688 x 1512 |
| Billedhastighed (maks.) | 60 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | PS CMOS - 1/1.8" - 4 MP |
| Minimumbelysning | 0.05 lux - farve - F1.5 - 50 IRE<br>0.01 lux - S/H - F1.5 - 50 IRE<br>0 lux - IR |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 3.9 mm - 10 mm |
| Objektivmontering | CS-montering |
| Fokusindstilling | Automatisk (mindsteafstand 50 cm) |
| Objektiv Iris | (P-Iris) |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Kontrolgrænseflade | RS-485, RS-422 |
| Spænding | DC 10 - 28 V / PoE Plus Class 4 |
| Egenskaber | Hvidbalance, mætningskontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, varmeapparat, glas pudseklud, multi-streaming, meddelelsesbillede til e-mail, digital PTZ-funktion, notifikationsbillede til FTP, kodeordsbeskyttelse, forvrængningskorrektionsfunktion, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Defog, Zipstream-teknologi, Pelco Protocol, fjernfokus, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, Pixel Counter Support, infrarødt skåret filter, Line Crossing Detection, Vehicle Detection, Forensic WDR, IP-adressefiltrering, elektronisk billedstabilisering, eksponeringszone, menneskedetektion, Remote Back Focus, underskrevet firmware, sikker støvle, TPM 2.0 modul, Audio Noise Reduction, Corridor-tilstand, ONVIF (Profile T) support, Adaptive Bitrate (ABR), Lightfinder 2.0 teknologi, tekstskabelon, polygon-fortrolighedsmaske, 180° billedrotation, 90° billedrotation, 270° billedrotation, råstyrkeforsinkelsesbeskyttelse, ONVIF (Profile M) support |
| Producentgaranti | 5 års garanti |
| Miljømæssige parametre (operativ) | -40 °C - 60 °C; 10 - 100% RH (condensing) relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 40.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Box |
| Height | 18.2 cm |
| Weight | 4.4 kg |
| Width | 15.9 cm |
| Camera | |
| Digital Video Format | MJPEG, HEVC, H.265, MPEG-4 AVC, H.264B, H.264H, H.264M, MPEG-4 Part 10, MPEG-H Part 2 |
| Exposure Range | 1 sec - 1/47500 sec |
| Features | White balance, saturation control, brightness control, contrast control, image mirror, heater, window wiper, multi-streaming, notification picture to E-mail, digital PTZ function, notification picture to FTP, password protection, distortion correctio |
| Flash Memory | 8 GB |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1512 |
| Minimum Illumination | 0.05 lux - color - F1.5 - 50 IRE | 0.01 lux - B&W - F1.5 - 50 IRE | 0 lux - IR |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - outdoor - weatherproof |
| Video Capture | 2688 x 1512 @ 60 fps |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/1.8" |
| Lens Construction | |
| Focal Length | 3.9 mm - 10 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 47 - 113 |
| Lens Iris | (P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.5 x |
| Type | CS-mount - motorized zoom |
| Vertical Field of View (degree) | 27 - 60 |
| Interfaces | |
| Control Interface | RS-485, RS-422 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, EAP, SFTP, LLDP, USGv6, MQTT |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line out - 3.5 mm jack | Audio line-in/microphone - 3.5 mm jack | Serial RS-485/RS-422 - terminal block |
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| Miscellaneous | |
| Color | White |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, IK10, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, NEMA TS-2, RCM, IEC 624 |
| Included Accessories | Wall mount kit, sunshield, Resistorx T20 tool, connector kit |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
