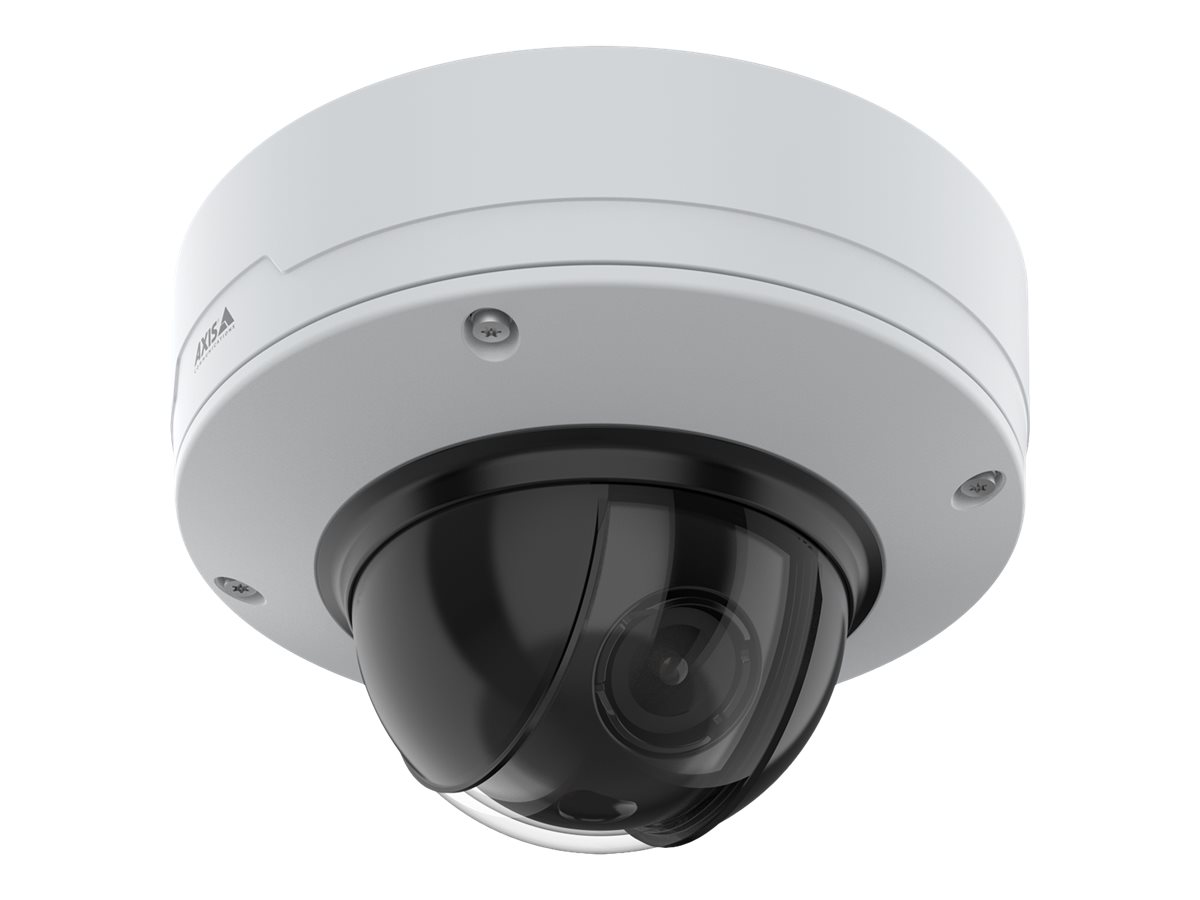

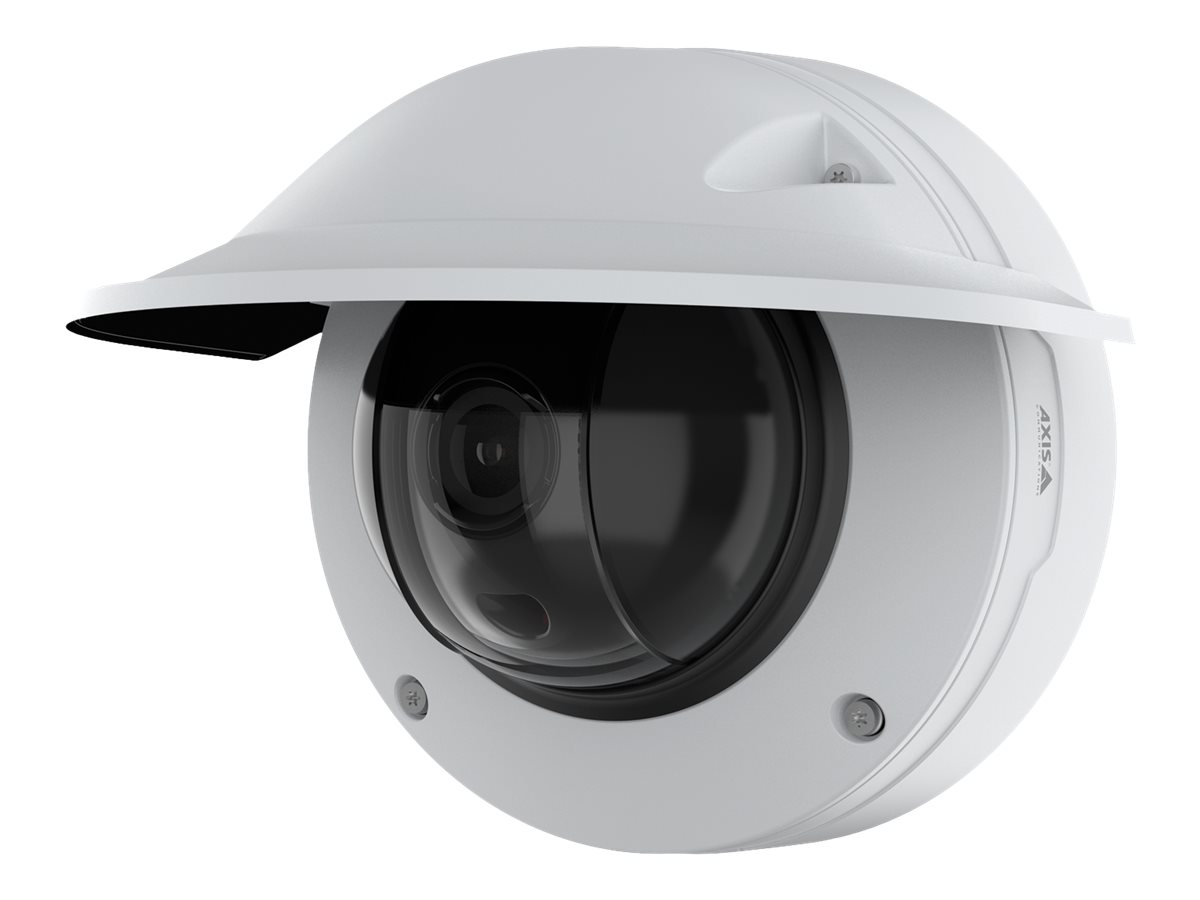

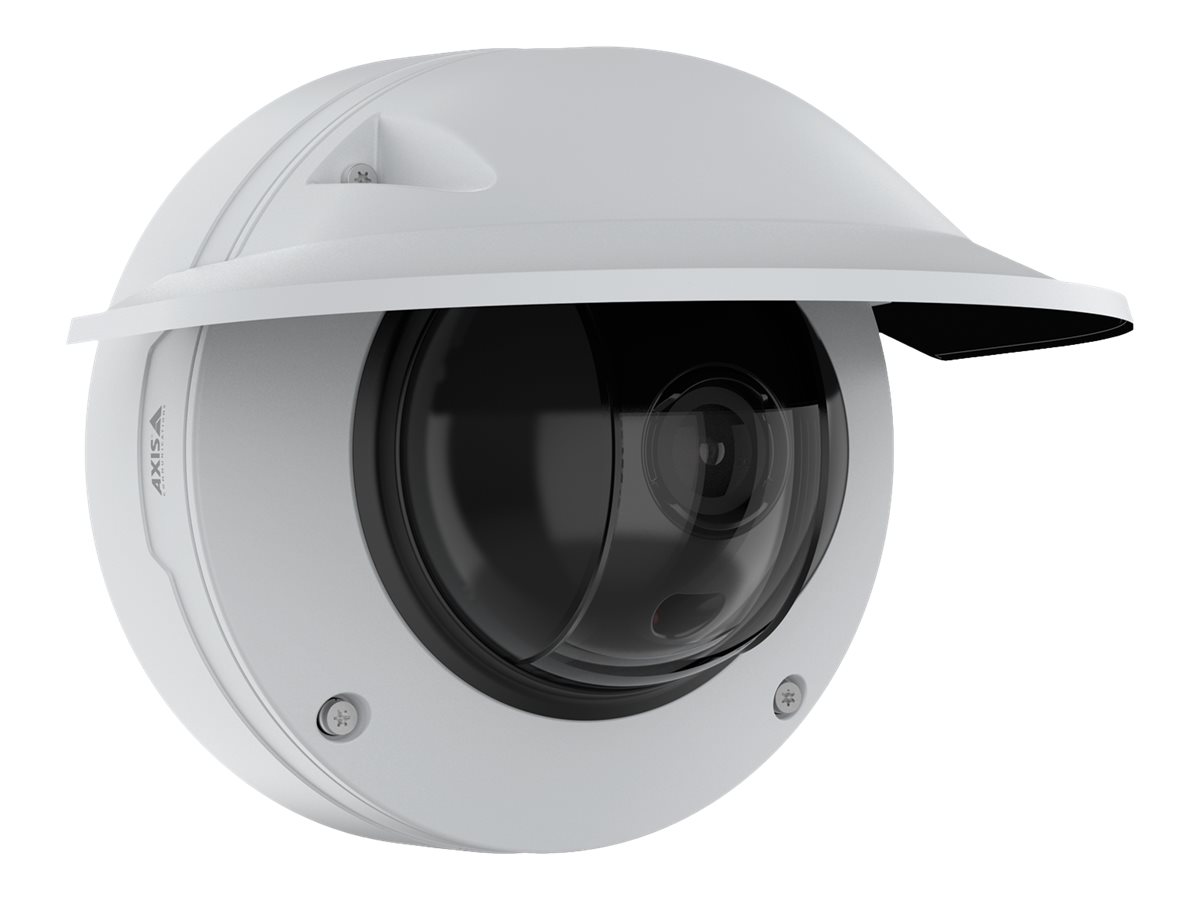

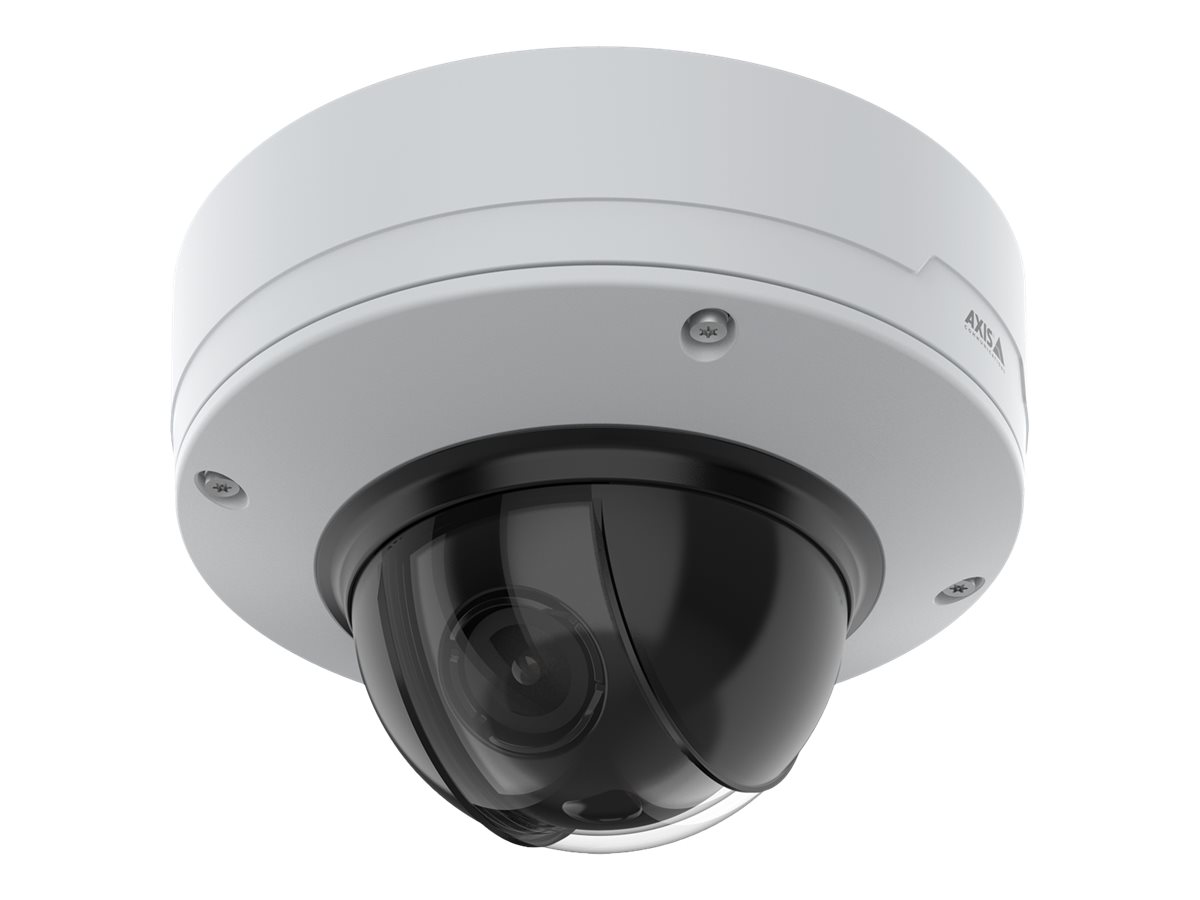

AXIS Q3538-LVE Netværksovervågningskamera Automatisk irisblænder 3840 x 2160
AXIS Q3538-LVE - Netværksovervågningskamera - kuppel - beskyttet mod vandalisme / vejrbestandig - farve (Dag/nat) - 3840 x 2160 - 4K - automatisk irisblænder - forskellige brændvidder - audio - GbE - MJPEG, H.264, MPEG-4 AVC - DC 10 - 28 V / PoE Plus Class 4
17 657,00 SEK
14 125,60 SEK excl. VAT
-
Product no 999783581
Model 02225-001
Brand Axis Communications
EAN 7331021075061
Weight 2.1 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | AXIS Q3538-LVE - netværksovervågningskamera - kuppel |
| Enhedstype | Netværksovervågningskamera - fast - kuppel - beskyttet mod vandalisme / vejrbestandig |
| Audio | Ja: tovejs-audiofunktion |
| Dimensioner (B x D x H) | 18.4 cm x 18.4 cm x 12.4 cm |
| Vægt | 2.1 kg |
| Farve | Hvid |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 2 x |
| Maksimum opløsning | 3840 x 2160 |
| Billedhastighed (maks.) | 60 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Video Modes | 4K |
| Billedsensortype | RGB CMOS - 1/1.2" |
| Minimumbelysning | 0.07 lux - farve - F1.5 - 50 IRE<br>0 lux - S/H - F1.5 - 50 IRE |
| Brændviddekontrol | Forskellige brændvidder |
| Brændvidde | 6.2 mm - 12.9 mm |
| Objektiv Iris | F/1.6-2.9 - automatisk irisblænder (P-Iris) |
| Poanoreringsvinkel (grad) | 180 |
| Krængningsvinkel (grad) | -43 to +80 |
| Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Spænding | DC 10 - 28 V / PoE Plus Class 4 |
| Egenskaber | Skarphedskontrol, hvidbalance, farvekontrol, progressiv scanning, lysstyrkekontrol, kontrastkontrol, spejlbillede, Privacy Mask Function, Lightfinder-teknologi, aktiv pillealarm, digital PTZ-funktion, Event Notification, kodeordsbeskyttelse, IR-korrigeret objektiv, Audio Detection, OptimizedIR, Zipstream-teknologi, ONVIF (Profil S) support, ONVIF (Profile G) support, billedskabelon, eksponeringskontrol, infrarødt skåret filter, IP-adressefiltrering, elektronisk billedstabilisering, eksponeringszone, ONVIF (Profile T) support, Lightfinder 2.0 teknologi, ONVIF (Profile M) support |
| Producentgaranti | 5 års garanti |
| Miljømæssige parametre (operativ) | -50 °C - 60 °C; 10 - 100% relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 18.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.4 cm |
| Weight | 2.1 kg |
| Width | 18.4 cm |
| Camera | |
| Digital Video Format | MJPEG, H.264, MPEG-4 AVC |
| Exposure Range | 1 sec - 1/66500 sec |
| Features | Sharpness control, white balance, color control, progressive scanning, brightness control, contrast control, image mirror, Privacy Mask Function, Lightfinder technology, active tampering alarm, digital PTZ function, Event Notification, password prote |
| Flash Memory | 8 GB |
| Frame Rate (max) | 60 frames per second |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 0.07 lux - color - F1.5 - 50 IRE | 0 lux - B&W - F1.5 - 50 IRE |
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Video Modes | 4K |
| Image Sensor | |
| Type | RGB CMOS 1/1.2" |
| Lens Construction | |
| Focal Length | 6.2 mm - 12.9 mm |
| Horizontal Field of View (degree) | 49 - 103 |
| Lens Iris | F/1.6-2.9 auto iris (P-Iris) |
| Optical Zoom | 2 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 28 - 56 |
| Panning | |
| Range (degree) | 180 |
| Tilting | |
| Range (degree) | -43 to +80 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SFTP, LLDP |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line-in/microphone - 3.5 mm jack | Audio line out - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Color | White |
| Compliant Standards | EN55024, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-6, IP67, FCC Part 15 B Class A, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IEC 62236-4, VCCI Class A, RCM, IK10+, IEC EN60529, KN35, IEC/EN 61000-6-1, IEC/EN |
| Included Accessories | Mounting bracket, cable gaskets, I/O and DC connectors, drill hole template, Resistorx L-key |
| Power | |
| Power Device | 9 Watt |
| Power Requirements | DC 10 - 28 V / PoE Plus Class 4 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 10 - 100% |
