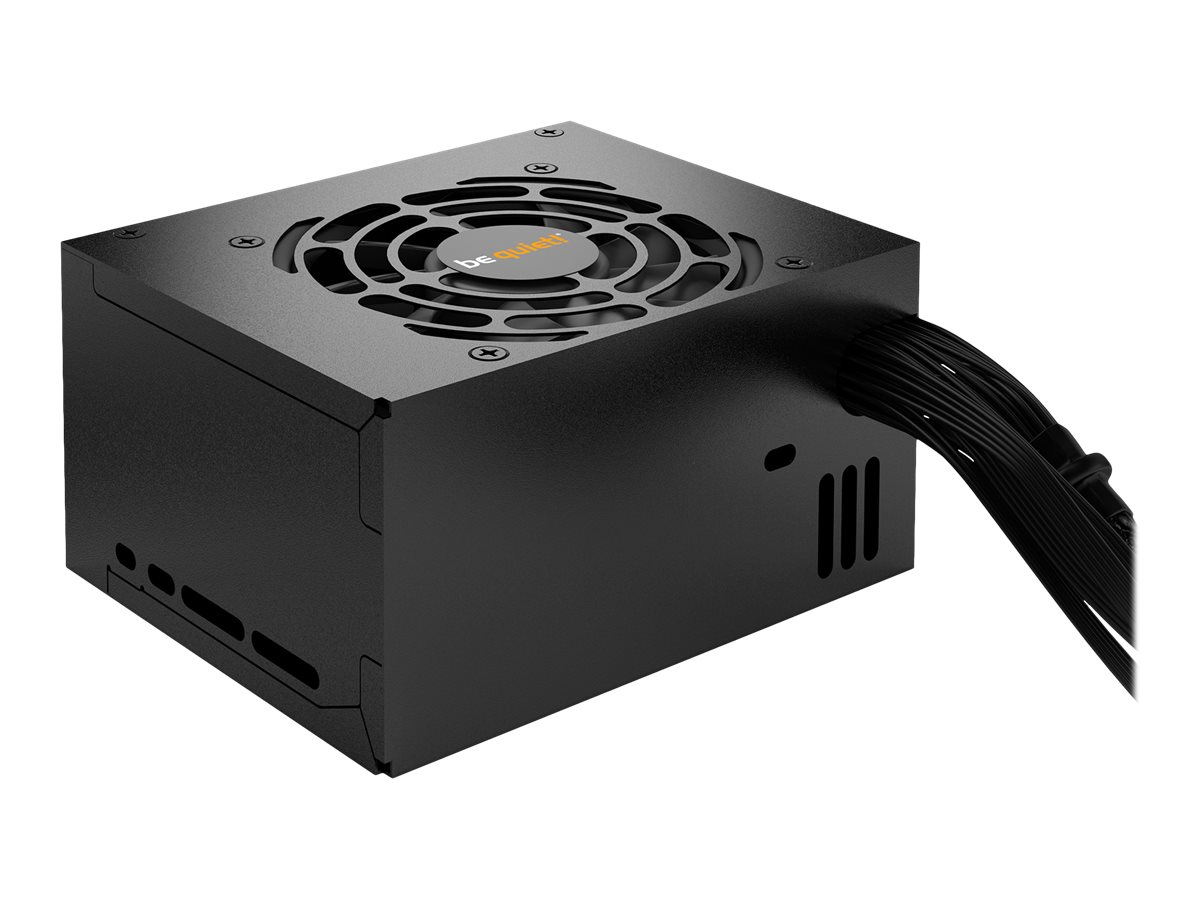

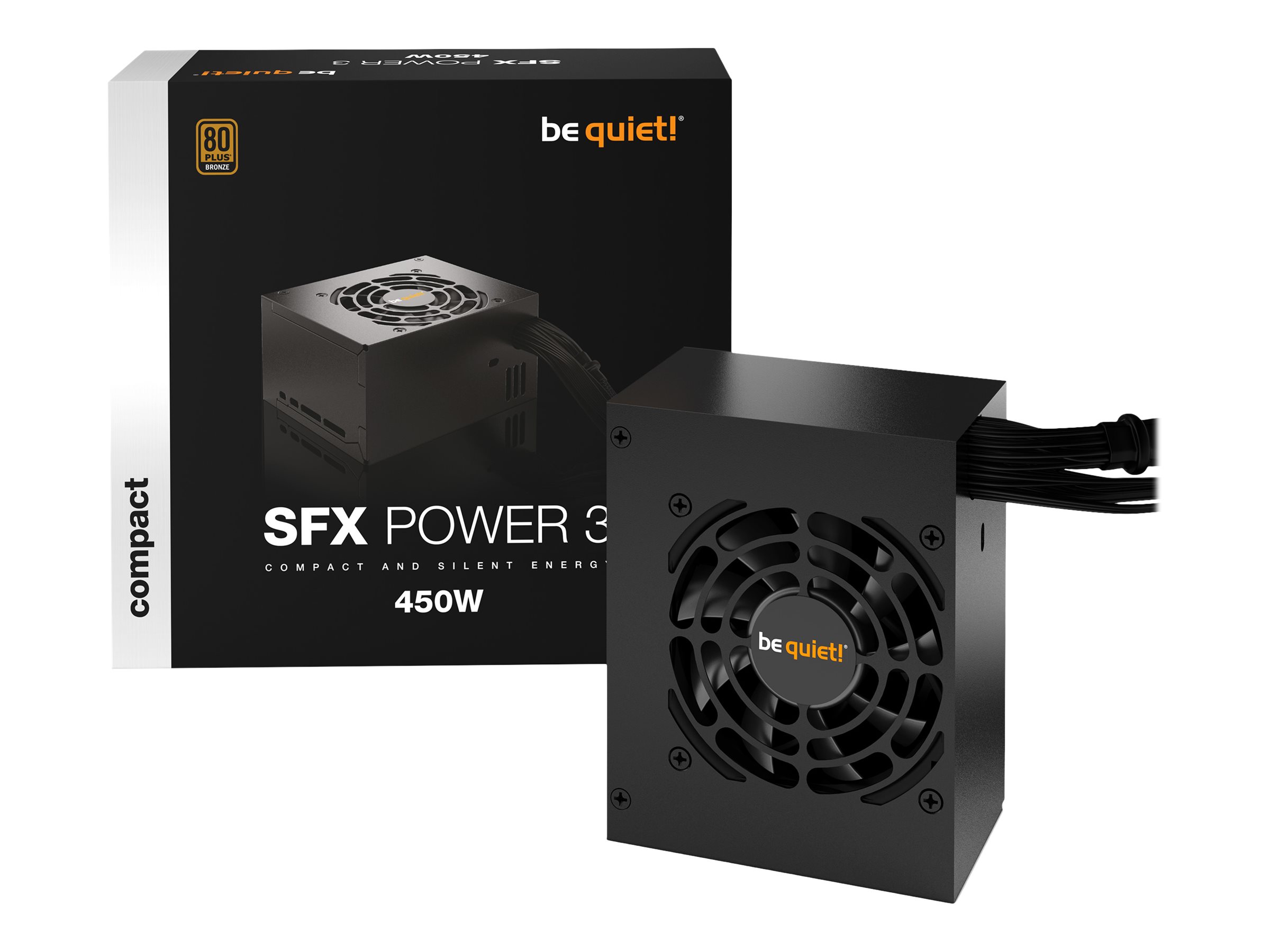

be quiet! SFX Power 3 450Watt 80 PLUS Bronze
be quiet! SFX Power 3 - Strømforsyning (intern) - SFX12V 3.42/ EPS12V 2.92 - 80 PLUS Bronze - AC 100-240 V - 450 Watt - aktiv PFC - Europa
815,00 SEK
652,00 SEK excl. VAT
-
Product no 998700791
Model BN321
Brand Listan
EAN 4260052188279
Weight 1.26 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | be quiet! SFX Power 3 - strømforsyning - 450 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | SFX12V 3.42/ EPS12V 2.92 |
| 80 PLUS certificering | 80 PLUS Bronze |
| Lokalisering | Europa |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 450 Watt |
| Output Current | +3.3V - 16 A<br>+5V - 16 A<br>+12V1 - 37.5 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>2 x 4-PIN intern strøm<br>3 x 15 pin Serial ATA strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion |
| Kølesystem | 80 mm ventilator |
| Dimensioner (B x D x H) | 12.5 cm x 10 cm x 6.35 cm |
| Miljømæssige standarder | ENERGY STAR |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Localization | Europe |
| PSU Form Factor | SFX |
| Specification Compliance | SFX12V 3.42/ EPS12V 2.92 |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 89.3% |
| Frequency Required | 50 - 60 Hz |
| Input Voltage | AC 100-240 V |
| Output Current | +3.3V - 16 A | +5V - 16 A | +12V1 - 37.5 A | -12V - 0.3 A | +5VSB - 2.5 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 450 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 2 x 8 pin PCI Express power with detachable 2 pin section | 2 x 4 pin internal power | 3 x 15 pin Serial ATA power | 1 x 4 pin mini-power connector | 1 x power 8 pin +12V with detachable 4 pin sect |
| Miscellaneous | |
| Compliant Standards | EAC, TUV Rheinland, ErP 2014 Ready |
| Cooling System | 80 mm fan |
| Features | Overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Sound Emission | 33.8 dBA |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 6.35 cm |
| Width | 12.5 cm |
