Product no 998381210
Model 5J.F7314.003
Brand BenQ
EAN 4718755084478
Weight 1.38 kg
Produktbeskrivelse | BenQ DVY23 - konferencekamera |
Enhedstype | Konferencekamera - pan / tilt / zoom |
Audio | Ja |
Dimensioner (B x D x H) | 18.1 cm x 11.6 cm x 15 cm |
Vægt | 1.38 kg |
Connectivity teknologi | Med ledning |
Kamera | Farve |
Optisk zoom | 20 x |
Maksimum opløsning | 1920 x 1080 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Video Modes | 720p, 1080p |
Billedsensortype | HD CMOS - 1/2.8" - 2.1 MP |
Minimumbelysning | 0.5 lux F1.8 - AGC on |
Brændvidde | 5.5 mm - 110 mm |
Fokusindstilling | Automatisk, manuel |
Objektiv Iris | F/1.6-3.5 - auto og manuel iris |
Poanoreringsvinkel (grad) | -170 til +170 |
Krængningsvinkel (grad) | -30 til +90 |
Interface | USB 3.0, HDMI, 3G-SDI, Ethernet 10Base-T/100Base-TX/1000Base-T |
Kontrolgrænseflade | RS-485, RS-422, RS-232 (VISCA) |
Medfølgende ledninger | 1 - USB-kabel |
Spænding | DC 12 V / PoE |
Egenskaber | Manuel hvidbalancering, Backlight Compensation (BLC), manuel eksponering, automatisk eksponeringskontrol, dobbelt video-stream, auto-hvidbalance, 10 forudindstillede positioner, autoindramning, 3D digital støjreduktion (DNR), Super Low Light Performance, digital panorering, 2D digital noise reduction (DNR), digital vipning |
Miljømæssige parametre (operativ) | -10 °C - 50 °C; 20 - 80% relativ luftfugtighed |
General | |
---|---|
Audio Support | Yes |
Connectivity Technology | Wired |
Depth | 11.6 cm |
Device Type | Conference camera |
Height | 15 cm |
Weight | 1.38 kg |
Width | 18.1 cm |
Camera | |
Digital Video Capture Resolution | 1280 x 720, 640 x 480, 1920 x 1080, 640 x 360, 320 x 176 |
Digital Video Format | MJPEG, H.264, YUY2, H.265 |
Digital Zoom | 10 |
Features | Manual white balance, Backlight Compensation (BLC), manual exposure, auto exposure control, dual video stream, auto white balance, 10 preset positions, auto-framing, 3D digital noise reduction (DNR), Super Low Light Performance, digital pan, 2D digit |
Frame Rate (max) | 30 frames per second |
Max Digital Video Resolution | 1920 x 1080 |
Minimum Illumination | 0.5 lux F1.8 - AGC on |
Type | Color - pan / tilt / zoom |
Video Modes | 720p, 1080p |
Image Sensor | |
Type | 2.1 MP HD CMOS 1/2.8" |
Lens Construction | |
Diagonal Field of View (degree) | 63 |
Focal Length | 5.5 mm - 110 mm |
Focus Adjustment | Automatic, manual |
Horizontal Field of View (degree) | 55 |
Lens Iris | F/1.6-3.5 auto and manual iris |
Optical Zoom | 20 x |
Vertical Field of View (degree) | 31 |
Panning | |
Range (degree) | -170 to +170 |
Speed (degree/sec) | Up to 100 |
Tilting | |
Range (degree) | -30 to +90 |
Speed (degree/sec) | Up to 45 |
Interfaces | |
Computer Interface | USB 3.0 |
Control Interface | RS-485, RS-422, RS-232 (VISCA) |
Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
Network Protocols | RTSP, RTMP, RTMPS |
Video | HDMI, 3G-SDI |
Expansion / Connectivity | |

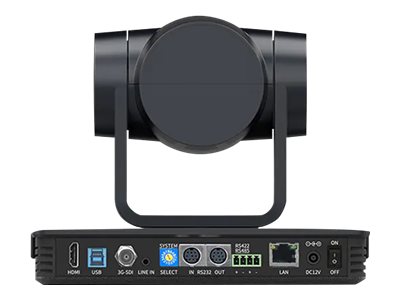

Ports | LAN/power - RJ-45 | HDMI output | 3G-SDI | Serial RS-232/RS-485/RS-422 |
Miscellaneous | |
Cables Included | 1 x USB cable |
Compliant Standards | Plug and Play |
Included Accessories | Remote control |
Power | |
Power Device | Power adapter - external 18 Watt |
Power Requirements | DC 12 V / PoE |
Software / System Requirements | |
OS Required | Linux, Apple MacOS X 10.10, Microsoft Windows 7 / 8.1 / 10 |
Environmental Parameters | |
Max Operating Temperature | 50 °C |
Min Operating Temperature | -10 °C |
Relative Humidity (operating) | 20 - 80% |
