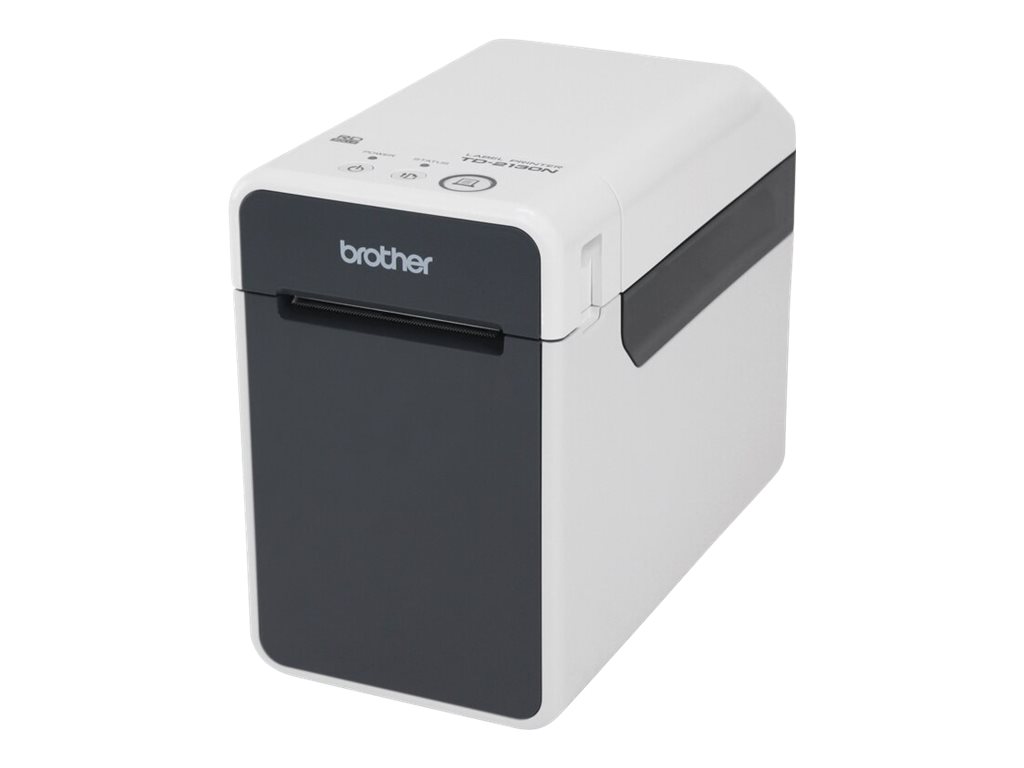

Brother TD-2130N Direct thermal
TD-2130N er designet til brug inden for næsten alle detail- og arbejdsmiljøer og er blandt de mest kompakte og hurtigste termoprintere til og med en bredde på 56 mm til skrivebordsbrug inden for detailanvendelsesformål. Med en højere udskriftsopløsning på 300 dpi udskriver den hurtigt labels til priser, rabatter, produktidentifikation, returneringer og hyldeetiketter ved op til 152,4 mm/sekund. Den udskriver også bon og kvitteringer for kiosk- og POS-applikationer.
-
Product no 987671178
Model TD2130NXX1
Brand
Go to brand's websiteEAN 4977766719711
Weight 2.76 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Brother TD-2130N - etiketprinter - S/H - direkte termisk |
| Printertype | Etiketprinter - direkte termisk - S/H |
| Vægt | 1.34 kg |
| Maks. mediestørrelse | Rulle (6,3 cm) |
| Minimum Medie Størrelse (Almindelig) | 19 mm |
| Max. mediestørelse (brugerdefineret) | 63 mm |
| Maks. opløsning (S og H) | 300 dpi |
| Skærer | Ja |
| Grænseflade | USB 2.0, LAN, seriel, USB vært |
| RAM installeret (maks.) | 6 MB |
| Sprogsimulering | EPSON ESC/P, ZPL II, EPSON ESC/P Raster |
| Stregkoder | Kode 93, Kode 39, UCC/EAN-128, QR-kode, MaxiCode, Aztec-kode, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Coadabar, Code 128, PDF417, Data Matrix, ITF, Truncated PDF417, Micro QR kode |
| Medietype | Kvitteringspapir, papir etikette, pressestempel skæreetikette, manchetmærkater |
| Kompatible bånd | RD bånd |
| Skrifttyper | Brussels, Helsinki, San Diego, Letter Gothic Bold |
| Stil & effekter | Fed, Spejl |
| Egenskaber | Black Mark-sensor, mellemrumssensor |
| Netværk | Udskriftsserver |
| Systemkrav | Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012 |
| Producentgaranti | 3 års garanti |
| Dimensioner (B x D x H) | 11.1 cm x 21.5 cm x 17.2 cm |
| General | |
|---|---|
| Printer Type | Label printer - direct thermal - monochrome |
| Printer | |
| Auto Cutter | Yes |
| Barcodes | Code 93, Code 39, UCC/EAN-128, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, PDF417, Data Matrix, ITF, Truncated PDF417, Micro QR code |
| Connectivity Technology | Wired |
| Features | Black Mark sensor, gap sensor |
| Fonts | Brussels, Helsinki, San Diego, Letter Gothic Bold |
| Interface | USB 2.0, LAN, serial, USB host |
| Language Simulation | EPSON ESC/P, ZPL II, EPSON ESC/P Raster |
| Max Resolution (B&W) | 300 dpi |
| Styles & Effects | Bold, mirror |
| RAM | |
| RAM Installed (Max) | 6 MB |
| Media Handling | |
| Compatible Tapes | RD tape |
| Max Media Size | Roll (6.3 cm) |
| Max Media Size (Custom) | 63 mm |
| Max Printing Length | 1 m |
| Max Printing Width | 56 mm |
| Media Sizes | Roll (6.3 cm) |
| Media Thickness Range | 0.058 mm - 0.279 mm |
| Media Type | Receipt paper, paper tag, die cut labels, wristband labels |
| Min Media Size (Custom) | 19 mm |
| Roll Core Diameter | 25.4 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Networking | |
| Networking | Print server |
| Expansion / Connectivity | |
| Connections | 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x USB 2.0 - 4 pin USB Type B | 1 x LAN - RJ-45 | 1 x USB 2.0 - 4 pin USB Type A |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Power | |
| Frequency Required | 50/60 Hz |
| Software / System Requirements | |
| OS Required | Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012 |
| Software Included | Driver |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Dimensions & Weight | |
| Depth | 21.5 cm |
| Height | 17.2 cm |
| Weight | 1.34 kg |
| Width | 11.1 cm |
