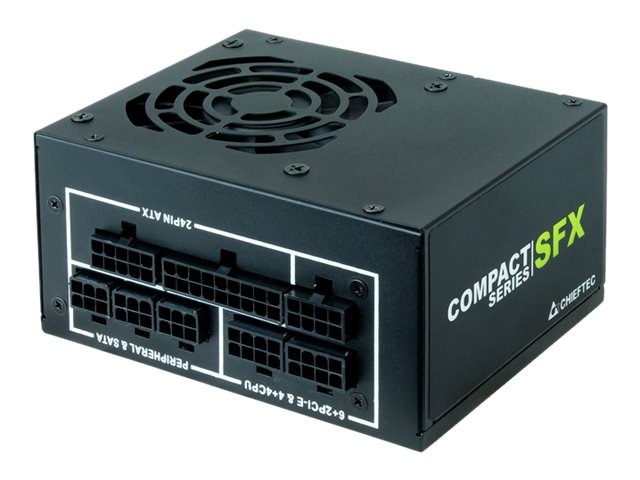

Chieftec Compact Series CSN-450C Strømforsyning 450Watt
Chieftec Compact Series CSN-450C - Strømforsyning (intern) - ATX12V 2.3/ SFX12V - 80 PLUS Gold - AC 100-240 V - 450 Watt - aktiv PFC
1 199,00SEK959,20SEK excl. VAT
-
Product no 994732612
Model CSN-450C
Brand Chieftec Industrial
EAN 4710713235755
Weight 1.89 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec Compact Series CSN-450C - strømforsyning - 450 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3/ SFX12V |
| 80 PLUS certificering | 80 PLUS Gold |
| Indgangspænding | AC 100-240 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 450 Watt |
| Output Current | +5V - 15 A<br>+3.3V - 18 A<br>+12V1 - 37.5 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>4 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>1 x 4-PIN mini-strømforsyningsforbinder |
| Modulær Kabel Administration | Ja |
| Kølesystem | 80 mm ventilator |
| Dimensioner (B x D x H) | 12.5 cm x 10 cm x 6.4 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | SFX |
| Specification Compliance | ATX12V 2.3/ SFX12V |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90%+ |
| Frequency Required | 47 - 63 Hz |
| Input Voltage | AC 100-240 V |
| Modular Cable Management | Yes |
| Output Current | +5V - 15 A | +3.3V - 18 A | +12V1 - 37.5 A | -12V - 0.3 A | +5VSB - 3 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 450 Watt |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 4 x 15 pin Serial ATA power | 3 x 4 pin internal power | 1 x power 8 pin +12V with detachable 4 pin section | 2 x 8 pin PCI Express power with detachable 2 pin section | 1 x 4 pin mini-power connec |
| Miscellaneous | |
| Compliant Standards | CB, RoHS, ErP Ready, EAC, TUV Rheinland |
| Cooling System | 80 mm fan |
| Features | Overheat protection, overcurrent protection, overvoltage protection, SLI ready, overload protection, undervoltage protection, short-circuit protection, CrossFireX ready, fully modular, Automatic Fanspeed Control (AFC), Surge & Inrush Protection ( |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 6.4 cm |
| Width | 12.5 cm |
