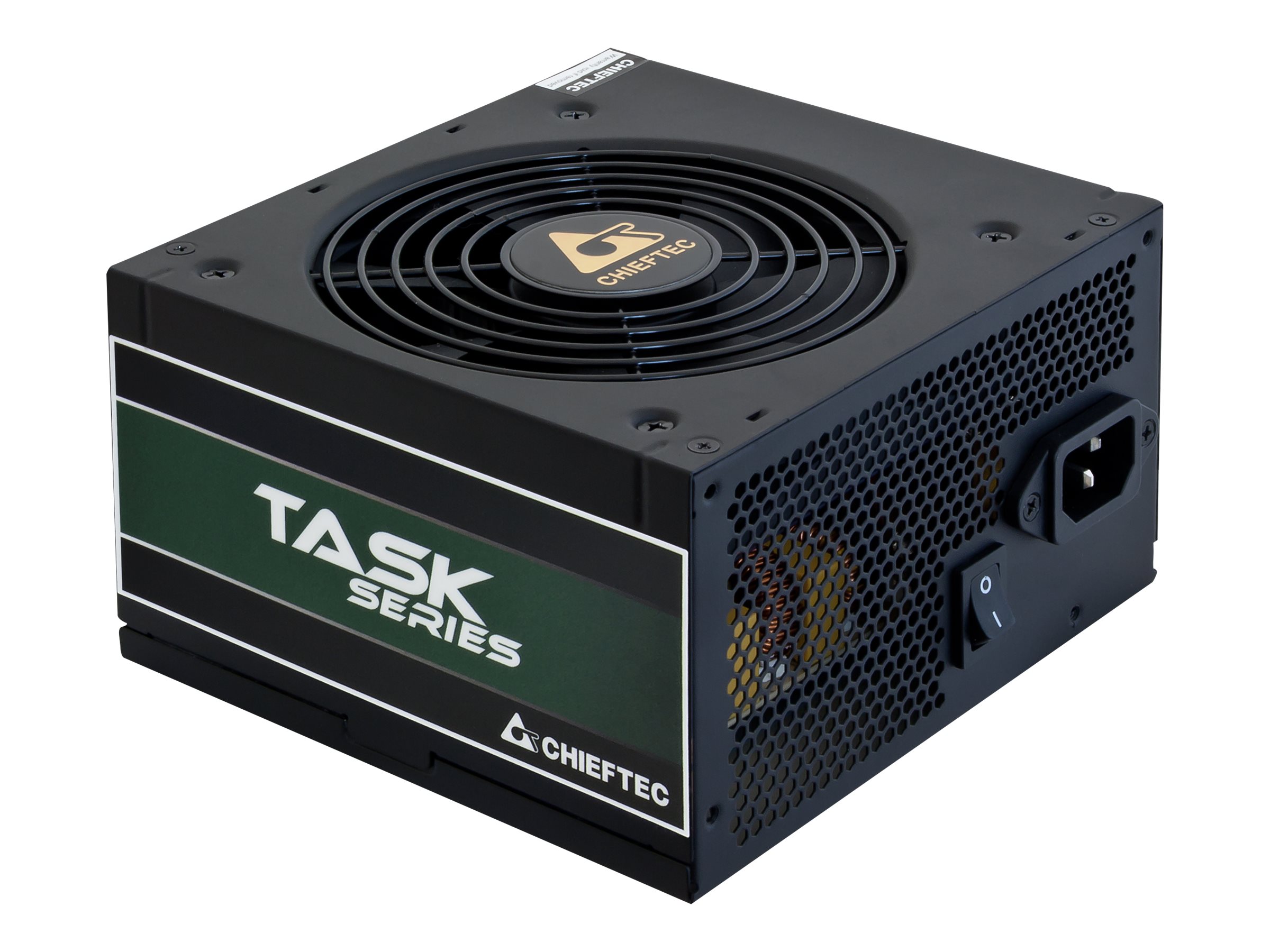

Chieftec TASK Series TPS-700S 700Watt 80 PLUS Bronze

Chieftec TASK Series TPS-700S - Strømforsyning (intern) - ATX12V 2.3/ EPS12V/ PS/2 - 80 PLUS Bronze - AC 100-240 V - 700 watt - aktiv PFC

SEK 687,00
SEK 549,60 excl. VAT

Shipping from SEK 69,00 (PostNord Paketbutik)
Product no: 995989451
Model: TPS-700S
EAN: 0753263076502
Brand:
Chieftec Industrial
Weight: 2.08 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
Chieftec TASK Series TPS-700S - strømforsyning - 700 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V/ PS/2
80 PLUS certificering
80 PLUS Bronze
Vægt
1.74 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
700 watt
Output Current
+5V - 17 A<br>+3.3V - 19 A<br>+12V1 - 54 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>6 x 15 pin Serial ATA strøm<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>3 x 4-PIN intern strøm
Kølesystem
120 mm ventilator
Producentgaranti
2 års garanti
Specifications

Full specifications

General
Device Type
Power supply - active Power Factor Correction (PFC) - internal
PSU Form Factor
ATX
Specification Compliance
ATX12V 2.3/ EPS12V/ PS/2
Power Device
80 PLUS Certification
80 PLUS Bronze
Frequency Required
47 - 63 Hz
Input Voltage
AC 100-240 V
Output Current
+5V - 17 A | +3.3V - 19 A | +12V1 - 54 A | -12V - 0.3 A | +5VSB - 2.5 A
Output Voltage
+3.3, +5, ±12 V
Power Capacity
700 Watt
Power Factor (PF)
0.9
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 6 x 15 pin Serial ATA power | 2 x 8 pin PCI Express power with detachable 2 pin section | 3 x 4 pin internal power
Miscellaneous
Compliant Standards
CB, FCC, RoHS, WEEE, ERP, EAC, Interseroh, TUV Rheinland

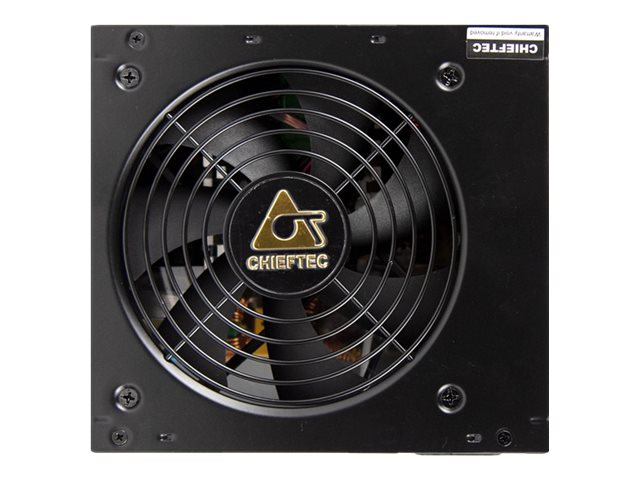

Cooling System
120 mm fan
Features
Overheat protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Automatic Fanspeed Control (AFC)
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Weight
1.74 kg
Dimensions & Weight (Shipping)
Shipping Weight
2.15 kg
