Produktbeskrivelse
|

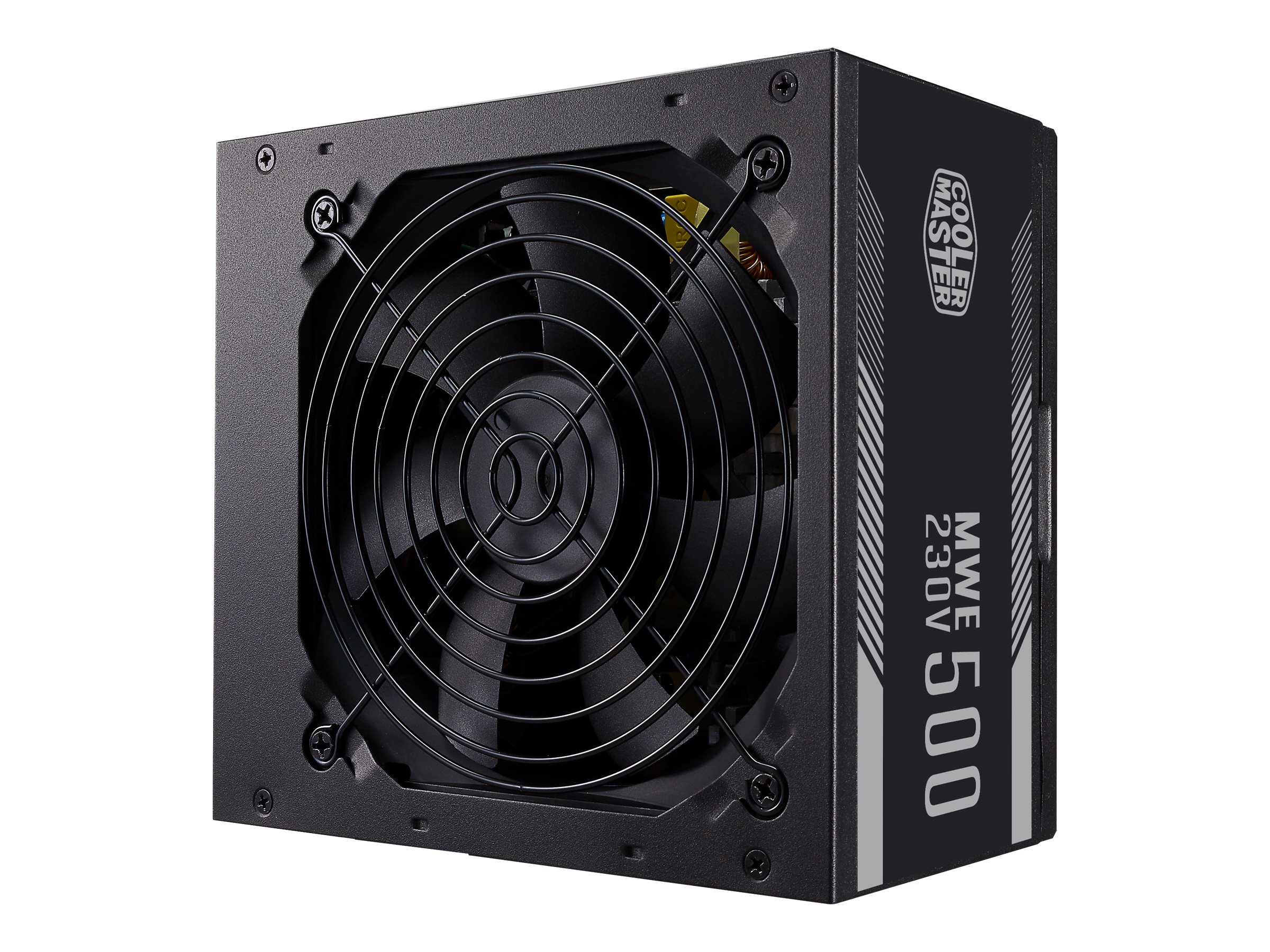

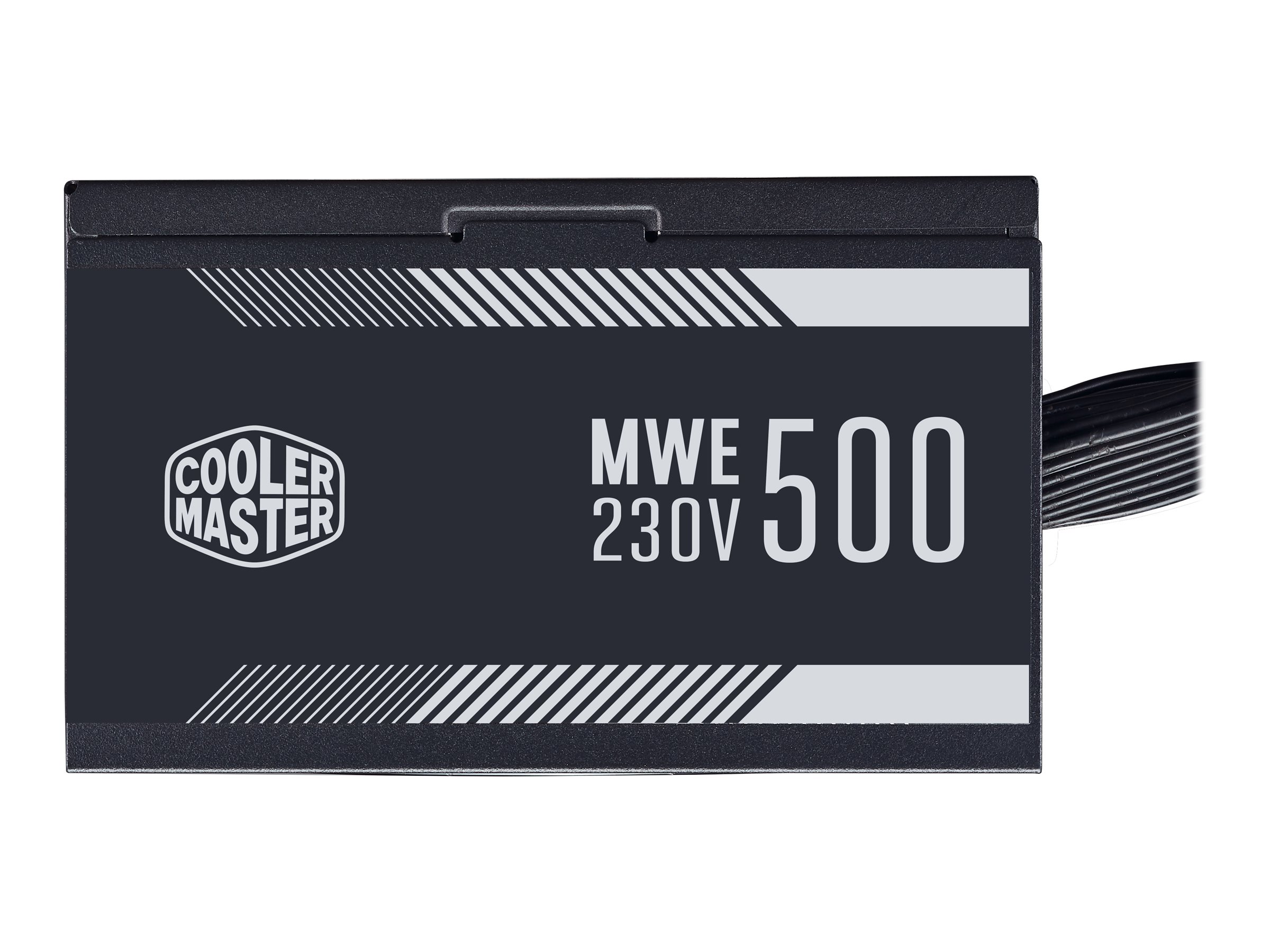

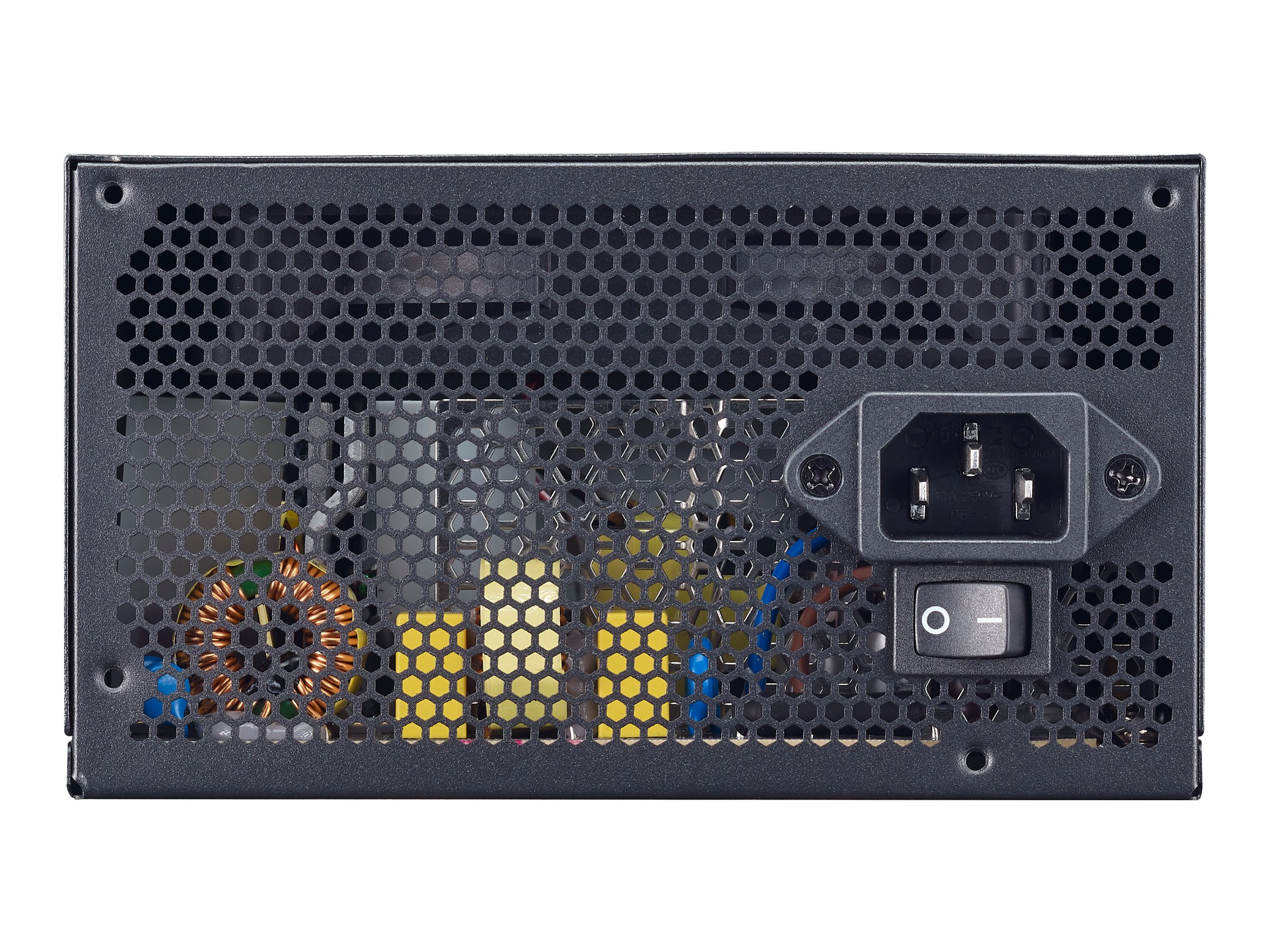

Cooler Master MWE White V2 500 - strømforsyning - 500 watt
|
|
Enhedstype
|
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
|
|
Specifikationsoverensstemmelse
|
ATX12V 2.52/ EPS12V
|
|
80 PLUS certificering
|
80 PLUS
|
|
Vægt
|
1.375 kg
|
|
Lokalisering
|
Europa
|
|
Indgangspænding
|
AC 230 V
|
|
Udgangspænding
|
+3.3, +5, ±12 V
|
|
Strømkapacitet
|
500 watt
|
|
Output Current
|

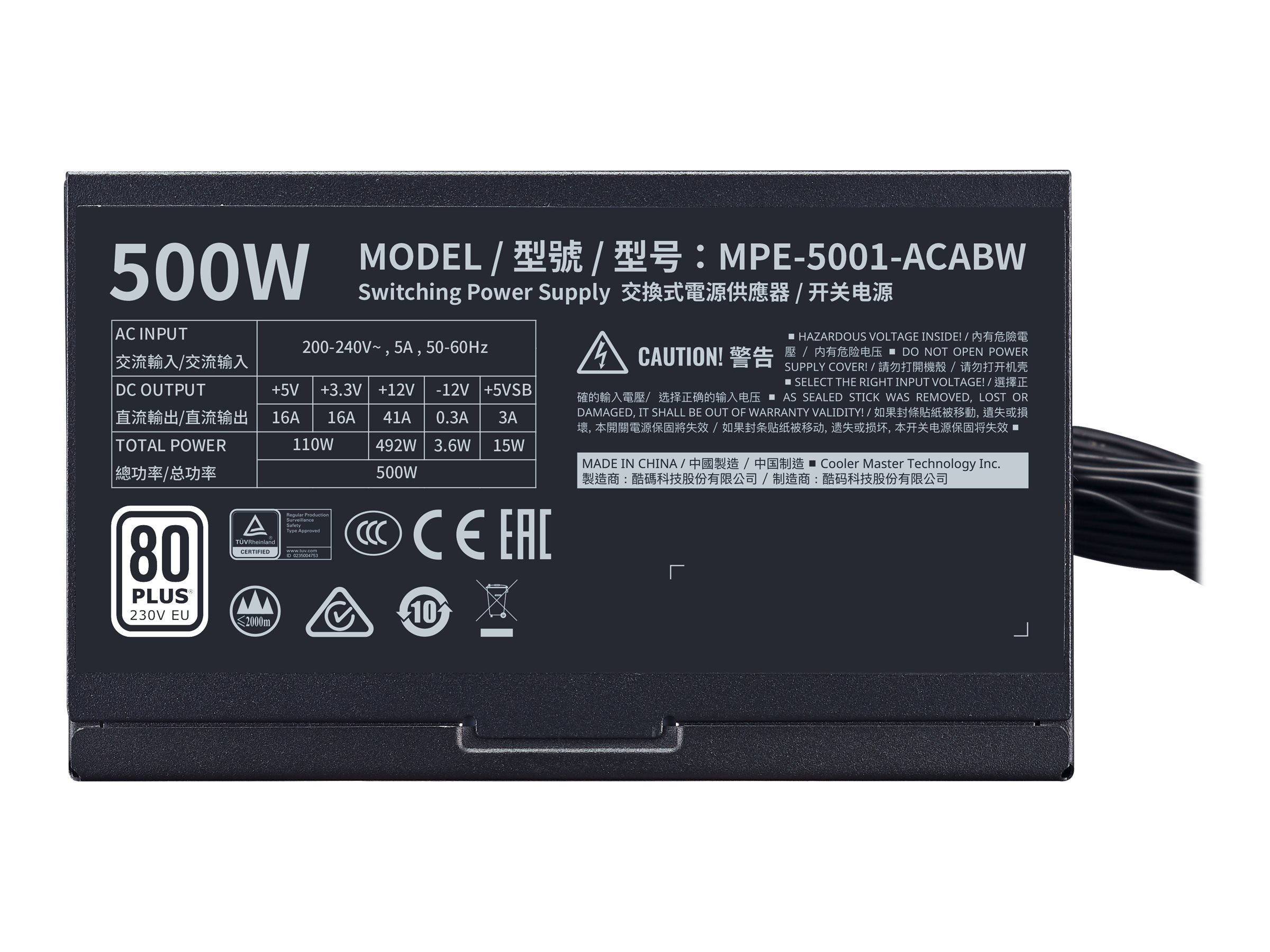

+3.3V - 16 A<br>+5V - 16 A<br>+12V - 41 A<br>-12V - 0.3 A<br>+5VSB - 3 A
|
|
Output-stikforbindelser
|
1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>6 x 15 pin Serial ATA strøm<br>3 x 4-PIN intern strøm<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
|
|
Kølesystem
|

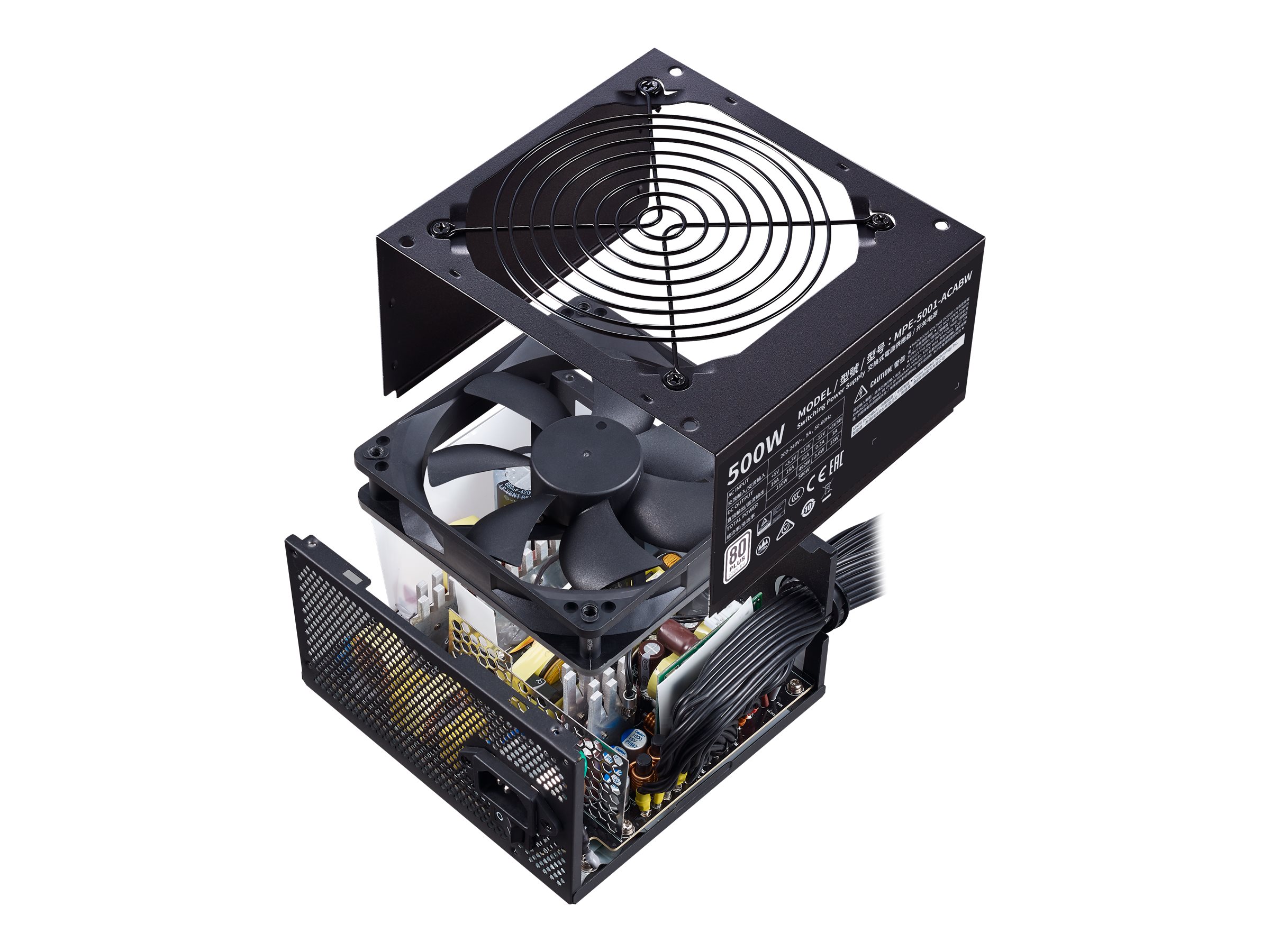

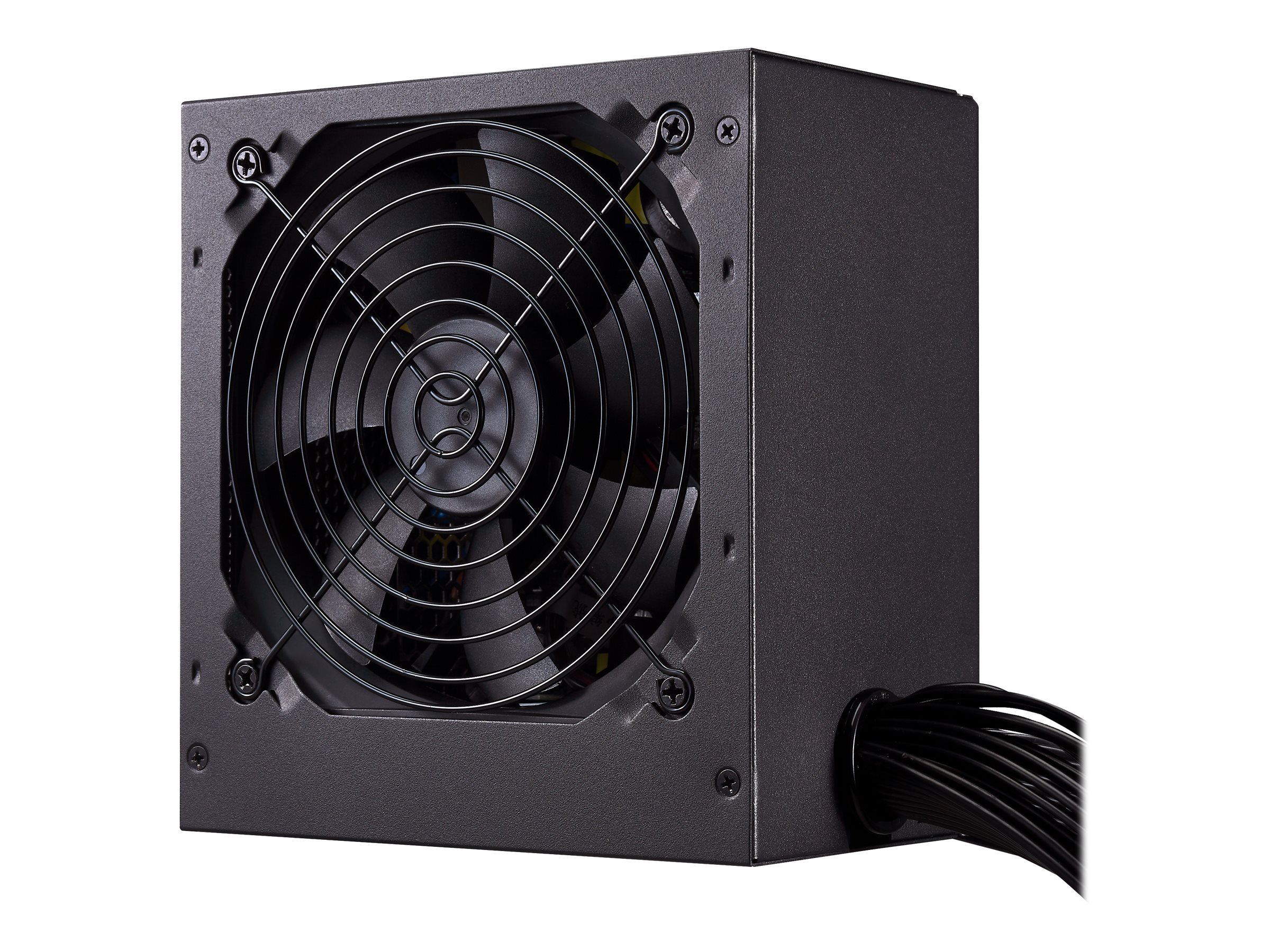

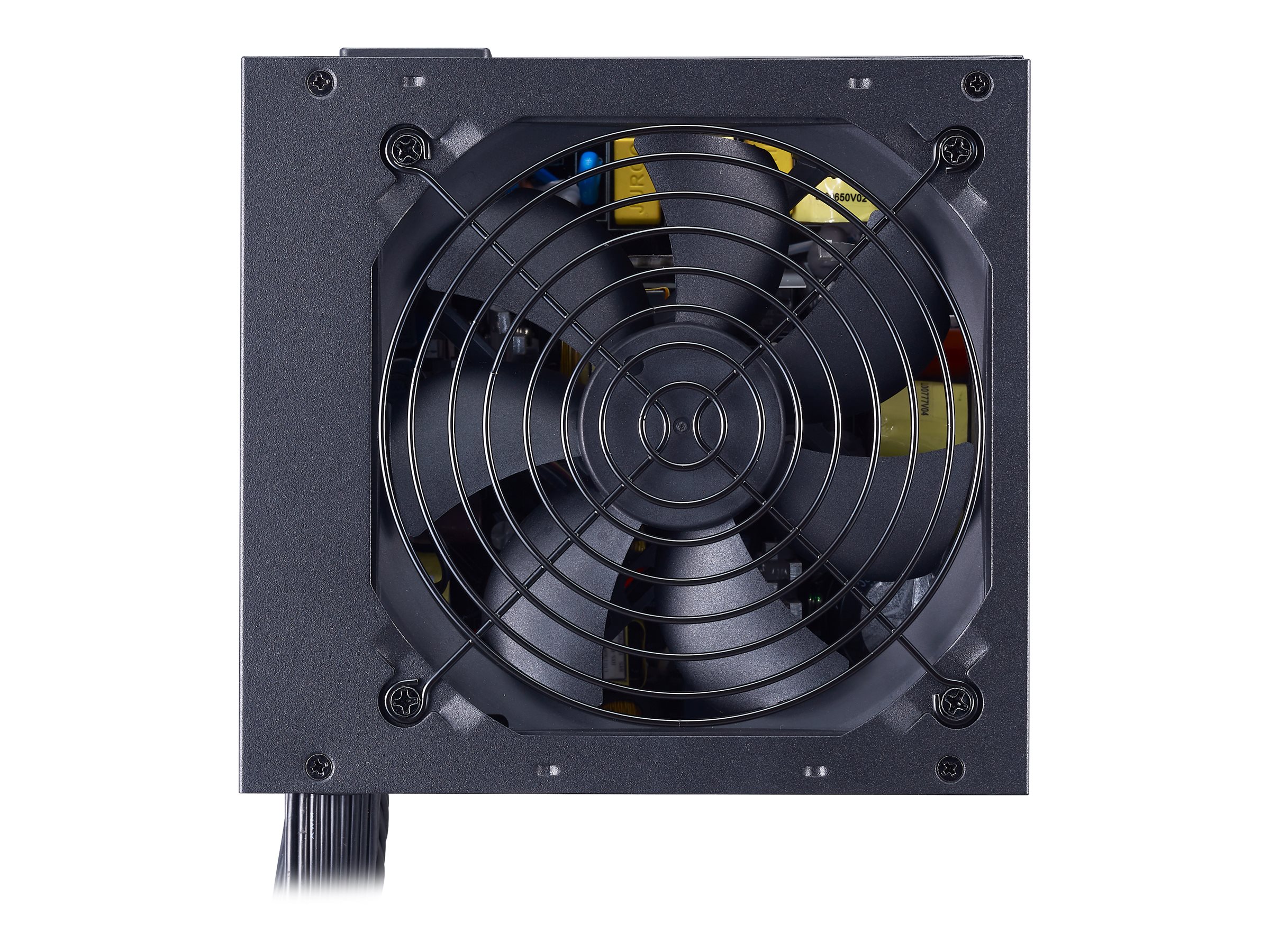

120 mm ventilator
|
|
Dimensioner (B x D x H)
|
15 cm x 14 cm x 8.6 cm
|
|
Producentgaranti
|
3 års garanti
|
Denmark's wildest electronics webshop is now available in Sweden
Cooler Master MWE White V2 500 Strømforsyning 500Watt
Cooler Master MWE White V2 500 - Strømforsyning (intern) - ATX12V 2.52/ EPS12V - 80 PLUS - AC 230 V - 500 watt - aktiv PFC - Europa
SEK 576,00
SEK 460,80 excl. VAT
SEK 576,00
SEK 460,80 excl. VAT
Shipping from SEK 39,00 (PostNord Spårbart varubrev)
Product no:
995291354
Model:
MPE-5001-ACABW-EU
EAN:
4719512082751
Brand:
Weight:
1.7 kg
Specifications
Full specifications
|
General
|
|
|---|---|
|
Device Type
|
Power supply - active Power Factor Correction (PFC) - internal
|
|
Localization
|
Europe
|
|
PSU Form Factor
|
ATX
|
|
Specification Compliance
|
ATX12V 2.52/ EPS12V
|
|
Power Device
|
|
|
80 PLUS Certification
|
80 PLUS
|
|
Efficiency
|
85%
|
|
Frequency Required
|
50 - 60 Hz
|
|
Input Voltage
|
AC 230 V
|
|
Output Current
|
+3.3V - 16 A | +5V - 16 A | +12V - 41 A | -12V - 0.3 A | +5VSB - 3 A
|
|
Output Voltage
|
+3.3, +5, ±12 V
|
|
Power Capacity
|
500 Watt
|
|
Power Output Connectors Details
|
1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section | 6 x 15 pin Serial ATA power | 3 x 4 pin internal power | 2 x 8 pin PCI Express power with detachable 2 pin section
|
|
Miscellaneous
|
|
|
Compliant Standards
|
BSMI, CB, CCC, FCC, TUV Rh, cTUVus, KC, EAC, RCM, ErP Lot 3 2014 Ready
|
|
Cooling System
|
120 mm fan
|
|
Features
|
Overheat protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, hydrodynamic bearing cooling fan, DC-DC technology, non-modular
|
|
MTBF
|
100,000 hours
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 3 years
|
|
Environmental Parameters
|
|
|
Max Operating Temperature
|
40 °C
|
|
Dimensions & Weight
|
|
|
Depth
|
14 cm
|
|
Height
|
8.6 cm
|
|
Weight
|
1.375 kg
|
|
Width
|
15 cm
|
|
Dimensions & Weight (Shipping)
|
|
|
Shipping Depth
|
19 cm
|
|
Shipping Height
|
11 cm
|
|
Shipping Weight
|
1.773 kg
|
|
Shipping Width
|
24.5 cm
|
