Product no 993364523
Model PR1500ERTXL2U
Brand CyberPower Systems
EAN 4712856277593
Weight 28 kg

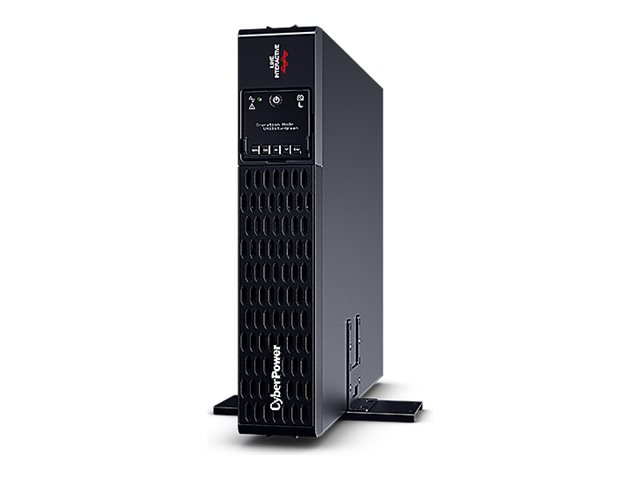

Produktbeskrivelse | CyberPower Professional Rack Mount PR1500ERTXL2U - UPS - 1500 Watt - 1500 VA |
Enhedstype | UPS - stativ-monterbar / ekstern |
Rackstørrelse | 2U |
Vægt | 28 kg |
Indgangskabler | 1-faset |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 220/230/240 V ± 5% |
Strømkapacitet | 1500 Watt / 1500 VA |
Input-stik | 1 x strøm IEC 60320 C14 |
Output-stikforbindelser | 10 x power IEC 60320 C13 |
Batteri | Blysyre |
Driftstid (op til) | 6.5 min ved fuld belastning |
Netværk | RS-232, USB |
Udstyr inkluderet | Stativmonteringsskinner, monteringshuller for rack |
Farve | Sort |
Dimensioner (B x D x H) | 43.3 cm x 50 cm x 8.8 cm |
Producentgaranti | 3 års garanti |
General | |
---|---|
Color | Black |
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Power Device | |
Circuit Protection | Circuit breaker |
Dataline Surge Protection | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
Frequency Provided | 50/60 Hz ± 1% |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 159 - 288 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Input Wiring | 1-phase |
Output Voltage | AC 220/230/240 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 1500 Watt / 1500 VA |
Power Output Connectors Details | 10 x power IEC 60320 C13 |
Surge Energy Rating | 2430 Joules |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Features | Sealed |
Recharge Time | 3 hours |
Run Time (Up To) | 6.5 min at full load | 19.3 min at half load |
Technology | Lead acid |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Interfaces | 1 x USB - 4 pin USB Type B | 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x EPO (emergency power off) |
Miscellaneous | |
Cables Included | Power cable 3.05 m | USB cable | Serial cable | Phone cable | EPO cable |
Compliant Standards | FCC Class B certified, UL, VCCI, RoHS, RCM |
Features | Metal housing, audible alarm, emergency power off, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, overload protection, hot-swappable batteries, generator compatible, rotatable LCD panel |
Included Accessories | Rack mounting rails, rack mounting ears |
Rack Mounting Kit | Included |
Software / System Requirements | |
Software Included | PowerPanel Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - batteries - 3 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 50 cm |
Height | 8.8 cm |
Weight | 28 kg |
Width | 43.3 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 62 cm |
Shipping Height | 27.5 cm |
Shipping Weight | 38.8 kg |
Shipping Width | 56 cm |
