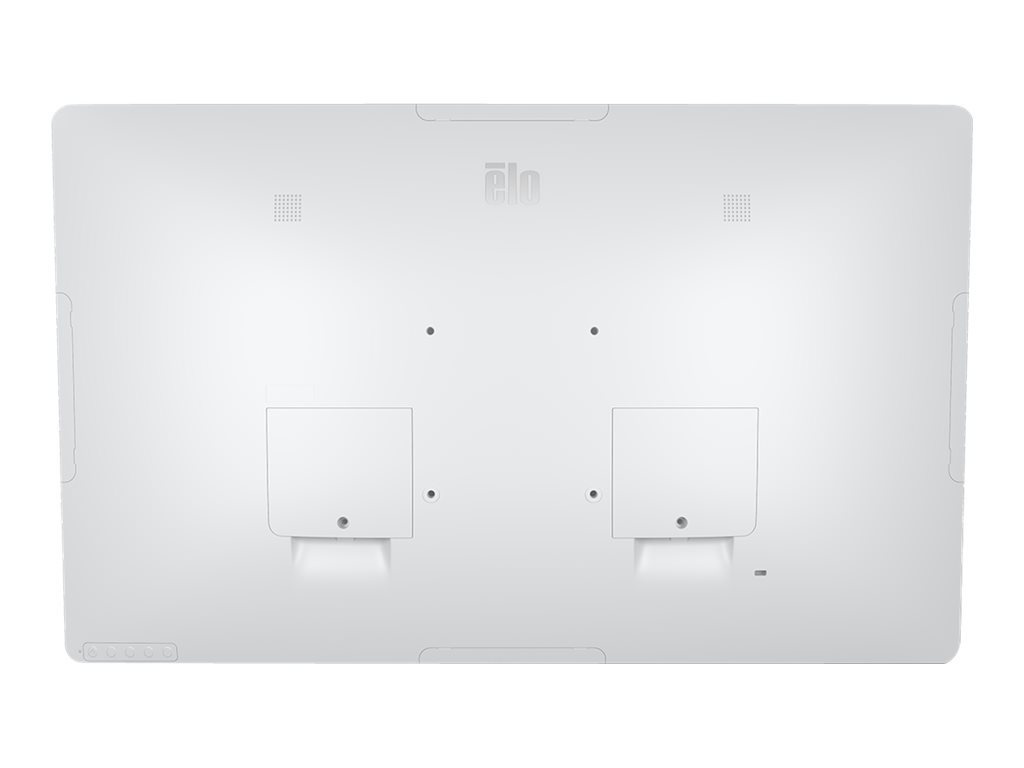

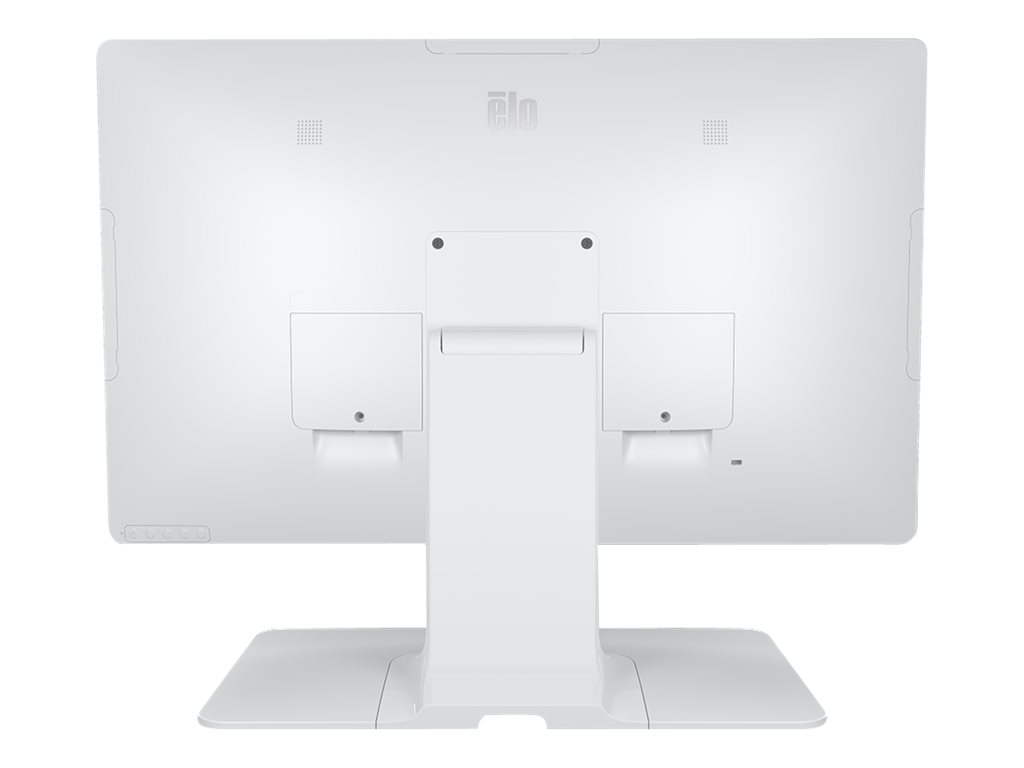

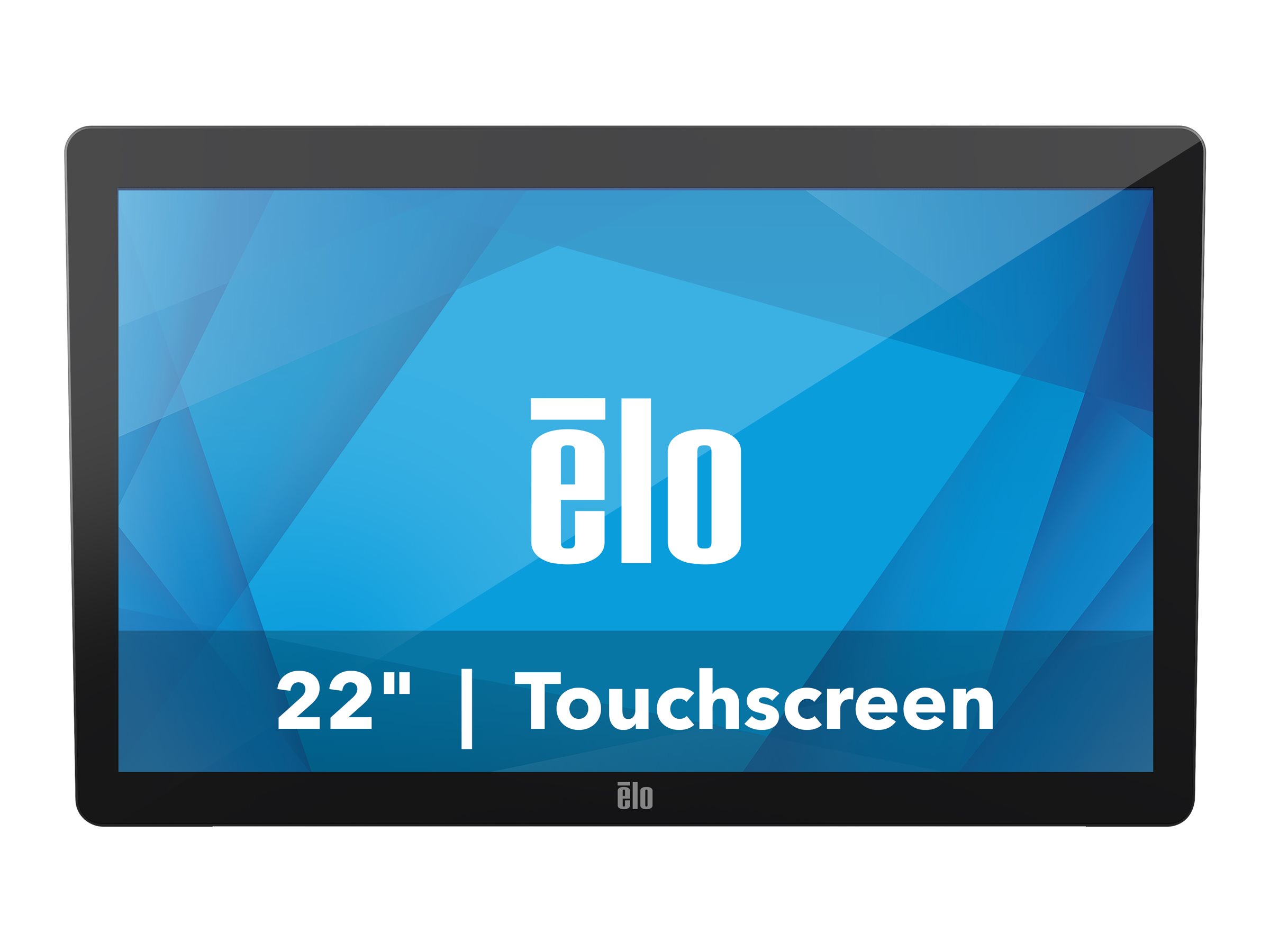

Elo 2203LM 22" 1920 x 1080 (Full HD) VGA (HD-15) HDMI 60Hz
Elo 2203LM - Medical Grade - LED-skærm - 22" (21.5" til at se) - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 250 cd/m² - 1000:1 - 14 ms - HDMI, VGA - højtalere - hvid
10 668,00 SEK
8 534,40 SEK excl. VAT
-
Product no 1000843832
Model E380851
Brand Elo TouchSystems
EAN 0843173150703
Weight 7.45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Elo 2203LM - Medical Grade - LED-skærm - Full HD (1080p) - 22" |
| Enhedstype | LED-baggrundsbelyst LCD-skærm - 22" - touchscreen |
| Egenskaber | Touch-screen, USB-hub |
| Formatforhold | 16:9 |
| Standard opløsning | Full HD (1080p) 1920 x 1080 ved 60 Hz |
| Lysstyrke | 250 cd/m² |
| Kontrastforhold | 1000:1 |
| Responstid | 14 ms (tr - tf) |
| Farve support | 16,7 millioner farver |
| Input-stik | HDMI, VGA |
| Skærmbelægning | Blændfri |
| Spænding | AC 100/240 V (50/60 Hz) |
| Farve | Hvid |
| Dimensioner (B x D x H) - uden stander | 32.69 cm x 52.69 cm x 4.32 cm |
| Vægt | 4.8 kg |
| Overensstemmelsesstandarder | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 250 cd/m² |
| Brightness w/touchscreen | 225 cd/m² |
| Built-in Devices | USB hub |
| Color | White |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 22" |
| Dimensions (WxDxH) | 32.69 cm x 52.69 cm x 4.32 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Features | DICOM calibrated, TouchPro technology |
| Horizontal Refresh Rate | 30 - 82 kHz |
| Horizontal Viewing Angle | +89 / -89 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean |
| Response Time | 14 ms (tr - tf) |
| Screen Coating | Anti-glare |
| Vertical Refresh Rate | 50 - 75 Hz |
| Vertical Viewing Angle | +89 / -89 |
| Viewable Size | 21.5" |
| Weight | 4.8 kg |
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Connectivity | |
| Interfaces | HDMI | VGA | Audio line-out (mini-jack) | USB (Type B) | USB 2.0 (Type A) | 4 x Micro-USB |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | 1 x VGA cable | 1 x HDMI cable | 1 x USB cable | 1 x audio cable |
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, DICOM Part 14, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, CoC, CAN/CSA C22.2 No. 60601-1:14, IEC 60601-1:2005 + A1:2012 |
| Features | IP54 protection, IK06 impact rating |
| Included Accessories | 2 screws, 3 tie wraps |
| MTBF | 50,000 hours |
| Power | |
| Input Voltage | AC 100/240 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.36 Watt |
| Power Consumption (Typical) | 16.78 Watt |
| Power Consumption Sleep | 0.78 Watt |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 63.3 cm |
| Shipping Height | 19.8 cm |
| Shipping Weight | 7.45 kg |
| Shipping Width | 45.8 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
