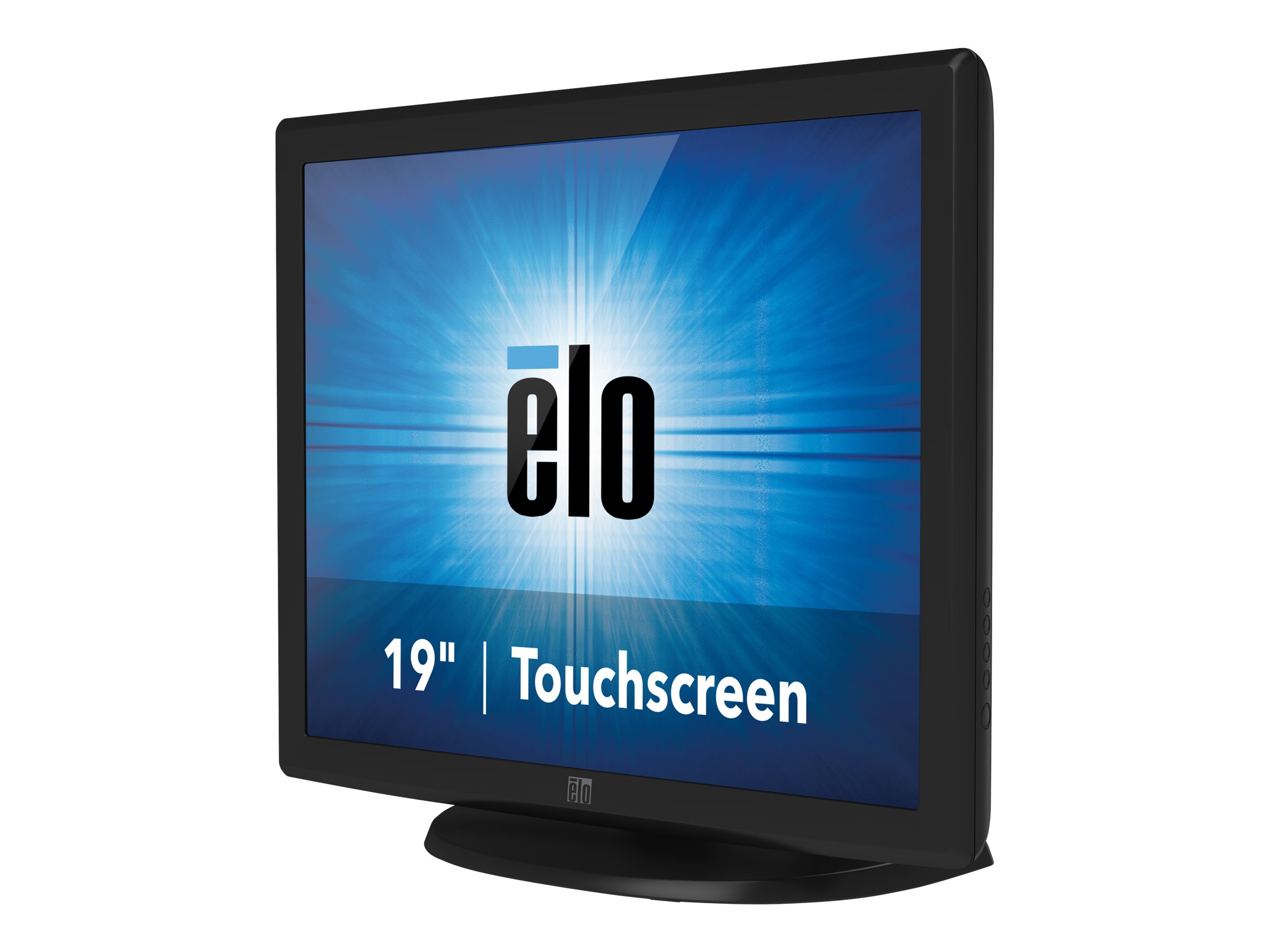

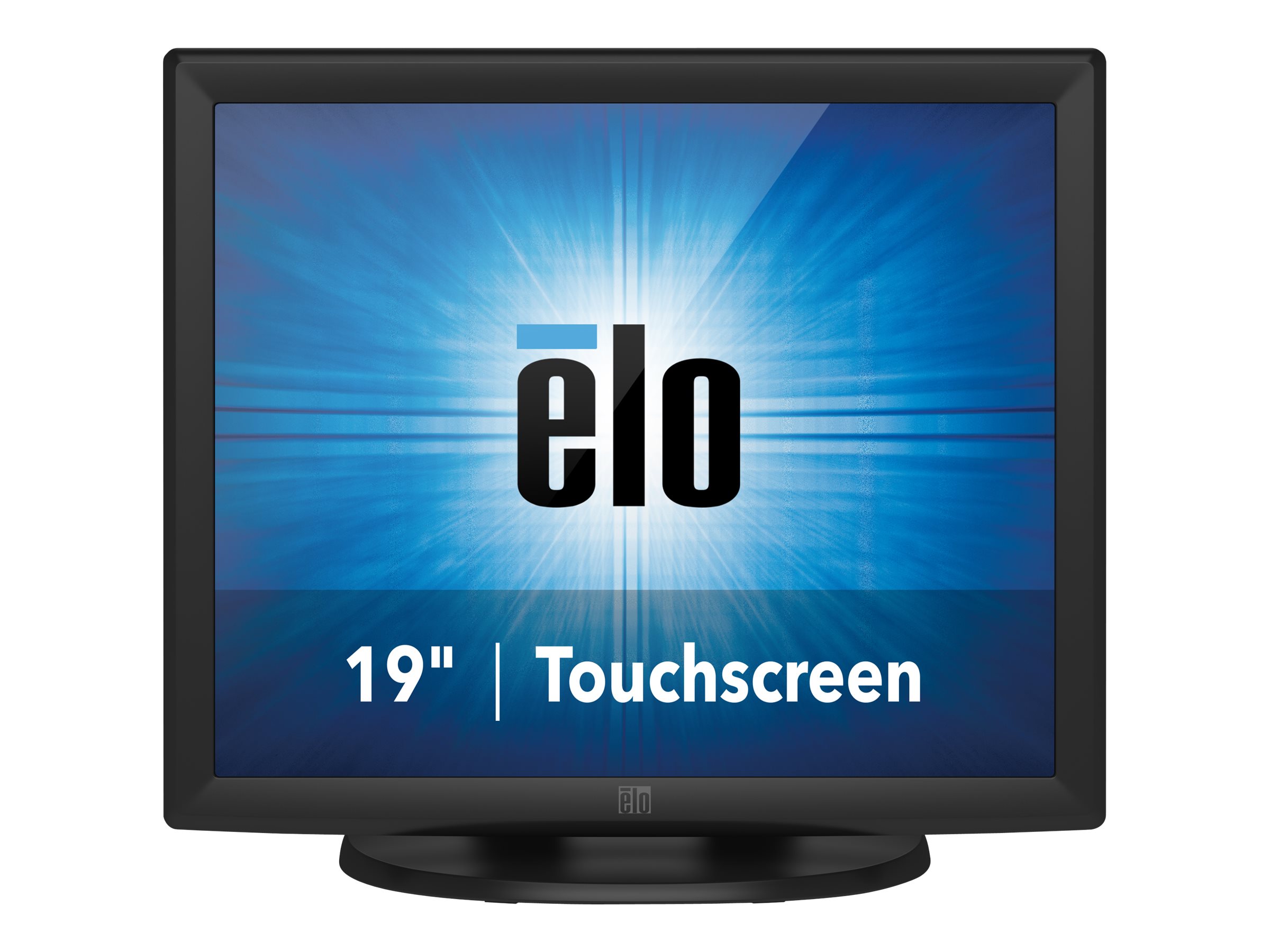

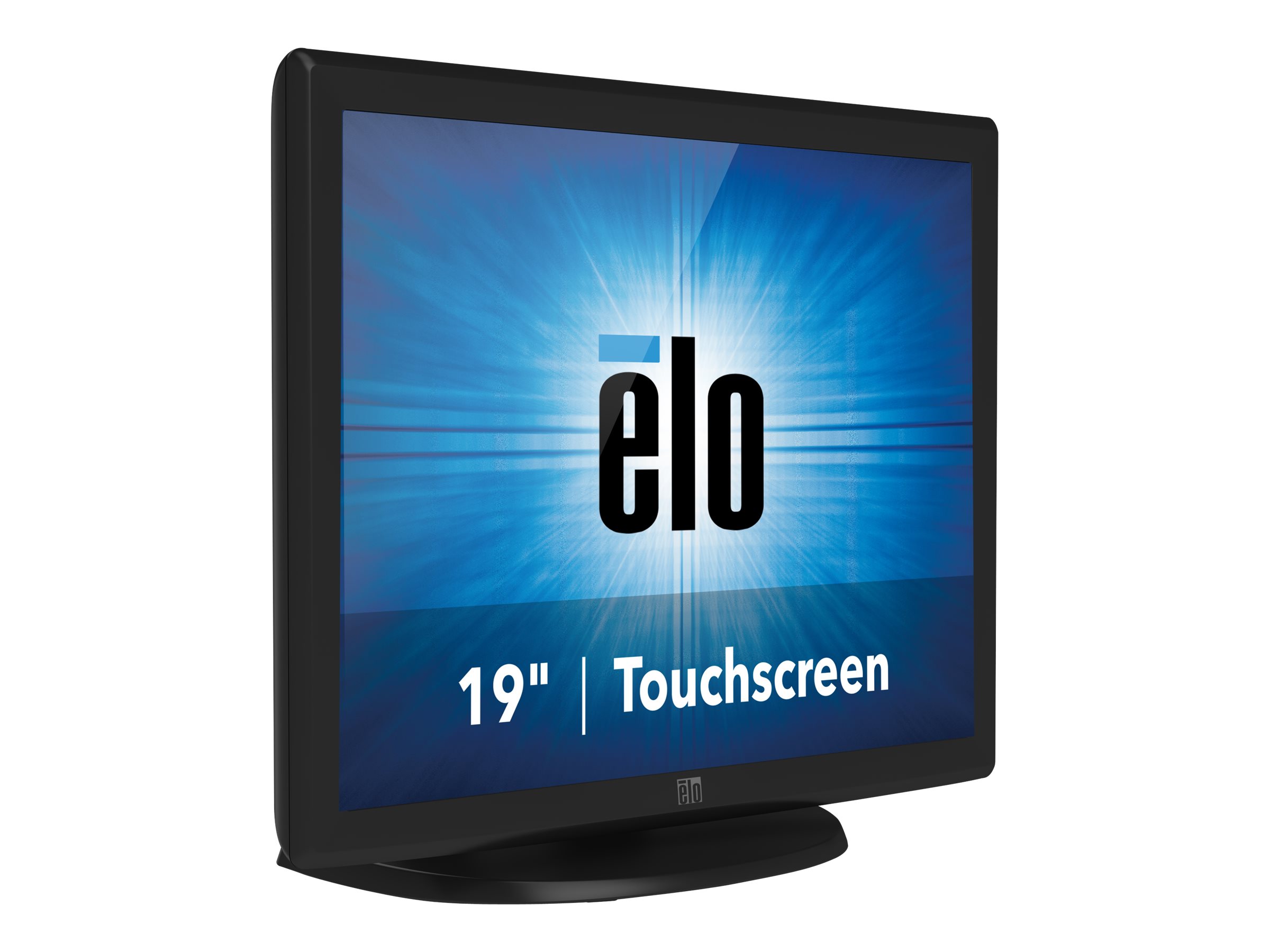

Elo Desktop Touchmonitors 1915L AccuTouch 19" 1280 x 1024 VGA (HD-15) 75Hz
1915L touchmonitor er designet, udviklet og bygget til at levere de mest omkostningseffektive touchløsninger til systemintegratorer og VAR'er. Den samler Elos kvalitet og pålidelighed i en integreret touchmonitor til en overkommelig pris. Denne kompakte touchmonitor er "designet til touch" fra bunden, med Elos ekspertise og pålidelighed indbygget - ikke tilføjet ved at ændre en eksisterende monitor. Skærmen er fabriksforseglet mod støv, snavs og væskesprøjt. 1915L kan bruges i en lang række miljøer, fordi den registrerer input fra en finger, en hånd med handsker eller en blød stylus med en hurtig og præcis respons.
-
Product no 988025113
Model E607608
Brand Elo TouchSystems
EAN 0741149301558
Weight 7.9 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Elo Desktop Touchmonitors 1915L AccuTouch - LCD-skærm - 19" |
| Enhedstype | LCD-skærm - 19" - berøringsskærm |
| Egenskaber | Touch-screen |
| Standard opløsning | 1280 x 1024 ved 75 Hz |
| Lysstyrke | 187 cd/m² |
| Kontrastforhold | 1000:1 |
| Responstid | 5 ms |
| Farve support | 16,7 millioner farver |
| Input-stik | VGA |
| Spænding | AC 120/230 V (50/60 Hz) |
| Farve | Mørkegrå |
| Dimensioner (B x D x H) | 42.9 cm x 20.7 cm x 38.6 cm |
| Vægt | 7.9 kg |
| Lokalisering | Global |
| Overensstemmelsesstandarder | FCC Klasse B-certificeret, IC Klasse B, UL, TUV GS, VCCI Class B ITE, cUL, C-Tick Class B, RoHS |
| General | |
|---|---|
| Brightness | 187 cd/m² |
| Color | Dark gray |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 |
| Controls & Adjustments | Brightness, contrast, H/V position, color temperature, phase, clock |
| Diagonal Size | 19" |
| Dimensions (WxDxH) | 42.9 cm x 20.7 cm x 38.6 cm |
| Display Type | LCD monitor / TFT active matrix |
| Features | AccuTouch Five-Wire Resistive, Sync on Green |
| Horizontal Refresh Rate | 80 kHz |
| Horizontal Viewing Angle | +80 / -80 |
| Native Resolution | 1280 x 1024 at 75 Hz |
| OSD Languages | English, German, French, Spanish, Japanese |
| Response Time | 5 ms |
| Vertical Refresh Rate | 75 Hz |
| Vertical Viewing Angle | +80 / -80 |
| Weight | 7.9 kg |
| Input | |
| Movement Detection Technology | Resistive |
| Type | Touchscreen - touchscreen |
| Connectivity | |
| Interfaces | 1 x VGA - 15 pin HD D-Sub (HD-15) | 1 x serial RS-232 - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type A |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Backlight Life | 40,000 hours |
| Cables Included | 1 x VGA cable | 1 x serial cable | 1 x USB cable |
| Compliant Standards | FCC Class B certified, IC Class B, UL, TUV GS, VCCI Class B ITE, cUL, C-Tick Class B, RoHS |
| Features | Wall mountable |
| Localization | Worldwide |
| MTBF | 50,000 hour(s) |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Typical) | 23 Watt |
| Power Supply | Internal |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
