Product no 993256279
Model T/DAVRTO-000K85/00
Brand Ever
EAN 5907683605131
Weight 6.9 kg
Produktbeskrivelse | EVER DUO 850 AVR USB - UPS - 550 Watt - 850 VA - Blysyre - 5 Ah |
Enhedstype | UPS - ekstern |
Vægt | 6.9 kg |
Indgangskabler | 1-faset |
Indgangspænding | AC 230 V |
Udgangspænding | AC 230 V |
Strømkapacitet | 550 Watt / 850 VA |
Input-stik | 1 |

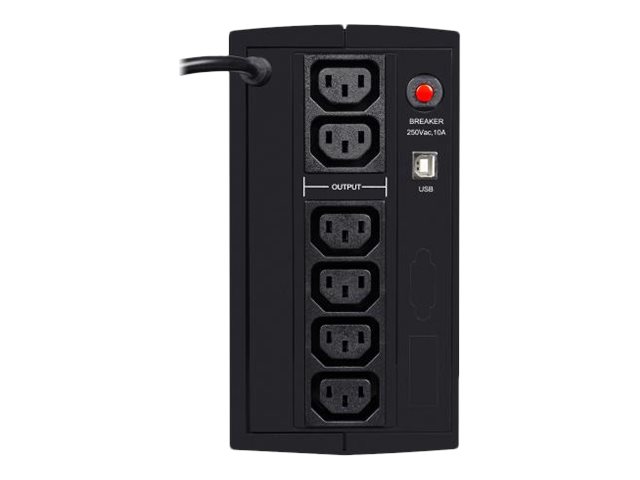

Output-stikforbindelser | 6 x strøm IEC 60320 C13 10 A |
Batteri | Blysyre - 5 Ah |
Antal batterier | 2 |
Driftstid (op til) | 1.5 min ved fuld belastning |
Netværk | USB |
Dimensioner (B x D x H) | 10 cm x 32.5 cm x 18.9 cm |
Producentgaranti | 2 års garanti |
General | |
---|---|
Device Type | UPS - external |
Power Device | |
Circuit Protection | Circuit breaker |
Frequency Provided | 50/60 Hz |
Frequency Required | 50/60 Hz |
Input Connectors | 1 |
Input Voltage | AC 230 V |
Input Voltage Range | AC 162 - 290 V |
Input Wiring | 1-phase |
Max Electric Current | 10 A |
Output Voltage | AC 230 V 50/60 Hz |
Output Waveform | Stepped approximation to a sinewave |
Power Capacity | 550 Watt / 850 VA |
Power Output Connectors Details | 6 x power IEC 60320 C13 10A |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Capacity | 5 Ah |
Features | Maintenance free |
Quantity | 2 |
Recharge Time | 8 hours |
Run Time (Up To) | 1.5 min at full load | 3 min at 80% load | 8 min at half load | 1 min at 110% load |
Technology | Lead acid |
Transfer Time | 6 ms |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | USB |
Expansion / Connectivity | |
Interfaces | 1 x management (USB) - 4 pin USB Type B |
Miscellaneous | |
Cables Included | Power cable - integrated |
Compliant Standards | EN 62040-2, EN 62040-1 |
Features | Audible alarm, Automatic Voltage Regulation (AVR), overload protection, cold-start function, short-circuit protection, visible alarm, VRLA battery support |
Software / System Requirements | |
Software Included | PowerSoft Professional |
Manufacturer Warranty | |
Service & Support | Limited warranty - parts and labor - 2 years | Limited warranty - batteries - 1 year |
Environmental Parameters | |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Dimensions & Weight | |
Depth | 32.5 cm |
Height | 18.9 cm |
Weight | 6.9 kg |
Width | 10 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 36.2 cm |
Shipping Height | 25.6 cm |
Shipping Weight | 7.6 kg |
Shipping Width | 14.1 cm |
