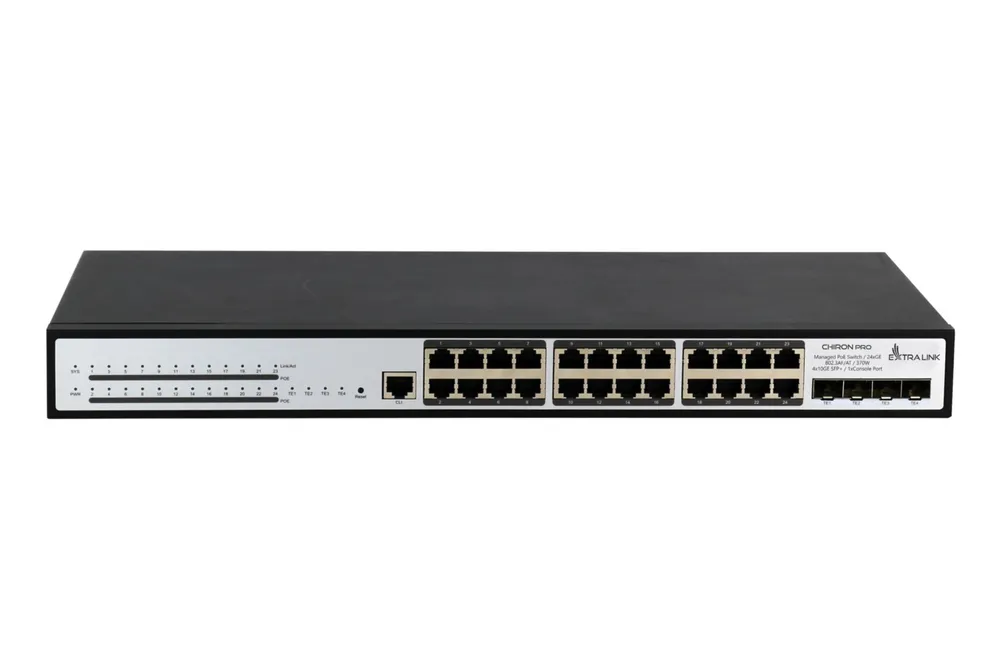

Extralink Chiron Pro | PoE Switch | 24x RJ45 1000Mb/s PoE, 4x SFP+, L3, managed, 370W
Extralink Chiron Pro | PoE Switch | 24x RJ45 1000Mb/s PoE, 4x SFP+, L3, managed, 370W
-
Product no 1000577890
Model EX.19737
Brand Extralink
EAN 5903148919737
Weight 3.81 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Interfaces | 24x RJ45 1000Mb/s PoE, 4x SFP, 1x RJ45 Console |
| Backplane | 128 Gbps |
| Forwarding rate | 96 Mpps |
| Dimensions | 440x210x44 mm |
| Weight | 3 kg |
| Energy consumption | At rest <25W, Under load <408W |
| Total PoE power | 370W |
| Number of fans | 2 |
| Flash Memory | 16 MB |
| DRAM | 256 MB |
| Security | Port isolation, port security and "IP MAC port" binding, MAC sticky DAI |
| Environment | Operating temperature/humidity: 0°C - 50°C ,10% - 90% non-condensing, Storage temperature / humidity: -20°C - 70°C , 5% - 95% non-condensing |
| Administrationsfunktioner | |
|---|---|
| Servicekvalitet support (QoS) | Ja |
| Switch lag | L3 |
| Switch-type | Administreret |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 4 |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Strømstik | AC-in jack |
| Netværk | |
| 10G understøttelse | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| IP-routing | Ja |
| Netværksstandarder | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Vituelle LAN funktioner | Voice VLAN |
| VLAN understøttelse | Ja |
| Dataoverførsel | |
| Jumbo rammer | 9000 |
| MAC adresselabel | 16000 entries |
| Pakke bufferlager | 1,5 MB |
| Switch kapacitet | 128 Gbit/sek. |
| Sikkerhed | |
| DHCP funktioner | DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Design | |
| Formfaktor | 1U |
| Husmateriale | Metal |
| Produktfarve | Hvid |
| Stabelbar | Ingen |
| Stativ-montering | Ja |
| Præstation | |
| Flashhukommelse | 16 MB |
| Støjniveau | 37,5 dB |
| Strømstyring | |
| Strømforsyning inkluderet | Ja |
| Strømkilde | Vekselstrøm |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Total Power over Ethernet (PoE) | 370 W |
| Vægt & størrelser | |
| Bredde | 440 mm |
| Dybde | 210 mm |
| Højde | 44 mm |
| Vægt | 3 kg |
| Emballage indhold | |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Rack skinner | Ja |
