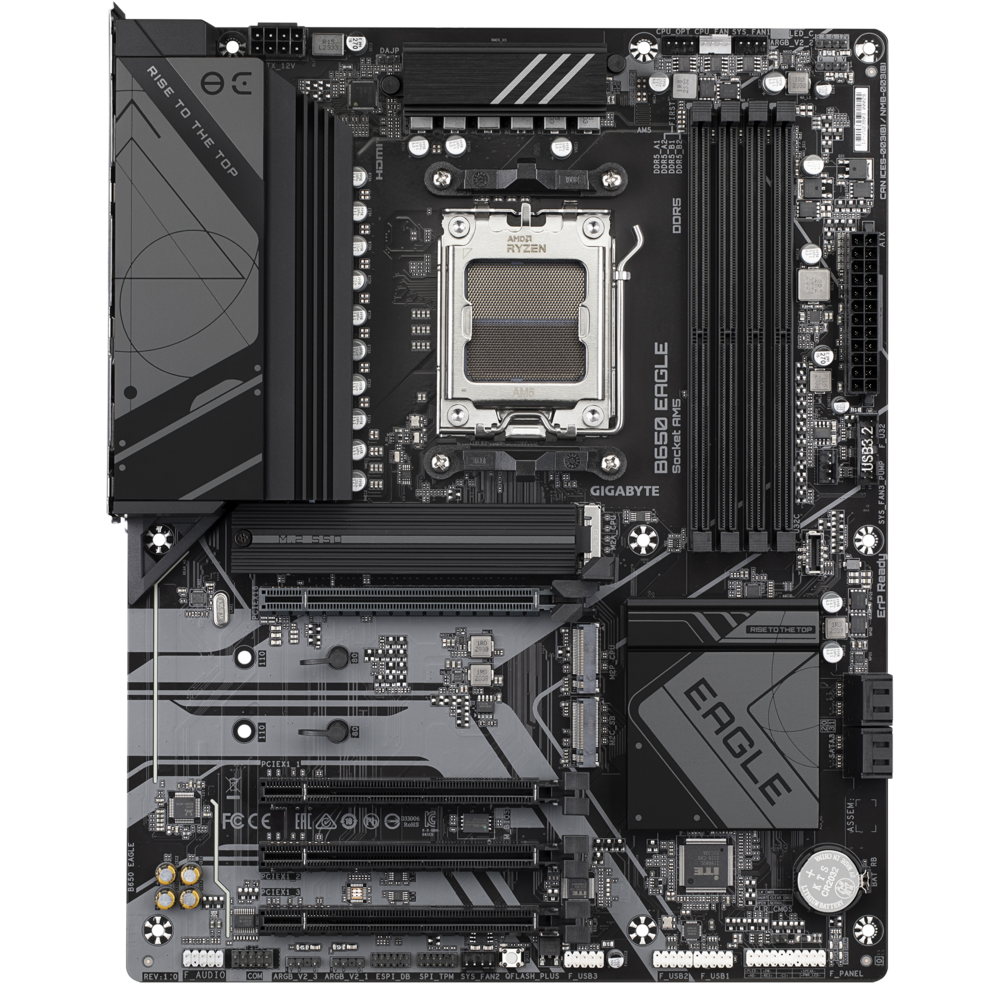

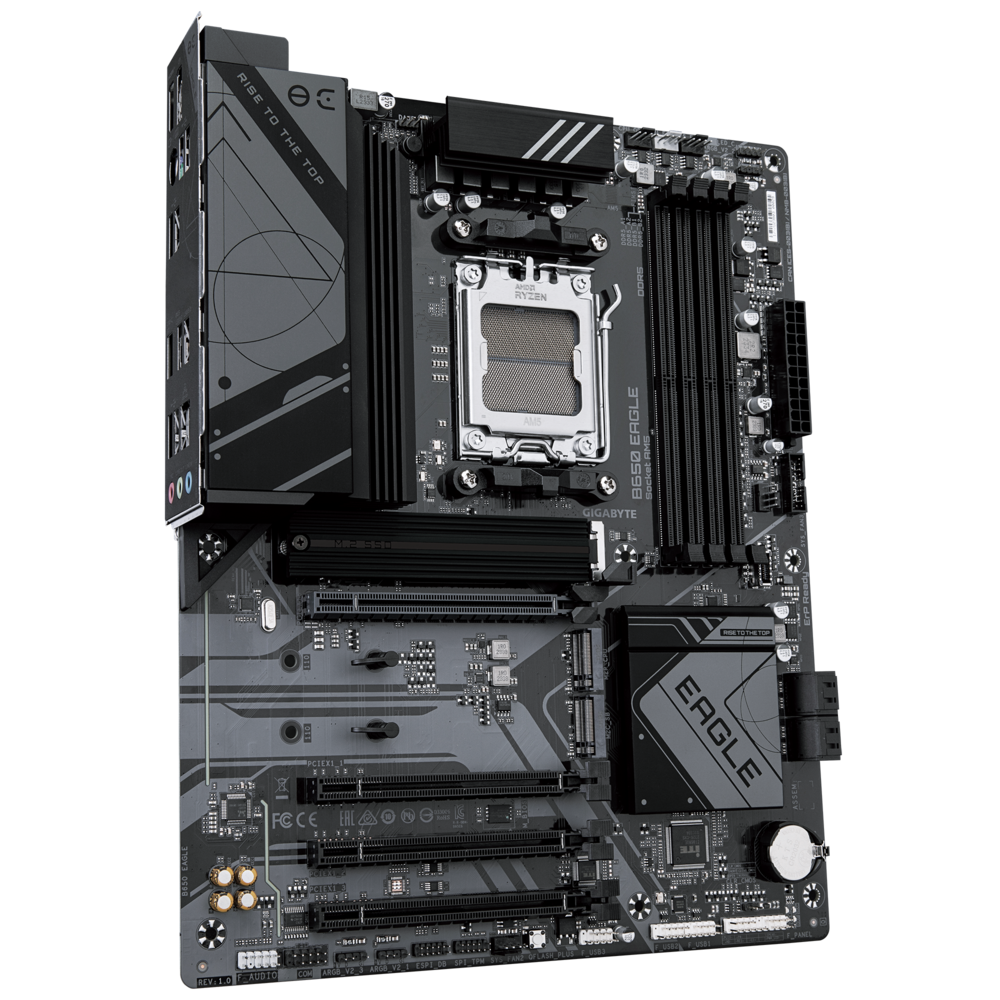

Gigabyte B650 EAGLE ATX Socket AM5 AMD B650
Gigabyte B650 EAGLE - Bundkort - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
-
Product no 1002277952
Model B650 EAGLE
Brand
Go to brand's websiteEAN 4719331863081
Weight 1.71 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Gigabyte B650 EAGLE - bundkort - ATX - Socket AM5 - AMD B650 |
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD B650 |
| Processor-socket | 1 x Socket AM5 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000/8000 Series) |
| Max RAM-størrelse | 192 GB |
| RAM understøttet | 4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet |
| Lagringsporte | 4 x SATA-600 (RAID), 3 x M.2 |
| USB / FireWire porte | 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 2 + 6 x USB 2.0 via samlekasser) |
| Audio | HD Audio (8-kanaler) |
| LAN | Gigabit Ethernet |
| Generelt | |
|---|---|
| Produkttype | Bundkort - ATX |
| Chipsættype | AMD B650 |
| Processor-socket | Socket AM5 |
| Max antal processorer | 1 |
| Kompatible processorer | Ryzen (understøtter Ryzen 7000/8000 Series) |
| Understøttet RAM | |
| Maks. størrelse | 192 GB |
| Teknologi | DDR5 |
| Bus Clock | 5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.) |
| Understøttet RAM-integritetskon | Ikke-ECC |
| Registreret eller buffer | Ikke bufferet |
| Egenskaber | Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), AMD EXPO-teknologi |
| Audio | |
| Type | HD Audio (8-kanaler) |
| Overensstemmelsesstandarder | High Definition Audio |
| LAN | |
| Netværks interfaces | Gigabit Ethernet |
| Ekspansion / Konnektivitet | |
| Ekspansionsåbninger | 1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 3 x PCIe 3.0 x16 (x1 modus) 3 x M.2 socket (2280/25.110 M.2 Key M-åbning) |
| Grænseflade (lagring) | SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interface | 1 x HDMI 1 x DisplayPort 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 2 6 x USB 2.0 1 x PS/2-tastatur/mus 1 x LAN (Gigabit Ethernet) 2 x antenne |
| Interne interfaces | 6 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 1 - intern stik 1 x audio - intern stik 1 x SPI - intern stik 1 x seriel - intern stik |
| Strømkontakter | 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt |
| Egenskaber | |
| BIOS-type (Basic Input/Output System) | AMI |
| BIOS-egenskaber | WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardwareovervågning | Systemspænding, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol, blæserhastighedsdetektion, temperaturdetektion |
| Hardware egenskaber | Q-Flash, Ultra Durable, 6 Layer PCB, Q-Flash Plus, Audio Noise Guard, RGB FUSION, M.2 Thermal Guard, præmonteret I/O-skjold, GIGABYTE Smart Fan 6, PCIe EZ Latch, High-end Audio Capacitors, 12+2+2 Phase Power Design, MOSFET Heatsink |
| Diverse | |
| Udstyr inkluderet | 2 antenner, 1 x M.2 skrue |
| Medfølgende ledninger | 2 x Seriel ATA kabel |
| Med software | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Overensstemmelsesstandarder | DisplayPort 1.4, HDCP 2.3 |
| Bredde | 30.5 cm |
| Dybde | 24.4 cm |
