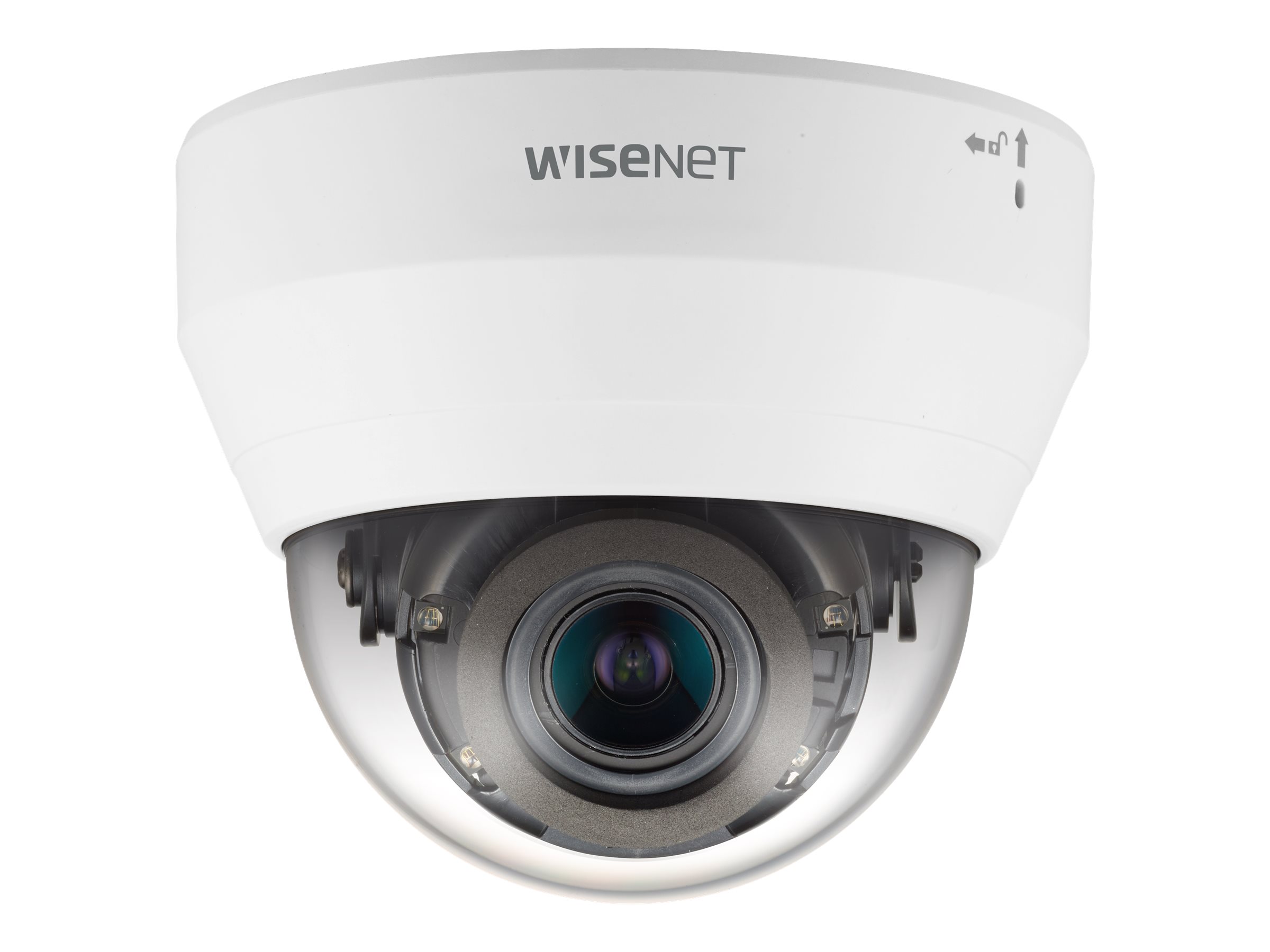

Hanwha Techwin WiseNet Q QND-7082R Netværksovervågningskamera 2560 x 1440
Hanwha Vision WiseNet Q QND-7082R - Netværksovervågningskamera - kuppel - farve (Dag/nat) - 4 MP - 2560 x 1440 - motoriseret - audio - komposit - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE klasse 3
6 328,00 SEK
5 062,40 SEK excl. VAT
-
Product no 1000212816
Model QND-7082R
Brand Hanwha Techwin
EAN 8801089202284
Weight 0.32 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hanwha Vision WiseNet Q QND-7082R - netværksovervågningskamera - kuppel |
| Enhedstype | Netværksovervågningskamera - fast - kuppel |
| Audio | Ja: indbygget mikrofon |
| Dimensioner (B x D x H) | 11.98 cm x 11.98 cm x 9.88 cm |
| Vægt | 320 g |
| Farve | Hvid, RAL 9003 |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Optisk zoom | 3.1 x |
| Maksimum opløsning | 2560 x 1440 |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | CMOS - 1/3" - 4 MP |
| Minimumbelysning | 0.1 lux - farve - F1.6 - lukker 1/30 sek<br>0 lux - S/H - infrarøde LEDer på |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 3.2 mm - 10 mm |
| Objektiv Iris | F/1.6-2.9 |
| Poanoreringsvinkel (grad) | 0 til 350 |
| Krængningsvinkel (grad) | 0 til 67 |
| Interface | Kompositvideo, Ethernet 10Base-T/100Base-TX |
| Spænding | DC 12 V / PoE klasse 3 |
| Egenskaber | Backlight Compensation (BLC), billedflip, spejlbillede, Wide Dynamic Range (WDR), Bevægelses Detektions Teknologi, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), pille-detektion, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto-hvidbalance, Defocus Detection, ONVIF (Profil S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), indgangs-/udgangsdetektion, digest-autentificering, WiseStream II support, IP-adressefiltrering, Hallway View, Unicast Streaming, ONVIF (Profile T) support, Virtual Line-detektion, Directional Detection, styrkekontrol |
| Miljømæssige parametre (operativ) | -10 °C - 55 °C; 0 - 95% RH relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | G.726, ADPCM, G.711, U-LAW |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 11.98 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.88 cm |
| Weight | 320 g |
| Width | 11.98 cm |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (A |
| Flash Memory | 256 MB |
| Infrared Distance | 20 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination | 0.1 lux - color - F1.6 - shutter 1/30 sec | 0 lux - B&W - infrared LEDs on |
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed |
| Video Capture | 2560 x 1440 @ 30 fps |
| Image Sensor | |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | |
| Diagonal Field of View (degree) | 35.3 - 115.7 |
| Focal Length | 3.2 mm - 10 mm |
| Horizontal Field of View (degree) | 30.8 - 98.6 |
| Lens Iris | F/1.6-2.9 |
| Optical Zoom | 3.1 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 17.3 - 52.3 |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 67 |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM, LLDP |
| Video | Composite video |
| Expansion / Connectivity | |
| Ports | Composite video | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 8.6 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 95% RH |
