Product no 1000212834
Model QNO-8010R
Brand Hanwha Techwin
EAN 8801089163288
Weight 0.68 kg

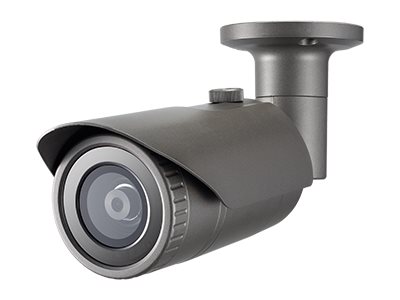

Produktbeskrivelse | Hanwha Techwin WiseNet Q QNO-8010R - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast - udendørs - støvproof / vandproof |
Dimensioner (B x D x H) | 7 cm x 7 cm x 24.6 cm |
Vægt | 680 g |
Farve | Mørkegrå |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Maksimum opløsning | 2592 x 1944 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Billedsensortype | CMOS - 1/2.8" - 5 MP |
Minimumbelysning | 0.15 lux - farve - F2.0 - lukker 1/30 sek<br>0 lux - S/H - infrarøde LEDer på |
Brændviddekontrol | Fast brændvidde |
Brændvidde | 2.8 mm |
Objektiv Iris | F/2.0 |
Poanoreringsvinkel (grad) | 0 til 350 |
Krængningsvinkel (grad) | 0 til 67 |
Interface | Kompositvideo, Ethernet 10Base-T/100Base-TX |
Spænding | PoE Class 3 |
Egenskaber | Backlight Compensation (BLC), billedflip, spejlbillede, Wide Dynamic Range (WDR), Bevægelses Detektions Teknologi, infrarød skære filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), pille-detektion, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto-kontroltilegnelse, auto-hvidbalance, Defocus Detection, ONVIF (Profil S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, anti-flimren, IP-adressefiltrering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line-detektion |
Miljømæssige parametre (operativ) | -30 °C - 55 °C; 0 - 90% relativ luftfugtighed |
General | |
---|---|
Connectivity Technology | Wired |
Depth | 7 cm |
Device Type | Network surveillance camera |
Height | 24.6 cm |
Weight | 680 g |
Width | 7 cm |
Camera | |
Digital Video Format | MJPEG, H.264, H.265 |
Exposure Range | 1/5 sec - 1/12000 sec |
Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Varia |
Flash Memory | 256 MB |
Infrared Distance | 20 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 2592 x 1944 |
Minimum Illumination | 0.15 lux - color - F2.0 - shutter 1/30 sec | 0 lux - B&W - infrared LEDs on |
Motion Detection | Yes |
RAM | 512 MB |
Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof |
Video Capture | 2592 x 1944 @ 30 fps |
Image Sensor | |
Effective Pixels | 2592 x 1944 |
Type | 5 MP CMOS 1/2.8" |
Lens Construction | |
Diagonal Field of View (degree) | 136 |
Focal Length | 2.8 mm |
Horizontal Field of View (degree) | 104.7 |
Lens Iris | F/2.0 |
Type | Fixed focal |
Vertical Field of View (degree) | 76.5 |
Panning | |
Range (degree) | 0 to 350 |
Tilting | |
Range (degree) | 0 to 67 |
Interfaces | |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
Video | Composite video |
Expansion / Connectivity | |
Ports | Composite video | LAN/power - RJ-45 |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | Dark gray |
Compliant Standards | IK10, IP66, IEEE 802.3af, IEEE 802.1x |
Power | |
Power Device | 7.5 Watt |
Power Requirements | PoE Class 3 |
Software / System Requirements | |
OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14 |
Environmental Parameters | |
Max Operating Temperature | 55 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 0 - 90% |
