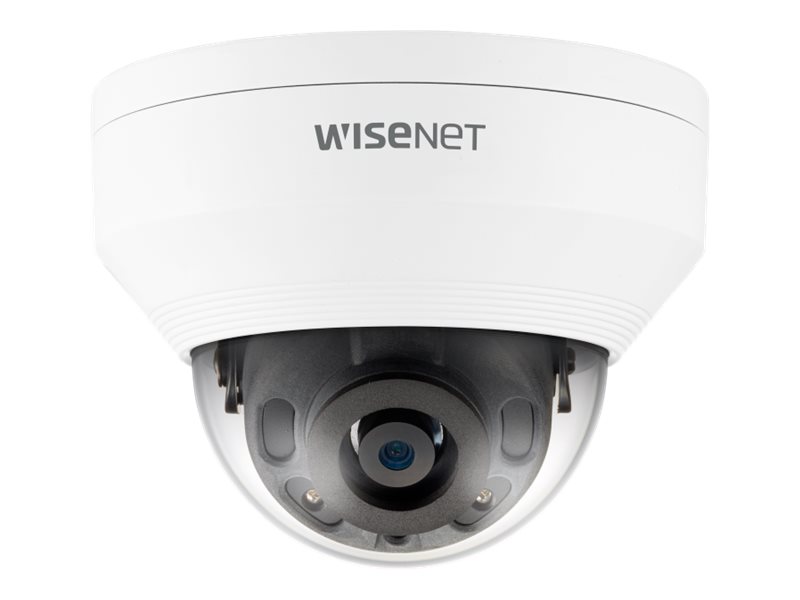

Hanwha Techwin WiseNet Q QNV-6022R Netværksovervågningskamera 1920 x 1080
Hanwha Vision WiseNet Q QNV-6022R - Netværksovervågningskamera - kuppel - beskyttet mod vandalisme - farve (Dag/nat) - 2 MP - 1920 x 1080 - fast brændvidde - audio - komposit - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE klasse 3
4 237,00 SEK
3 389,60 SEK excl. VAT
-
Product no 1000212845
Model QNV-6022R
Brand Hanwha Techwin
EAN 8801089165121
Weight 0.51 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hanwha Vision WiseNet Q QNV-6022R - netværksovervågningskamera - kuppel |
| Enhedstype | Netværksovervågningskamera - fast - kuppel - beskyttet mod vandalisme |
| Audio | Ja |
| Dimensioner (B x D x H) | 12.03 cm x 12.03 cm x 9.17 cm |
| Vægt | 510 g |
| Farve | Hvid, RAL 9003 |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat |
| Maksimum opløsning | 1920 x 1080 |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | CMOS - 1/2.8" - 2 MP |
| Minimumbelysning | 0.1 lux - farve - F1.6 - lukker 1/30 sek<br>0 lux - S/H - infrarøde LEDer på |
| Brændviddekontrol | Fast brændvidde |
| Brændvidde | 4 mm |
| Objektiv Iris | F/1.6 |
| Poanoreringsvinkel (grad) | 0 til 350 |
| Krængningsvinkel (grad) | 0 til 67 |
| Interface | Kompositvideo, Ethernet 10Base-T/100Base-TX |
| Spænding | DC 12 V / PoE klasse 3 |
| Egenskaber | Backlight Compensation (BLC), billedflip, spejlbillede, Wide Dynamic Range (WDR), Bevægelses Detektions Teknologi, infrarød skære filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), pille-detektion, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto-kontroltilegnelse, auto-hvidbalance, Defocus Detection, ONVIF (Profil S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP-adressefiltrering, Hallway View, Handover, ONVIF (Profile T) support, Virtual Line-detektion |
| Miljømæssige parametre (operativ) | -30 °C - 55 °C; 0 - 90% relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | G.726, ADPCM, G.711, G.711u |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 12.03 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.17 cm |
| Weight | 510 g |
| Width | 12.03 cm |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Varia |
| Infrared Distance | 25 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.1 lux - color - F1.6 - shutter 1/30 sec | 0 lux - B&W - infrared LEDs on |
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - vandal-proof |
| Video Capture | 1920 x 1080 @ 30 fps |
| Image Sensor | |
| Effective Pixels | 1920 x 1080 |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | |
| Diagonal Field of View (degree) | 104.5 |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 87.6 |
| Lens Iris | F/1.6 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 46.4 |
| Panning | |
| Range (degree) | 0 to 350 |
| Tilting | |
| Range (degree) | 0 to 67 |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Video | Composite video |
| Expansion / Connectivity | |
| Ports | Composite video | Audio line-in/microphone | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | FCC, cULus, IK10, IP66, EAC, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 7.4 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple macOS 10.12 |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% |
