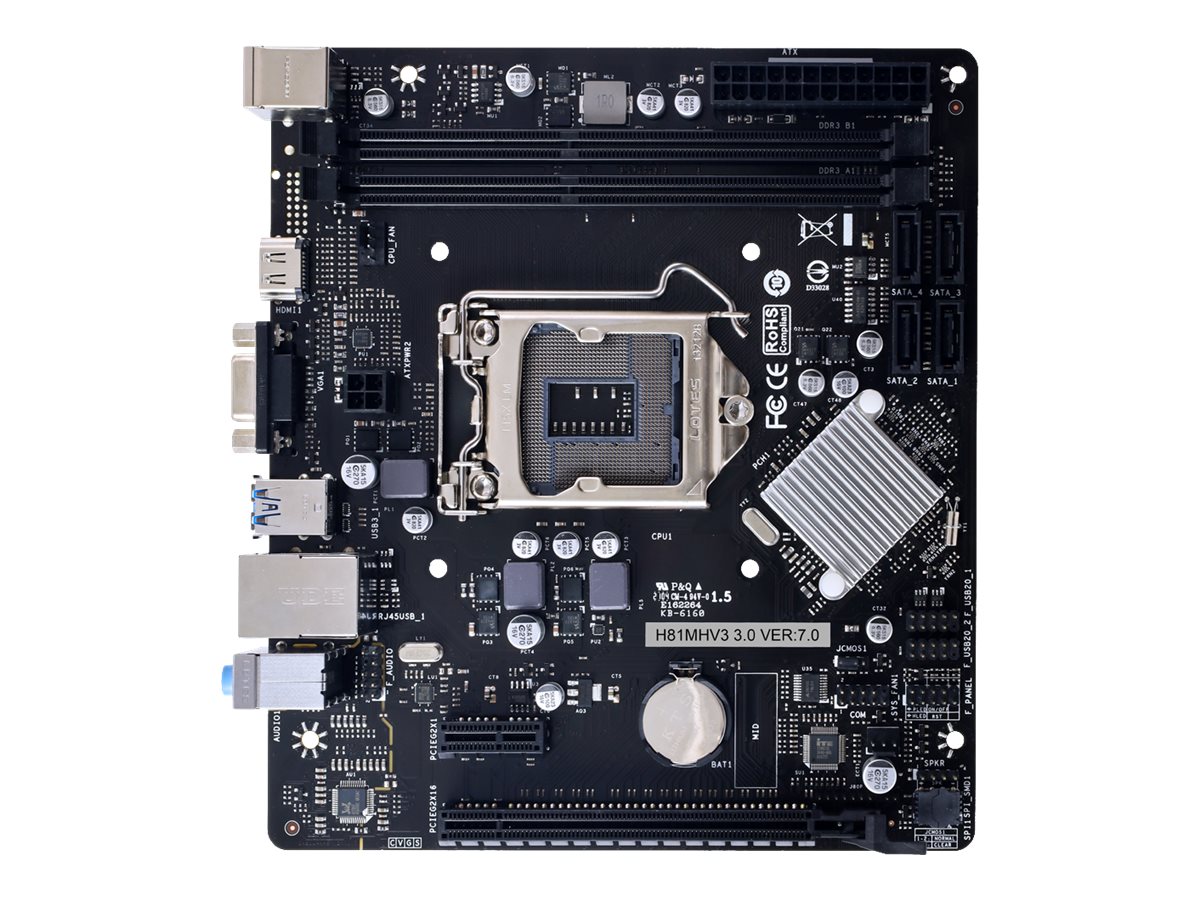

Biostar H81MHV3 3.0 Micro-ATX LGA1150 Intel H81
Biostar H81MHV3 3.0 - Bundkort - micro ATX - LGA1150 sokkel - H81 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (6-kanaler)
702,00 SEK
561,60 SEK excl. VAT
-
Product no 1000443764
Model H81MHV3 3.0
Brand Biostar
EAN 4712960685598
Weight 0.56 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Biostar H81MHV3 3.0 - bundkort - micro ATX - LGA1150 sokkel - H81 |
| Produkttype | Bundkort - micro ATX |
| Chipsættype | Intel H81 |
| Processor-socket | 1 x LGA1150 sokkel |
| Kompatible processorer | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Max RAM-størrelse | 16 GB |
| RAM understøttet | 2 DIMM slots - DDR3, DDR3L, ikke-ECC |
| Lagringsporte | 2 x SATA-600, 2 x SATA-300 |
| USB / FireWire porte | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (4 x USB 2.0 via samlekasser) |
| Audio | HD Audio (6-kanaler) |
| LAN | Gigabit Ethernet |
| General | |
|---|---|
| Chipset Type | Intel H81 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Max Processors Qty | 1 |
| Processor Socket | LGA1150 Socket |
| Product Type | Motherboard - micro ATX |
| Supported RAM | |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Features | Dual channel memory architecture |
| Max Size | 16 GB |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR3, DDR3L |
| Audio | |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (6-channel) |
| LAN | |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU | 2 x DIMM 240-pin | 1 x PCIe 2.0 x16 | 1 x PCIe 2.0 x1 |
| Interfaces | 2 x USB 3.2 Gen 1 | 2 x USB 2.0 | 1 x HDMI | 1 x VGA | 1 x LAN (Gigabit Ethernet) | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-in - mini-jack | 1 x PS/2 keyboard | 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header | 1 x serial - header | 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices | SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Features | |
| Hardware Features | HDCP compliant, ESD Protection, overcurrent protection, overvoltage protection, overheat protection, Moistureproof PCB, Super Durable Solid Caps, 4K2K resolution support, BIO-FLASHER |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 19 cm |
| Included Accessories | I/O back plate |
| Software Included | Drivers & utilities, BIO-Remote2, Smart Speed LAN |
| Width | 17 cm |
