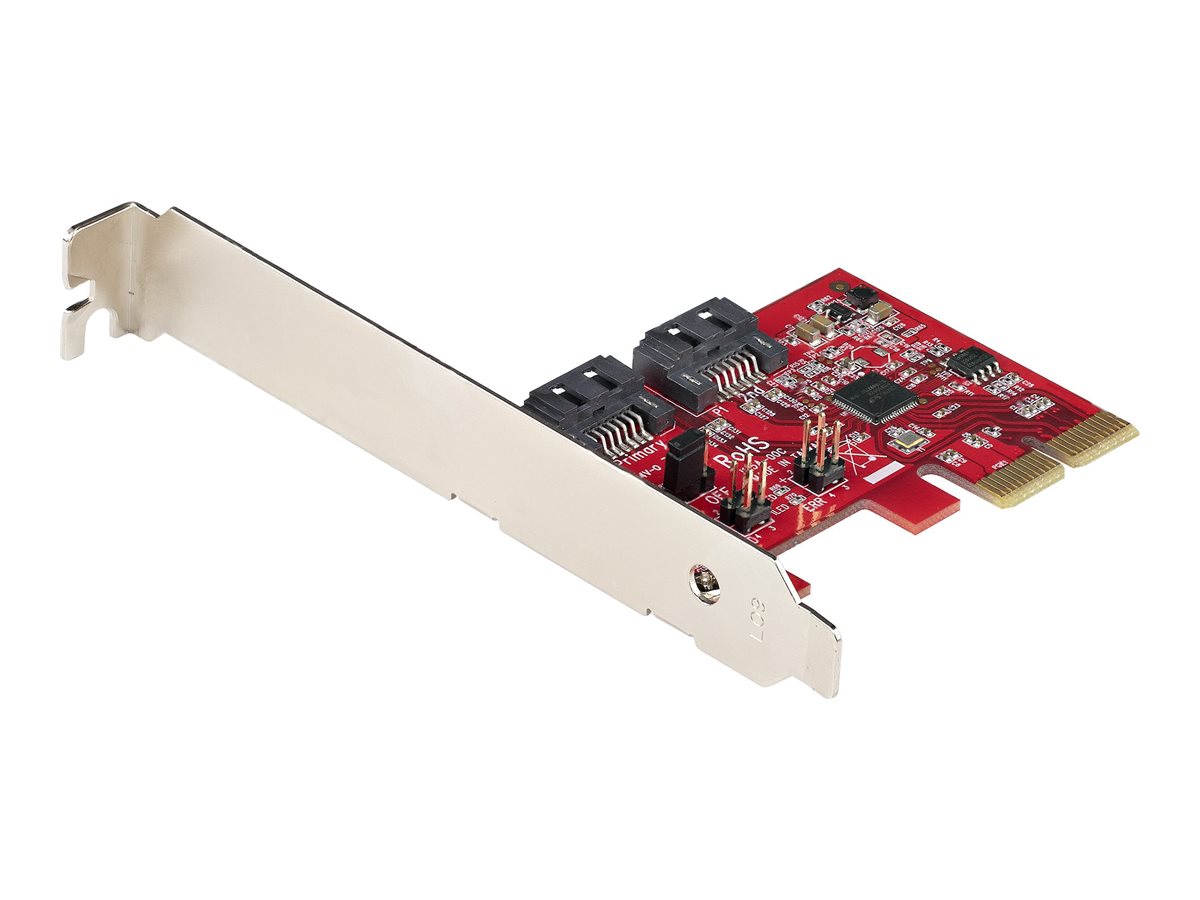

StarTech.com 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1062R SATA RAID - PCIe to SATA Converter Lagringskontrol
StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion card, 6Gbps SATA Card, Full/Low Profile, PCI Express to SATA Adapter, ASM1062R SATA RAID Controller Card - PCIe to SATA Converter - Lagringskontrol - SATA 6Gb/s - lavprofil - RAID 0, 1, JBOD - PCIe 2.0 x2 - rød
680,00 SEK
544,00 SEK excl. VAT
-
Product no 999862722
Model 2P6GR-PCIE-SATA-CARD
Brand StarTech.com
EAN 0065030893169
Weight 0.126 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | StarTech.com SATA PCIe Card, 2 Port PCIe SATA Expansion card, 6Gbps SATA Card, Full/Low Profile, PCI Express to SATA Adapter, ASM1062R SATA RAID Controller Card - PCIe to SATA Converter - lagringskontrol - SATA 6Gb/s - PCIe 2.0 x2 |
| Enhedstype | Lagringskontrol - indstikskort - lavprofil |
| Bustype | PCIe 2.0 x2 |
| Farve | Rød |
| Interface | SATA 6Gb/s |
| Dataoverførselshastighed | 6 Gbit/s |
| Understøttede enheder | Harddisk, solid state drev |
| RAID-niveau | RAID 0, RAID 1, JBOD |
| Systemkrav | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple MacOS X 10.10 eller nyere, Linux 2.6.32 eller nyere, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Dimensioner (B x D x H) | 2.2 cm x 6.9 cm x 12.1 cm |
| Vægt | 35 g |
| Producentgaranti | Begrænset livtidsgaranti |
| General | |
|---|---|
| Color | Red |
| Device Type | Storage controller - plug-in card - low profile |
| Host Bus | PCIe 2.0 x2 |
| Storage Controller | |
| Data Transfer Rate | 6 Gbit/s |
| Interface | SATA 6Gb/s |
| Processor | ASMedia ASM1062R |
| RAID Level | RAID 0, RAID 1, JBOD |
| Supported Devices | Hard drive, solid state drive |
| Expansion / Connectivity | |
| Interfaces | 2 x SATA 6Gb/s - SATA (internal) |
| Miscellaneous | |
| Compliant Standards | Plug and Play, RoHS |
| Features | Support port multiplier, S.M.A.R.T. support, TRIM support, 4Kn drive compatible, bootable, ATAPI support |
| Included Accessories | Low-profile bracket |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, Linux 2.6.32 or later, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 8.1 / 10 / 11 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Dimensions & Weight | |
| Depth | 6.9 cm |
| Height | 12.1 cm |
| Weight | 35 g |
| Width | 2.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 126 g |
| Shipping Width | 14.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
