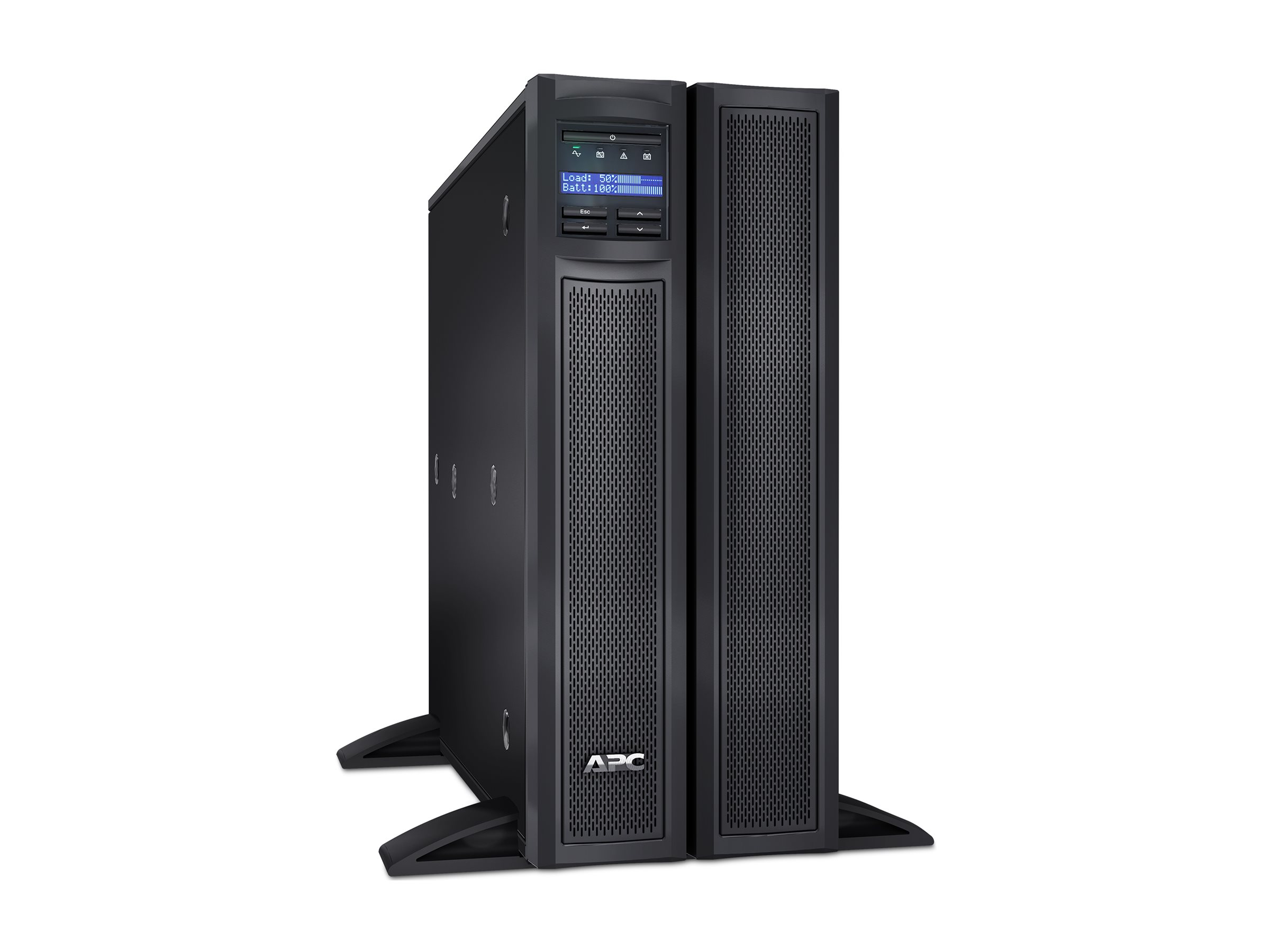

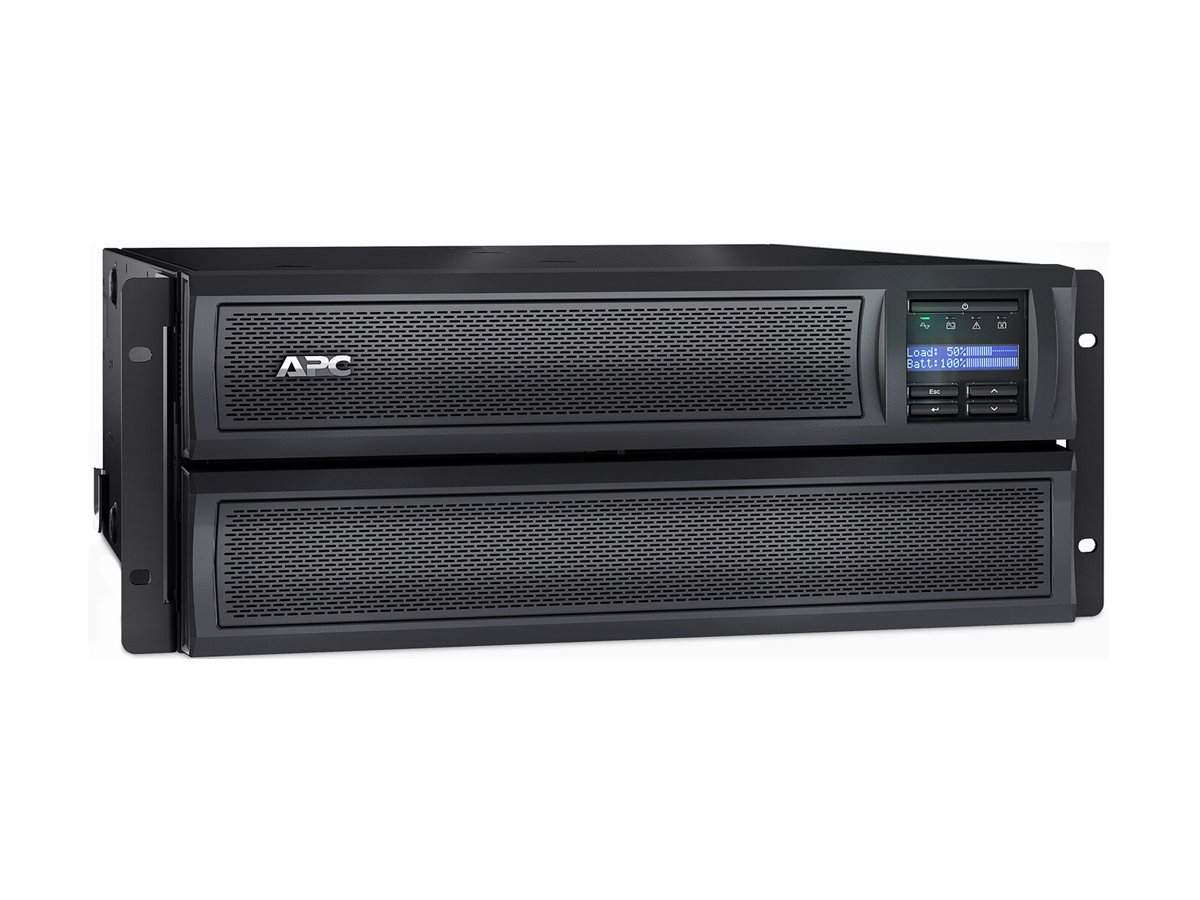

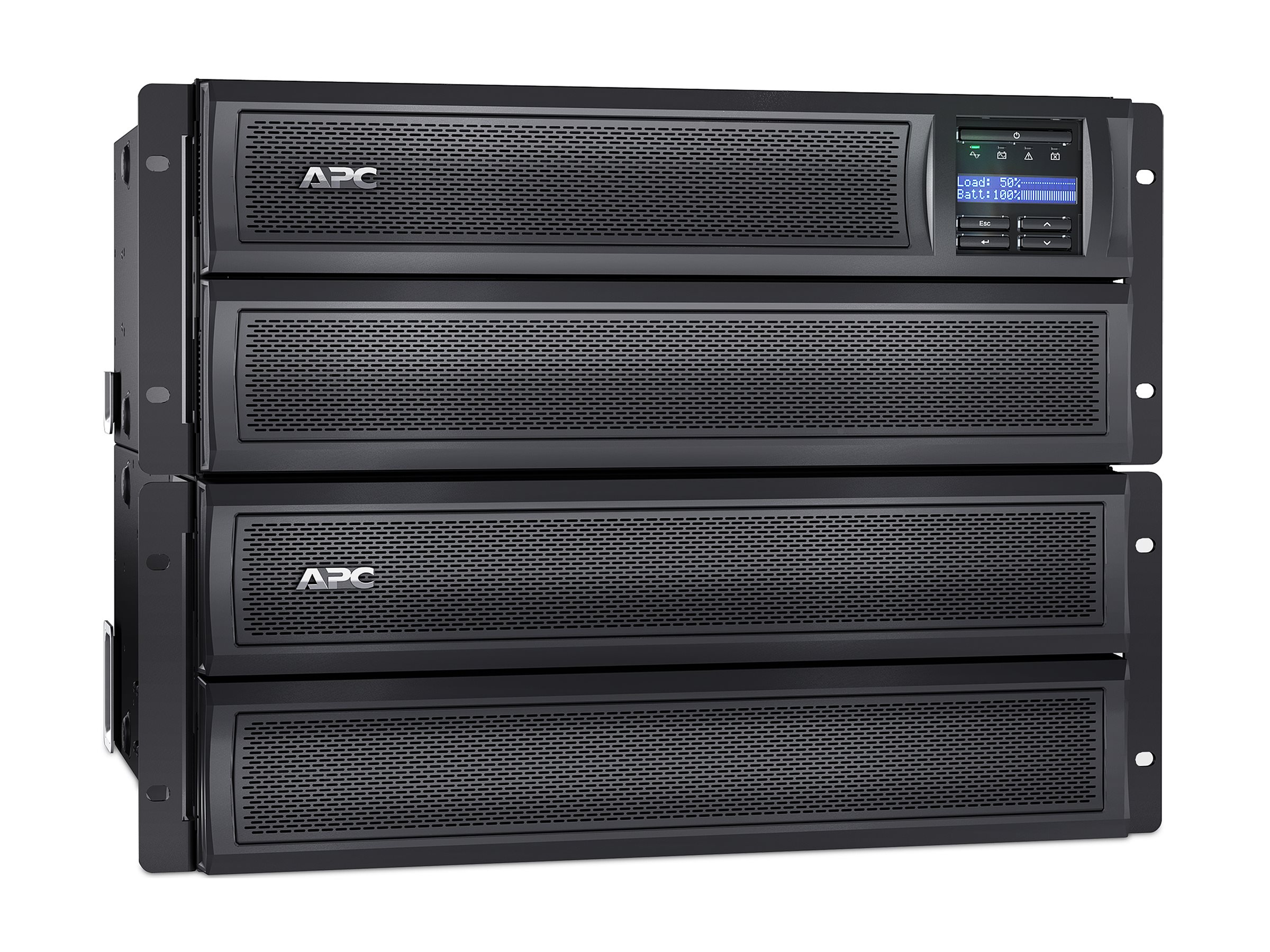

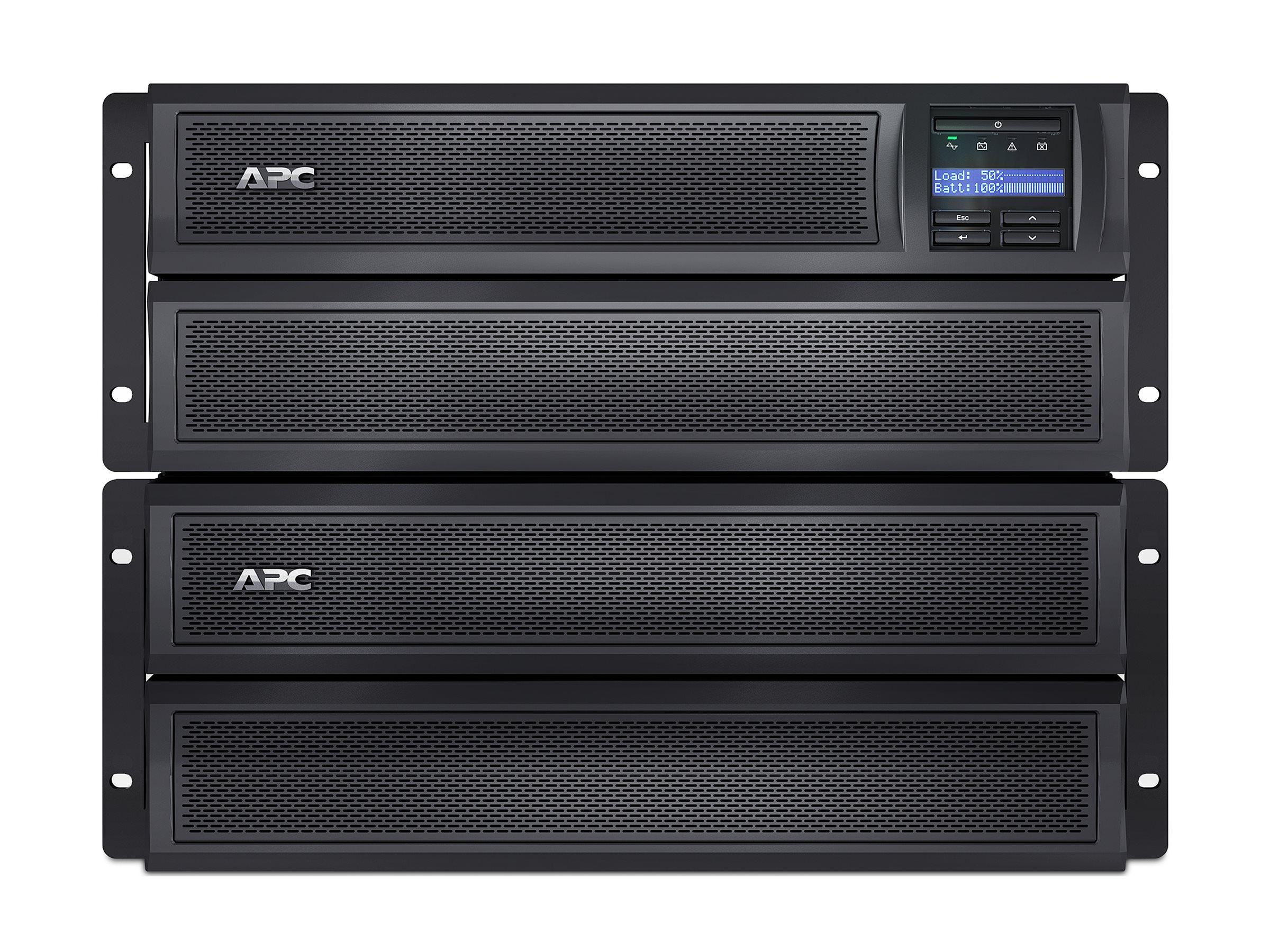

APC Smart-UPS X 3000 Rack/Tower LCD UPS

APC Smart-UPS X 3000 Rack/Tower LCD - UPS (stativ-monterbar / ekstern) - AC 208/230 V - 2700 Watt - 3000 VA - 1-faset - RS-232, USB - output-stikforbindelser: 12 - 4U - sort - APC Take-Back

28 679,00 SEK 22 943,20 SEK excl. VAT

Dette produkt er en del af Smart-UPS-serien, et intelligent og effektivt netværksstrømbeskyttelse, fra basis- til skalerbar kørselstid. Denne førsteklasses og pålidelige linjeinteraktive UPS på 3000 VA/2700 W leverer ren sinusbølge og skalerbar kørselstid til kritiske anvendelser. Den konvertible 4U-rack/tower-SMX har et valgfrit netværksstyringskort til netværksbaseret overvågning og PowerChute Business Edition til uovervåget nedlukning. UPS'en leveres med udskiftelige batterier (op til 10), som giver mere kørselstid under længerevarende strømafbrydelser. Den leveres med BS1363A British, IEC 320 C20, Schuko CEE 7/EU1-16P input, 8x IEC 320 C13 og 2x IEC 320 C19 outlets og 2x IEC jumper kabel. UPS'en har 3 års garanti, og det indbyggede blybatteri har 2 års garanti. Dens mål er 483 mm (dybde) x 432 mm (højde) x 178 mm (bredde) og vejer 38,64 kg. Ideel til serverrum, netværksskabe, virksomheds-VoIP, datastorage og NAS (Network Attached Storage) samt små datacentre. Den er i overensstemmelse med EAC, CE, IRAM, RCM, TISI og VDE, EN/IEC -1/-2.

  • Product no 527169

    Model SMX3000HV

    Brand APC

    EAN 0731304292616

    Weight 63 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse APC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 Watt - 3000 VA
Enhedstype UPS - stativ-monterbar / ekstern
Rackstørrelse 4U
Vægt 38.64 kg
Indgangskabler 1-faset
Indgangspænding AC 208/230 V
Udgangspænding AC 208/230 V
Strømkapacitet 2700 Watt / 3000 VA
Input-stik 1 x strøm IEC 60320 C20
Output-stikforbindelser 8 x power IEC 60320 C13<br>2 x IEC-lus<br>2 x strøm IEC 60320 C19
Batteri Blysyre
Antal batterier 1
Driftstid (op til) 6.3 min ved fuld belastning
Netværk RS-232, USB
Farve Sort
Pristype APC Take-Back
Dimensioner (B x D x H) 17.8 cm x 48.3 cm x 43.2 cm
Producentgaranti 3 års garanti
General
Color Black
Device Type UPS - rack-mountable / external
Height (Rack Units) 4U
Power Device
Circuit Protection Circuit breaker
Efficiency 98.5%
Frequency Provided 47 - 63 Hz
Frequency Required 47 - 63 Hz
Input Connectors 1 x power IEC 60320 C20
Input Voltage AC 230 V
Input Voltage Range AC 140 - 280 V
Output Voltage AC 230 V 47 - 63 Hz
Output Waveform Sinewave
Power Capacity 2700 Watt / 3000 VA

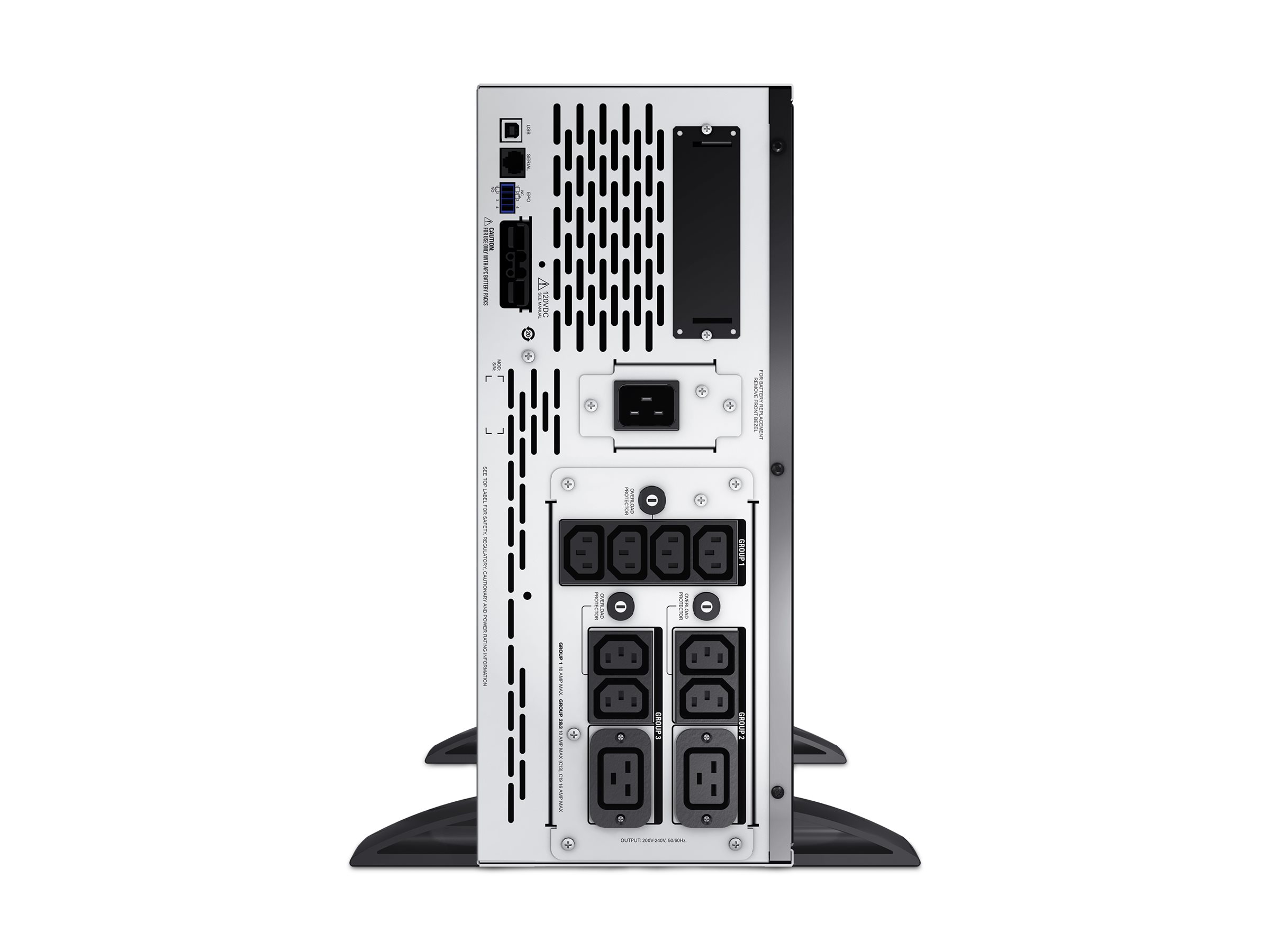

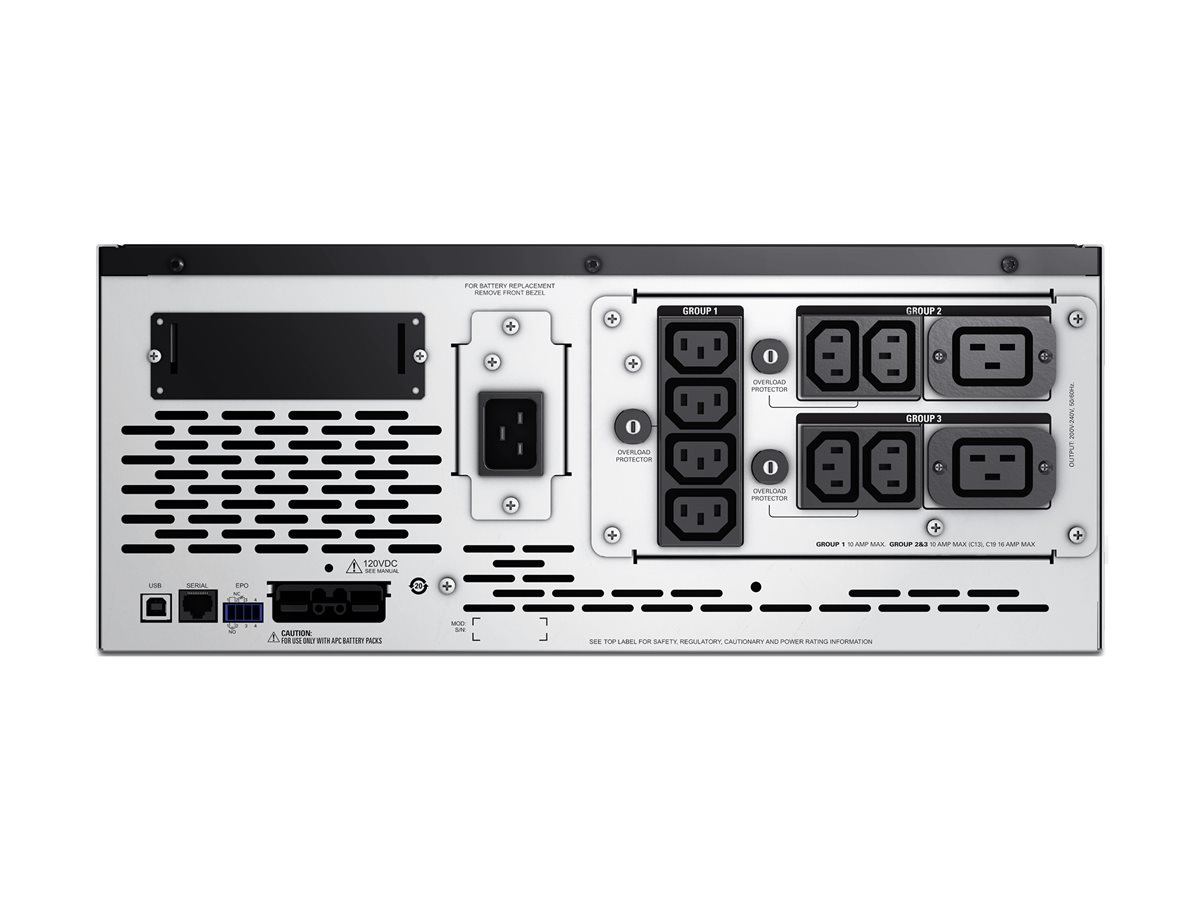

Power Output Connectors Details 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19
Surge Energy Rating 645 Joules
Surge Suppression Yes
UPS Technology Line interactive
Battery
Quantity 1
Recharge Time 3 hours
Run Time (Up To) 6.3 min at full load | 15.7 min at half load
Technology Lead acid
Networking
Remote Management Interface RS-232, USB
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x SmartSlot
Interfaces 1 x USB | 1 x RS-232 | 1 x EPO (emergency power off)
Miscellaneous
Cables Included Serial cable | USB cable | Power cable 1.83 m
Compliant Standards CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH
Features Audible alarm, LCD display, overload protection
Rack Mounting Kit Included
Software / System Requirements
Software Included APC PowerChute Business Edition
Manufacturer Warranty
Service & Support Limited warranty - 3 years | Limited warranty - batteries - 2 years
Environmental Parameters
Humidity Range Operating 0 - 95%
Max Operating Temperature 40 °C
Min Operating Temperature 0 °C
Sound Emission 55 dBA
Dimensions & Weight
Depth 48.3 cm
Height 43.2 cm
Weight 38.64 kg
Width 17.8 cm
Dimensions & Weight (Shipping)
Shipping Depth 63.3 cm
Shipping Height 33 cm
Shipping Weight 47.73 kg
Shipping Width 58.6 cm
Compatibility Information
Designed For P/N: ACDC2513, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3140G, AR3
