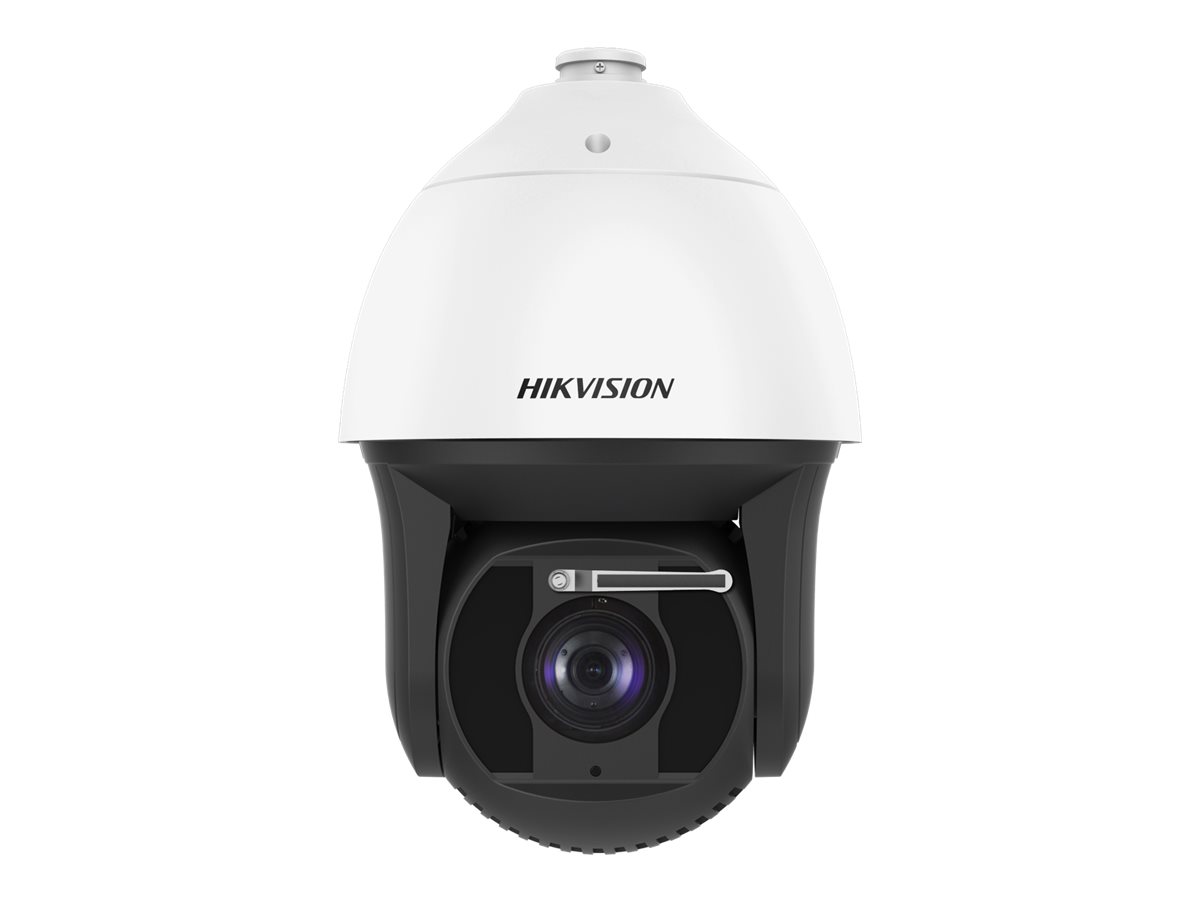

Hikvision Ultra Series DarkFighter DS-2DF8225IX-AELW(T5) Netværksovervågningskamera 1920 x 1080
Hikvision Ultra Series DarkFighter DS-2DF8225IX-AELW(T5) - Netværksovervågningskamera - PTZ - kanontårn - farve (Dag/nat) - 2 MP - 1920 x 1080 - motoriseret - audio - komposit - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+ - AC 24 V / høj PoE
15 810,00 SEK
12 648,00 SEK excl. VAT
-
Product no 999703926
Model DS-2DF8225IX-AELW(T5
Brand Hikvision Digital Te
EAN 6931847134464
Weight 8 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Hikvision Ultra Series DarkFighter DS-2DF8225IX-AELW(T5) - netværksovervågningskamera - kanontårn |
| Enhedstype | Netværksovervågningskamera - pan / tilt / zoom - kanontårn |
| Audio | Ja |
| Dimensioner (B x D x H) | 26.66 cm x 26.66 cm x 41 cm |
| Vægt | 8 kg |
| Connectivity teknologi | Med ledning |
| Kamera | Farve - Dag/nat - NTSC, PAL |
| Optisk zoom | 25 x |
| Maksimum opløsning | 1920 x 1080 |
| Billedhastighed (maks.) | 30 frames pr. sekund |
| Bevægelsesdetektion | Ja |
| Billedsensortype | PS CMOS - 1/1.8" - 2 MP |
| Minimumbelysning | 0.002 lux - farve - F1.5 - AGC on<br>0.0002 lux - S/H - F1.5 - AGC on<br>0 lux - IR |
| Brændviddekontrol | Motoriseret zoom |
| Brændvidde | 5.9 mm - 147.5 mm |
| Fokusindstilling | Automatisk, manuel |
| Poanoreringsvinkel (grad) | 360 |
| Krængningsvinkel (grad) | -20 til +90 |
| Interface | Kompositvideo, Ethernet 10Base-T/100Base-TX |
| Kontrolgrænseflade | RS-485 |
| Spænding | AC 24 V / høj PoE |
| Egenskaber | Backlight Compensation (BLC), skarphedskontrol, hvidbalance, progressiv scanning, mætningskontrol, lysstyrkekontrol, kontrastkontrol, Wide Dynamic Range (WDR), ansigtsregistrering, infrarød skære filter, Highlight Compensation (HLC), Elektronisk billedstabilisator (EIS), strømstødsbeskyttelse, pille-detektion, Smart IR, kodeordsbeskyttelse, lynresistent, tredobbelt video-stream, indtrængningsdetektion, 300 forudindstillede positioner, Pelco Protocol, audioundtagelsesdetektion, ONVIF (Profil S) support, ONVIF (Profile G) support, objektaftagelsesdetektion, Nummerpladegenkendelse (LPR), Line Crossing Detection, vandmærke, Internet Server Application Programming Interface (ISAPI), DORI-dækning, detektion af bagage uden opsyn, Vehicle Detection, IP-adressefiltrering, 3D digital støjreduktion (DNR), regionudgangsdetektion, regionindgangsdetektion, smart-sporing, 8 patruljer, 4 mønsterscanninger, regional eksponering, Power-off Memory, ONVIF (Profile T) support, 3D Positioning, PTZ Position Display, Scalable Video Coding (SVC), vandalsikker alarm, køretøjsmodelgenkendelse, køretøjsfarvegenkendelse, Parking Detection, styrkekontrol |
| Miljømæssige parametre (operativ) | -40 °C - 70 °C; 0 - 95% relativ luftfugtighed |
| General | |
|---|---|
| Audio Formats | PCM, G.726, G.722.1, MP2L2, G.711a, G.711u |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 26.66 cm |
| Device Type | Network surveillance camera |
| Form Factor | Turret |
| Height | 41 cm |
| Weight | 8 kg |
| Width | 26.66 cm |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Digital Zoom | 16 |
| Exposure Range | 1/1 sec - 1/30000 sec |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), face detection, infrared cut filter, Highlight Compensation (HLC), Electronic Im |
| Infrared Distance | 400 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination | 0.002 lux - color - F1.5 - AGC on | 0.0002 lux - B&W - F1.5 - AGC on | 0 lux - IR |
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Capture | 1920 x 1080, 50 Hz @ 25 fps | 1280 x 960, 50 Hz @ 25 fps | 1280 x 720, 50 Hz @ 25 fps | 1920 x 1080, 60 Hz @ 30 fps | 1280 x 960, 60 Hz @ 30 fps | 1280 x 720, 60 Hz @ 30 fps |
| Video Format | NTSC, PAL |
| Image Sensor | |
| Type | 2 MP PS CMOS 1/1.8" |
| Lens Construction | |
| Diagonal Field of View (degree) | 3.8 - 65 |
| Focal Length | 5.9 mm - 147.5 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 3.3 - 59.8 |
| Optical Zoom | 25 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.9 - 33.7 |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 280 |
| Tilting | |
| Range (degree) | -20 to +90 |
| Speed (degree/sec) | Up to 250 |
| Interfaces | |
| Alarm Inputs Qty | 7 |
| Alarm Outputs Qty | 2 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, RTCP, PPPoE, SMB, IGMP, QOS, CIFS, NFS |
| Video | Composite video |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 | Audio line in | Audio line out | Composite video output - BNC | Serial RS-485 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Compliant Standards | UL, IEC 60529 IP67, CB, IC, RoHS, WEEE, FCC CFR47 Part 15 B, REACH, LVD, KC, RCM, BIS, EN 61000-3-3:2013, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, IS13252-1 (2010)/A1:2013/A2:2015, AS/NZS CISPR 32:2015, EN 50130-4:2011+ |
| Power | |
| Power Device | 60 Watt |
| Power Requirements | AC 24 V / High PoE |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% |
