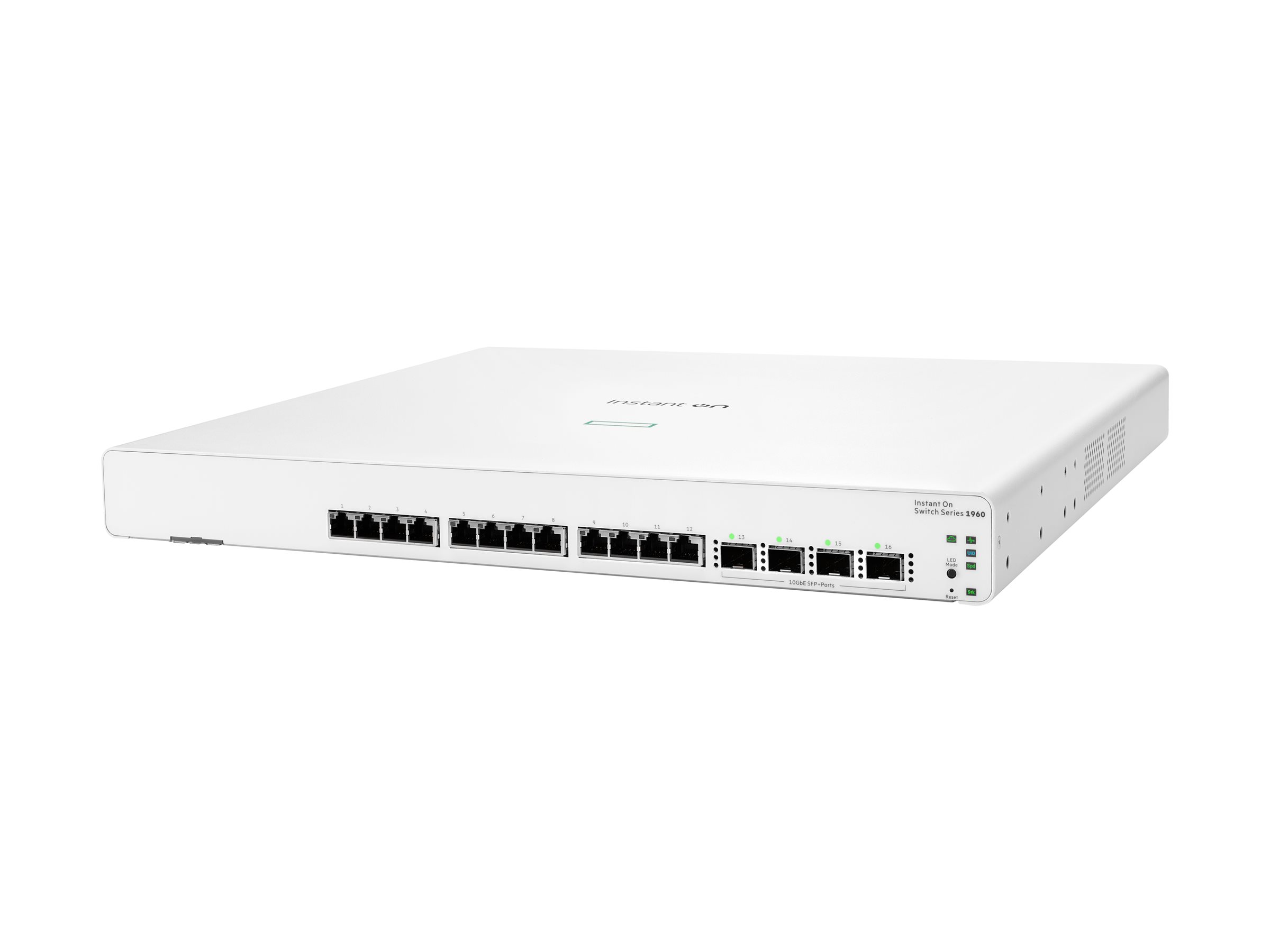

HPE Aruba Instant On 1960 12XGT 4SFP Switch 12-porte 10 Gigabit
HPE Networking Instant On 1960 12XGT 4SFP+ Switch - Switch - L2+ - smart - 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ - monterbar på stativ - BTO
23 460,00 SEK
18 768,00 SEK excl. VAT
-
Product no 1000261662
Model JL805A#ABB
Brand Aruba Networks
EAN 0190017521770
Weight 4.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | HPE Networking Instant On 1960 12XGT 4SFP+ Switch - switch - 12 porte - smart - monterbar på stativ |
| Enhedstype | Switch - 12 porte - L2+ - smart - kan stables |
| Pakningstype | Monterbar på stativ 1U |
| Undertype | 10 Gigabit Ethernet |
| Porte | 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ |
| Præstation | Latens (100 Mbps): 7.4 µs<br>Latens (1 Gbps): 4.2 µs<br>Latens (10 Gbps): 1.1 µs<br>Kapacitet: 238 Mpps<br>Omkoblingskapacitet: 320 Gbps |
| Kapacitet | IPv4 indtastning i routing-tabel: 512<br>IPv6 indtastning i routing-tabel: 512 |
| MAC adresse table størrelse | 16.000 indlæg |
| Jumborammesupport | 9216 byte |
| Routingprotokol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, statisk IPv4 routing |
| Protokol til fjernadministration | RADIUS, SNMP 1, SNMP 2c, SNMP 3, HTTP, HTTPS, SCP, TFTP, RMON |
| Egenskaber | Sky-administreret, ACL support, VLAN-understøttet, DoS attack beskyttelse, DHCP klient, firmware kan opgraderes, SNTP-understøttet, QoS, DSCP-prioritering, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, datatransport, MSTP support, RSTP support, STP support, anti-stemme-VLAN, portspejling, BPDU Filter, løkkebeskyttelse, IGMP snooping, MDL snooping, TPM, LLDP-MED, portbaseret adgangsstyring, Port Security, DHCP snooping, IP-kildebekyttelse, ARP-filtrering, Unicast Storm Control, Broadcast Storm Control, Multicast Storm Control, Energy Efficient Ethernet, DHCP videresendelse, DHCP server, IPv6 understøttet, indgangshastighedsbegrænsning, DNS-klient, beskyttede porte, dobbelt billedsupport, ICMP, Cable Diagnostics Function |
| Overensstemmelsesstandarder | IEEE 802.1x, IEEE 802.3u, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac, IEEE 802.3 |
| Effekt | AC 100-240 V (50/60 Hz) |
| Dimensioner (B x D x H) | 44.25 cm x 35.05 cm x 4.395 cm |
| Vægt | 4.3 kg |
| Lokalisering | Engelsk / Europa |
| Pristype | BTO |
| Producentgaranti | Begrænset livtidsgaranti |
HPE Networking Instant On Switch 12p 10GBT 4p SFP+ 1960
HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
High-level Gigabit with 10 GbE Networking for Advanced Small Businesses
- Each model of the HPE Networking Instant On Switch 1960 series includes four 10 GbE connections to connect to servers, network storage devices, or to other switches.
- Two connections of 10 GBASE-T deliver 10 GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
- With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
Simplify Network Deployment and Management for Small Organizations
- The HPE Networking Instant On Switch 1960 series is a complete portfolio for increased small business flexibility. It consists of six models including two 24-port and two 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch.
- The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices.
- The HPE Networking Instant On Switch 1960 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch.
- The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
Ease of Use with Cloud-Managed Stacking
- The HPE Networking Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four HPE Networking Instant On Switch 1960 switches and manage as a single entity.
- The HPE Networking Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely.
- Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
Robust Security to Protect Your Network
- The HPE Networking Instant On Switch 1960 series lets you use VLANs and Access Control Lists (ACL) to set bounds on what data can be seen by which users.
- Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
- Supports automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Specifications
| TechnicalSpecifications | |
|---|---|
| Ports | 12 RJ-45 autosensing 1000/10 GBASE-T ports (IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T) Duplex: 100 BASE-TX: half or full 1000 BASE-T: full only 10 GBASE-T: full only 4 SFP+ 10GbE ports |
| Memory and processor | Single-Core ARM v7 Cortex-A9 @800 MHz 1 GB DDR3 512 MB NAND flash Packet buffer size: 1.5 MB |
| Throughput | 238 Mpps |
| Switching capacity | 320 Gbps |
| Stacking capabilities | 4H height |
| Management features | HPE Networking Instant On Cloud Web browser SNMP Manager |
| Input voltage | 100-127VAC / 200-240VAC |
| Power consumption | Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W |
| Product dimensions (metric) | 35.05 x 44.25 x 4.4 cm |
| Weight | 4.3 kg |
