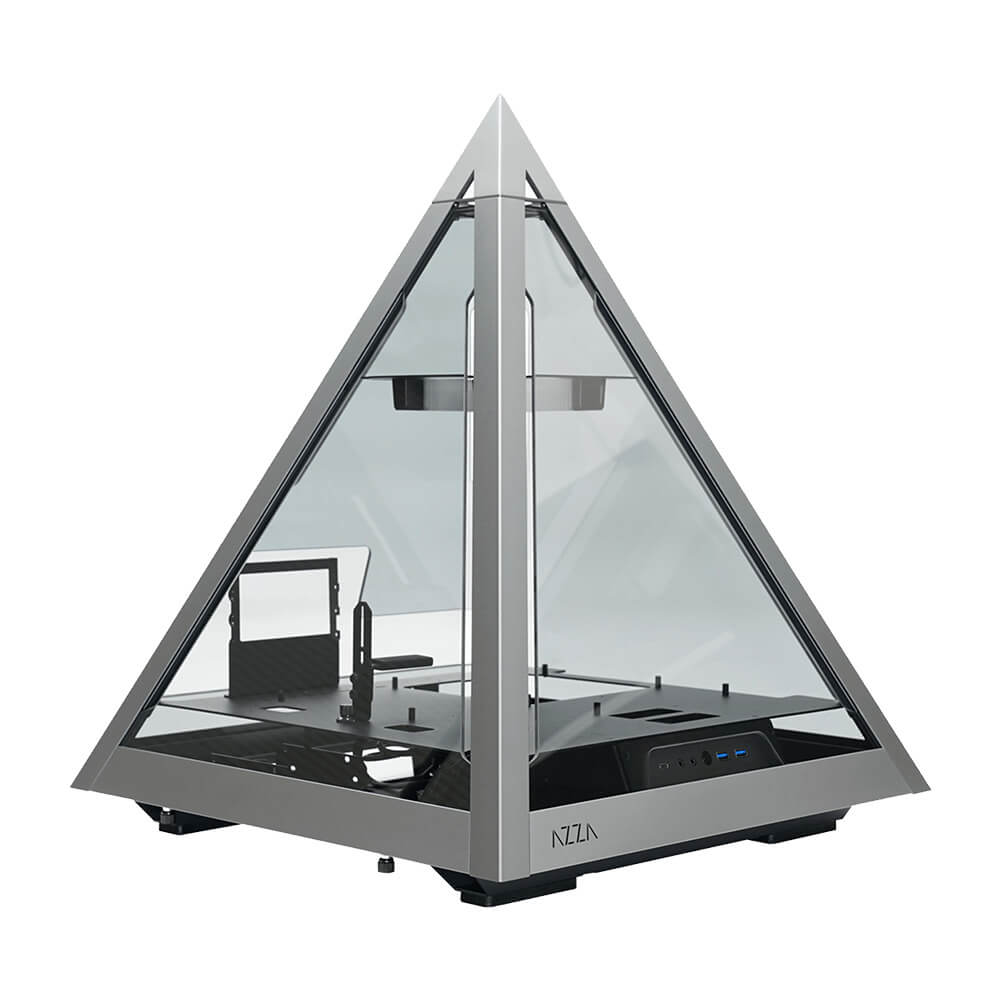

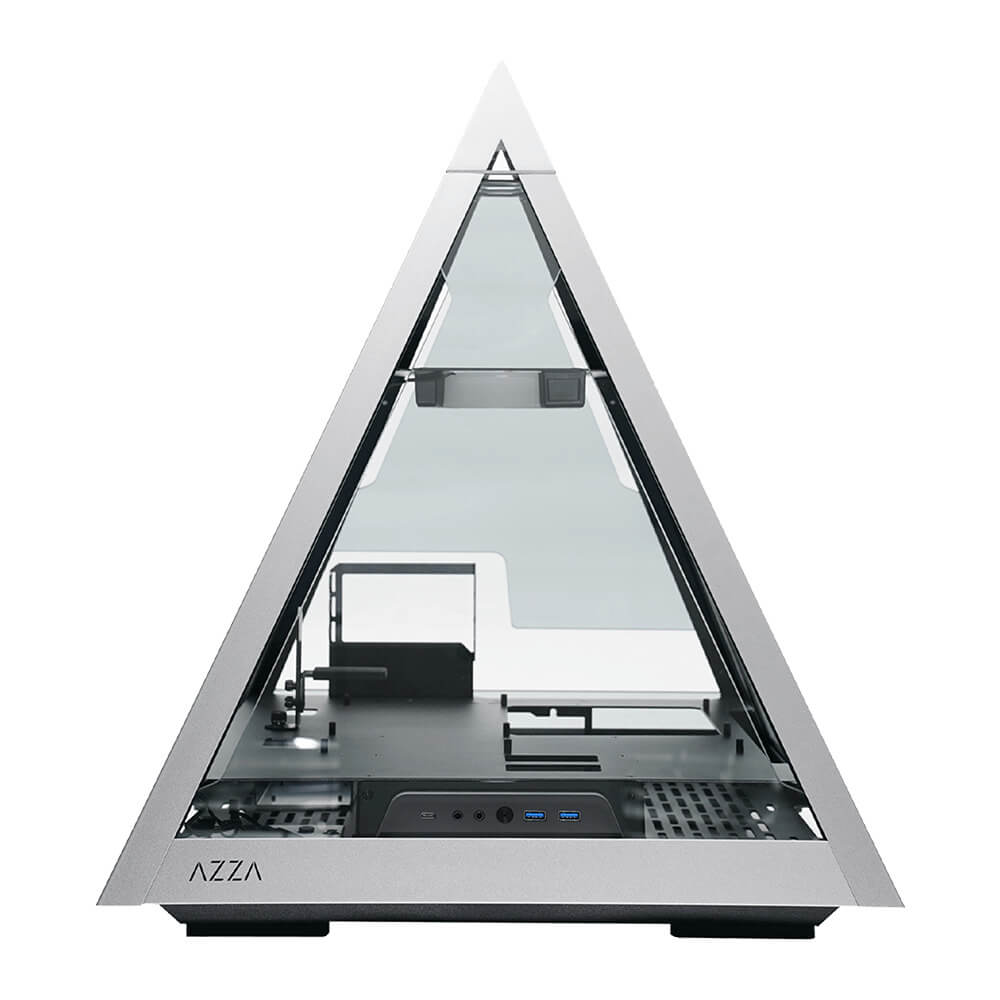

AZZA Pyramid 804L RGB Mid-Tower Kabinet sort/grå
Mid-tower, ATX, ingen strømforsyning, front med USB 3.0 x 2 + USB-C x 1 + HD Audio, 1 x 3.5" + 2 x 2.5" drev pladser, vandkøling: op til 360mm radiator i bunden, max grafikkortlængde: 330 mm, medfølgende kabinetkølere: 1 x ARGB 120mm, sort/grå
-
Product no 998080857
Model CSAZ-804L
Brand AZZA
EAN 4712839551603
Weight 18.5 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktnavn | Pyramid 804L |
| Kabinet formfaktor | Mid-Tower |
| Motherboard kompatibilitet | E-ATX (<300 mm), ATX, Micro ATX, ITX |
| Dimensioner (H x B x D) | 585 x 490 x 490 mm |
| I/O Panel | Power button, HD Audio, USB 3.0 x2, USB-C x1 |
| 3.5" interne slots | 1 |
| 2.5" interne slots | 2 |
| Expansion slots | 3 |
| Blæser understøttelse | 1x 120 mm blæser i toppen, 6x 120 mm blæsere i bunden |
| Maks antal blæsere | 7 |
| Vandkøling understøttelse | Understøtter op til 360 mm radiator i bunden |
| Maks grafikkortlængde | 330 mm |
| Maks CPU kølerhøjde | 95 mm |
| PSU-understøttelse | ATX PSU |
| Vægt | 14,1 kg |
| General | |
|---|---|
| Color | Gray |
| Cooling System | Top: 120/140 mm fan x 1 / AZZA Hurricane III ARGB fan | Bottom: 120 mm fan mount x 5 |
| CPU Cooler Max Height | 95 mm |
| Form Factor | Pyramid enclosure |
| Internal Bays Qty | 3 |
| Max Mainboard Size | Extended ATX |
| Product Material | Anodized aluminum, tempered glass |
| Supported Motherboards | ATX, microATX, Mini-ITX, Extended ATX |
| System Cabinet Features | Supports 360 mm radiator in bottom, supports 120/140 mm fans, 4 tempered glass side panels |
| Video Card Max Length | 330 mm |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" | 1 (total) / 1 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 3 |
| Interfaces | 2 x USB 3.0 | 1 x USB 3.0 - USB-C | 1 x headphones - mini-jack | 1 x microphone - mini-jack |
| Miscellaneous | |
| Included Accessories | PCIe extension cable (20 cm), adjustable video card holder |
| Power | |
| Max Supported Qty | 1 |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 58.5 cm |
| Weight | 14.1 kg |
| Width | 49 cm |
