Product no 995958250
Model FCS-5212
Brand LevelOne
EAN 4015867229569
Weight 2.25 kg

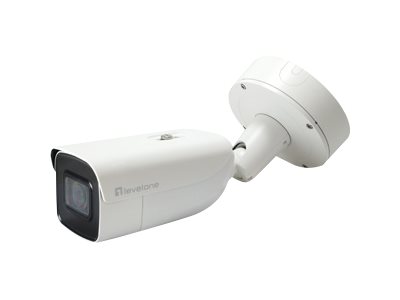

Produktbeskrivelse | LevelOne GEMINI series FCS-5212 - netværksovervågningskamera |
Enhedstype | Netværksovervågningskamera - fast - udendørs, indendørs - beskyttet mod vandalisme / vejrbestandig |
Audio | Ja |
Dimensioner (B x D x H) | 14.41 cm x 33.27 cm x 14.41 cm |
Vægt | 1.893 kg |
Farve | Hvid |
Connectivity teknologi | Med ledning |
Kamera | Farve - Dag/nat |
Optisk zoom | 4.3 x |
Maksimum opløsning | 3072 x 2048 |
Billedhastighed (maks.) | 30 frames pr. sekund |
Bevægelsesdetektion | Ja |
Video Modes | 720p, 1080p |
Billedsensortype | PS CMOS - 1/2.9" - 6 MP |
Minimumbelysning | 0.01 lux - farve - F1.2 - AGC on<br>0.018 lux - farve - F1.6 - AGC on<br>0 lux - IR |
Brændviddekontrol | Motoriseret zoom |
Brændvidde | 2.8 mm - 12 mm |
Fokusindstilling | Automatisk |
Objektiv Iris | F/1.6 |
Interface | Ethernet 10Base-T/100Base-TX |
Spænding | DC 12 V / PoE klasse 4 |
Egenskaber | Backlight Compensation (BLC), skarphedskontrol, rotering af digitalbillede, progressiv scanning, mætningskontrol, lysstyrkekontrol, kontrastkontrol, spejlbillede, Wide Dynamic Range (WDR), ansigtsregistrering, infrarød skære filter, Privacy Mask Function, nulstillingsknap, kodeordsbeskyttelse, Smartphone Monitoring, tredobbelt video-stream, indtrængningsdetektion, ONVIF (Profil S) support, ONVIF (Profile G) support, objektaftagelsesdetektion, Line Crossing Detection, vandmærke, hjerteslag, anti-flimren, Internet Server Application Programming Interface (ISAPI), IP-adressefiltrering, 3D digital støjreduktion (DNR) |
Miljømæssige parametre (operativ) | -30 °C - 60 °C; 0 - 95% (ikke-kondenserende) relativ luftfugtighed |
General | |
---|---|
Audio Formats | PCM, G.726, G.711, G.722.1, MP2L2 |
Audio Support | Yes |
Connectivity Technology | Wired |
Depth | 33.27 cm |
Device Type | Network surveillance camera |
Height | 14.41 cm |
Weight | 1.893 kg |
Width | 14.41 cm |
Camera | |
Digital Video Format | MJPEG, H.264, H.265 |
Digital Zoom | 8 |
Exposure Range | 1/3 sec - 1/100000 sec |
Features | Backlight Compensation (BLC), sharpness control, digital image rotation, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Functio |
Infrared Distance | 50 m |
Infrared LEDs | Yes |
Max Digital Video Resolution | 3072 x 2048 |
Minimum Illumination | 0.01 lux - color - F1.2 - AGC on | 0.018 lux - color - F1.6 - AGC on | 0 lux - IR |
Motion Detection | Yes |
Type | Color - Day&Night - fixed - outdoor, indoor - vandal / weatherproof |
Video Capture | 3072 x 2048 @ 20 fps | 3072 x 1728 @ 20 fps | 2944 x 1656 @ 20 fps | 2560 x 1440 @ 30 fps | 1920 x 1080 @ 30 fps | 1280 x 720 @ 30 fps |
Video Modes | 720p, 1080p |
Image Sensor | |
Type | 6 MP PS CMOS 1/2.9" |
Lens Construction | |
Diagonal Field of View (degree) | 33 - 110 |
Focal Length | 2.8 mm - 12 mm |
Focus Adjustment | Automatic |
Horizontal Field of View (degree) | 27 - 88 |
Lens Iris | F/1.6 |
Optical Zoom | 4.3 x |
Type | Motorized zoom |
Vertical Field of View (degree) | 18 - 56 |
Interfaces | |
Alarm Inputs Qty | 1 |
Alarm Outputs Qty | 1 |
Network Interface | Ethernet 10Base-T/100Base-TX |
Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, Bonjour, PPPoE, IGMP, Samba |
Expansion / Connectivity | |
Ports | LAN/power - RJ-45 | Audio line out | Audio line in |
Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
Miscellaneous | |
Color | White |
Compliant Standards | FCC, IP67, IK10, IEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.1x |
Included Accessories | Screw kit |
Power | |
Power Device | 18 Watt |
Power Requirements | DC 12 V / PoE Class 4 |
Software / System Requirements | |
Software Included | Drivers & Utilities |
Environmental Parameters | |
Max Operating Temperature | 60 °C |
Min Operating Temperature | -30 °C |
Relative Humidity (operating) | 0 - 95% (non-condensing) |
