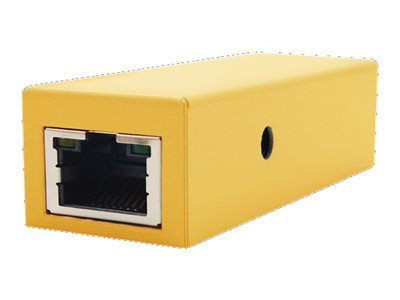

LevelOne GVT-1001 Fibermedieomformer Ethernet Fast Ethernet Gigabit Ethernet
LevelOne GVT-1001 - Fibermedieomformer - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC)
465,00 SEK
372,00 SEK excl. VAT
-
Product no 1000431404
Model GVT-1001
Brand LevelOne
EAN 4015867229293
Weight 0.15 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | LevelOne GVT-1001 - fibermedieomformer - 10Mb LAN, 100Mb LAN, 1GbE |
| Enhedstype | Fibermedieomformer - RJ-45 / SFP (mini-GBIC) |
| Model | Ekstern |
| Kabeltype | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Dataforbindelsesprotokol | 10Mb LAN, 100Mb LAN, 1GbE |
| Dimensioner (B x D x H) | 2.33 cm x 7.9 cm x 1.85 cm |
| Vægt | 56 g |
| General | |
|---|---|
| Color | Yellow |
| Device Type | Fiber media converter |
| Form Factor | External |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), USB powered, fanless, Jumbo Frames support (up to 10000 bytes) |
| Status Indicators | Link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female | 1 x Ethernet 1000Base-X - SFP |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| MTBF | 100,000 hours |
| Power | |
| Power Consumption Operational | 1.2 Watt |
| Power Device | External power adapter |
| Dimensions & Weight | |
| Depth | 7.9 cm |
| Height | 1.85 cm |
| Weight | 56 g |
| Width | 2.33 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
