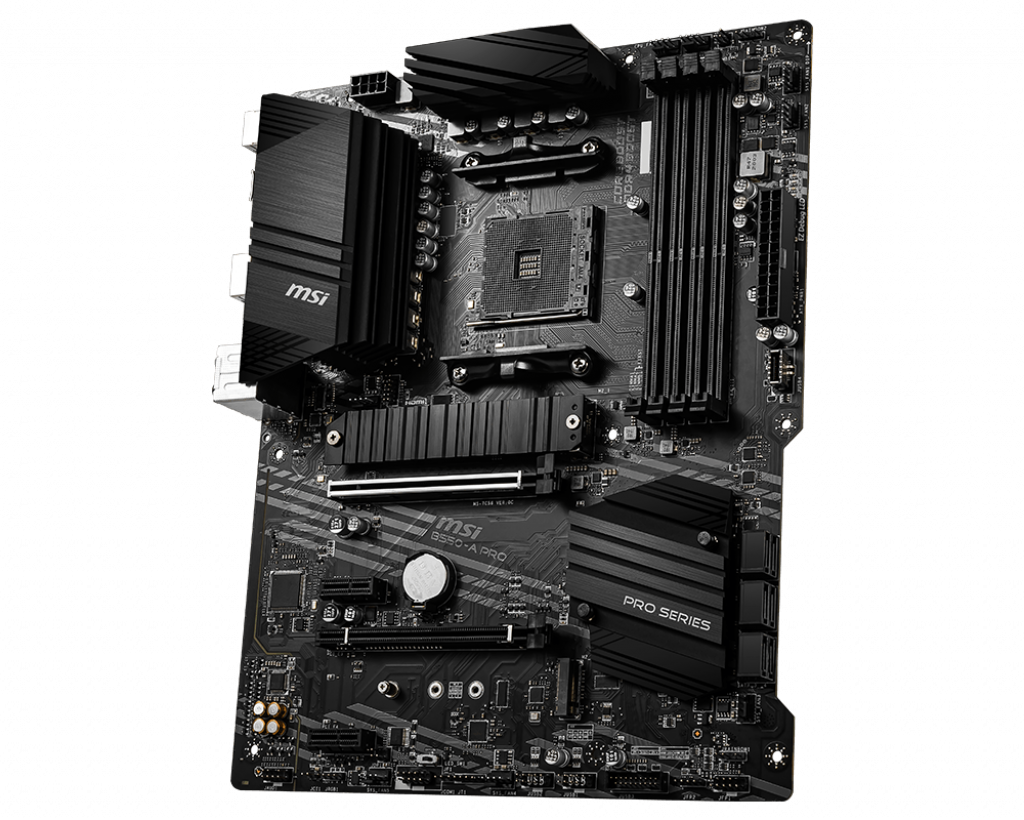

MSI B550-A PRO ATX AM4 AMD B550

MSI B550-A PRO - Bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)

SEK 1 320,00
SEK 1 056,00 excl. VAT

Shipping from SEK 39,00 (PostNord Spårbart varubrev)
Product no: 996020827
Model: B550-A PRO
EAN: 4719072733667
Brand:
Weight: 1.61 kg
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.

Specifications

Produktbeskrivelse
MSI B550-A PRO - bundkort - ATX - Socket AM4 - AMD B550
Produkttype
Bundkort - ATX
Chipsættype
AMD B550
Processor-socket
1 x Socket AM4
Kompatible processorer
Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
2 GB
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Specifications

Full specifications

General
Chipset Type
AMD B550
Compatible Processors
Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max Processors Qty
1
Processor Socket
Socket AM4
Product Type
Motherboard - ATX
Supported RAM
Bus Clock
2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Features
Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Max Size
128 GB
Registered or Buffered
Unbuffered
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Technology
DDR4
Graphics
Max Allocated RAM Size
2 GB
Audio
Audio Codec
Realtek ALC892
Compliant Standards
High Definition Audio
Type
HD Audio (8-channel)
LAN
Network Controller
Realtek RTL8111H
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4 mode (auto turn-off if M.2 is occupied)) | 2 x PCIe 3.0 x1
Interfaces
1 x LAN (Gigabit Ethernet) | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x audio line-out (side surround) - mini-jack | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-out (center/subwoofer)
Internal Interfaces
4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 | PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Features
Hardware Features
AMD CrossFireX technology support, Debug LED, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync
Miscellaneous
Cables Included
2 x Serial ATA cable
Depth
24.4 cm
Included Accessories
Case badge, I/O back cover
Software Included
Drivers & utilities
Width
30.5 cm

Product guide

PROCESSOR - Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update
CHIPSET - AMD B550 Chipset

MEMORY - 4 x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE


EXPANSION SLOT
1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots

STORAGE
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
-Supports PCIe 4.0/ 3.0 x4 1
-Supports SATA 6Gb/s
-Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
-Supports PCIe 3.0x4
-Supports 2242/ 2260/ 2280 storage devices

AUDIO - Realtek ALC892 Codec 7.1-Channel High Definition Audio

LAN
-1x Realtek RTL8111H 1Gbps LAN controller

INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

BACK PANEL PORTS
PS/2 Combo port Keyboard / Mouse
DisplayPort
LAN
HD Audio Connectors
Flash BIOS Button
USB 2.0
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A+C
